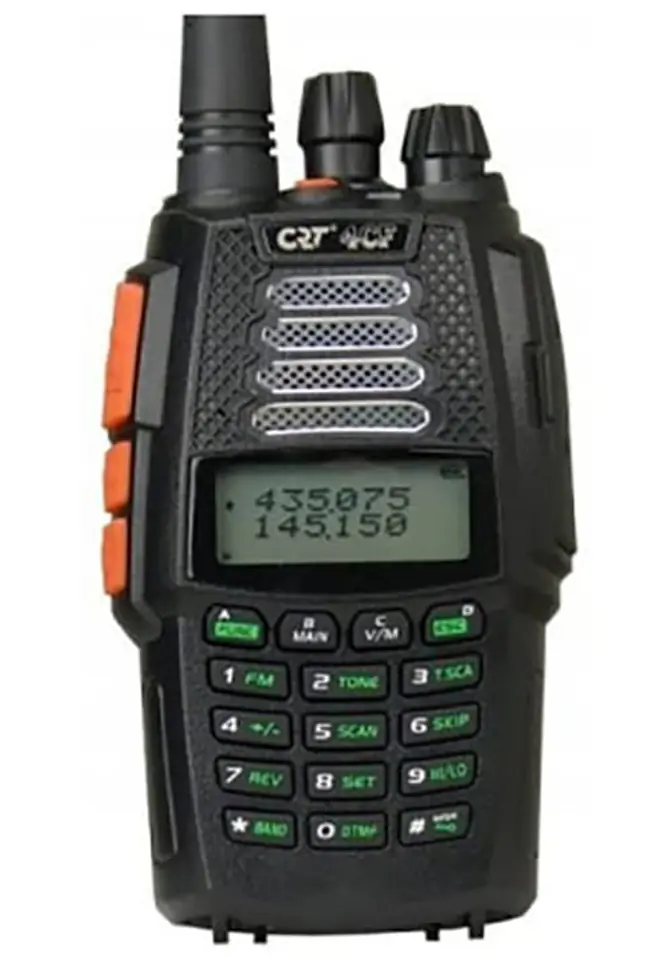

DUAL BAND VHF‐UHF
VHF 144‐146 MHz (TX‐RX)
UHF 430‐440 MHz (TX‐RX)
FM 64‐108 MHz (RX)
AM 118‐136 MHz (AIR BAND RX)
HF 2.3‐29.99 MHz (RX)
LW 0.52‐1.71 MHz (RX)
199 memories channel
TX power VHF 6W/ UHF 5W
FULL DUPLEX (with earphone)
Channel spacing 12.5‐25 KHz
Double Display
Dual receiving
Working modes : UU/UV/VU/VV
Frequency/Channel or Name Display
Frequency reverse
CTCSS/DCS Scan
CTCSS(51),DCS(1024),DTMF/2TONE/5TONE/MSK
Encode –Decode
Frequency reverse
Cross band repeater
Duplex work mode
Keypad lock
Single band switching
Frequency and channel mode
Scan and Scan speed function
Step: 2.5/5/6.25/10/12.5/20/25/30/50K
Alarm function
TX power HI/LO
Talk around function
Multi color Display
Tone burst 1000/1450/1750/2100Hz
TOT/APO/VOX………
Connector jack microphone HP (standard connection KW)

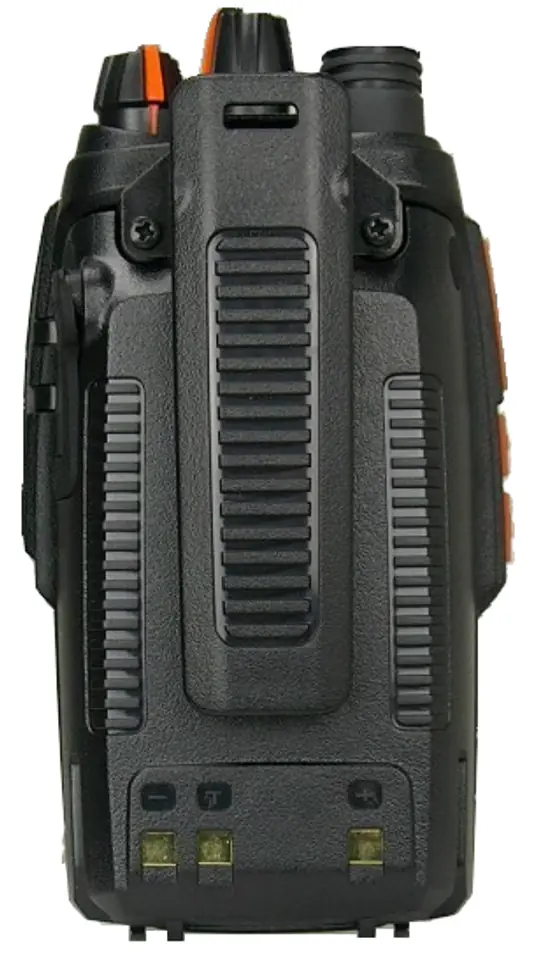

Battery pack 2200 mAh Li‐ion
