| Card read range: | ~ 5 cm |
|---|---|
| Card support: | Unique EM 125kHz |
| Case: | Metal |
| Colour: | Silver |
| Dimensions: | 123 x 79 x 22 mm |
| Maximum current consumption: | 80 mA (standby)110 mA (operating) |
| Operating temperature: | -20 °C ... 50 °C |
| Power: | 12 volts ... 24 volts DC 9 volts ... 15 V AC |
| Producer / brand: | VIDOS |
| Product colour: | Black, Silver |
| Relay contact load: | 3 A / 24 V |
| Scales: | 0.53 kg |
| Sealing: | IP65 |
| Selected features: | Number of relay outputs : 2, 1010 indexed users Support for 2 zones Identification: Card and/or PIN Blue button illumination Works with the opening sensor and exit button Operation of electric strikes and electromagnetic locks Support for reversible bolts Possibility of working in bistable mode (entering the code releases the electric strike, re-entering the code closes it) Possibility to connect an electromagnetic doorbell Tamper protection (detachment detection substrate and enclosure opening) NO/NC output |
| Warranty: | 3 years |

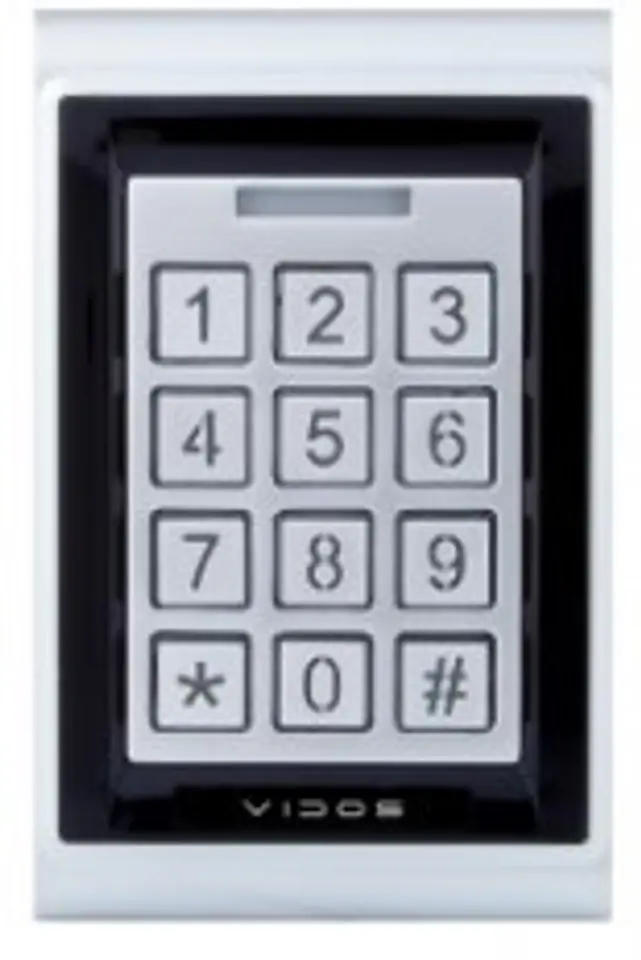

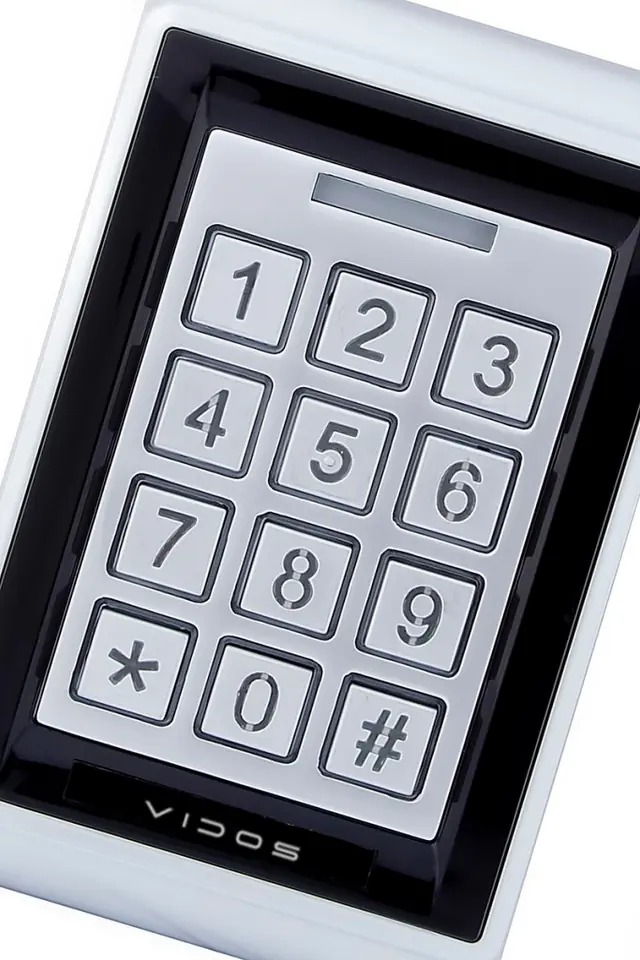

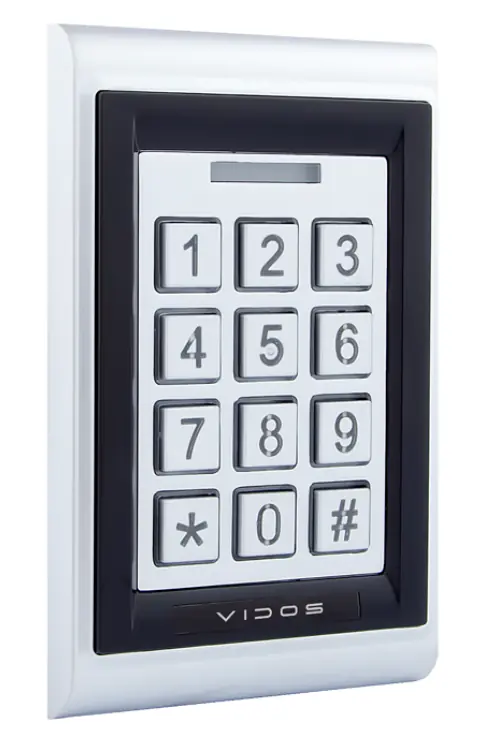

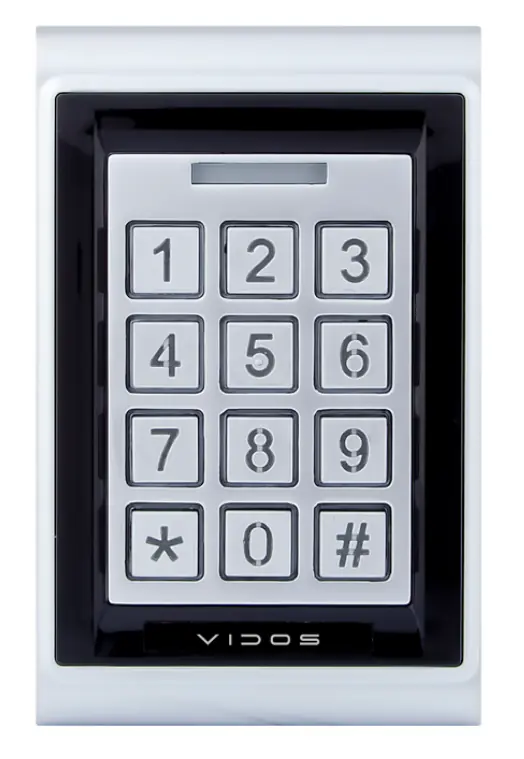

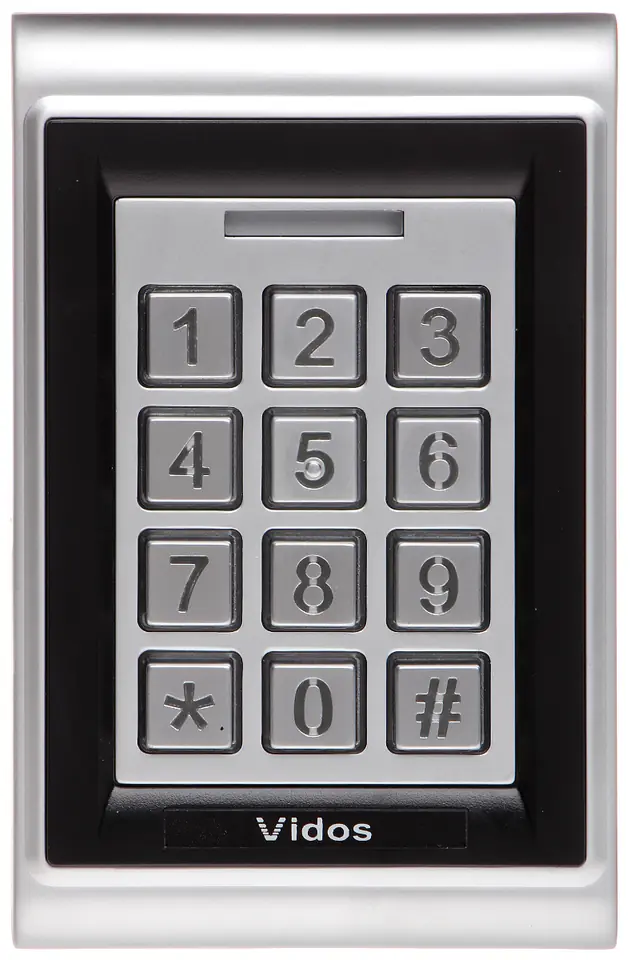

External, autonomous code lock with RFID reader
Autonomous operation of the device allows the user to:
Open with a card or PIN
Remember saved cards or PINs
Signaling of a door left open
Audible and optical signaling
The administrator's capabilities are as follows:
Keyboard programming
Add a new tab using the keyboard
Add a new card and enter a PIN
Change a user's PIN
Delete a user's PIN
Lock release time setting
Restore default settings
