| Card read range: | 3 ... 6 cm |
|---|---|
| Card support: | Unique EM 125kHz |
| Case: | Plastic (ABS) |
| Colour: | Black |
| Communication: | Wiegand 26 |
| Dimensions: | 82 x 92 x 21 mm |
| Maximum current consumption: | 25 mA (standby)60 mA (operating) |
| Operating temperature: | -20 °C ... 50 °C |
| Permissible relative ambient humidity: | 10 ... 90 % (non-condensing) |
| Power: | 12 VDC ± 10% |
| Producer / brand: | VIDOS |
| Relay contact load: | 1 A / 12 V |
| Scales: | 0.09 kg |
| Sealing: | IP40 |
| Selected features: | Number of relay outputs : 1, 2000 indexed users, Identification: Card and/or PIN Blue button illumination Works with opening sensor and exit button Operation of electric strikes and electromagnetic locks Support for reversible bolts Tamper protection (detection of detachment from the ground and opening of the enclosure) Alarm output NO/NC output |
| Warranty: | 3 years |

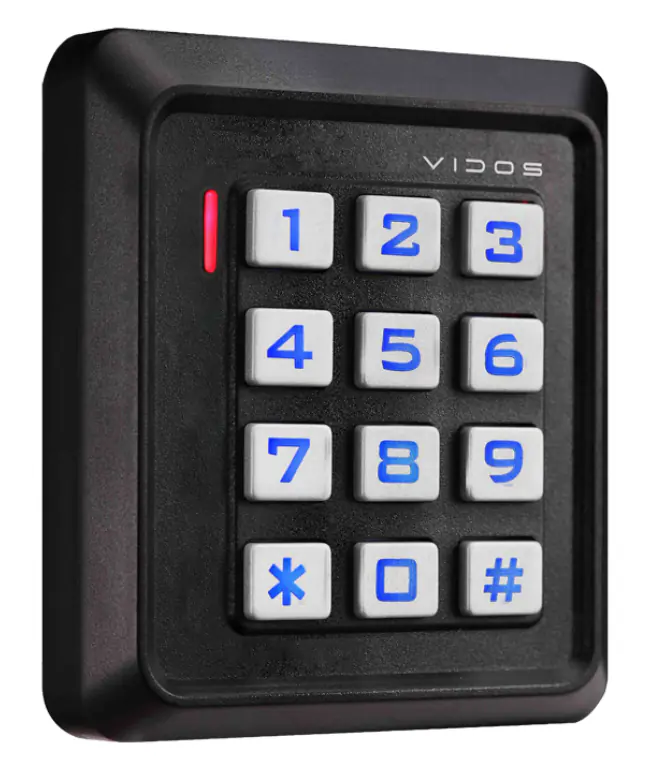

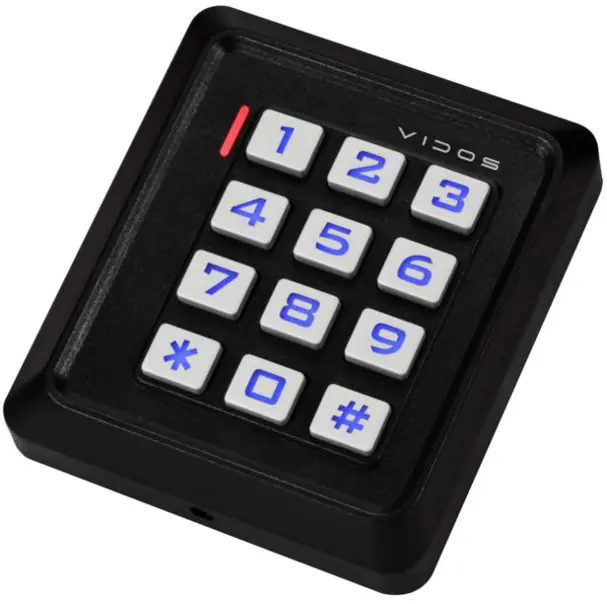

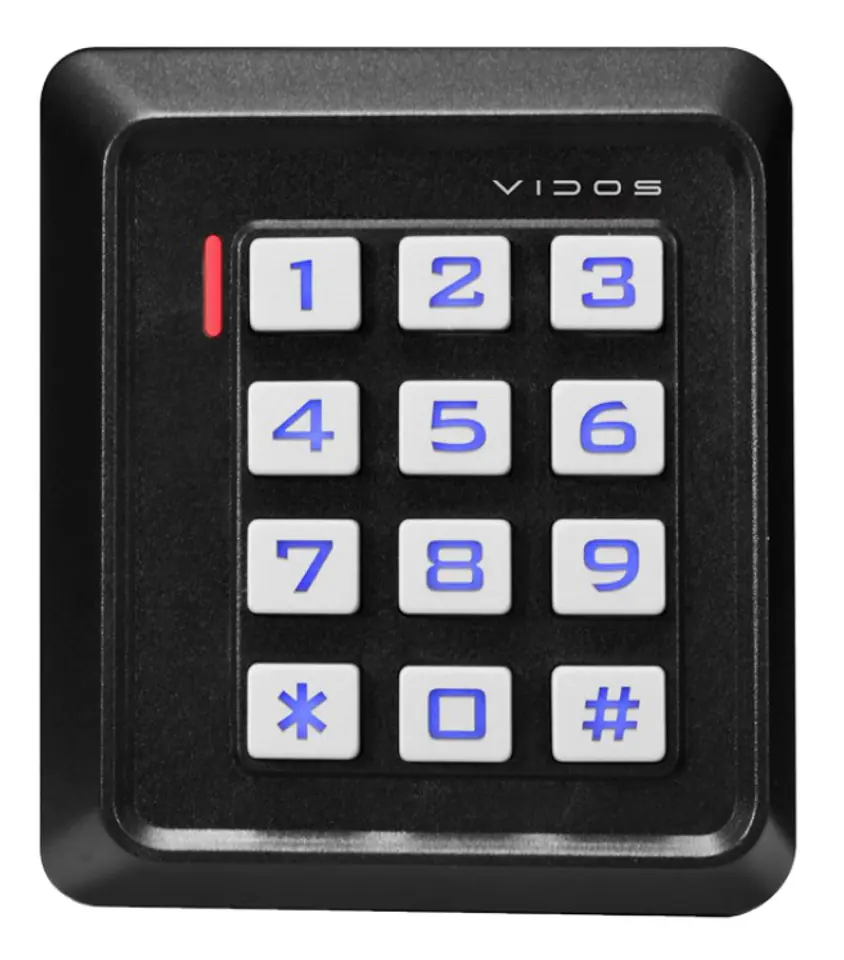

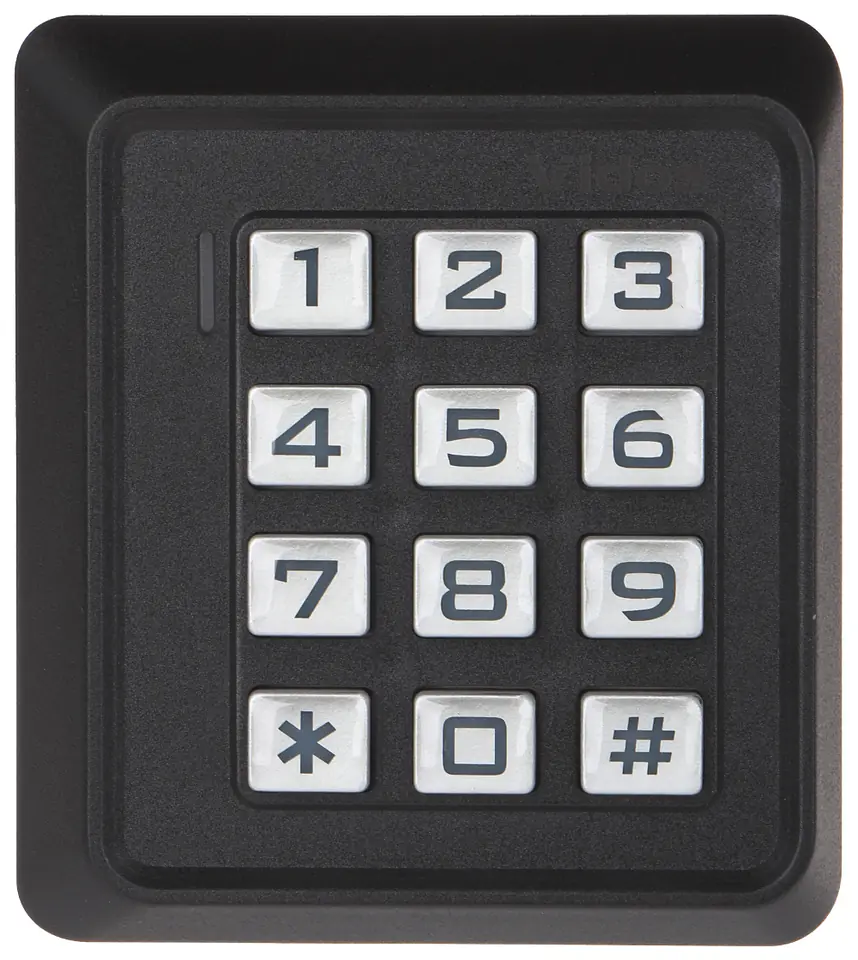

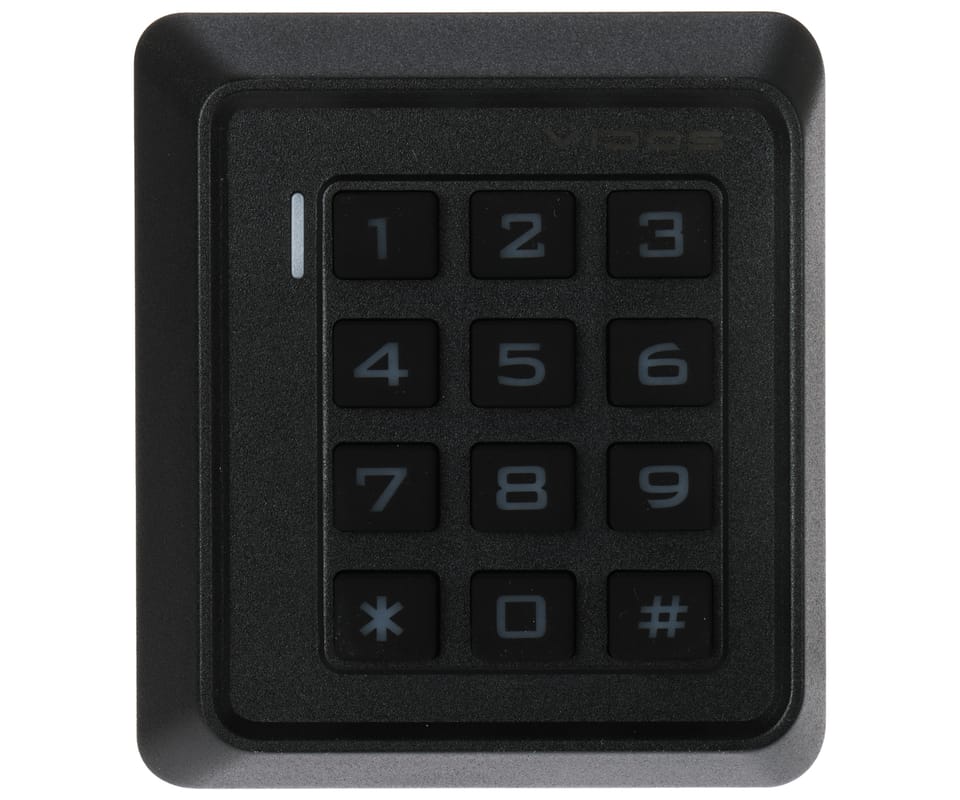

Internal standalone code lock with RFID reader
Autonomous operation of the device allows the user to:
Open with a card or PIN
Remember saved cards or PINs
Signaling of a door left open
Audible and optical signaling
The administrator's capabilities are as follows:
Keyboard programming
Add a new tab using the keyboard
Add a new card and enter a PIN
Change a user's PIN
Delete a user's PIN
Lock release time setting
Restore default settings
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
