High quality professional switching power supply with short-circuit, overvoltage and overload protection

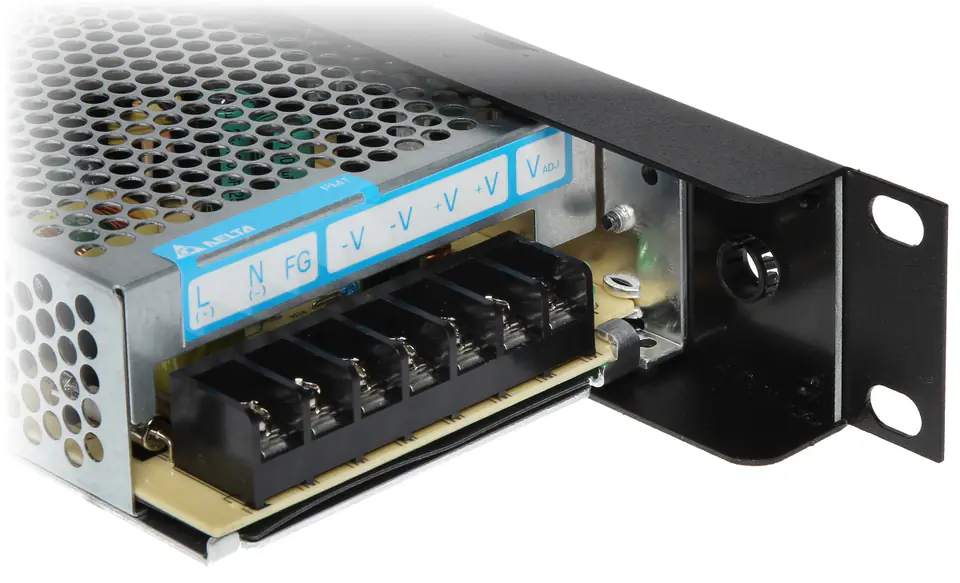

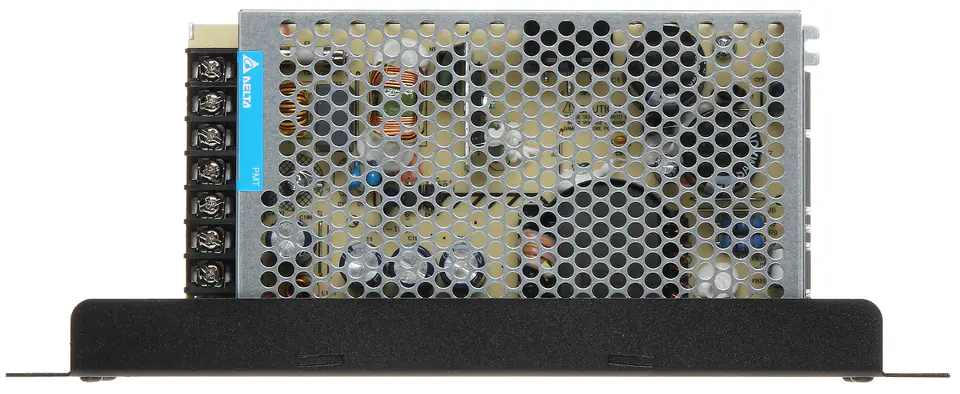

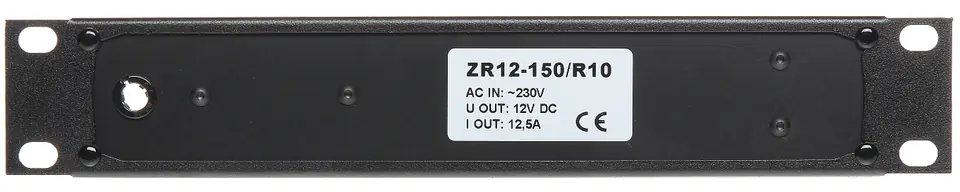

ZR12-150/R10 RACK POWER SUPPLY 12 VDC 12.5 A
€59.72
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- ZR12-150/R10 / 5902887038983
Share this product:
Specification
| Dimensions: | 256 x 45 x 100 mm |
|---|---|
| Efficiency: | 89 % |
| Enclosure type: | 1 U 10" rack |
| Mtbf (mean time between failures): | > 700000 h - Telcordia SR-332 |
| Operating temperature / relative humidity: | -10 °C ... 70 °C / 10 % ... 95 % |
| Output voltage: | 12 volts DC |
| Output voltage adjustment: | 11.4 volts ... 13.2 VDC |
| Power supply: | 150 watts (Printing) |
| Power supply current efficiency: | 12.5 amps |
| Producer / brand: | DELTA |
| Scales: | 0.59 kg |
| Security: | Short-circuit overload |
| Supply voltage: | selectable with a 90 V switch ... 132 V AC, 180 V ... 264 VAC |
| Supply voltage frequency: | 47 ... 63 Hz |
| Type of power supply: | Pulse |
| Warranty: | 5 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
