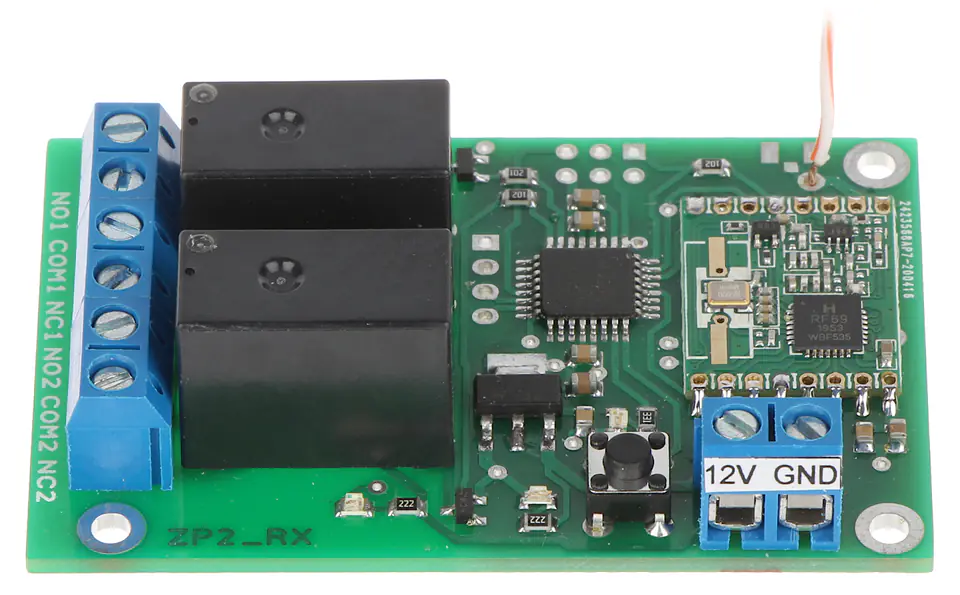

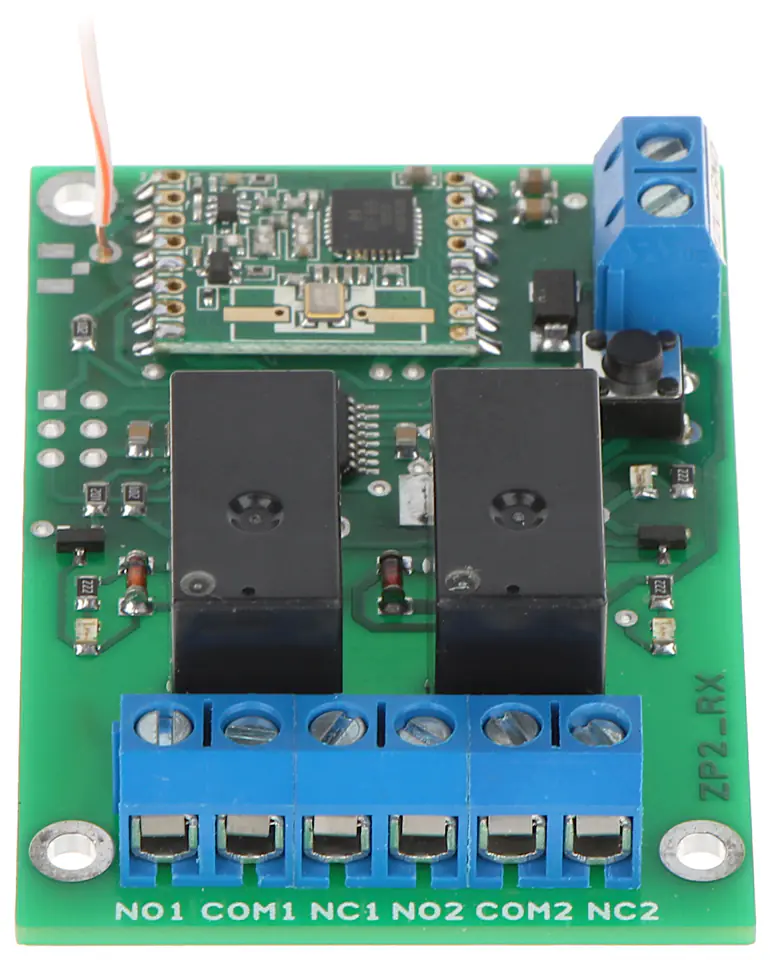

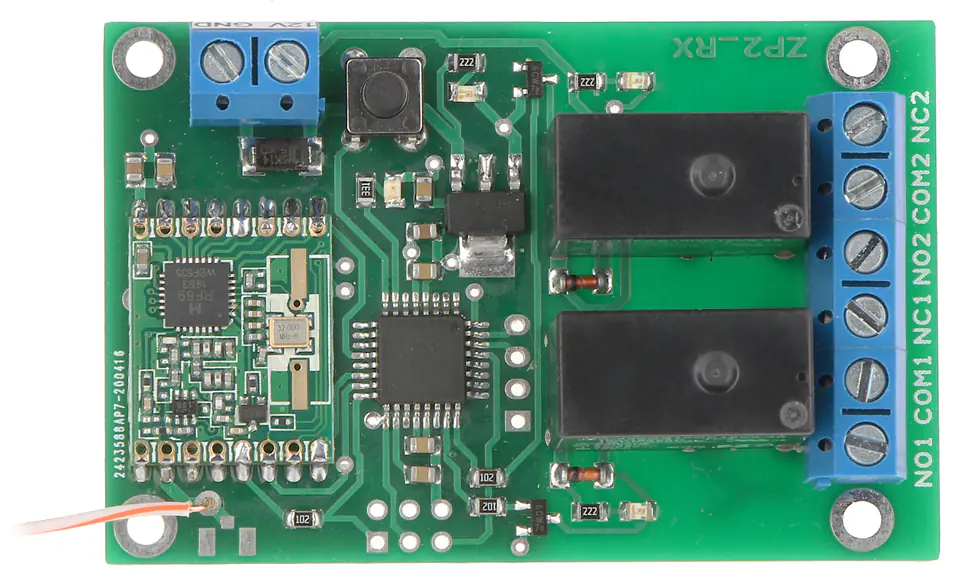

The ZP-2 wireless system enables wireless control of devices using the 433 MHz ISM bandRemote control includes 2 separate channelsEach channel is controlled by one dedicated input in the transmitterFrom the receiver side, each channel is assigned a separate NO / NC relayThe maximum load of each relay is 2300 W (AC), making the system suitable for a very wide range of applications
The ZP-2 set of devices allows you to wirelessly control, for example, lighting, electrically controlled sprinklers, power supply for household appliances, etc. The ZP-2/TX transmitter control method also makes the device perfect for integration with access control and alarm systems, enabling the installation of, for example, door opening buttons, panic buttons or detectors in places where the arrangement of additional cables is difficult or impossible
The system consists of a transmitter and a receiver, but connections are possible in any configuration: (1:1, 1:N, N:1, N:N)A maximum of 128 transmitters can be assigned to each receiver, while the number of receivers that can work with one transmitter is limited only by the transmission range
The system allows operation in one of three modes: monostable (the relay is switched on as long as the input in the transmitter is shorted), bistable (temporary short-circuit of the input causes a change in the relay operating status) and temporary (temporary short-circuit of the input causes a change in the relay state for a defined time)
Remark! The ZP-2/RX device requires a ZP-2/TX transmitter to work with
