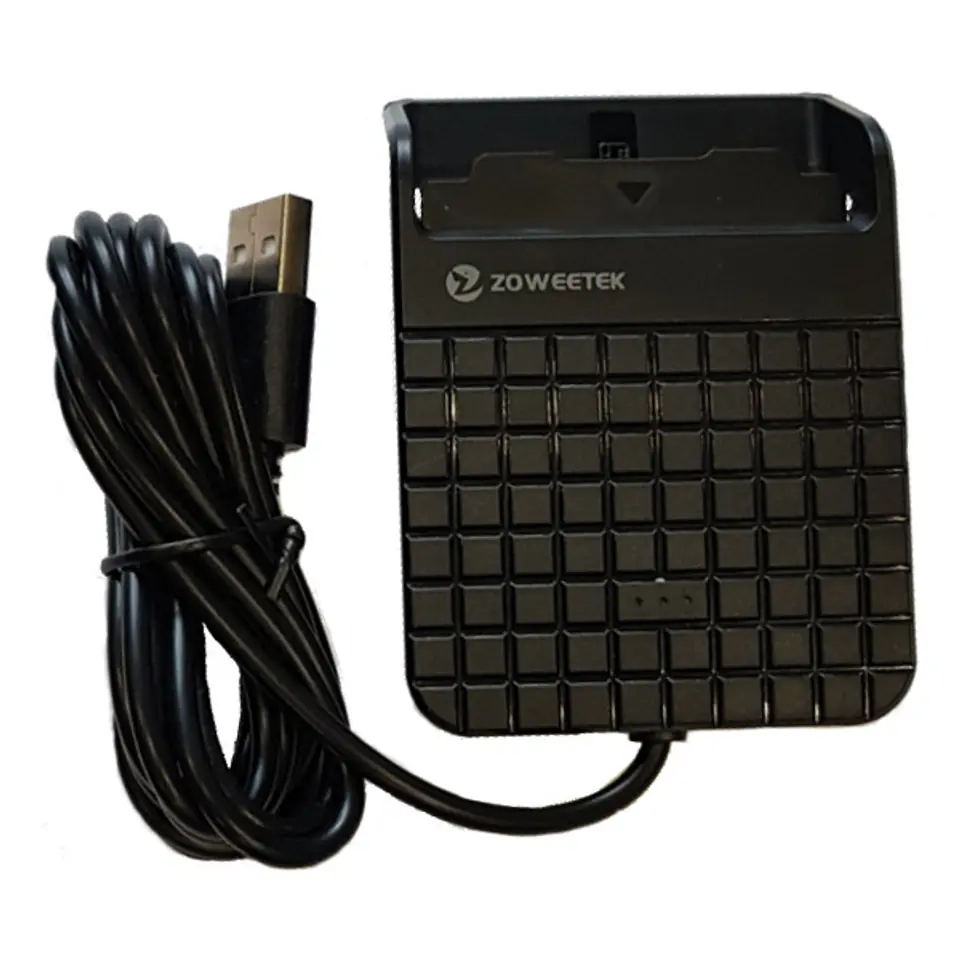

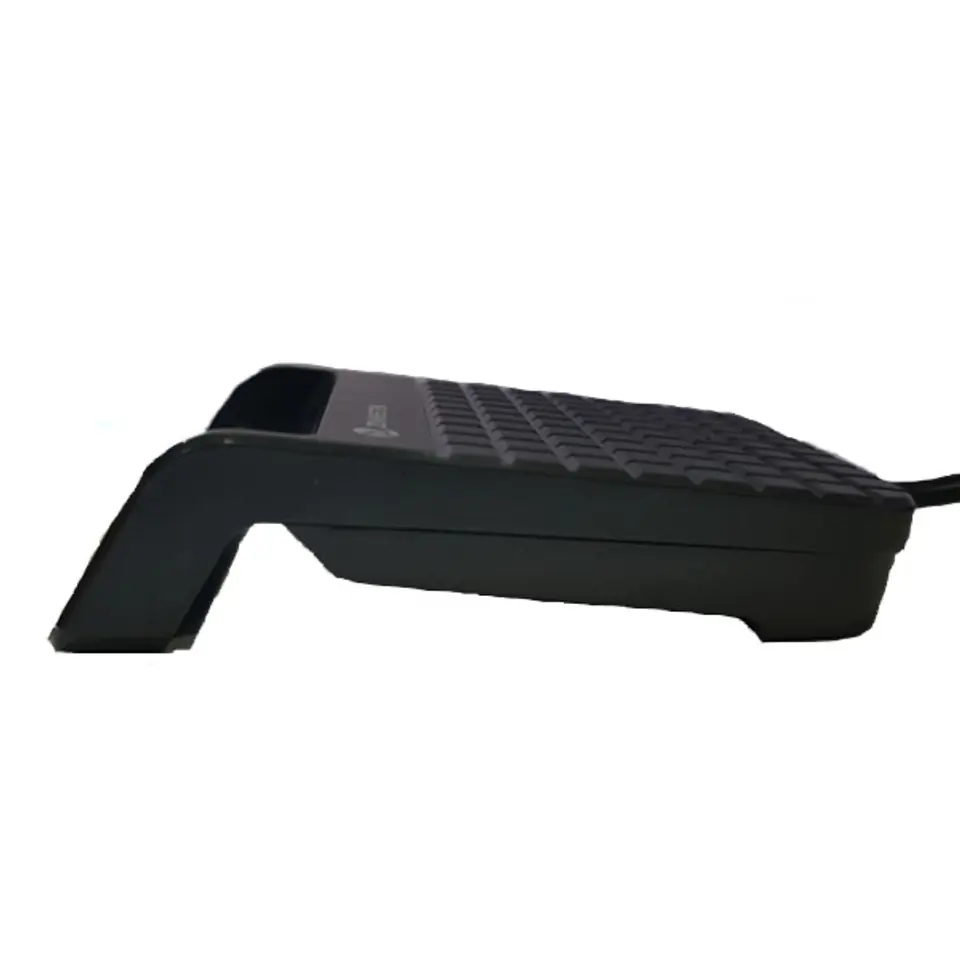

ZW-12026-5 is a highly integrated USB card reader controller with one chip.
High integration enables the lowest BOM cost of a smart card reader. It supports many international standards, including ISO7816 for IC card standards, PC/SC 2.0 for Windows smart card standard, Microsoft WHQL, EMV for Europay MasterCard Visa standard and USB-IFID CCID standard. The application can be generally applied to SIM card reading/writing device, such as ATM, POS terminal, public telephone, e-commerce, personal certification, prepayment system, loyalty system... etc.
Standard Compatibility:- Support EMV Level 1 specification
- Support full speed USB 2.0
- Based on ISO7816 implementation
- Support PC Smart Card standard - PC/SC 2.0
- Support Microsoft Smart Card for Windows
- Meet Microsoft USB WHQL smart card reader requirements
Features:
- Support one chip card slot
- T0, T1 protocol support
- Support I2C, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041 and AT45DB041 memory via external EEPROM memory
- Support ISO7816 Class A, B and C card (5V/3V/1.8V)
- Uses USB 2.0 interface
- Built-in PLL requirement for USB and Smart Card
- EEPROM support for personalization of USB descriptors (PID / VID / iManufacturer / iProduct / Serial Number)
- EEPROM programmable via USB interface
- APDU support: short and extended
- Compatible with USB USB-CCID driver
- Support remote wake-up by inserting the card / removing the card
- Power saving mode (choice between normal operation and power saving)
Downloads:
Software download >>HERE<<
https://dmtrade.pl/katalogi/Spacetronik/scr/1/softscr.zip
