Zipato Zipabox Security Expansion Module - Moduł bezpieczeństwa Zipabox

Connecting wired safety sensors to the safety module makes Zipabox one of the most advanced wired safety panels on the market. The robust wired installation combined with the advanced capabilities of Zipabox logic ensures a perfectly safe and comfortable environment in any building. The low price and high reliability of wired sensors gives you an excellent opportunity to install Zipato in new homes.

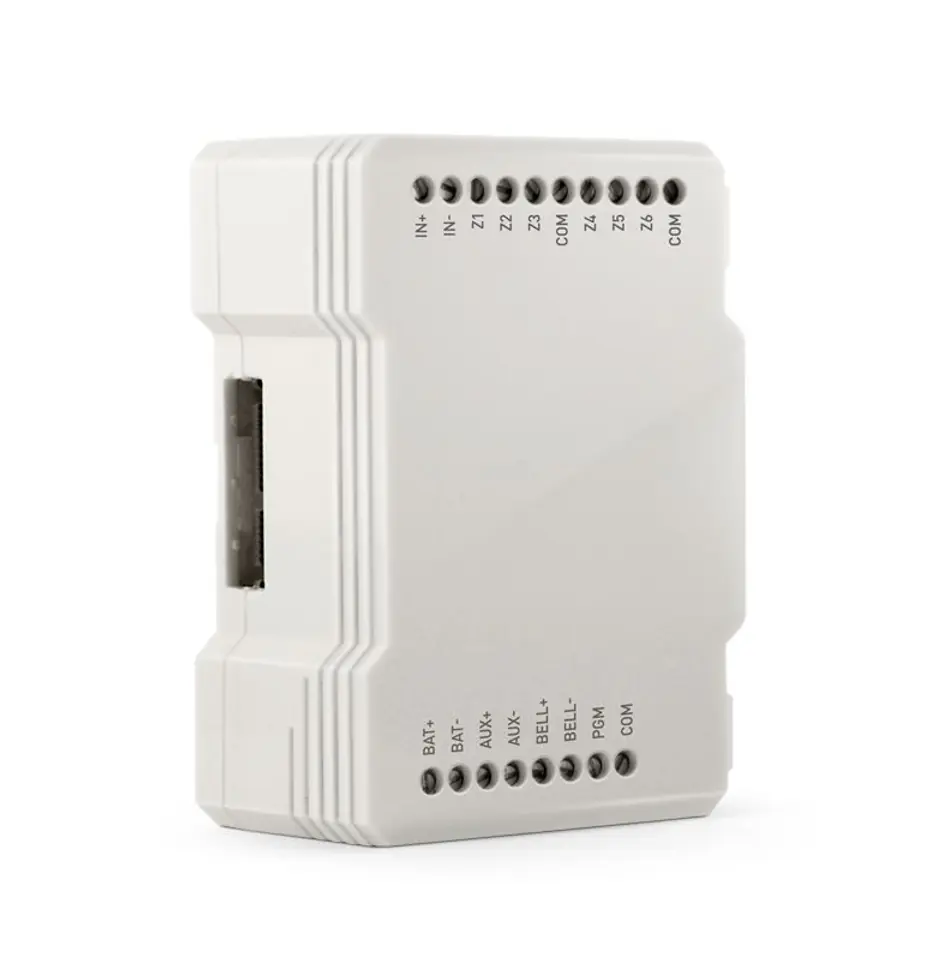

Zipabox Security Module adds wired alarm support functionality in Zipabox for:
· 6 wired zones
· 1 x 12V input
· 1 monitored siren output
· 1 programmable output
· 1 wired power supply for 12V sensors

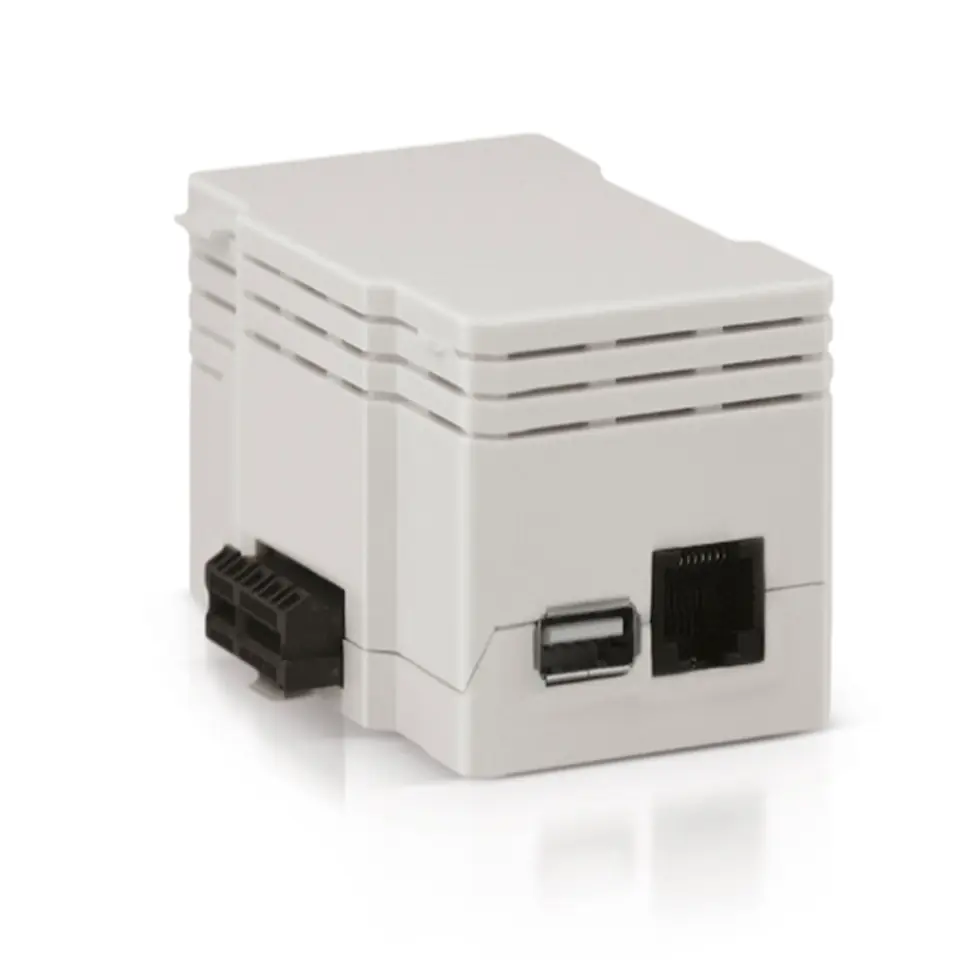

· 1 USB port
· 1 serial/UART port for user selection between RS-232 and RS-485 mode
· 1 charger (when using the safety module as the base of the alarm system, the backup module may not provide enough voltage to operate the wired sensors and cannot be used to power Zipabox and modules in the event of a power failure. Use SLA battery for backup with security module)

Technical Specifications:
· Power supply: Zipabox
· Operating temperature: 0° C to + 50° C
· Humidity: 0% to 95% RH
· AUX current: 10-14 Vdc 800 mA
· Bell/Siren Out current: 10-14 Vdc 600 mA
· Siren In current: 8-14 Vdc, 20mA max
· PGM Out: Solid State Switch max 150 mA

The Zipabox Security module includes:
1x Security Module
12 x resistors of 5.6k
2 x resistors of 1kk
