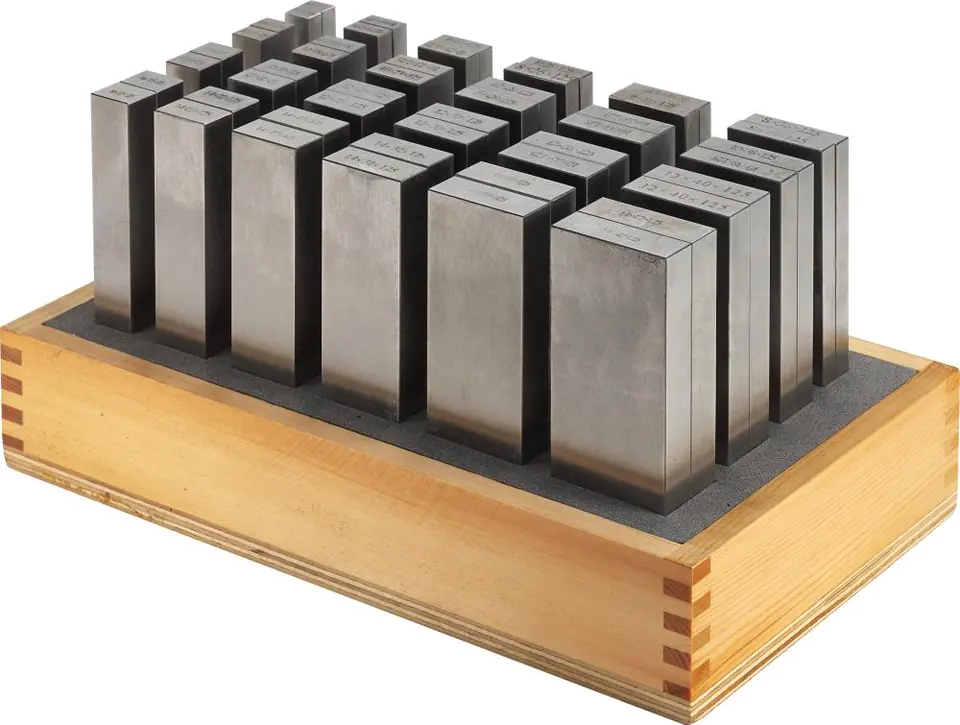

Set of parallel pads in a wooden stand, precision
Material: diffusion-hardened, parallel planes ground in pairs. All planes machined for surface parallelism and angle compatibility. The kits give a wide range with a graduation of 1 mm. The size of individual washers is marked from the front. Delivery in a wooden rack.
Application: parallel washers are used as a primer for workpieces in many different machining processes, thus providing parallel fixation.
Cover height 8–42 mm, 1 mm steps (except 9 mm).
Missing dimensions can be obtained through a combination of elements.
Set content of 1 pair of W x H in mm: 8 x 11, 8 x 16, 8 x 21, 8 x 26, 8 x 31, 8 x 36, 10 x 13, 10 x 18, 10 x 23, 10 x 28, 10 x 33, 10 x 38, 12 x 15, 12 x 20, 12 x 25, 12 x 30, 12 x 35, 12 x 40, 14 x 17, 14 x 22, 14 x 27, 14 x 32, 14 x 37, 14 x 42 Cover height 8-42 mm, graduated in 1 mm increments (except 9 mm).
Missing dimensions can be obtained through a combination of elements.
Set content of 1 pair of W x H in mm: 8 x 11, 8 x 16, 8 x 21, 8 x 26, 8 x 31, 8 x 36, 10 x 13, 10 x 18, 10 x 23, 10 x 28, 10 x 33, 10 x 38, 12 x 15, 12 x 20, 12 x 25, 12 x 30, 12 x 35, 12 x 40, 14 x 17, 14 x 22, 14 x 27, 14 x 32, 14 x 37, 14 x 42
