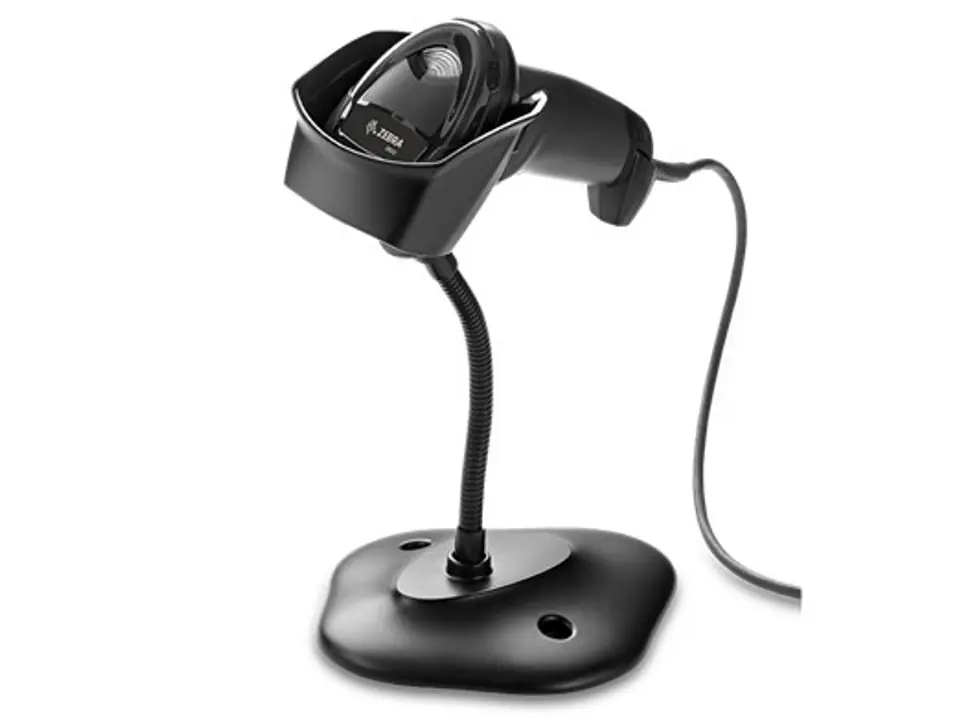

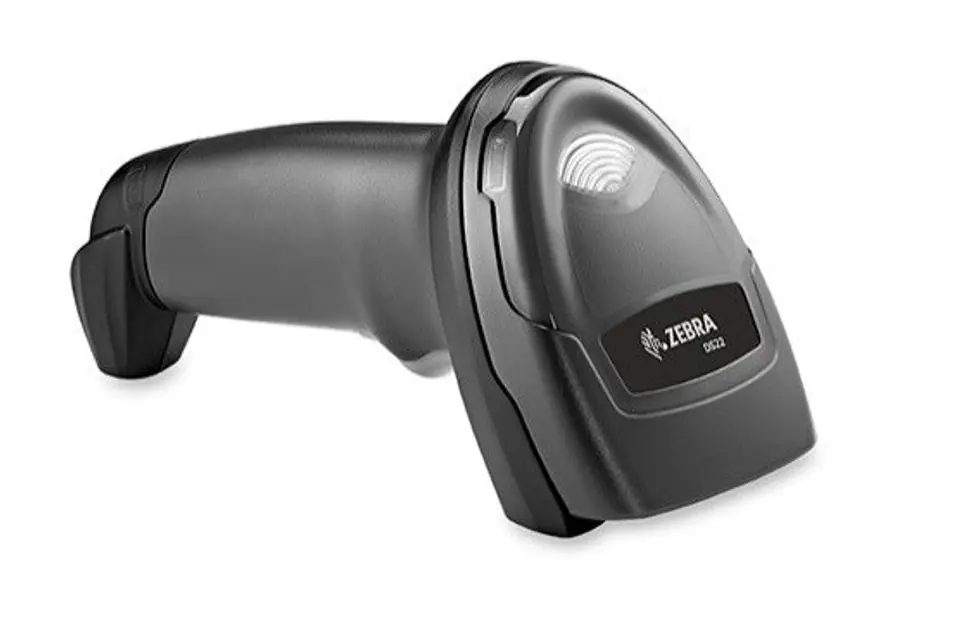

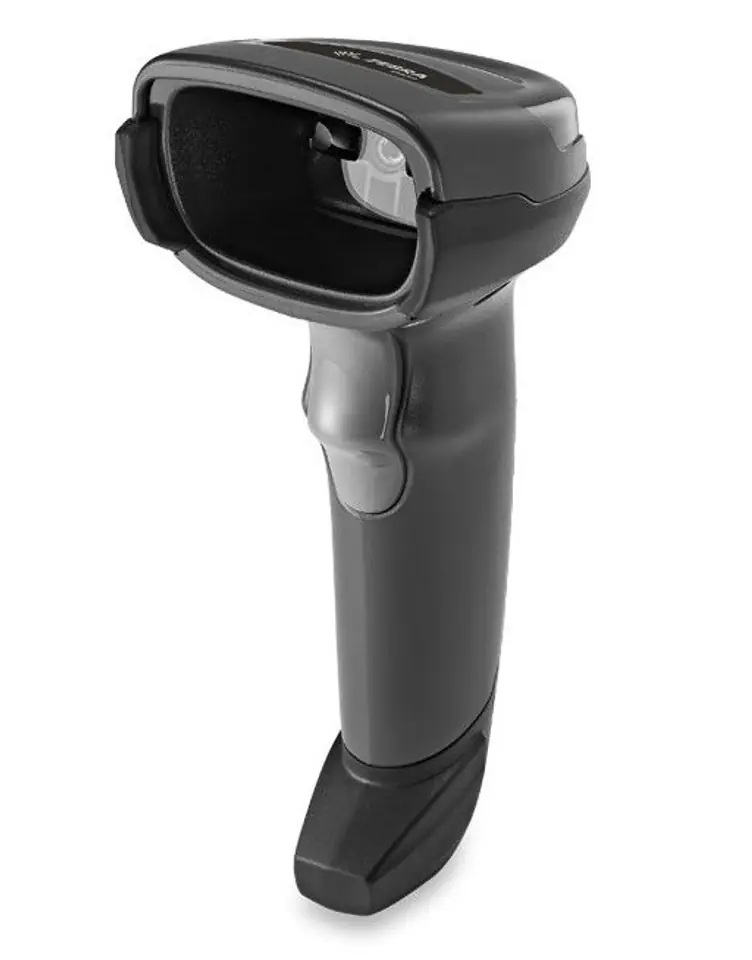

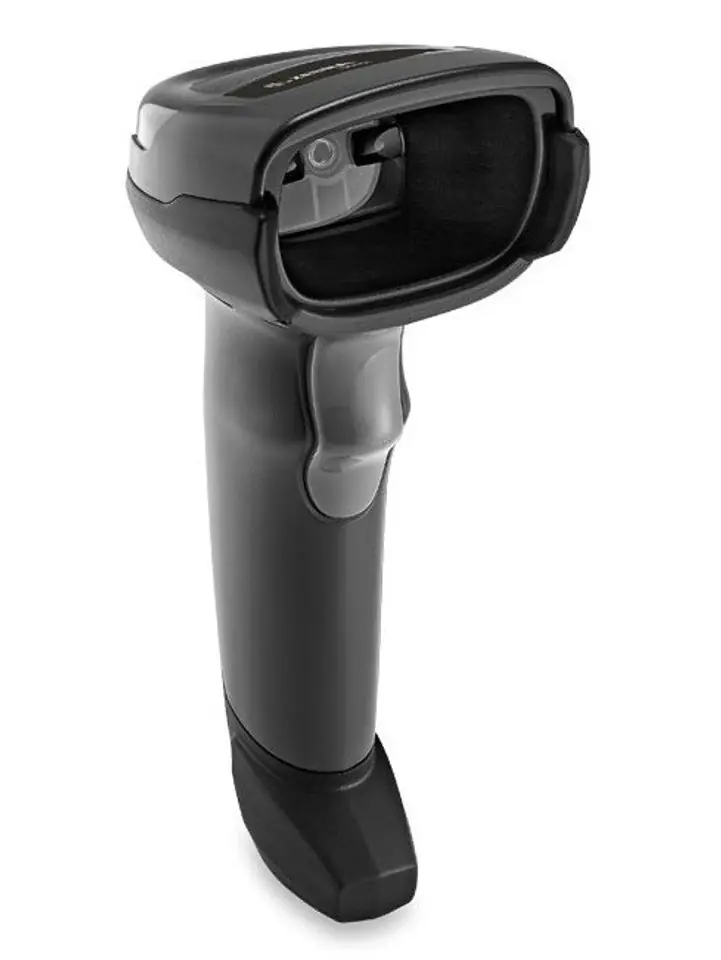

Zebra DS2208 Handheld bar code reader 1D/2D LED Black
This product is not available
- Availability:
- expected delivery
- Brand:
- Zebra
- Product code:
- DS2208-SR7U2100SGW /
Share this product:
Specification
| 2d (matrix & stacked) barcodes supported: | Aztec Code, MaxiCode, PDF417, Data Matrix, QR Code, Han Xin, TLC-39, Composite Codes, Micro QR Code |
|---|---|
| Cables included: | Micro-USB |
| Charging base: | No |
| Connectivity technology: | Wired |
| Depth: | 99 mm |
| Height: | 165 mm |
| International protection (ip) code: | IP42 |
| Led indicators: | Yes |
| Linear (1d) barcodes supported: | Code 11, EAN-13, GS1 DataBar Expanded, Code 128, MSI, Code 39, Interleaved 2 of 5, Codabar, Code 93, U.P.C. |
| Motion tolerance (cm/s): | 13 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | 0 - 50 °C |
| Optical sensor resolution (w x h): | 640 x 480 pixels |
| Pitch reading angle: | -65 - 65° |
| Product colour: | Black |
| Scanner type: | 1D/2D |
| Sensor type: | LED |
| Standard interfaces: | USB, RS-232, RS-485, Keyboard wedge |
| Storage temperature (t-t): | -40 - 70 °C |
| Sustainability certificates: | RoHS |
| Tilt reading angle: | -65 - 65° |
| Type: | Handheld bar code reader |
| Wavelength: | 645 nm |
| Weight: | 161.6 g |
| Width: | 66 mm |
| Working distance: | 36.8 cm |
| Yaw reading angle: | -65 - 65° |
