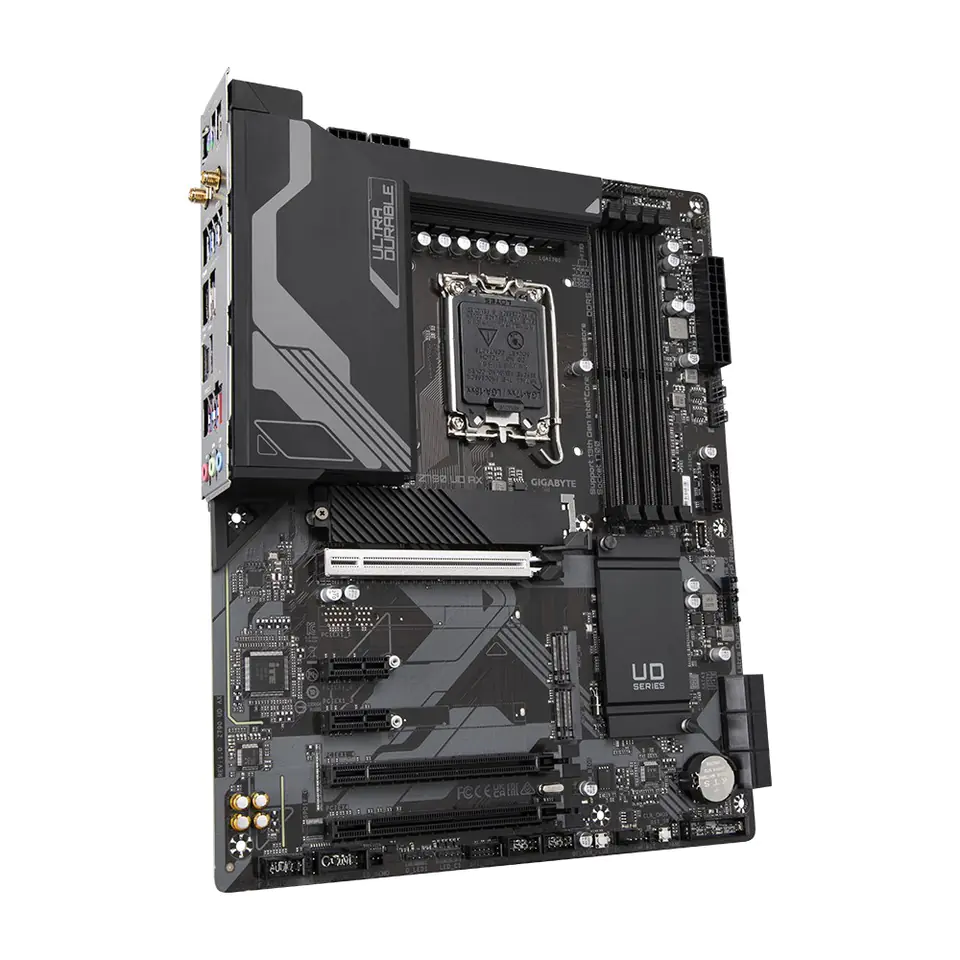

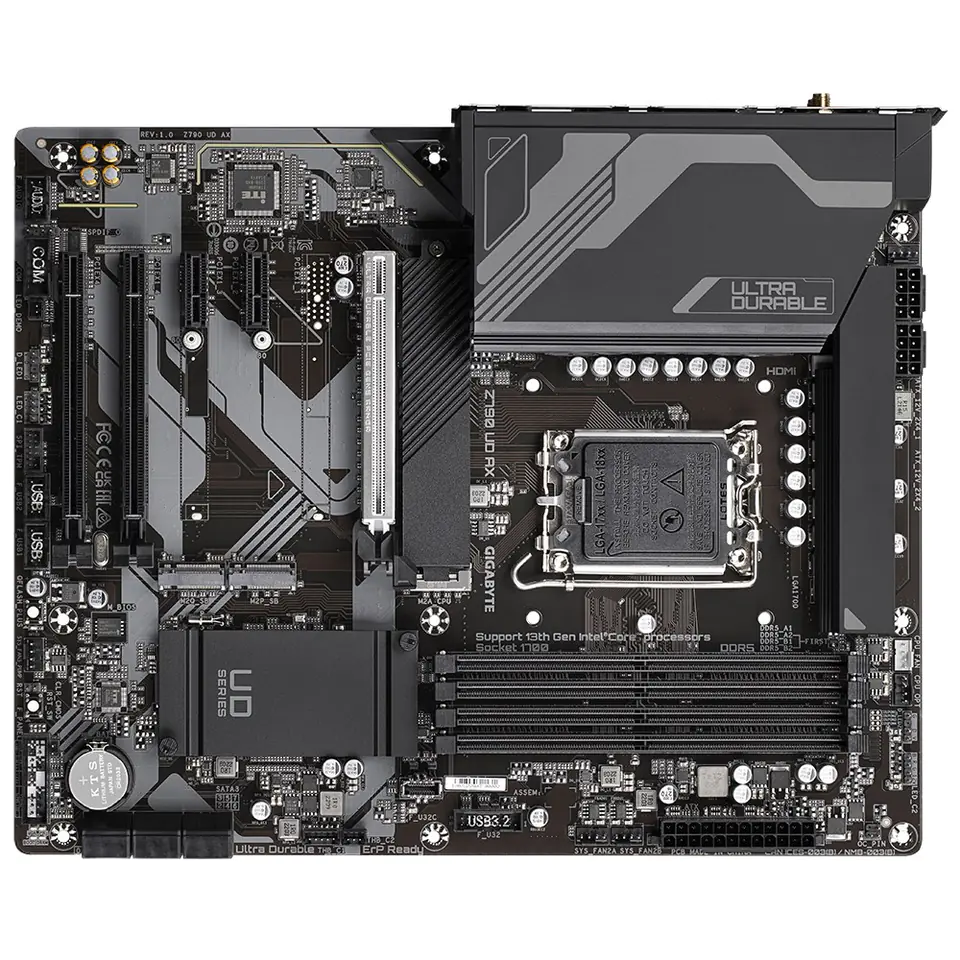

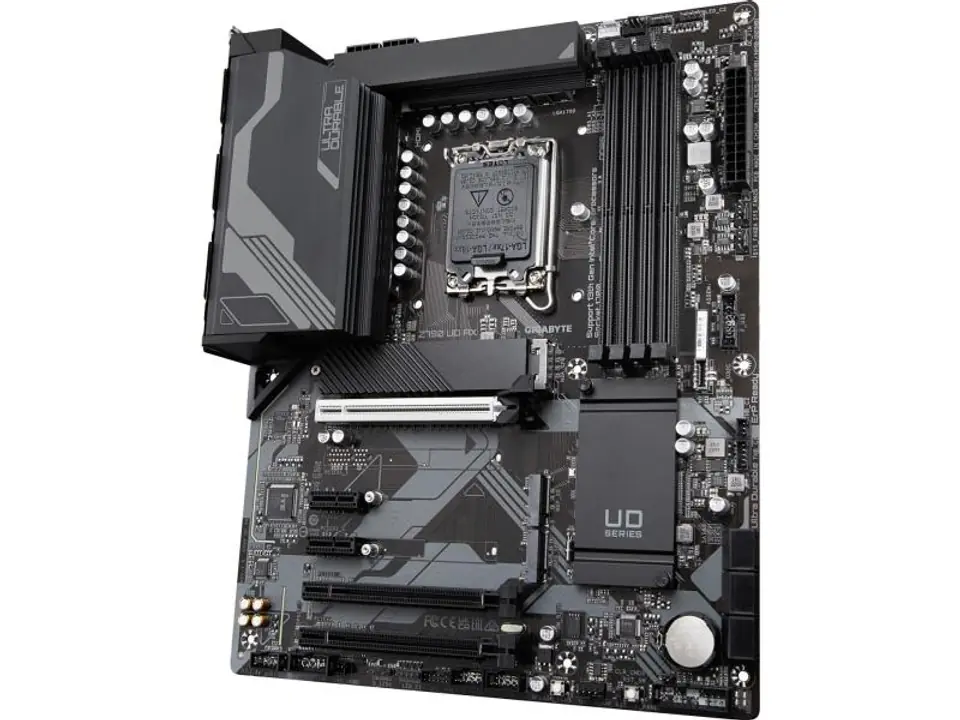

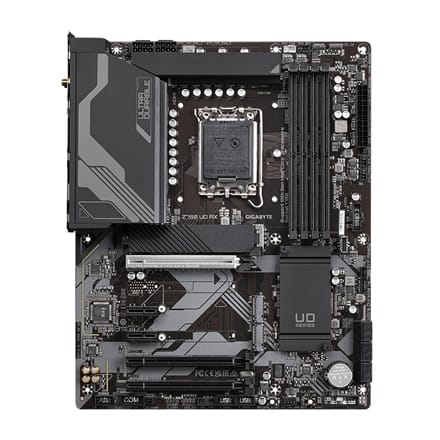

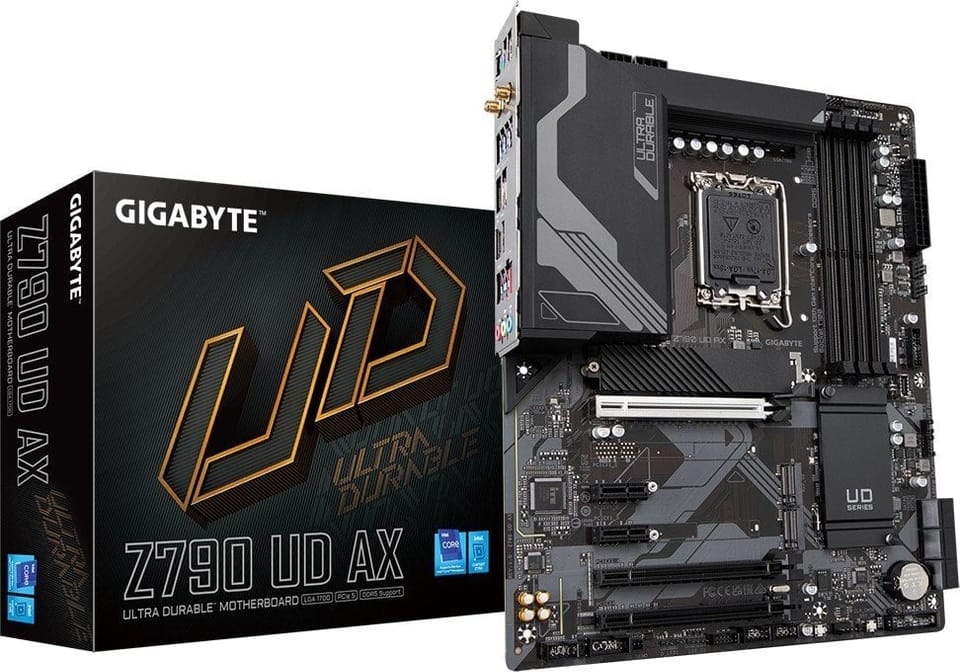

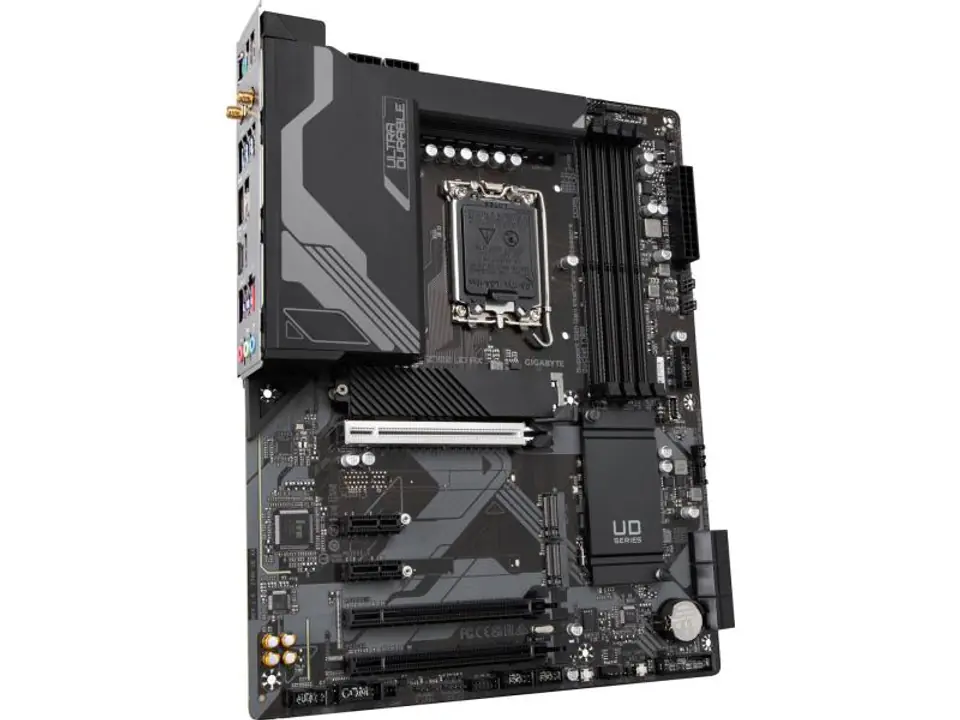

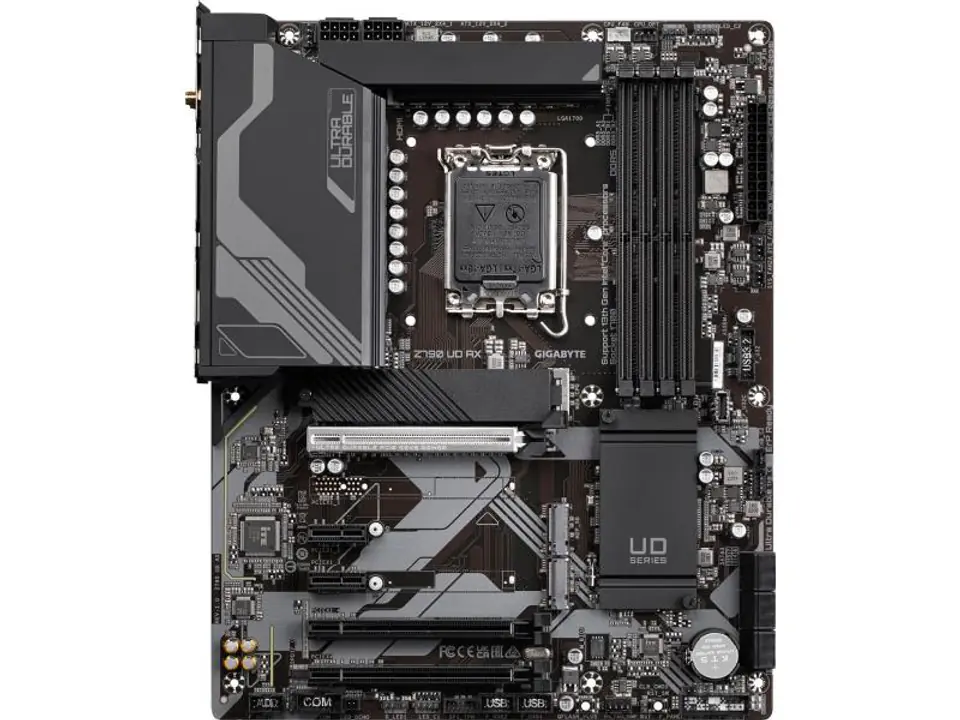

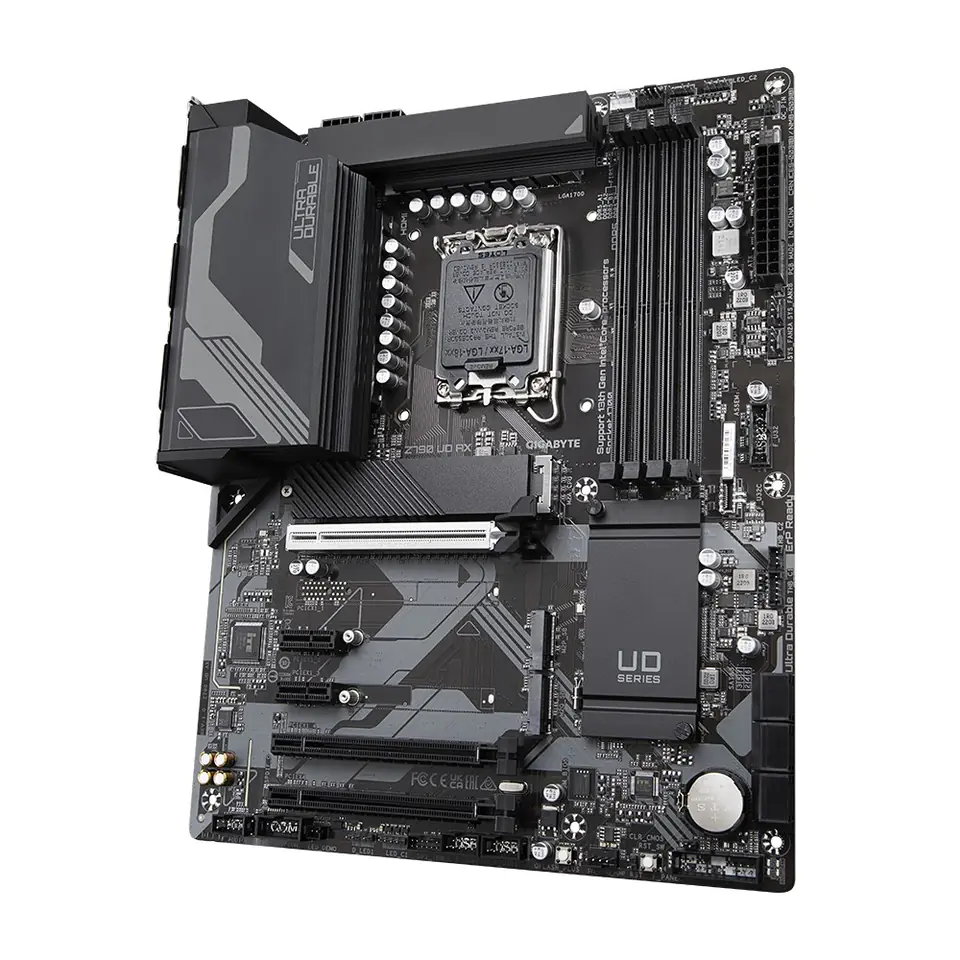

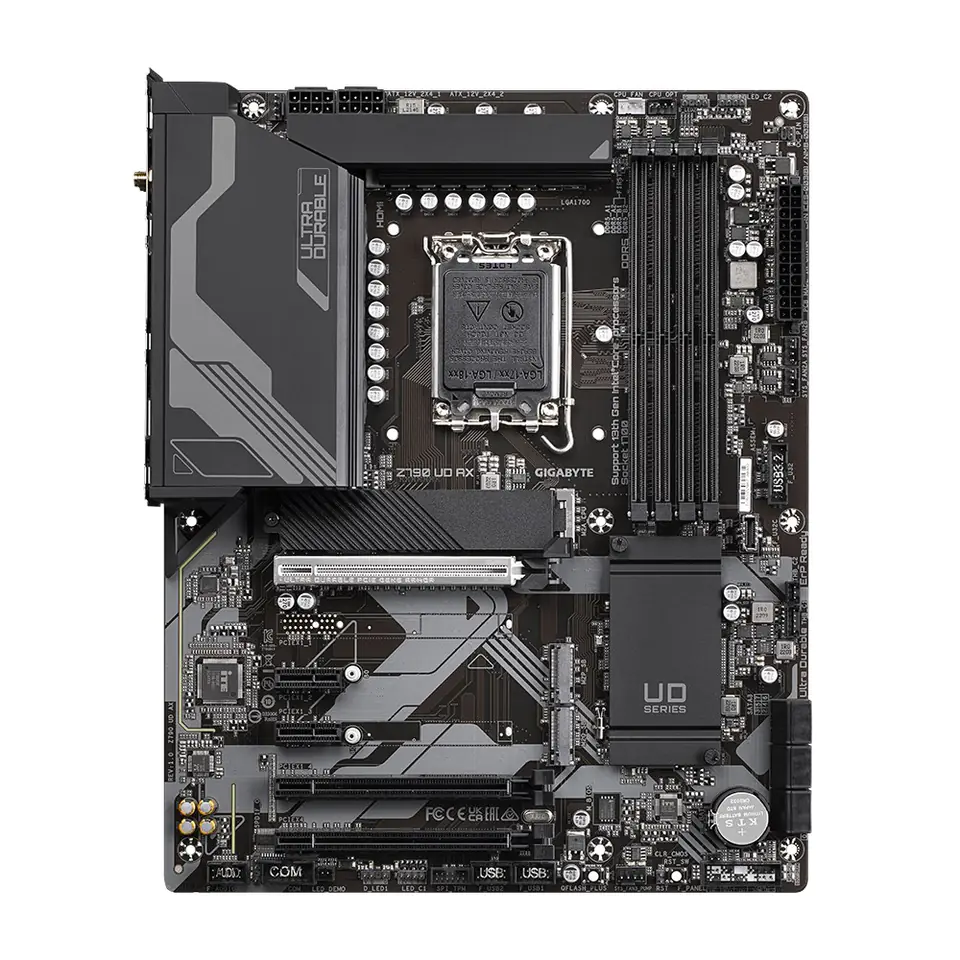

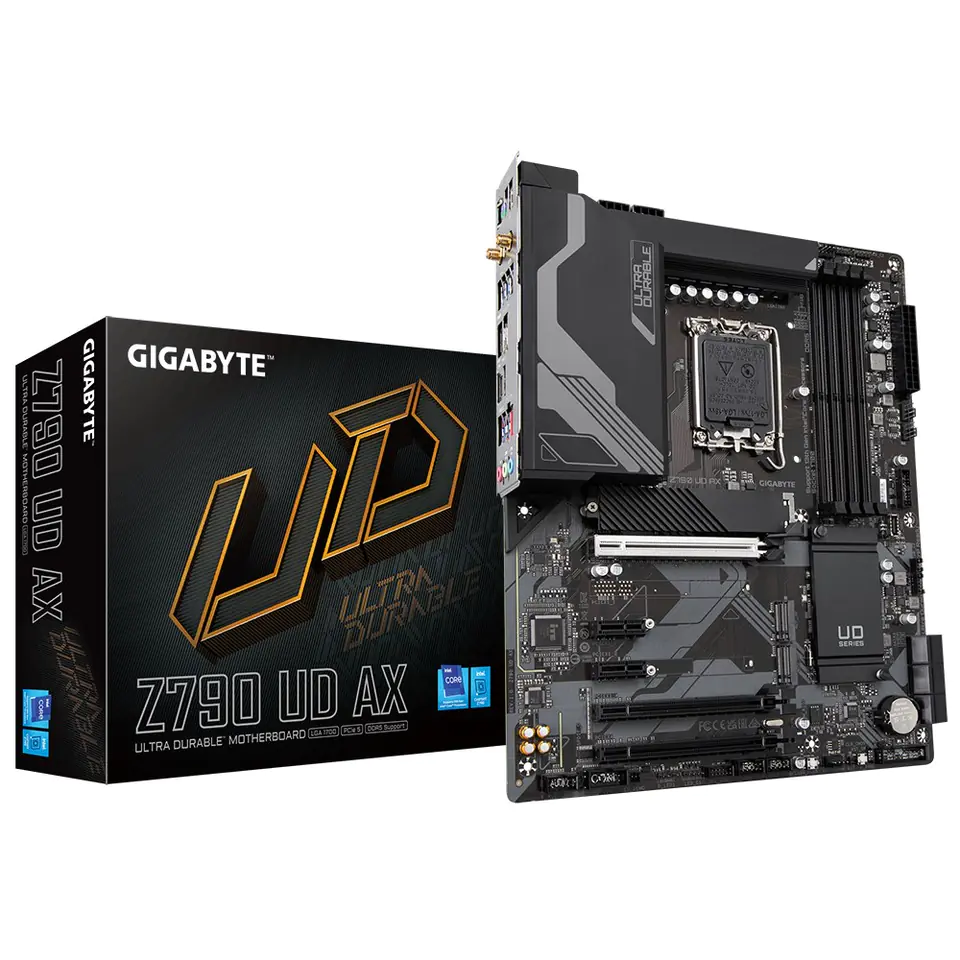

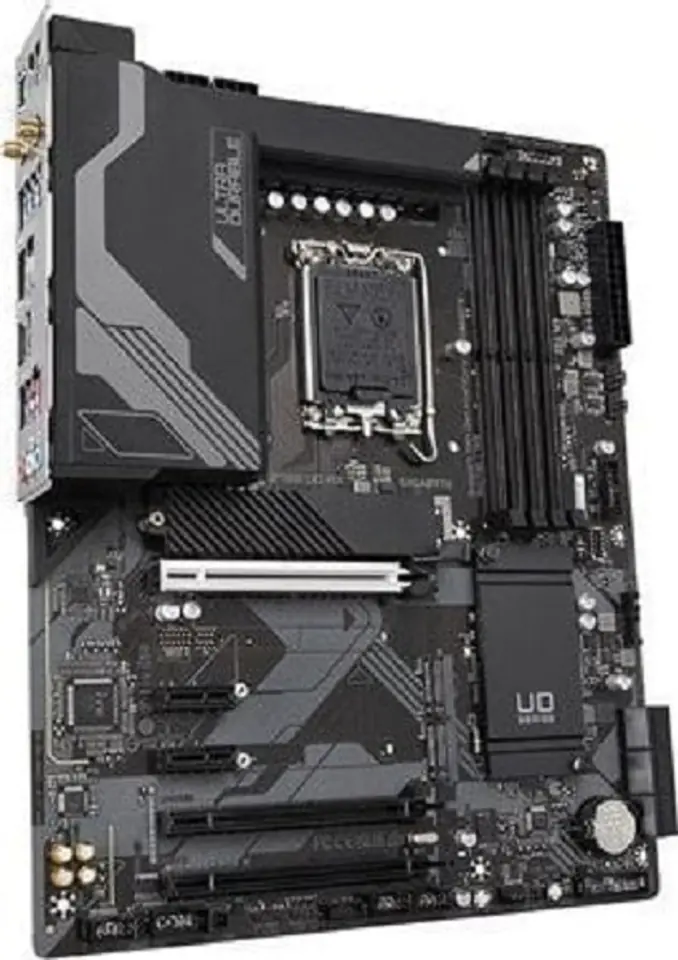

Z790 UD AX s1700 4DDR5 s1700 USB/DP ATX Motherboard

€249.20

Shipping from warehouse: ⁨A3⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: Gigabyte
Product code:: Z790 UD AX / 4719331850395

Specification

12v power connector:	Yes
Acpi version:	5.0
Atx power connector (24-pin):	Yes
Audio output channels:	7.1 channels
Batteries included:	Yes
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Battery type:	CR2032
Battery weight:	3 g
Bios memory size:	256 Mbit
Bios type:	UEFI AMI
Bluetooth:	Yes
Bluetooth version:	5.3
Cables included:	SATA
Clear cmos jumper:	Yes
Compatible processor series:	Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3
Component for:	PC
Country of origin:	China
Cpu fan connector:	Yes
Depth:	244 mm
Desktop management interface (dmi) version:	2.7
Directx version:	12.0
Displayport version:	1.2
Displayports quantity:	1
Ecc:	Y
Ecc сompatibility:	ECC & Non-ECC
Eps power connector (8-pin):	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Front panel connector:	Yes
Hdcp:	Yes
Hdmi ports quantity:	1
Hdmi version:	2.0
Headphone outputs:	3
Height:	35 mm
Lithium weight per battery:	0.07 g
Maximum internal memory:	192 GB
Maximum internal memory supported by processor:	192 GB
Maximum resolution:	4096 x 2304 pixels
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	Intel Z790
Motherboard chipset family:	Intel
Motherboard form factor:	ATX
Non-ecc:	Y
Number of battery cells:	1
Number of hdds supported:	6
Number of m.2 (m) slots:	3
Number of memory slots:	4
Number of sata iii connectors:	6
Number of storage drives supported:	9
Package depth:	270 mm
Package height:	80 mm
Package weight:	2.02 kg
Package width:	335 mm
Parallel processing technology support:	CrossFire
Pc health monitoring:	Water cooling, Voltage, Fan, Temperature
Pci express x1 slots:	2
Pci express x16 slots:	4
Planned delivery:	20.12.2022
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Product colour:	Black
Products per shipping (inner) case:	1 pc(s)
Raid levels:	1, 0, 10, 5
Raid support:	Yes
Rgb led pin header:	Yes
S/pdif out connector:	Yes
Serial port headers:	1
Supported memory clock speed (max):	7600 MHz
Supported memory clock speeds:	7600 MHz, 6000, 6600, 6200, 5200, 5600, 7200, 6800, 7000, 6400, 4000, 4800 MHz, 7400, 5800, 5400
Supported memory module capacities:	8GB, 1GB, 16GB, 32GB, 2GB, 4GB, 12GB, 48GB
Supported memory types:	DDR5-SDRAM
Supported processor sockets:	LGA 1700
Supported storage drive interfaces:	M.2, PCI Express 4.0, SATA III
Supported storage drive types:	HDD & SSD
System management bios (smbios) version:	2.7
Thunderbolt headers:	2
Top wi-fi standard:	Wi-Fi 6E (802.11ax)
Total number of sata connectors:	6
Tpm connector:	Yes
Unbuffered memory:	Yes

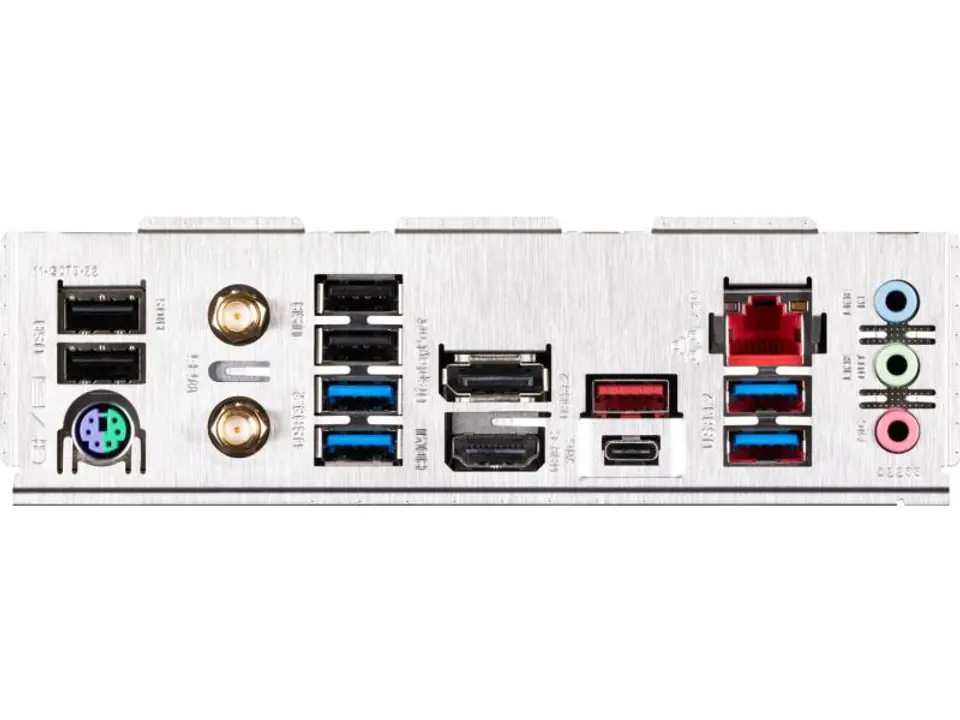

Usb 2.0 connectors:	2
Usb 2.0 ports quantity:	4
Usb 3.2 gen 1 (3.1 gen 1) connectors:	1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	4
Usb 3.2 gen 2 (3.1 gen 2) connectors:	1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	1
Usb 3.2 gen 2x2 type-c ports quantity:	1
Usb connector type:	USB Type-A, USB Type-C
Warehouse:	Global
Warranty period:	3 year(s)
Wi-fi:	Yes
Wi-fi standards:	802.11b, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11g
Width:	305 mm
Wifi-ap antenna jack:	2
Windows operating systems supported:	Windows 11 x64, Windows 10 x64
Wlan controller model:	Intel Wi-Fi 6E AX211

Warranty:

Z790 UD AX

Intel Z790 Express Chipset

CPU:

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
6 x SATA 6Gb/s connectors

HDMI port supporting a maximum resolution of 4096x2160 at 60Hz (Supports HDMI 2.0 and HDCP 2.3.)
DisplayPort port with a maximum resolution of 4096x2304 at 60Hz (Supports DisplayPort 1.2 and HDCP 2.3)

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Port S/PDIF Out

Ethernet: Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps)

Wireless:

Intel Wi-Fi 6E AX210
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz bands
BLUETOOTH 5.3
Supports 11ax 160MHz wireless and data transfer rates up to 2.4Gbps

1 x 256 Mbit flash
AMI UEFI BIOS License
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

30.5 x 24.4 cm

Norton Internet Security (OEM version)
LAN bandwidth management software
