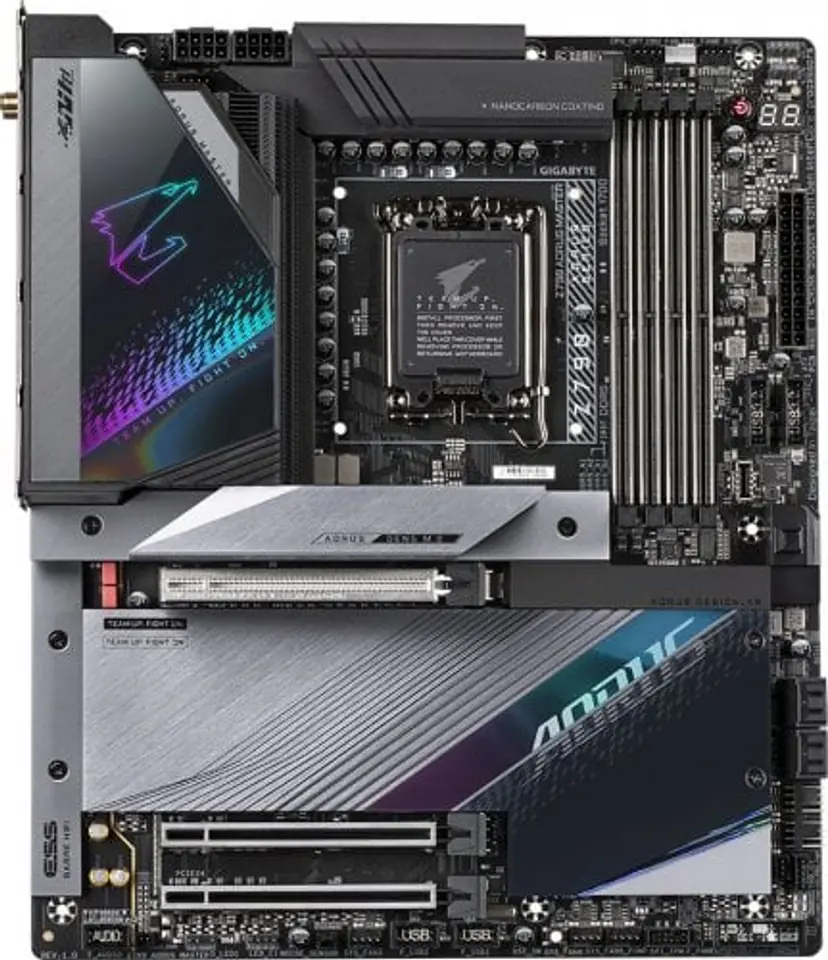

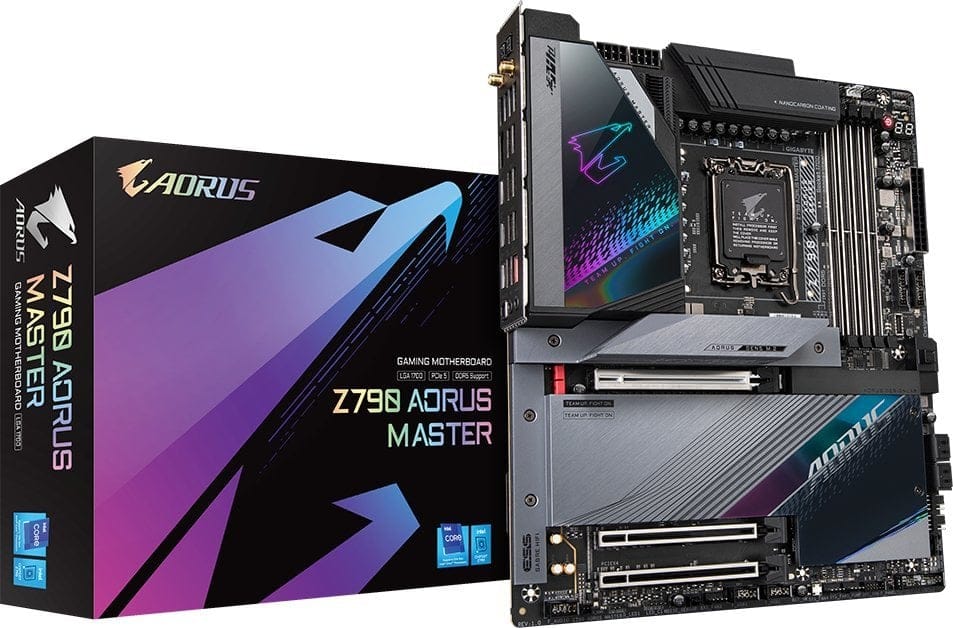

Z790 AORUS MASTER S1700 4DDR5 USB/DP M.2 E-ATX motherboard

Name: Z790 AORUS MASTER S1700 4DDR5 USB/DP M.2 E-ATX motherboard
Brand: Gigabyte
SKU: 976107
Price: 643.83 EUR
Availability: InStock

€643.83

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Tue, Dec 24 - Fri, Dec 27

14 days returnUnconditional return policy

Availability:: running out
Brand:: Gigabyte
Product code:: Z790 AORUS MASTER / 4719331848934

Specification

12v power connector:	Yes
Acpi version:	5.0
Atx power connector (24-pin):	Yes
Audio chip:	Realtek ALC1220-VB
Audio output channels:	7.1 channels
Batteries included:	Yes
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Battery type:	CR2032
Battery weight:	3 g
Bios memory size:	256 Mbit
Bios type:	UEFI AMI
Bluetooth:	Yes
Bluetooth version:	5.3
Cables included:	SATA
Clear cmos button:	Yes
Clear cmos jumper:	Yes
Compatible processor series:	Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3
Component for:	PC
Country of origin:	Taiwan
Cpu fan connector:	Yes
Depth:	260 mm
Desktop management interface (dmi) version:	2.7
Directx version:	12.0
Displayport version:	1.2
Displayports quantity:	1
Ecc:	Y
Eps power connector (8-pin):	Yes
Ethernet interface type:	10 Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Front panel connector:	Yes
Hdcp:	Yes
Headphone outputs:	2
Height:	35 mm
Lan controller:	Marvell AQtion AQC113C
Lithium weight per battery:	0.07 g
Maximum internal memory:	192 GB
Maximum internal memory supported by processor:	192 GB
Maximum resolution:	4096 x 2304 pixels
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	Intel Z790
Motherboard chipset family:	Intel
Motherboard form factor:	Extended ATX
Non-ecc:	Y
Number of battery cells:	1
Number of hdds supported:	4
Number of m.2 (m) slots:	5
Number of memory slots:	4
Number of sata iii connectors:	4
Number of storage drives supported:	9
Package depth:	294 mm
Package height:	80 mm
Package weight:	3.46 kg
Package width:	345 mm
Parallel processing technology support:	Crossfire
Pc health monitoring:	Voltage, Noise, Temperature, Water cooling, Fan
Pci express x16 slots:	3
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Product colour:	Black
Products per shipping (inner) case:	1 pc(s)
Raid levels:	10, 1, 0, 5
Raid support:	Yes
Rgb led pin header:	Yes
S/pdif out port:	Yes
Supported memory clock speed (max):	8000 MHz
Supported memory clock speeds:	6600, 6800, 5200, 5800, 5400, 7950, 7900, 6000, 6400, 4000, 4800, 8000 MHz, 5600, 7200, 7600, 7800, 6200, 7400, 7000
Supported memory module capacities:	2GB, 4GB, 1GB, 12GB, 16GB, 8GB, 32GB, 48GB
Supported memory types:	DDR5-SDRAM
Supported processor sockets:	LGA 1700
Supported storage drive interfaces:	M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types:	HDD & SSD
System management bios (smbios) version:	2.7
Thunderbolt headers:	2
Top wi-fi standard:	Wi-Fi 6E (802.11ax)
Total number of sata connectors:	4
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	2
Usb 3.2 gen 1 (3.1 gen 1) connectors:	2
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	4
Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity:	1
Usb 3.2 gen 2 (3.1 gen 2) connectors:	1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	7
Usb 3.2 gen 2x2 type-c ports quantity:	2
Usb connector type:	USB Type-A, USB Type-C
Warranty period:	3 year(s)
Wi-fi:	Yes
Wi-fi standards:	Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n)
Width:	305 mm
Wifi-ap antenna jack:	2
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Wlan controller model:	Killer Wi-Fi 6E AX1690

Warranty:

With rapid technological change, GIGABYTE always follows the latest trends and provides customers with advanced features and the latest technologies. GIGABYTE motherboards feature enhanced power delivery, the latest storage standards, and exceptional connectivity to deliver optimized gaming performance.

Z790 AORUS MASTER

Intel Z790 Express

CPU:

1 x M.2 connector(s) (Slot 3, M key, supports Type 25110/2280 PCIe 5.0 x4/x2 SSDs) (M2C_CPU)
1 x M.2 connector(s) (Slot 3, M key, supports Type 22110/2280 PCIe 4.0 x4/x2 SSDs) (M2A_CPU)

Chipset:

1 x M.2 connector(s) (Slot 3, M key, supports Type 22110/2280 PCIe 4.0 x4/x2 SSDs) (M2Q_SB)
1 x M.2 connector(s) (Slot 3, M key, supports 2280/2260 PCIe 4.0 x4/x2 SSDs) (M2P_SB)
1 x M.2 connector(s) (Socket 3, M key, support for Type 2280/2260 SSDs and PCIe 4.0 x4/x2) (M2M_SB)
4 x SATA 6Gb/s connectors

Supports RAID 0, RAID 1, RAID5 and RAID 10 for NVMe SSD storage devicesSupport RAID 0, RAID 1, RAID5 and RAID 10 for SATA storage devices

Integrated GPU support for Intel HD graphics:

1 x DisplayPort supports up to 4096x2304@60 Hz resolution

* Supports DisplayPort 1.2 and HDCP 2.3(Graphics specifications may vary depending on CPU support.)

Realtek ALC1220-VB Codec

* Line out on front panel supports DSD audio.

Układ DAC ESS ES9118
DTS:X Ultra Support
High-quality sound
2/4/5.1-channel
S/PDIF output support

Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

1 x 256 Mbit flash
Using an AMI UEFI BIOS licensed
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

30.5 x 26.0 cm

Norton Internet Security (OEM version)
LAN bandwidth management software

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
