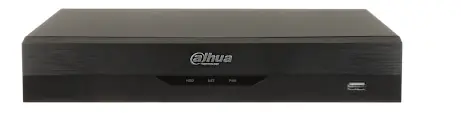

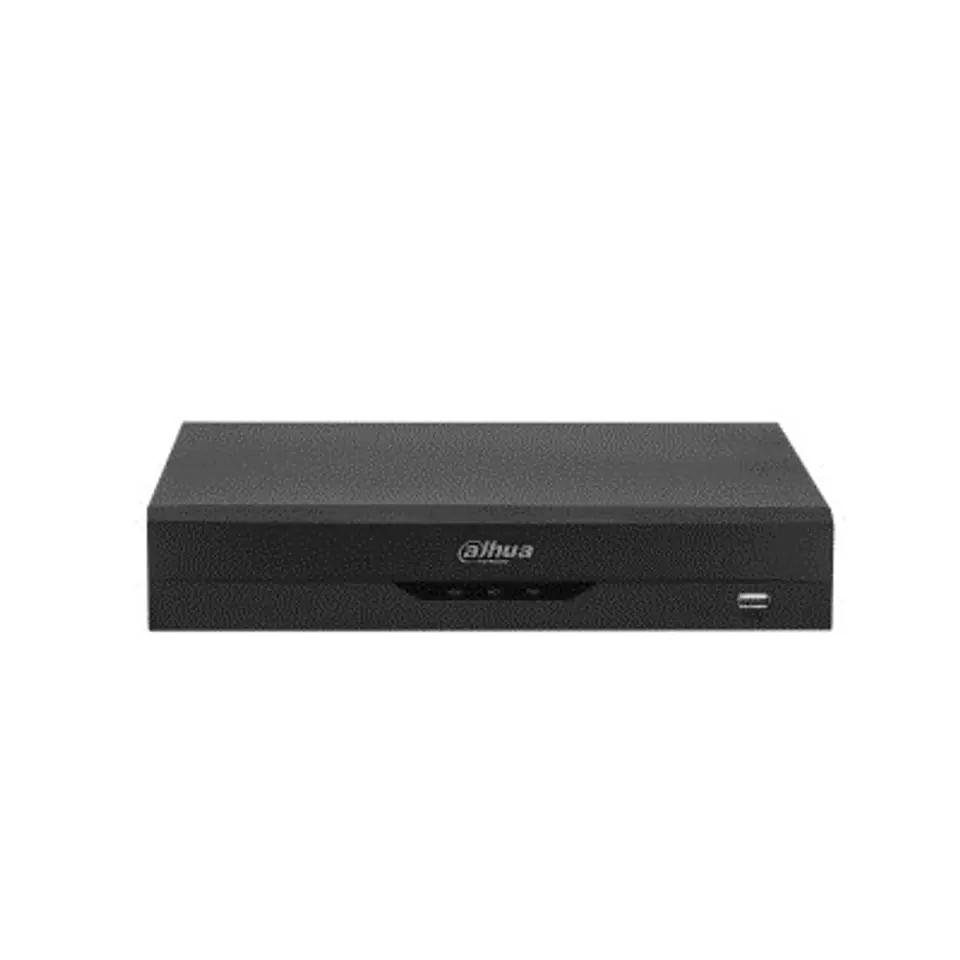

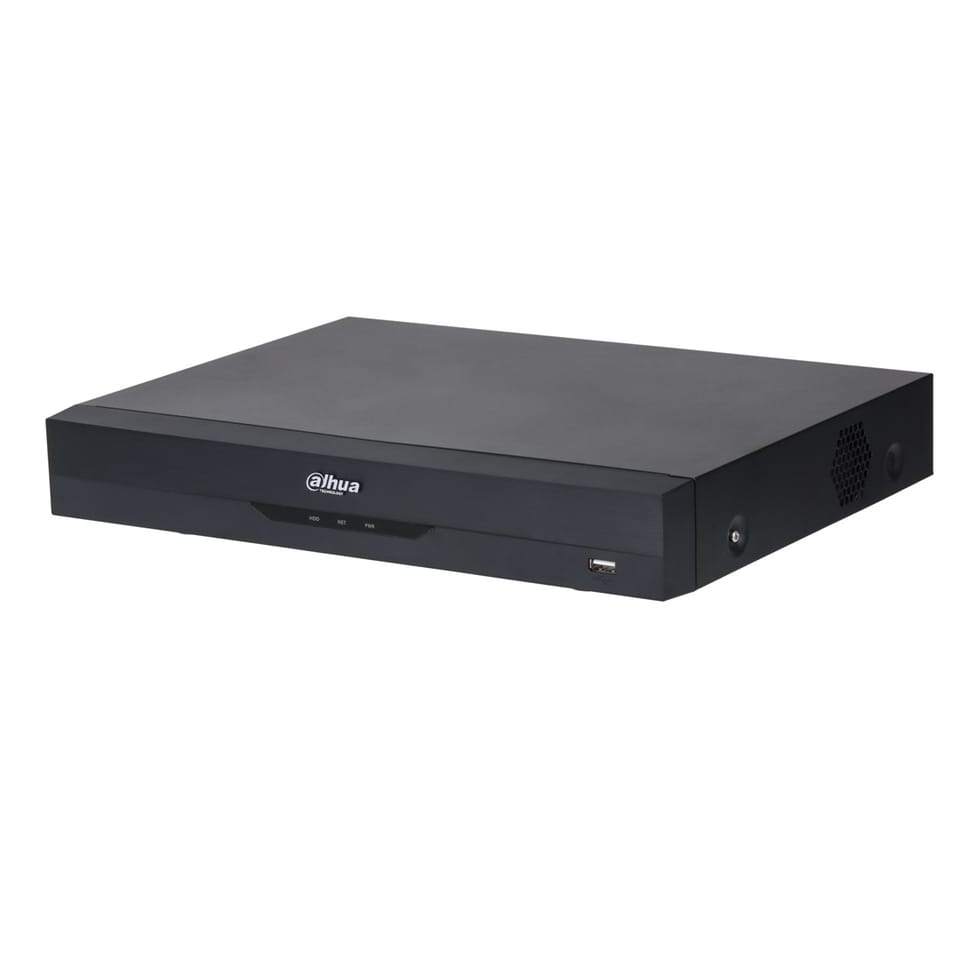

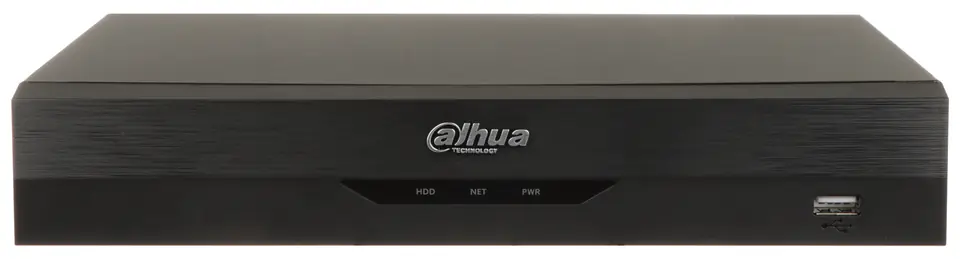

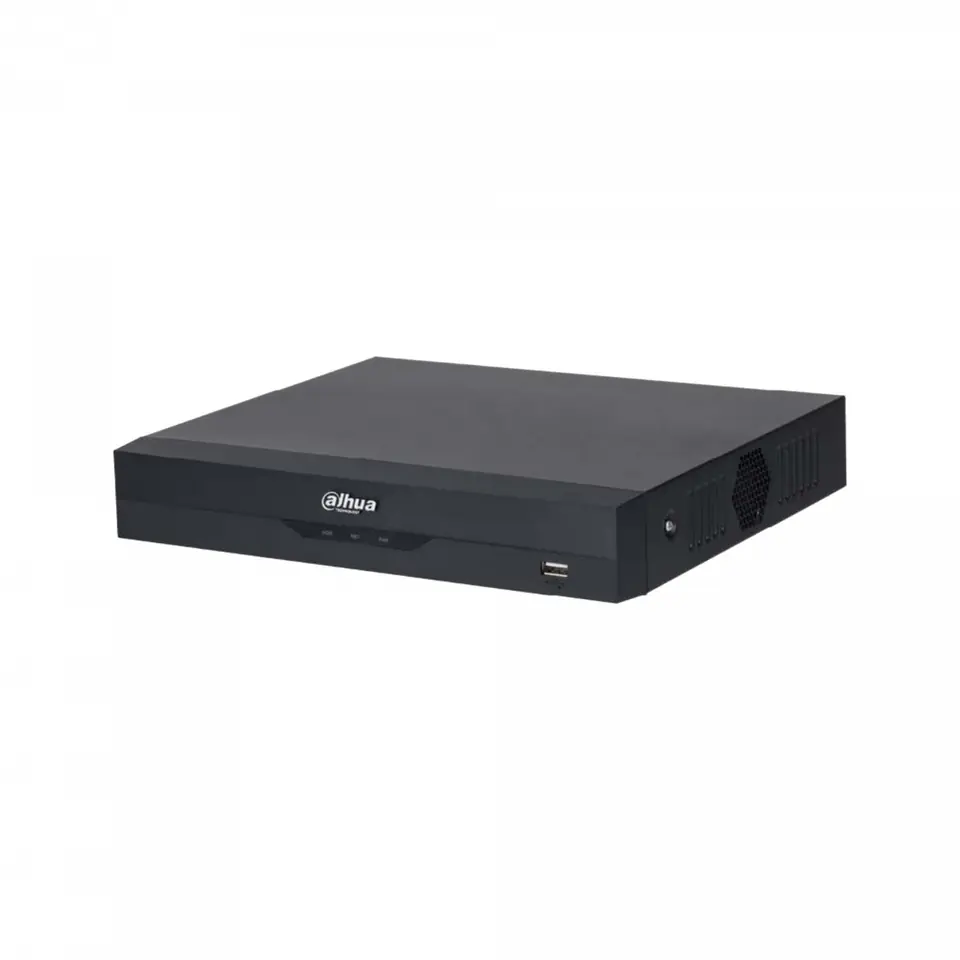

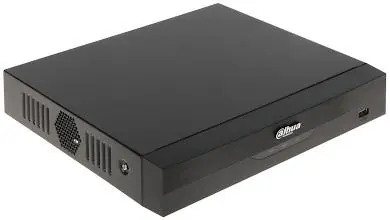

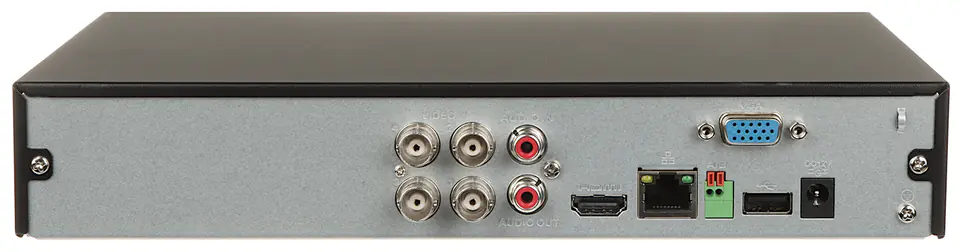

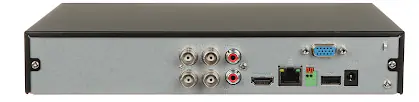

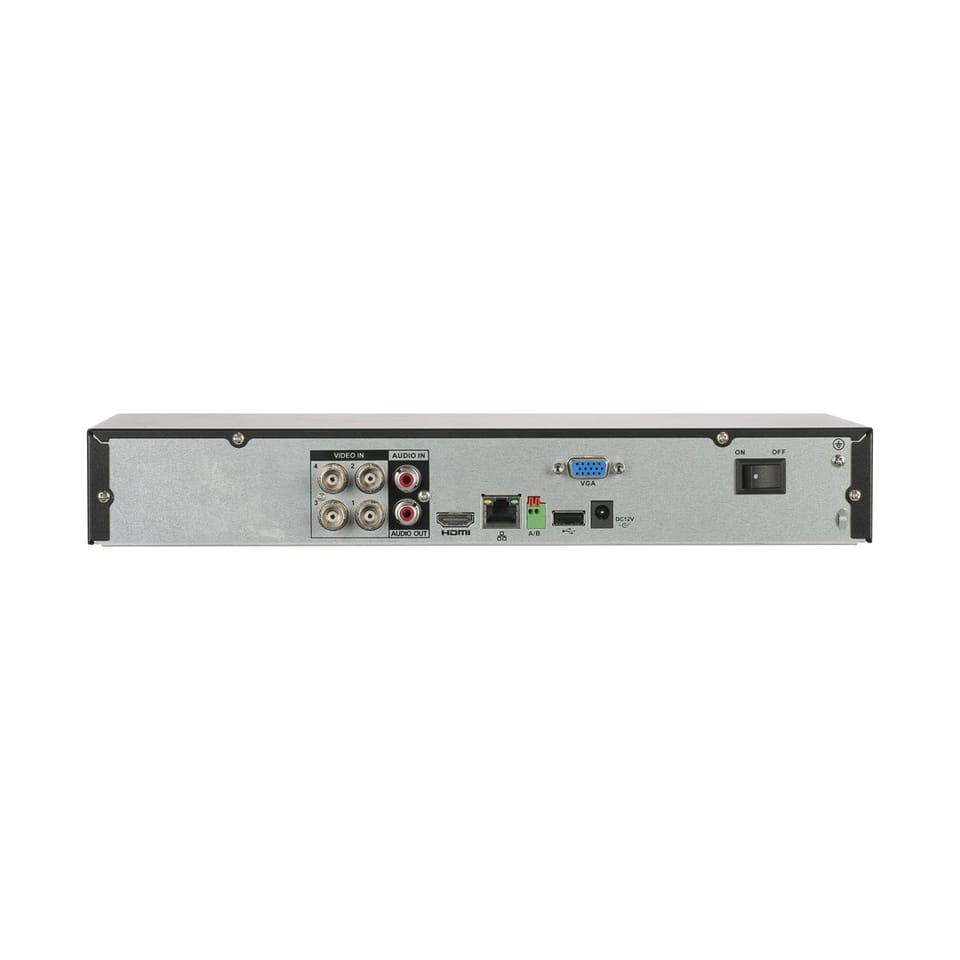

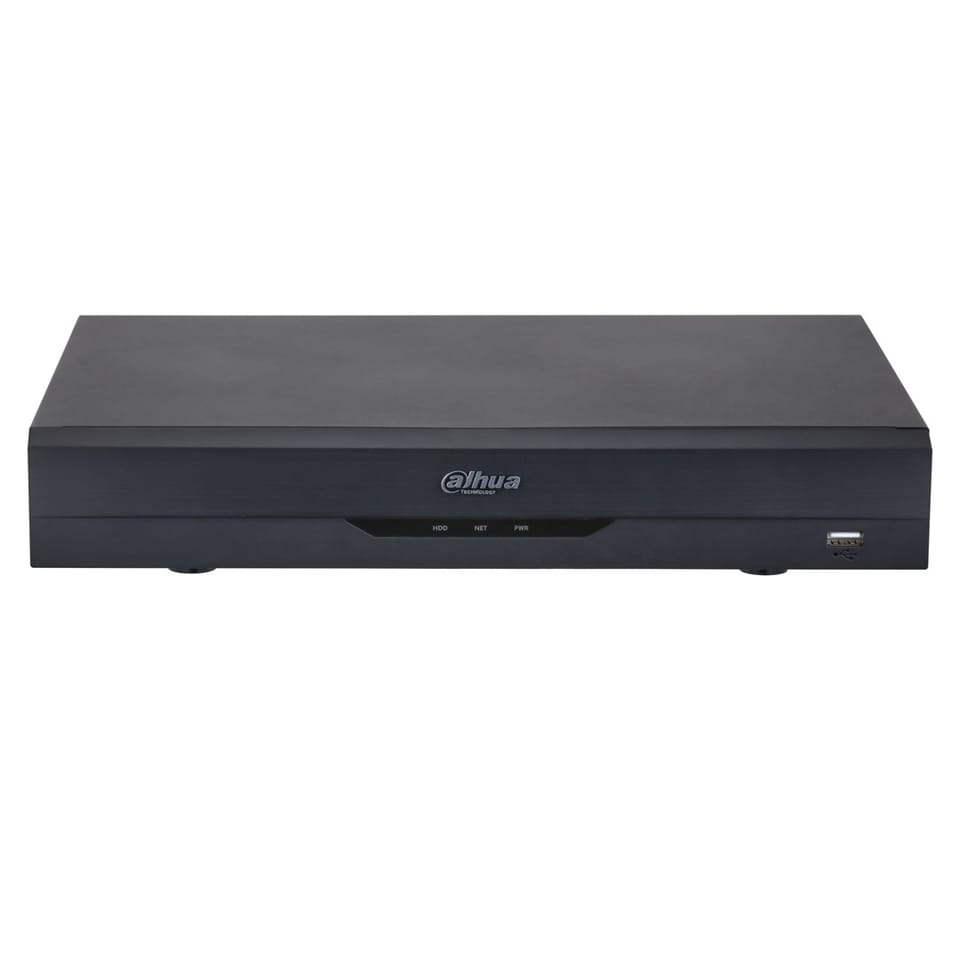

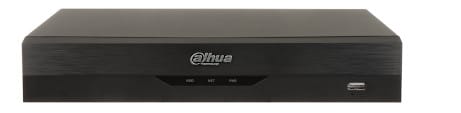

XVR5104HS-4KL-I3 5in1 recorder

€114.08
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
XVR5104HS-4KL-I3 / 6939554930430

Specification

Audio formats supported:G.711 A-law, G.711 μ-law, PCM
Audio input:1
Audio output:1 RCA
Backup function:Yes
Bit rate:6144 Kbit/s
Bnc input ports:4
Built-in display:No
Built-in memory:No
Channels quantity:4 channels
Dc voltage:12 V
Depth:237.9 mm
Ethernet interface type:Fast Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Hdd interface:SATA
Hdmi ports quantity:1
Height:47.6 mm
Maximum hdd capacity:16 TB
Maximum resolution of supported cameras:8 Mpx
Maximum video resolution:3840 x 2160 pixels
Number of hdds supported:1
Operating relative humidity (h-h):10 - 90%
Operating system installed:Embedded LINUX
Operating temperature (t-t):-10 - 55 °C
Package depth:315 mm
Package height:89 mm
Package weight:1.07 kg
Package width:333 mm
Power consumption (typical):7 W
Power supply type:DC
Product colour:Black
Ptz control:Yes
Rack capacity:1U
Rs-485 ports:1
Supported cameras:AHD, TVI, HDCVI, CVBS, IP
Supported network protocols:HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Usb 2.0 ports quantity:2
Video capturing speed:30 fps
Video capturing speed (ntsc):30 fps
Video capturing speed (pal):25 fps
Video compression formats:H.265+, H.264+, H.265, H.264
Video input channels:4 channels
Video loss detection:Yes
Video motion detection:Yes
Weight:530 g
Width:260 mm

Penta-brid 4-channel 5MP 1U 1HDD WizSense Digital Video Recorder

  • Dual-stream H.265+/H.265 video compression
  • Supports full-channel AI encoding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Up to 8 channels of IP camera inputs, each channel up to 8MP; Maximum incoming bandwidth 64 Mbps
  • Up to 1 video stream channel (analog channel) Perimeter protection
  • Up to 4 video stream channels (analog channel) SMD Plus
  • Up to 1 video stream channel (analog channel) Human face recognition

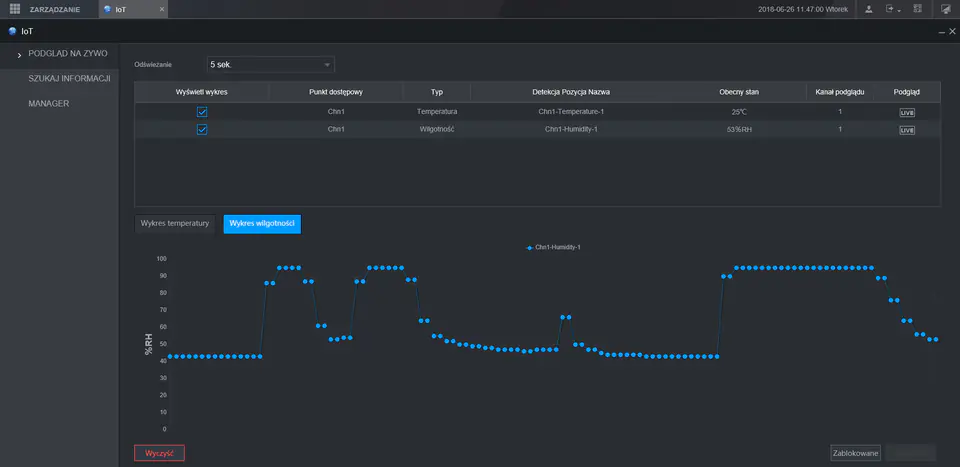

  • IoT and POS functionality
