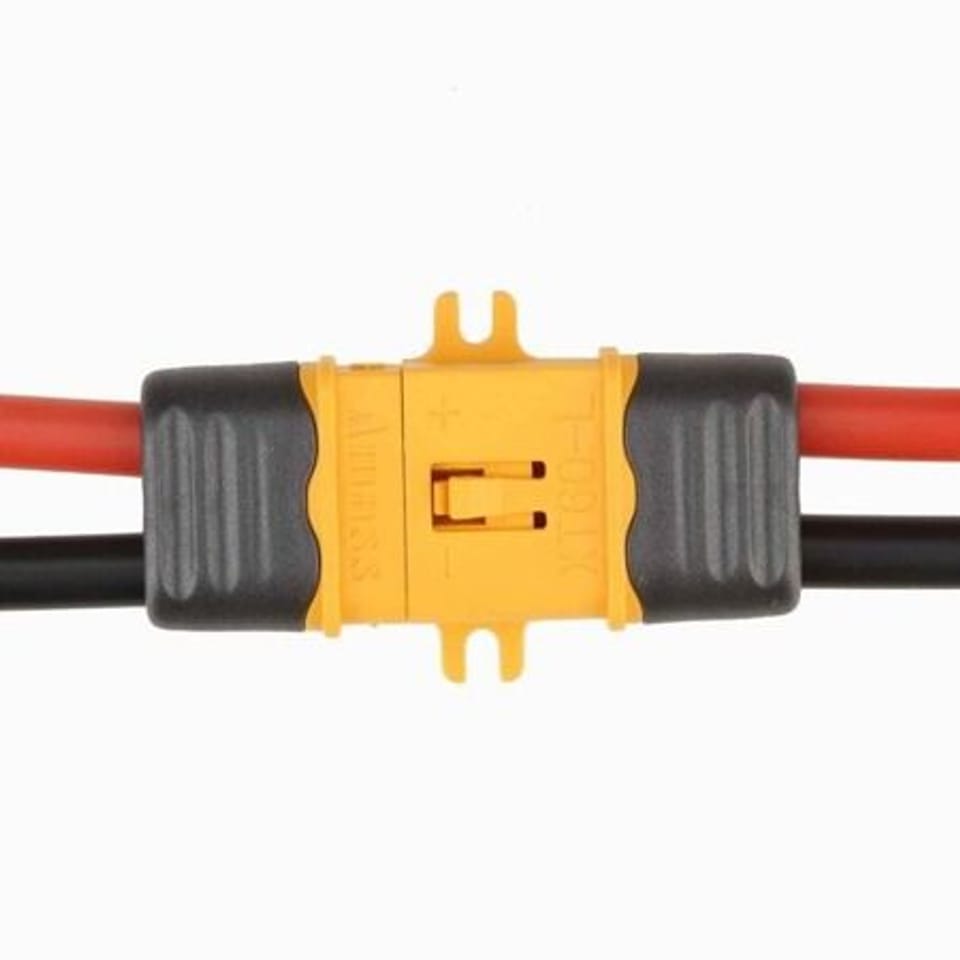

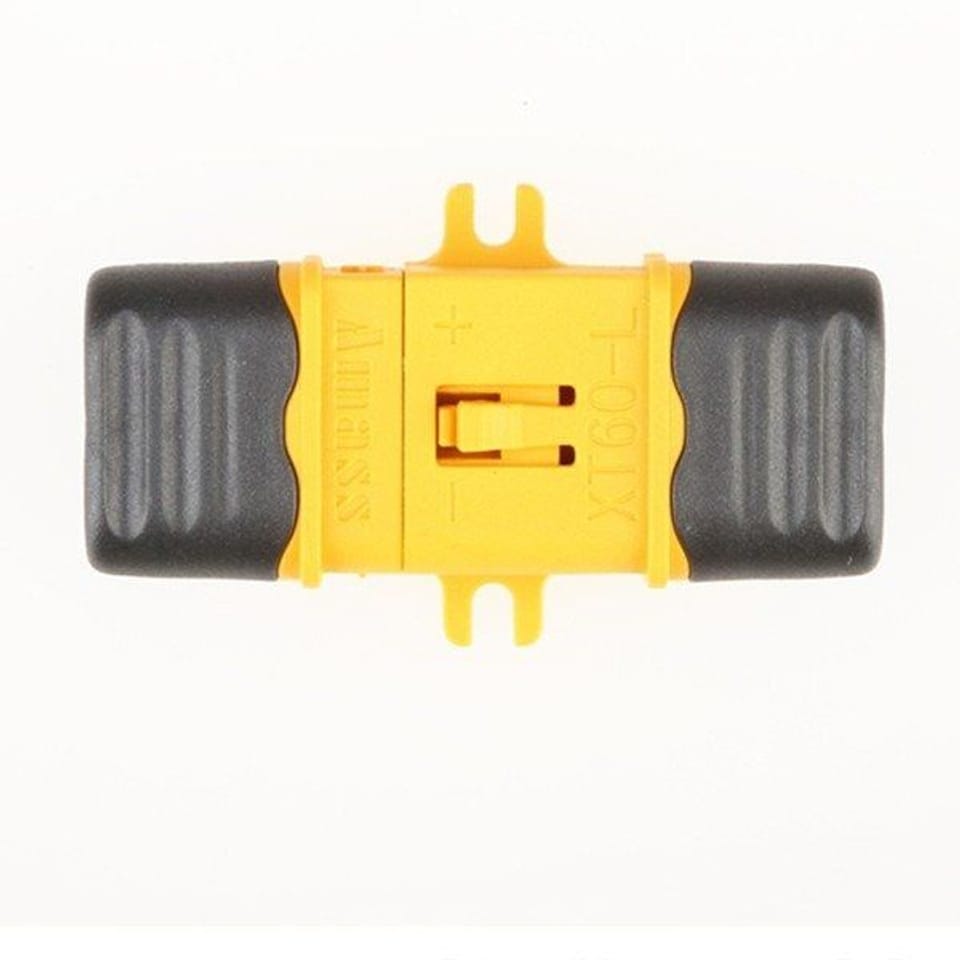

XT60-L Plugs with Guard and Shoe, XT60-L Connector, Complete AMASS High Current Connector
XT60 plugs provide the best polarization insulation for soldered connections. The basic design of the original XT60 connector has been preserved, but now thanks to the latches on the tips there is no need for heat-shrinkable tubes. Serrated edges make it easy to operate the plugs.
A big advantage here is also the latest convenience, namely the handles, thanks to which you can screw the plug to the frame or structure. This facilitates installation and improves safety.
The set includes:

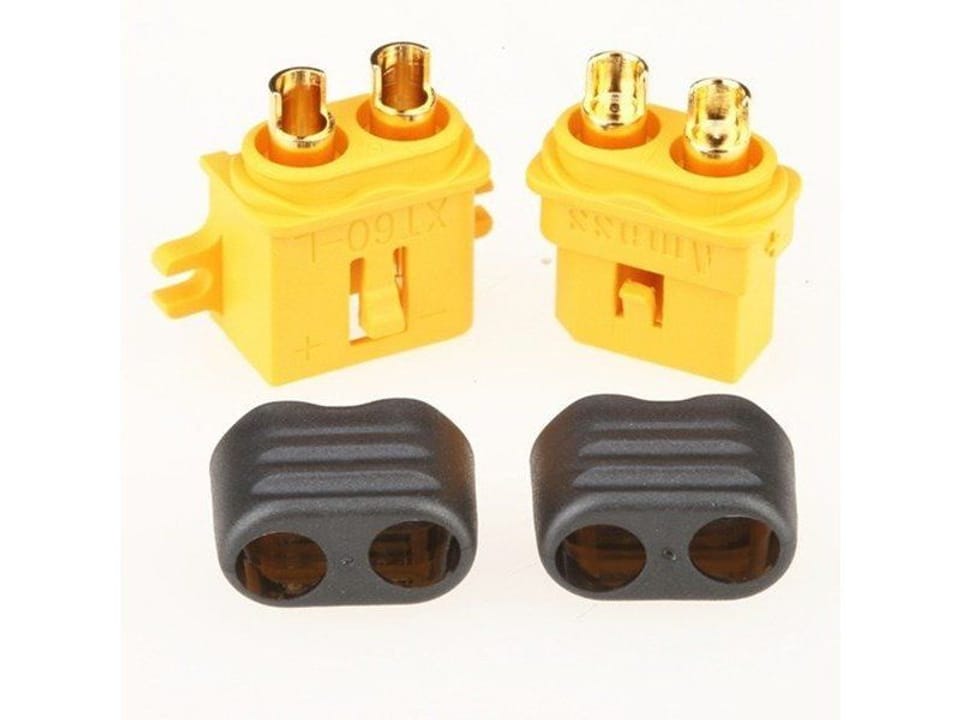

- XT60-L plugs with cover and shoe - 1 pair
Technical data:
Material:
Gold-plated copper
Case:
Nylon/PA
Maximum Continuous Current / Peak Current:
60A/100A
Scales:
8g
Temperature resistance:
-20°C~120°C
Recommended cable:
12AWG
Producer:
AMASS
