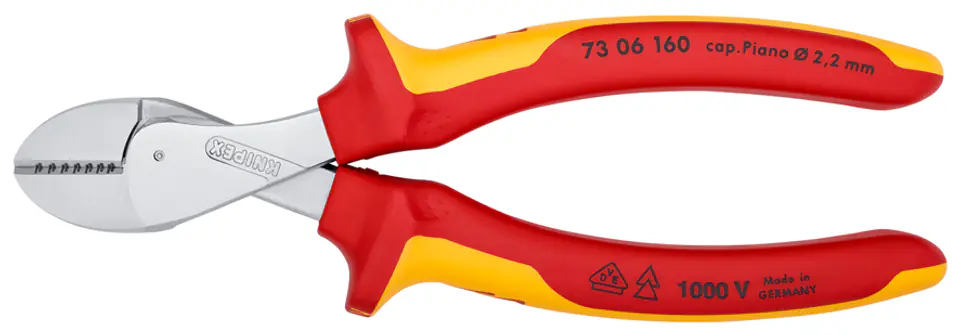

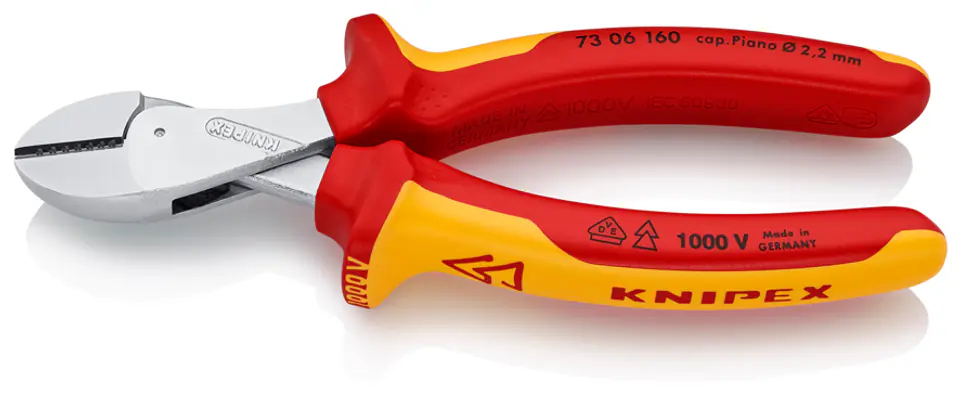

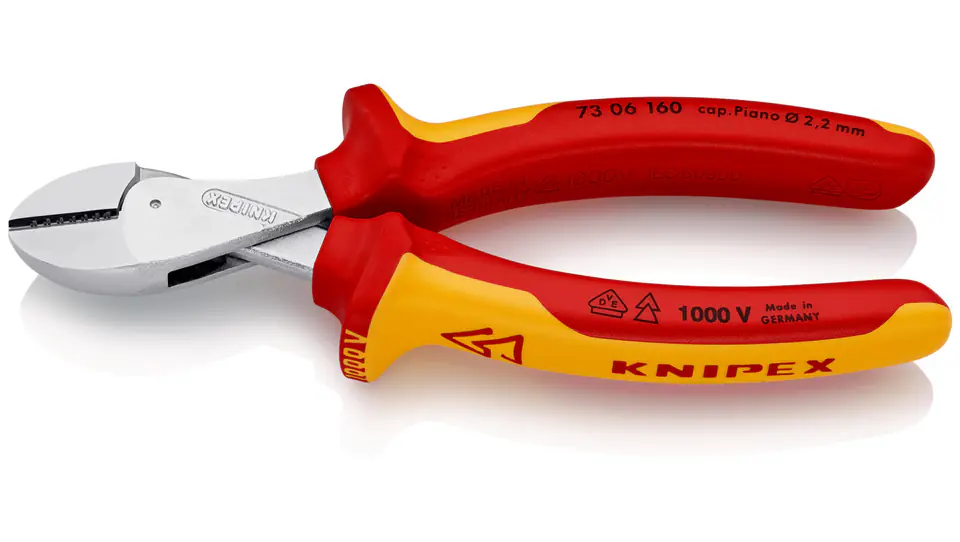

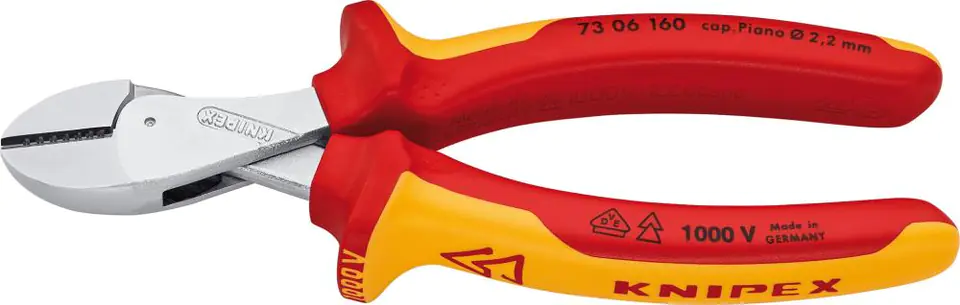

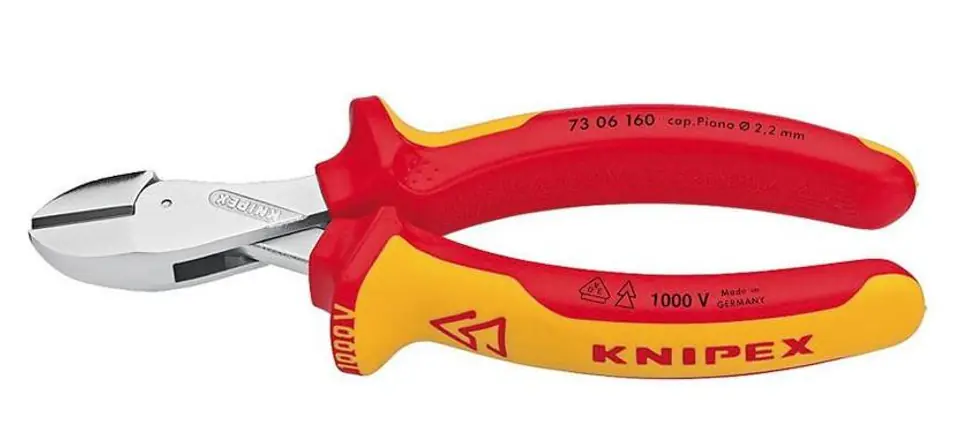

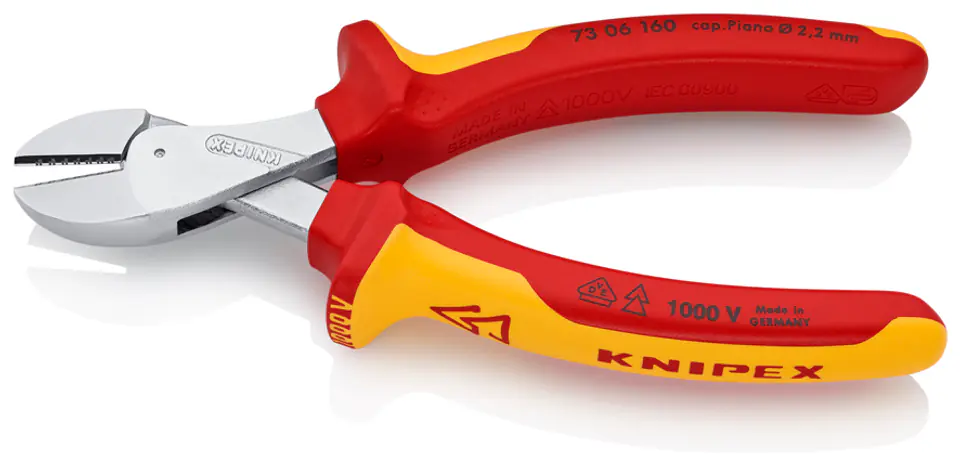

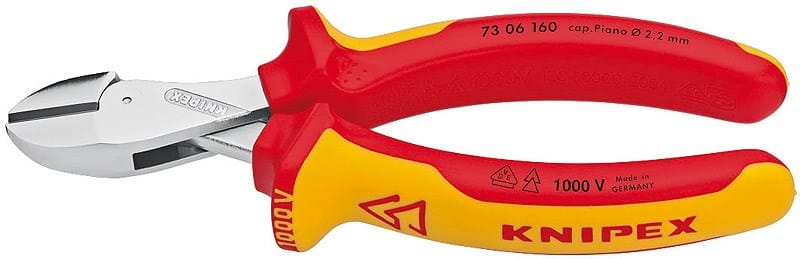

X-CUT SIDE CUTTING PLIERS 160MM, HIGH RATIO LEVER

Technical data:

Article no.: 73 06 160
EAN: 4003773075141
Pliers: chrome plated
Head: chrome plated
handles: with multi-component caps, insulated according to VDE
Weight: 175 g
Dimensions: 160 x 60 x 28 mm
Standard: DIN ISO 5749 DIN EN 60900 IEC 60900
Soft wire cutting range (diameter): 4.8mm
Medium hardness wire cutting range (diameter): 3.8mm
Hard wire cutting range (diameter): 2.7mm
Piano wire cutting range (diameter): 2.2mm
Cutting range of copper, multicore cable: 12.0mm
VDE insulated: yes

https://youtu.be/Rcwn1BmQBhI

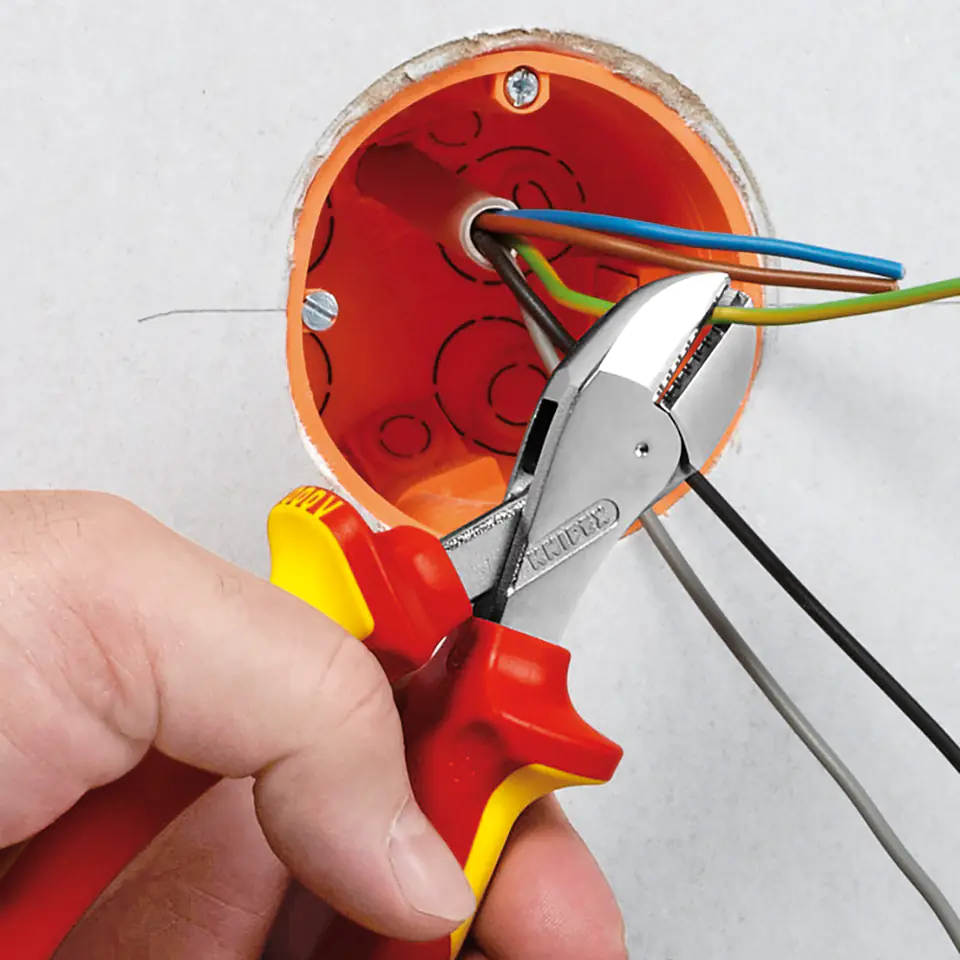

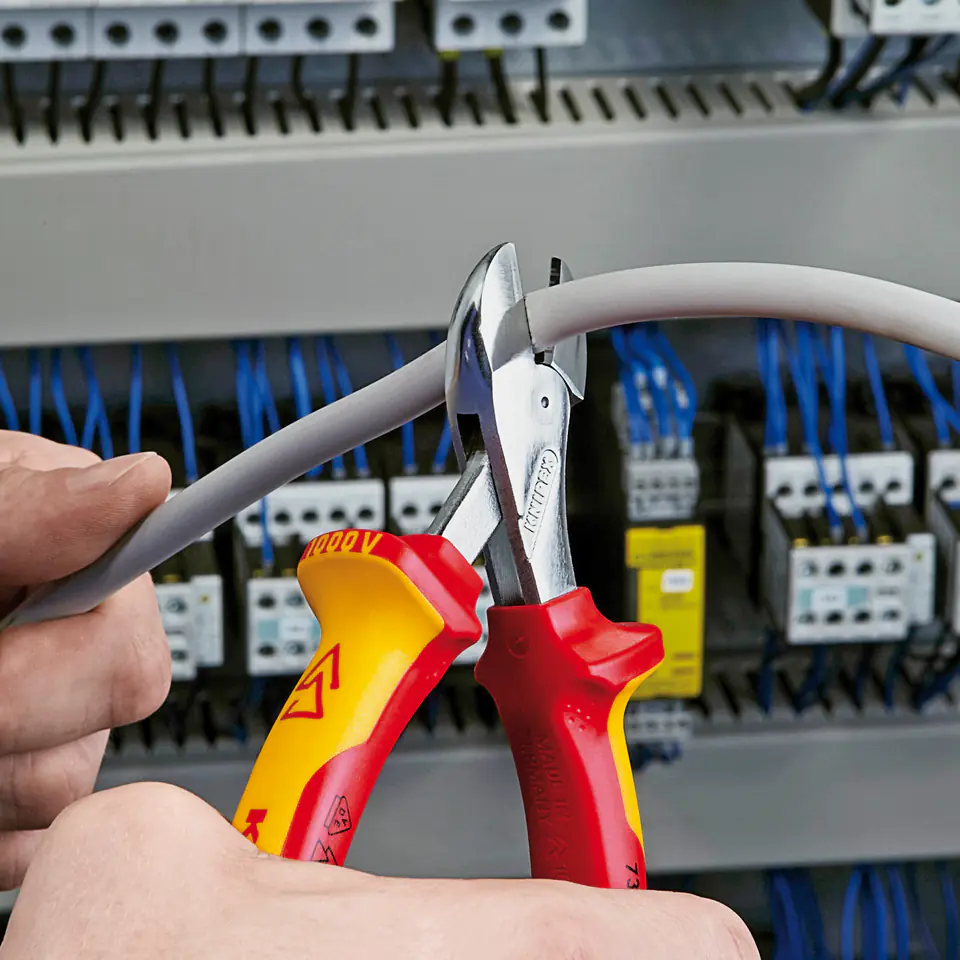

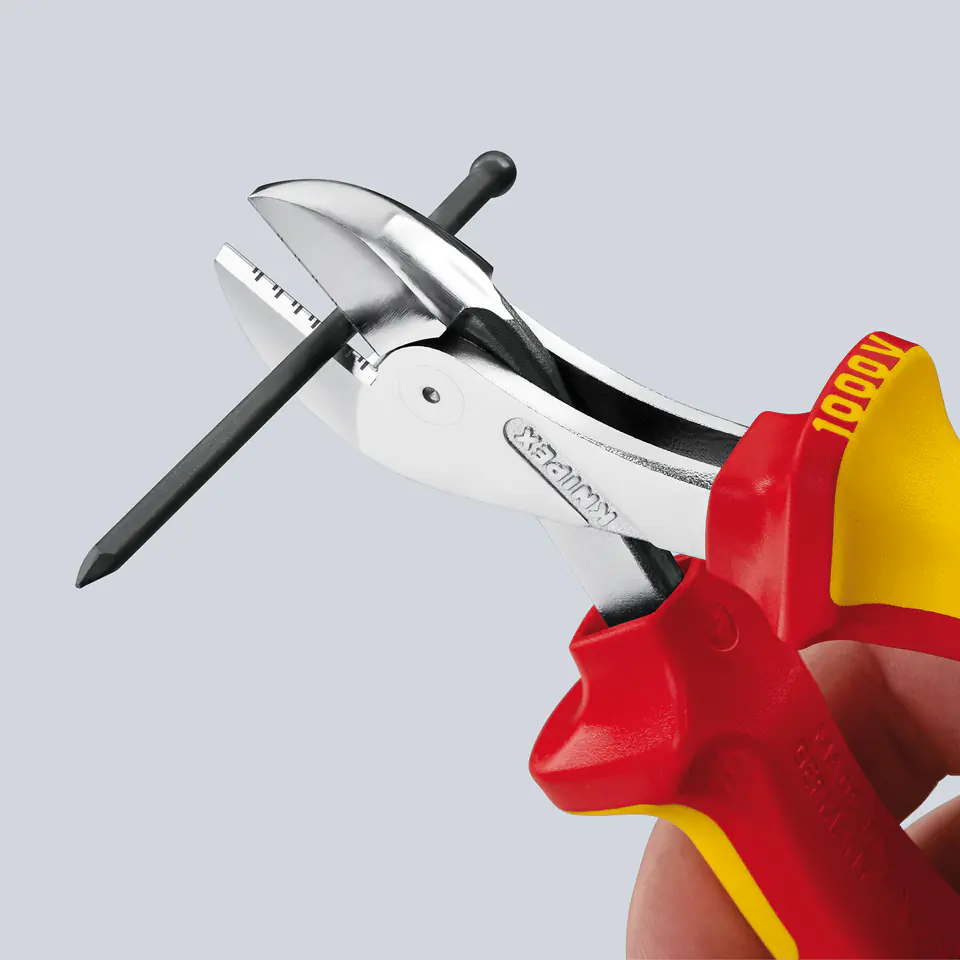

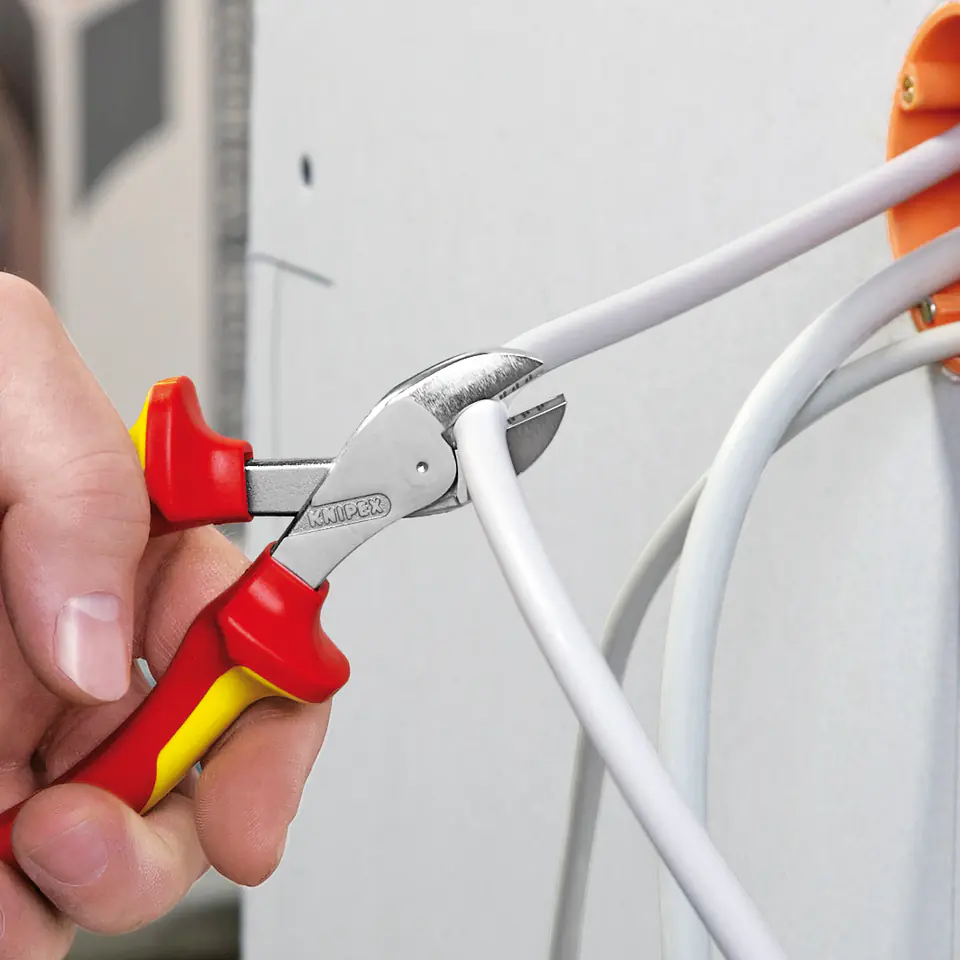

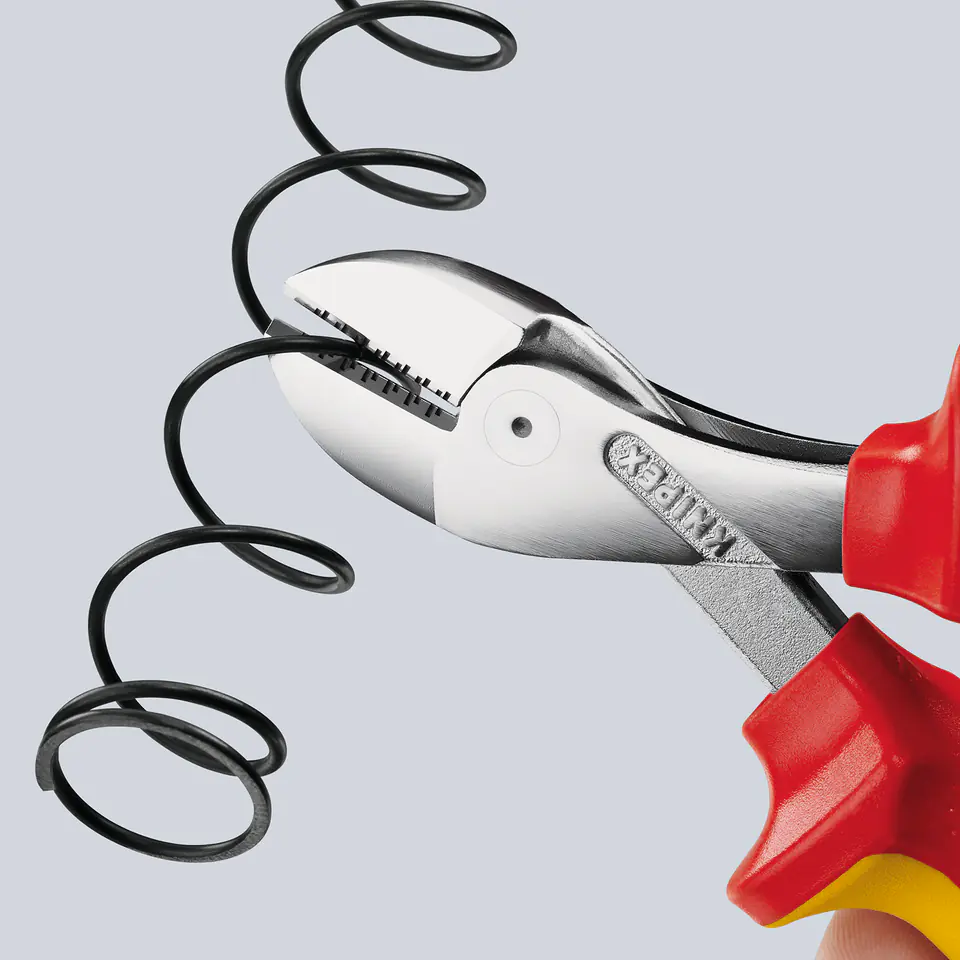

For cutting both thin wire and multicore cables and hard piano wire
Strong, lightweight and versatile
Optimal combination of blade angle and lever ratio with the point of rotation, shifted to the side, ensures high cutting performance with minimal force
Sliding connector: high stability and light weight
Double-guided connector for long-term heavy duty operation

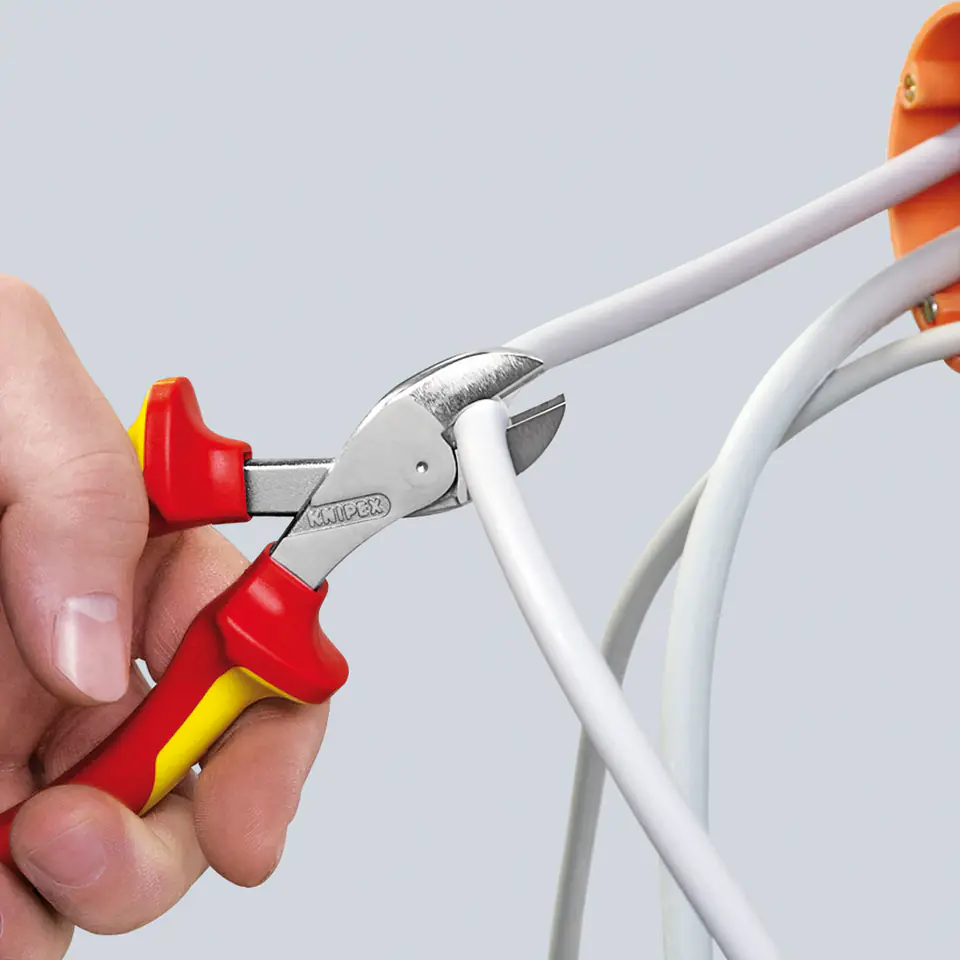

Large opening range allows cutting cables with a larger diameter

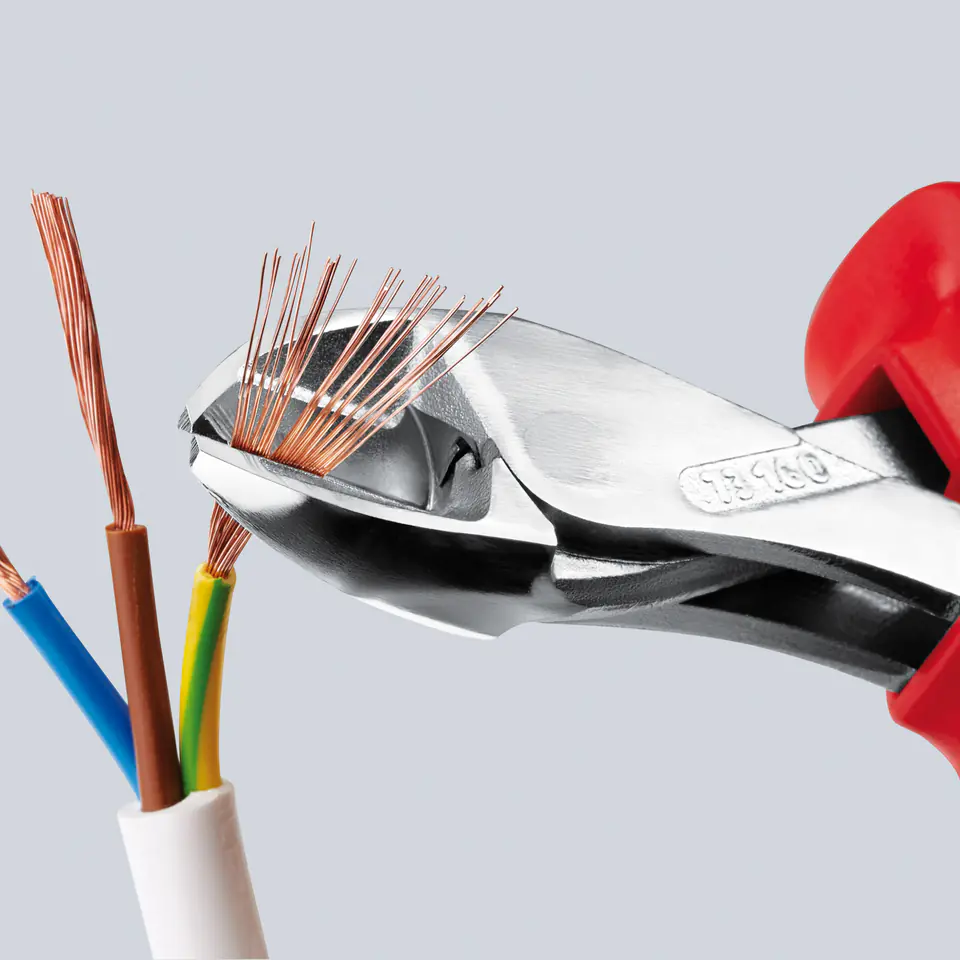

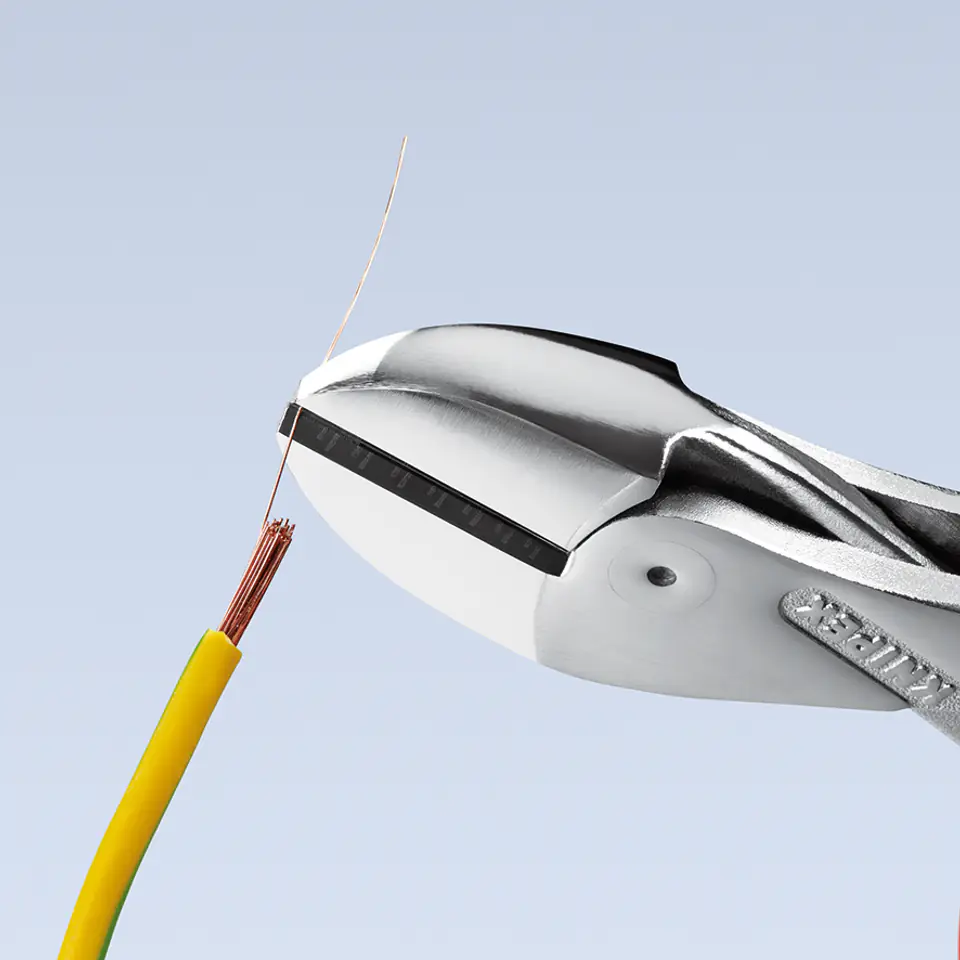

Precise cutting of even thin copper wires
Compact, lightweight design
Universal use in assembly, repair and production
Require 40 % less force compared to standard side cutting pliers of the same length
Heavy-duty chrome vanadium steel, forged, repeatedly oil-hardened


**

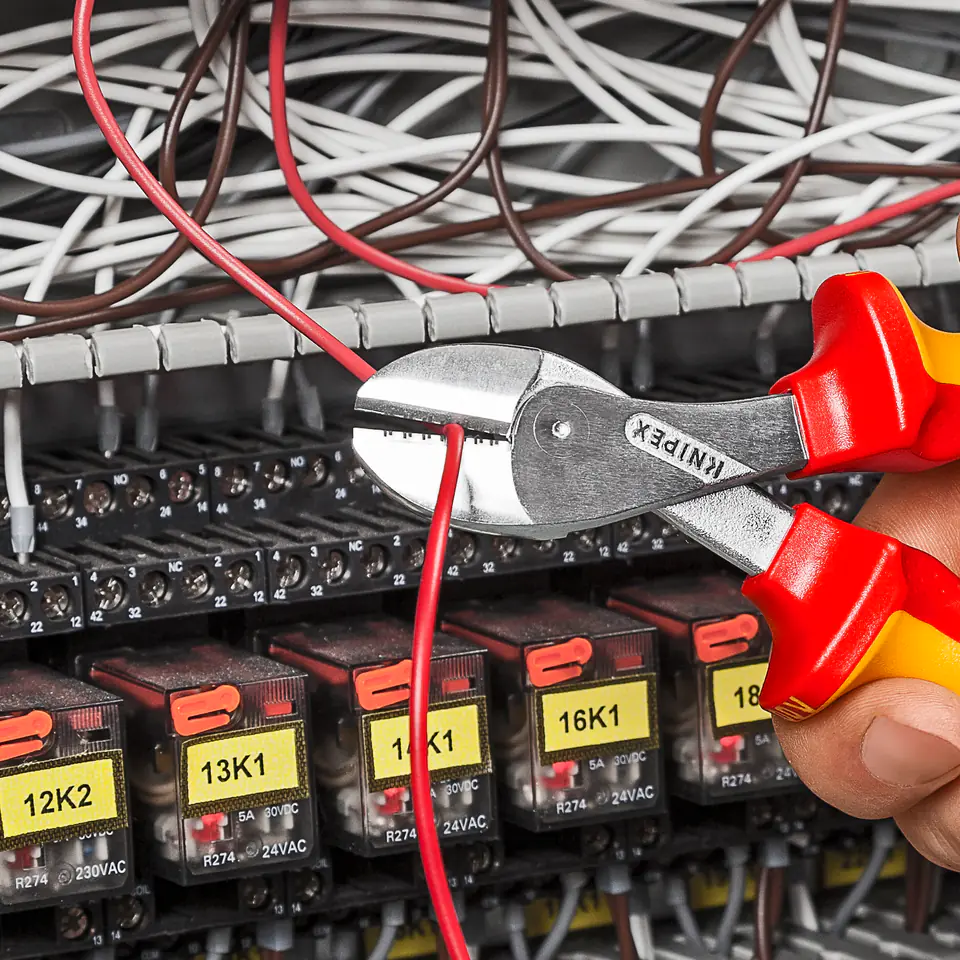

Illustrative photos.
