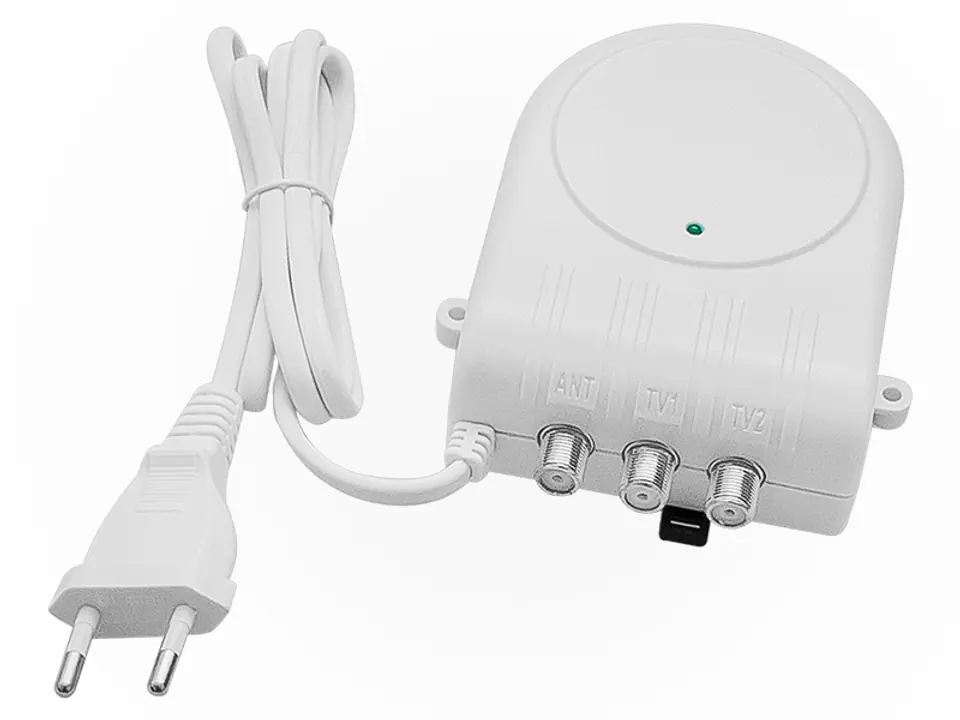

Apartment amplifier of the well-known ONYX brand. The device is designed to work inside the building. The W2301 ONYX operates in the 40-400MHz and 470-862MHz bands. It has independent VHF and UHF gain control. The amplifier has a switch with which you can expose the 12V voltage to the amplifier input to power an additional preamplifier.
The device is ideal for use in single-family houses. Below is a diagram of an example installation using an amplifier.
Technical data:
- Number of inputs: 1
- Number of outputs: 2
- Frequency range: 47-790MHz
- Gain: 13-24 dB
- Maximum input level: 88 dBuV
- Maximum output level: 104 dBuV
- Reflection attenuation/fit: >8dB
- Preamplifier power supply: 24 DC 55mA
- Power Supply: 230V/3.5W
- Connectors: F
