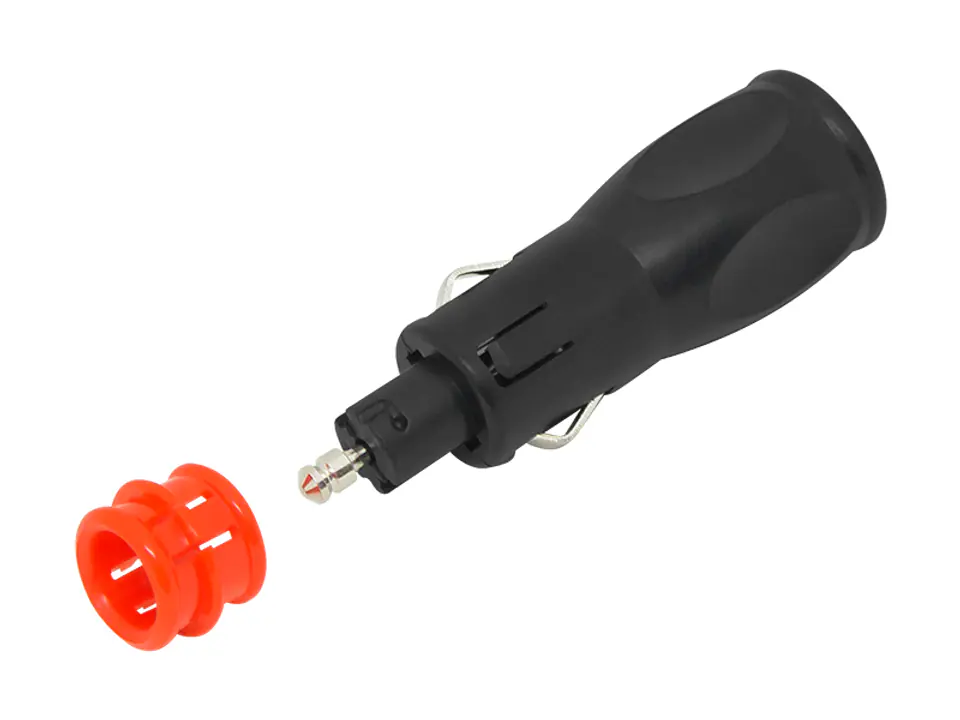

Cigarette lighter plug W-21
Car cigarette lighter mounting plug designed for 12V and 24V car installation. The plug fits standard 21 mm car cigarette lighter sockets and mini DIN sockets.
Product features:
- high quality of workmanship
- possibility of connecting to two types of sockets
- possibility of connecting several devices at the same time
- compatible with 12V and 24V car installations
- very easy to assemble
- compact dimensions and modern design
Technical parameters:
- voltage: 12V/24V
- maximum output current: up to 10A (total)
- protection: WTA glass tubular fuse Ø5 x 20 mm
- plug diameter: Ø20 mm
- plug dimensions: Ø24.5 x 82 mm
- hole for cable outlet: Ø7.5 mm

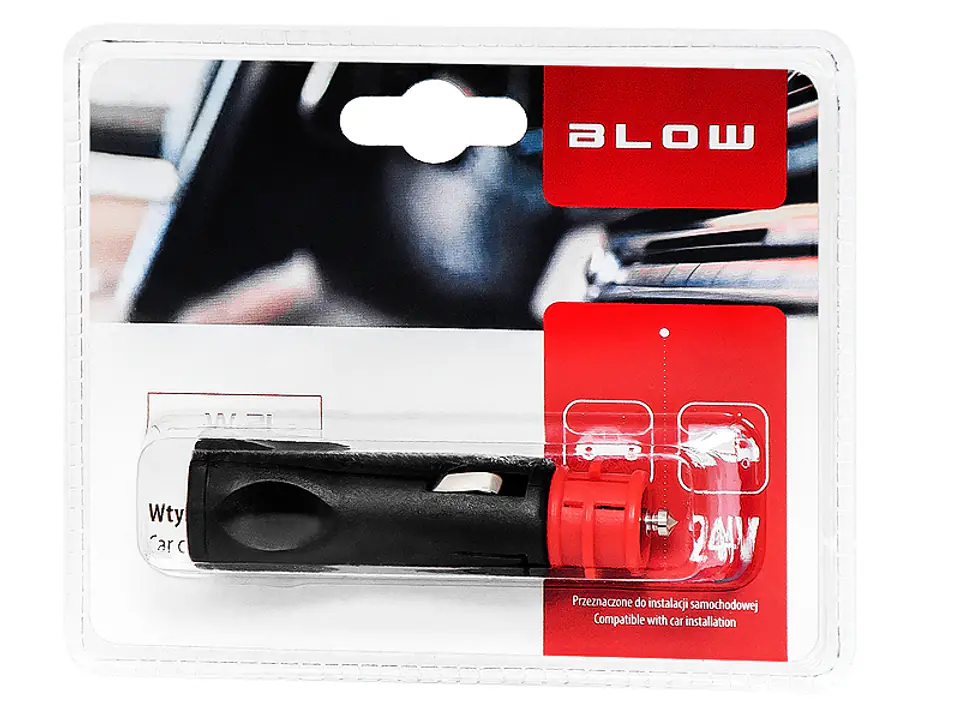

- packaging: blister with pendant
- package dimensions height x width: 113x137 mm
