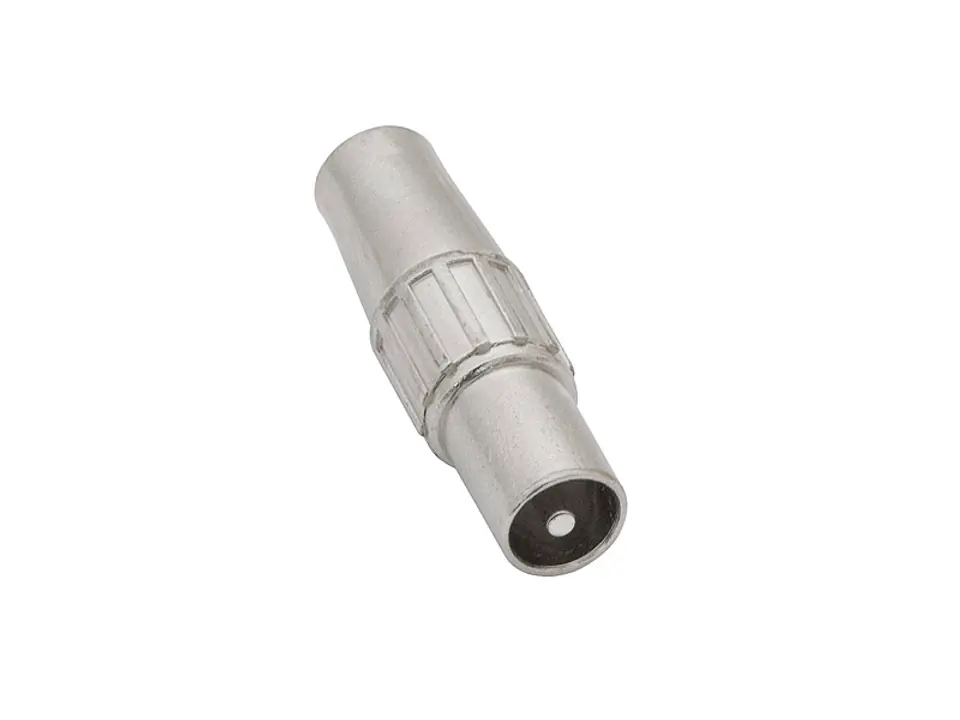

WPW plugs are designed for disconnected, multiple coaxial connections of the w.cz cable. (RF) with electronic devices equipped with IEC sockets, e.g. subscriber sockets, TV sets, audio-video modulators, etc.
The body of the plug is cast from light alloys, which ensures high mechanical stability and very good shielding. A coaxial wire with a braid wound wound on its outer jacket is screwed into the threaded hole of the body. The connection of the plug with the inner conductor occurs automatically (clamping mechanism), without soldering.
Plug-in connectors are offered in two versions - WPW as a plug "IEC" - "male" and WPG plug "IEC" - "female".
SPECIFICATIONS:- Operating frequency range: ≤1000MHz
- Reflection attenuation: 30...18 dB
- Shielding ratio: 90 dB
- Impedance: 75 Ohm
- Range of external cable diameters: 6.2...6.8 mm
- Inner conductor connection: automatic (pressure mechanism)
