Manufacturer number: MSW 10060937
The MSW car lift is a universal device that will work both in professional car workshops and in private garages. It is durable, easy to transport, convenient to use and does not require power, so it will work in all conditions.
The maximum load of the MSW-HB-1500 model reaches 1500 kg, which makes it possible to lift the car for a short time. However, if you want to lift the car for longer, you need to use additional supports for the car or lifting pads. If the maximum lifting capacity of the arm is exceeded, only the pin will be damaged, the replacement of which does not cause problems.

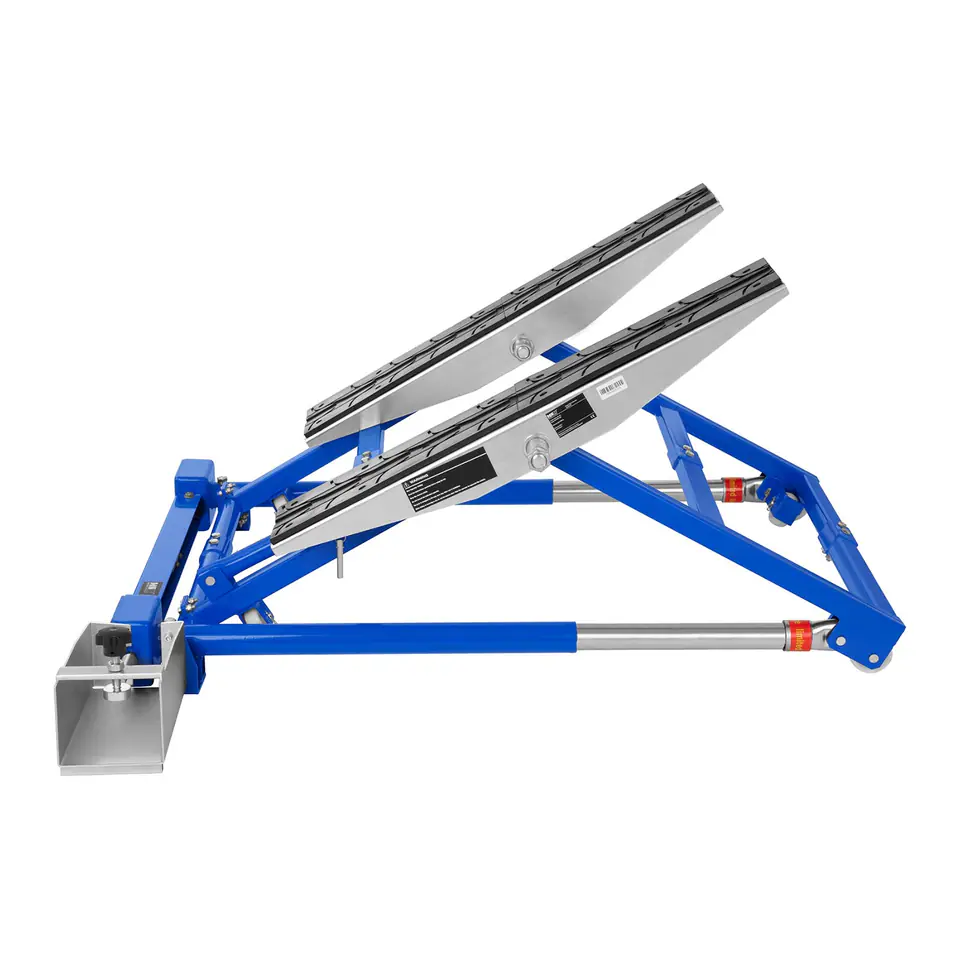

The versatility of the device is due to the many possibilities of lifting vehicles. With the help of a jack , you can lift both the front or rear wheels, and tilt or lift the entire car. It is worth bearing in mind that in the case of lifting four wheels at the same time, the device should be operated by two people.

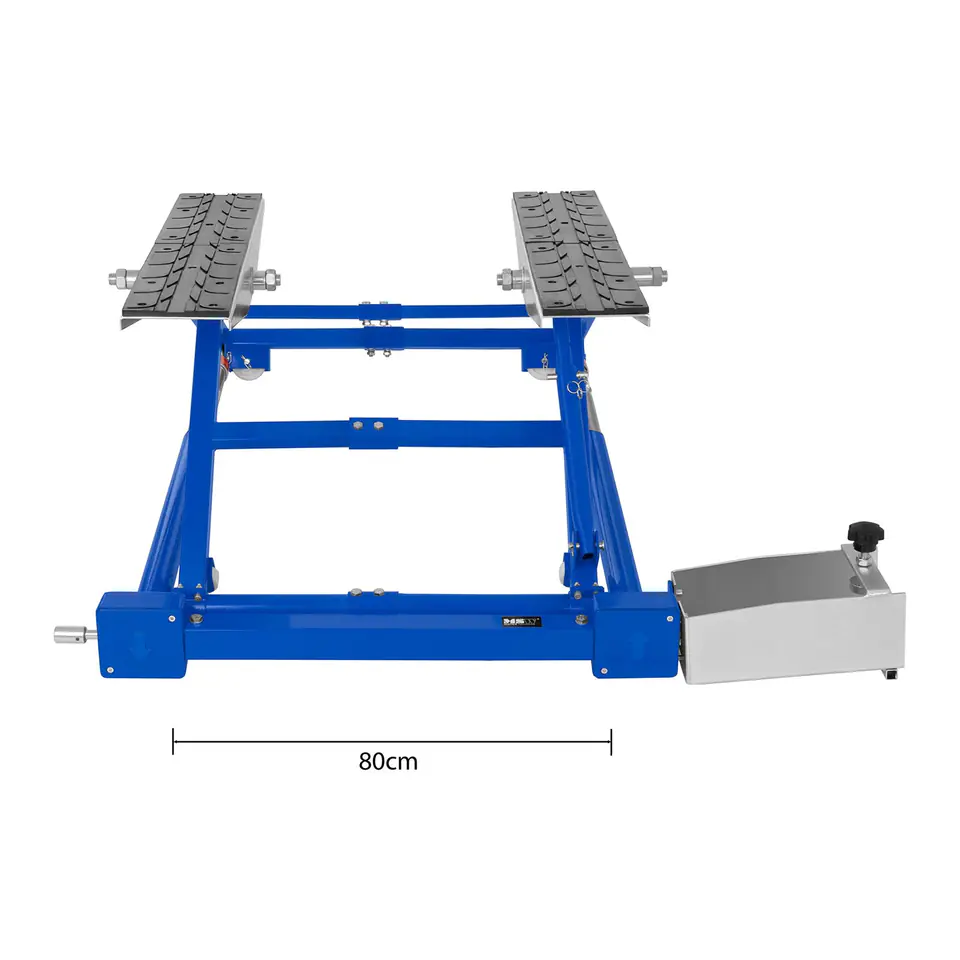

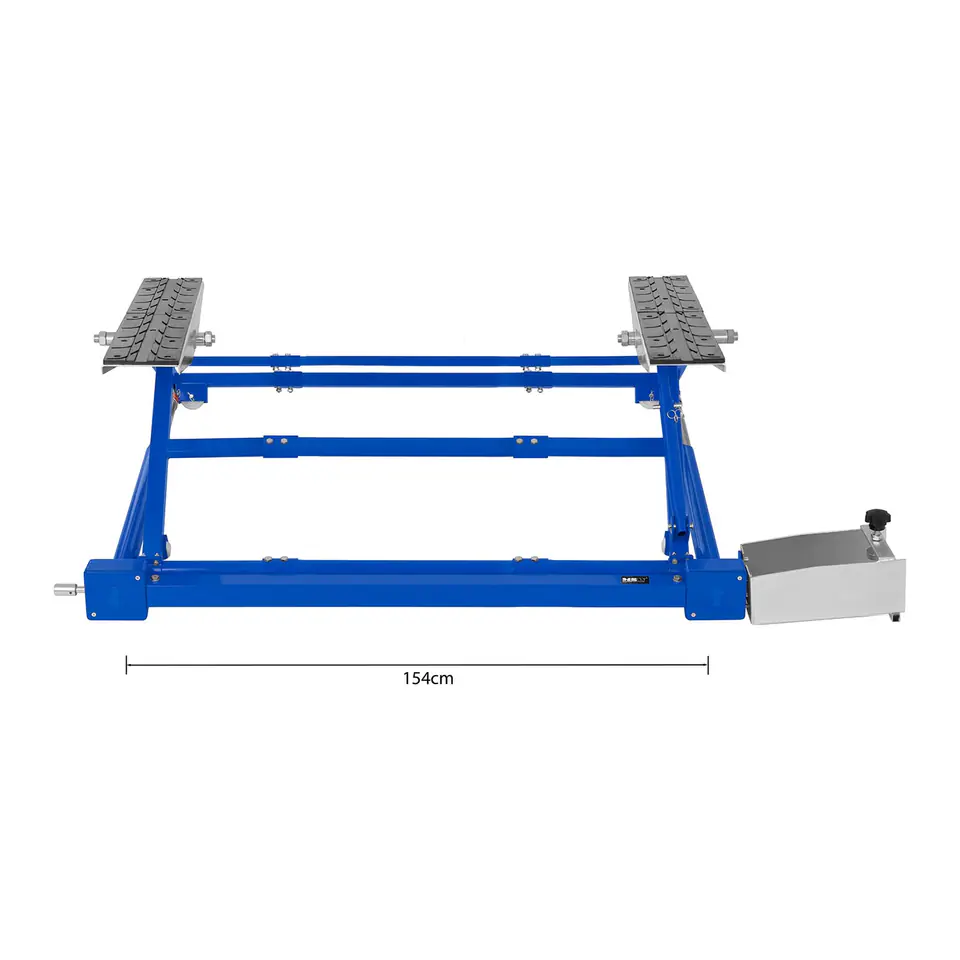

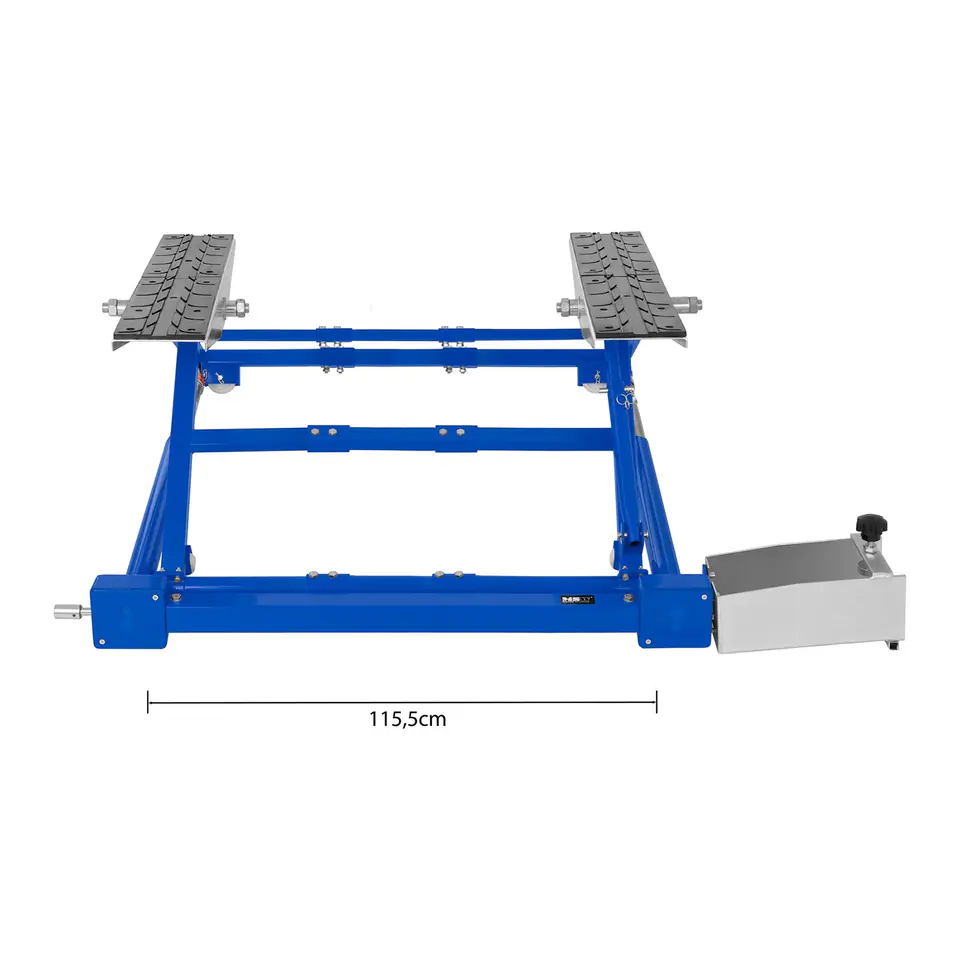

In order to increase the convenience of using the structure , the MSW-HB-1500 model has been adapted for field work – it is extremely light, easy to install and does not require any power source. In addition, the width adjustment of the driveway allows you to set the lift in 3 positions (800/1115/1540 mm), which makes it easier to lift different types of cars. The lifting height of the vehicle can be adjusted from 150 to 585 mm.
Product features:
- - Efficiency - the maximum load is 1.5 t,
- - Safety - overload protection,
- - Multifunctionality - the jack can lift only the front or rear wheels, as well as tilt or lift the entire car,
- - Versatility - 3 positions of width adjustment,
- - Precision - adjustment of the lifting height of the vehicle,

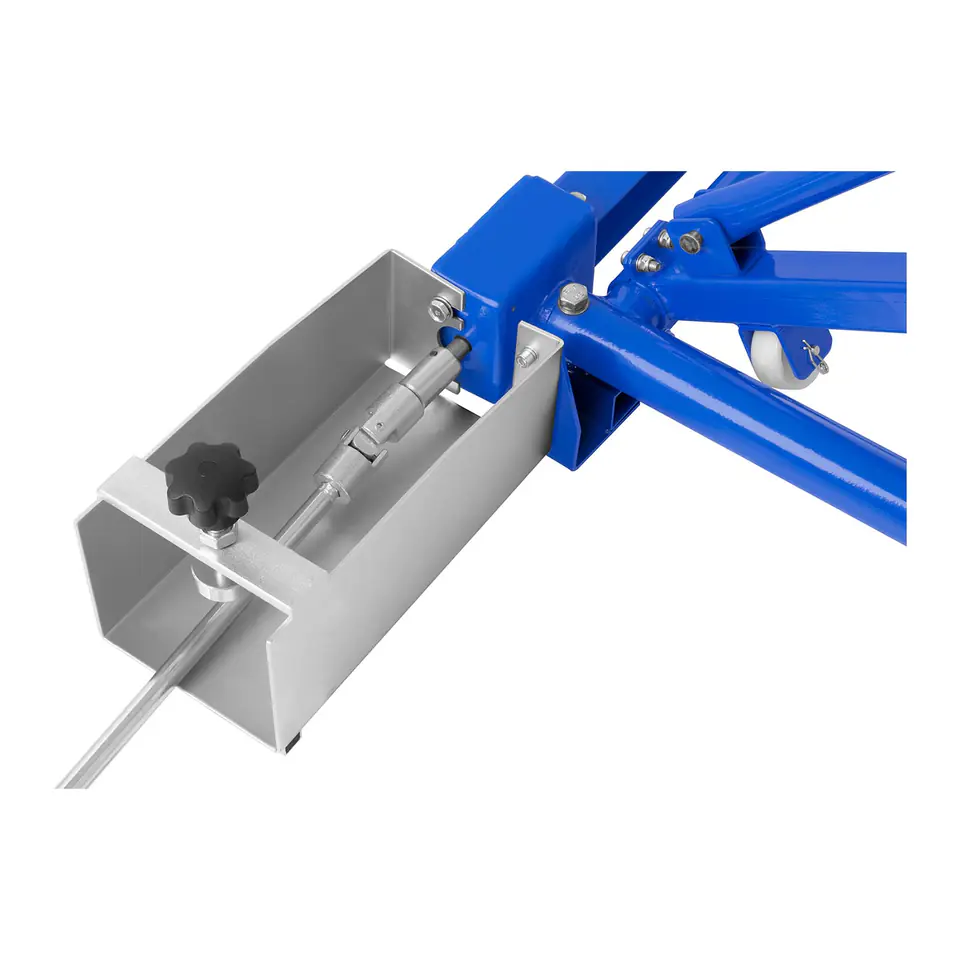

- - Convenience - operation with a mechanical crank,
- - Mobility - light weight and easy installation.
- - Model - MSW-HB-1500
- - Catalog no. - 10060937
- - Article status - New
- - Maximum load - 1500 kg
- - Lifting range - 150-585 mm
- - Length adjustment - 800-1115-1540 mm
- - Width - 1300 mm
- - Ambient temperature - -10-50C
- - Dimensions (LxWxH) - 130 x 166.5 x 87.5 cm
- - Weight - 67 kg
- - Shipping dimensions (LxWxH) - 134 x 89 x 17 cm
- - Shipping weight - 88 kg

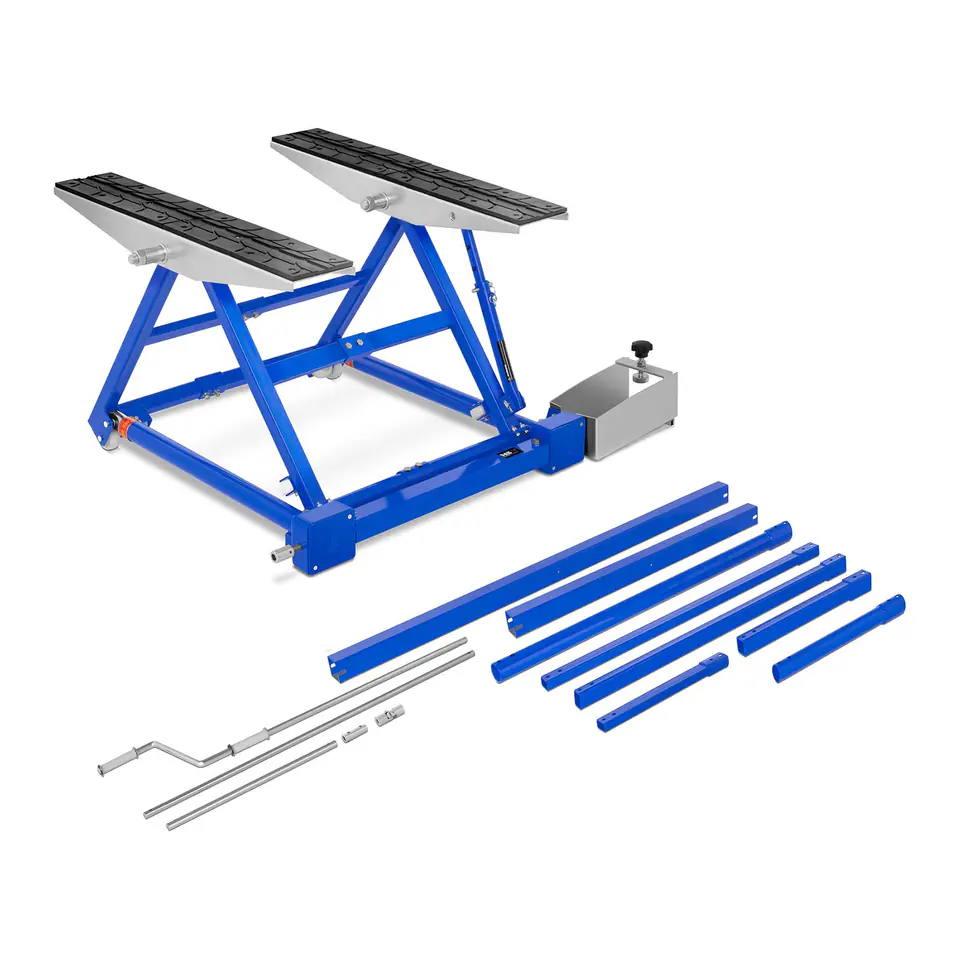

- Car lift
- Mounting elements
- Manual PL
