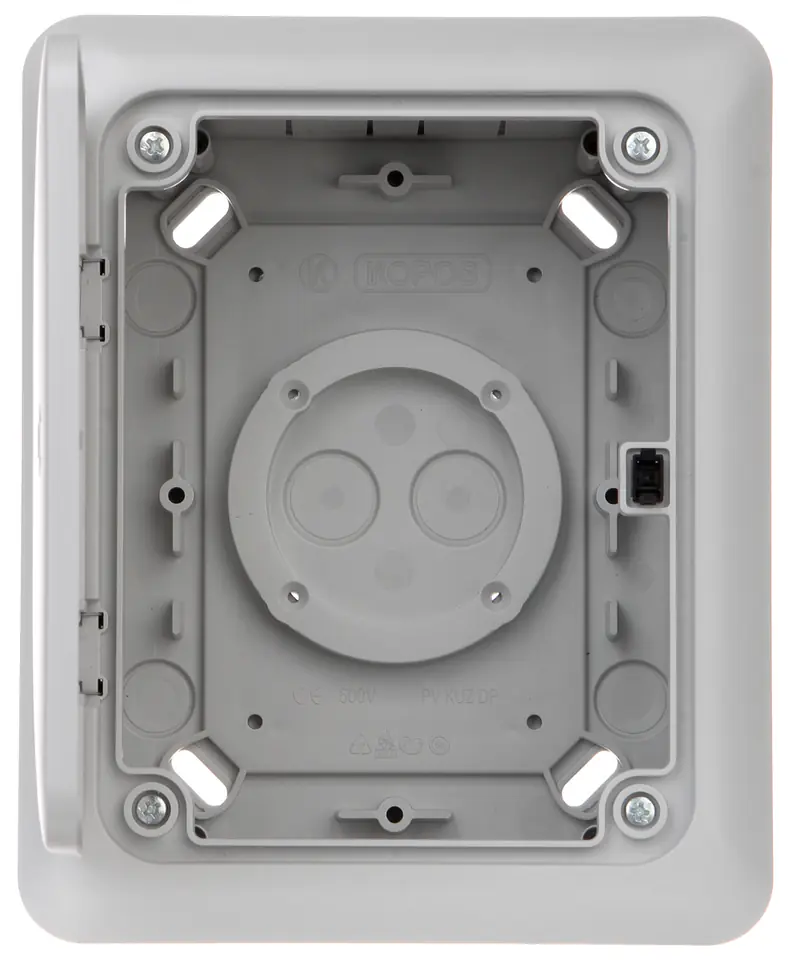

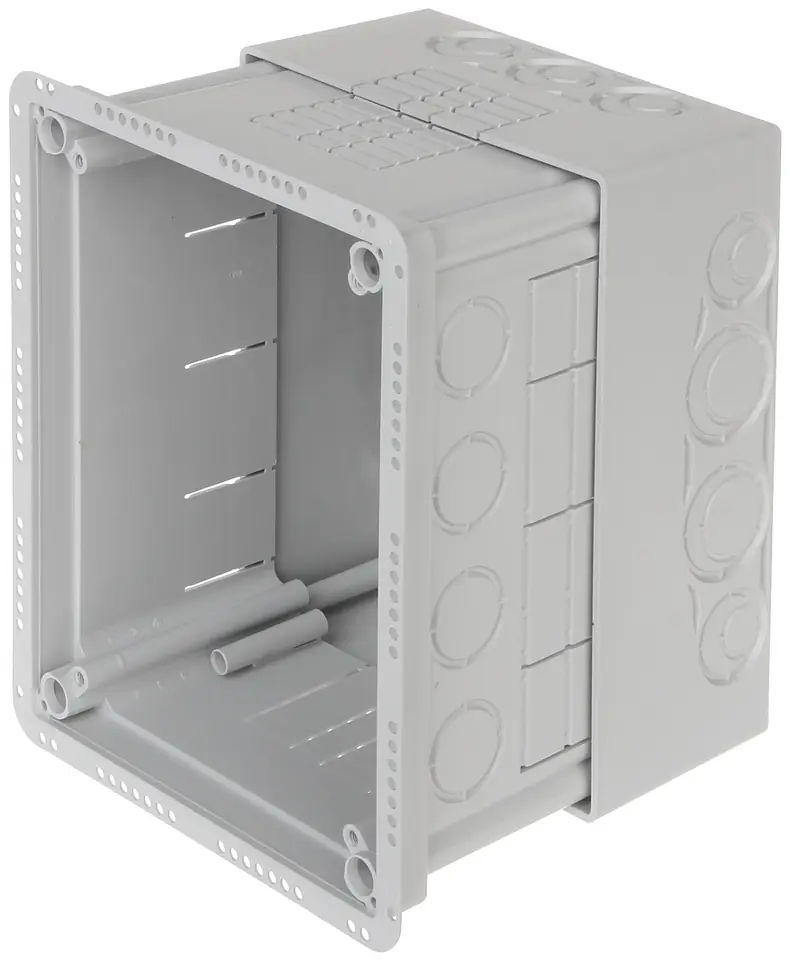

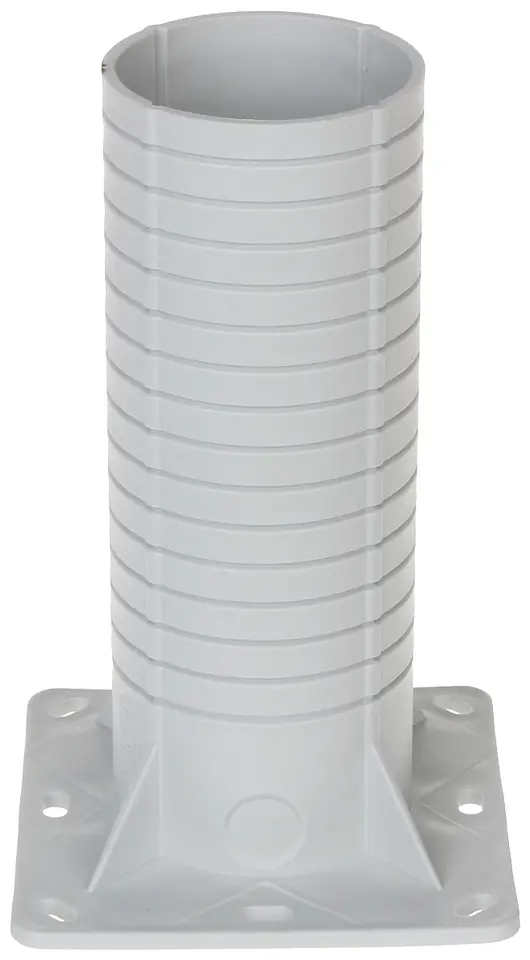

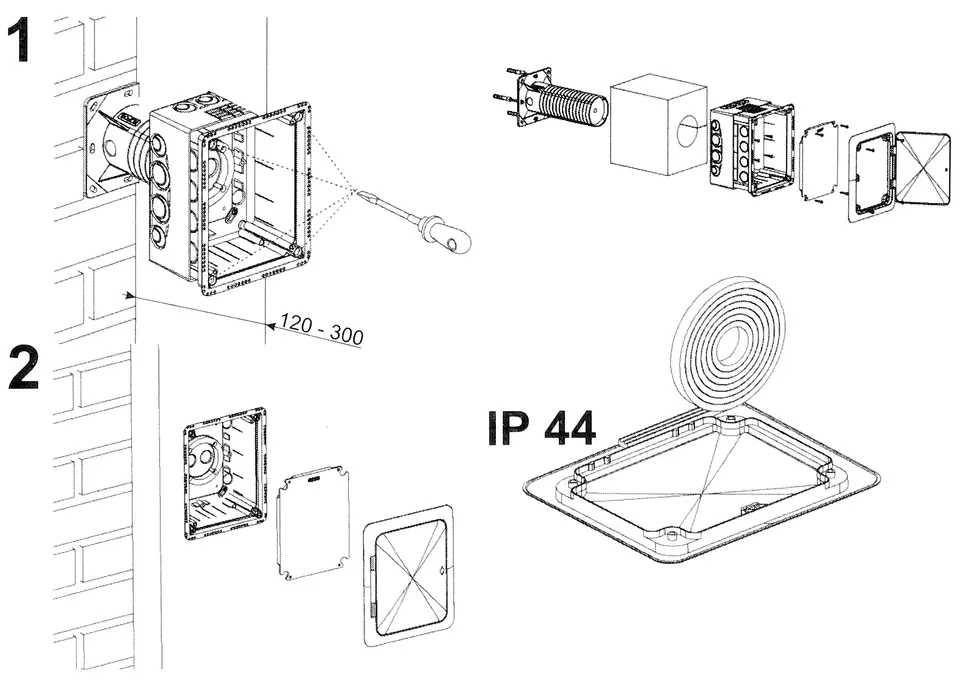

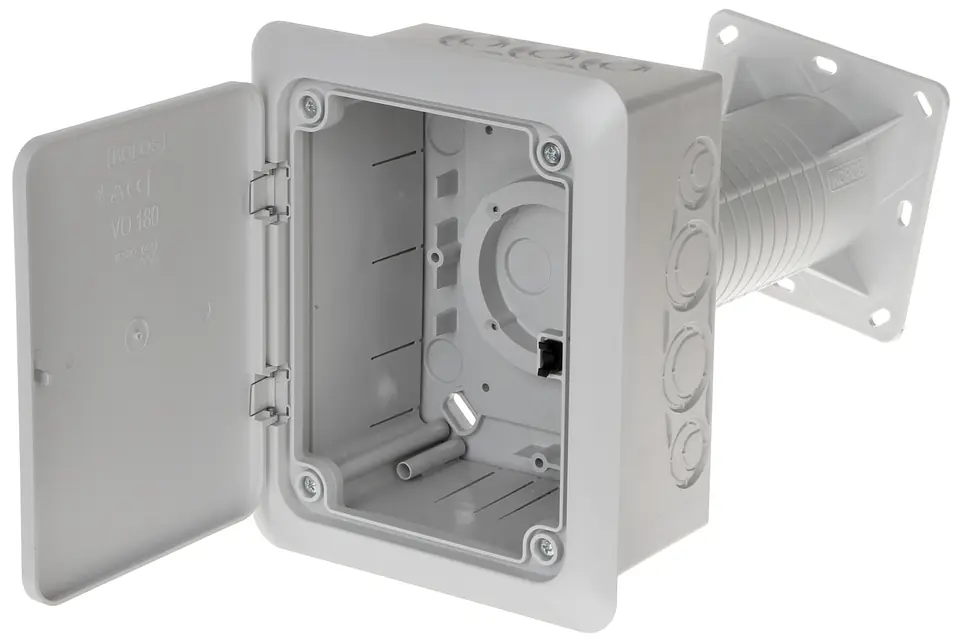

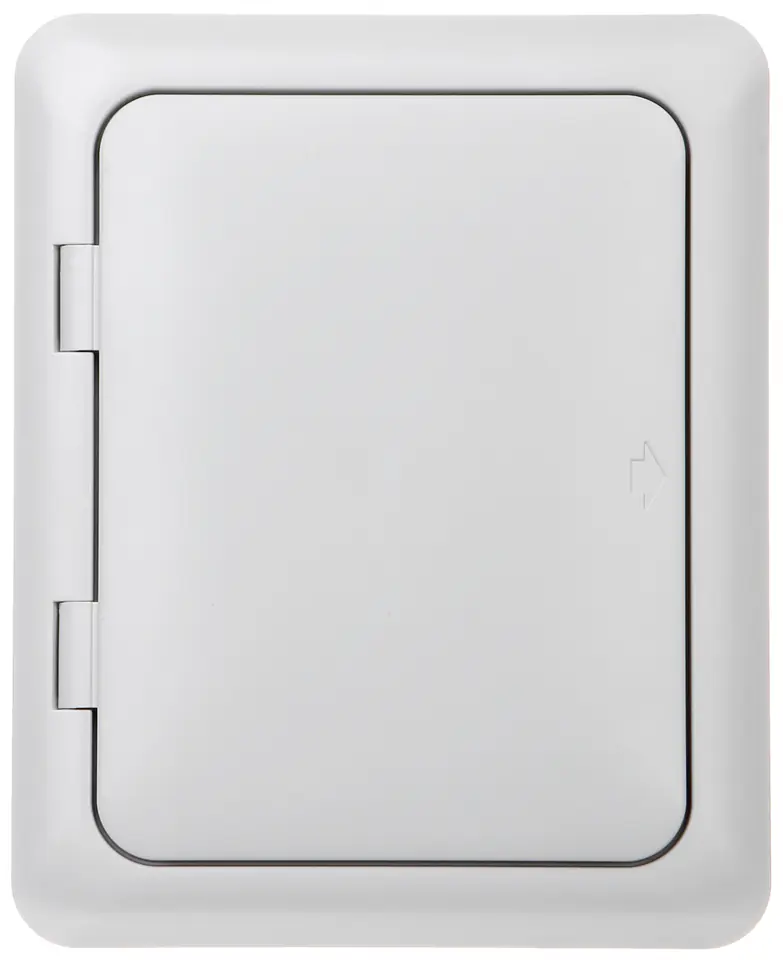

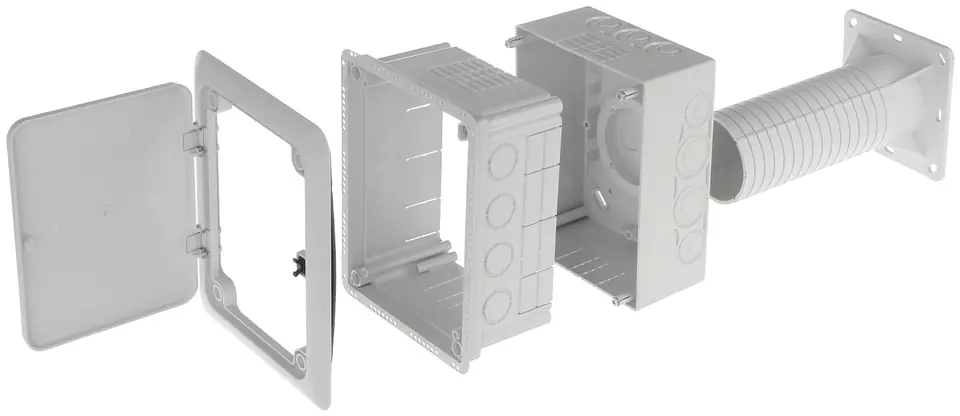

Universal junction box for installing electrical equipment (e.g. electrical equipment, distribution sockets, etc.) on insulated building facades with a thickness of 120 to 330 mmResistive constructionElimination of thermal bridges Complete with the box there is a carrier (tube) and an opening lid with a rubber seal
WIRING BOX FOR INSULATION KUZ-VOI-KB KOPOS
€51.46
Shipping from warehouse: D4
Estimated shipping: Thu, Nov 28 - Mon, Dec 2
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- KOPOS
- Product code:
- KUZ-VOI_KB / 8595568923691
Share this product:
Specification
| Colour:: | light grey |
|---|---|

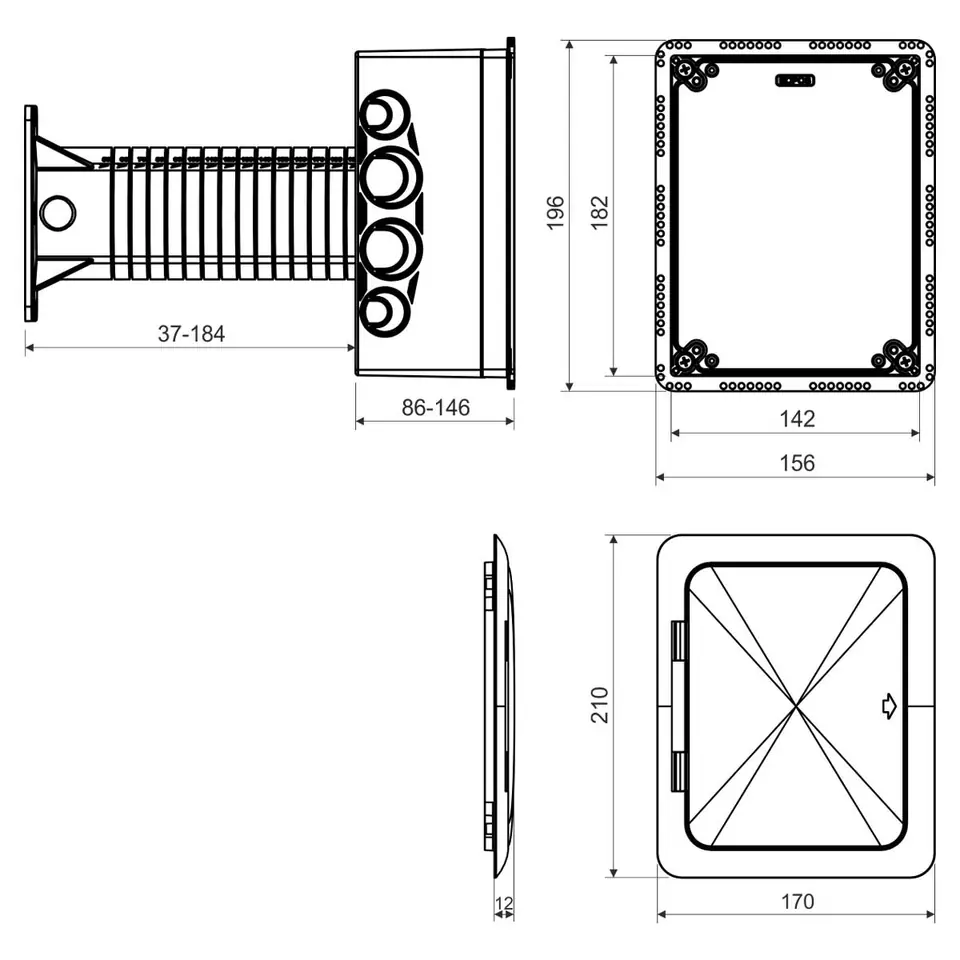

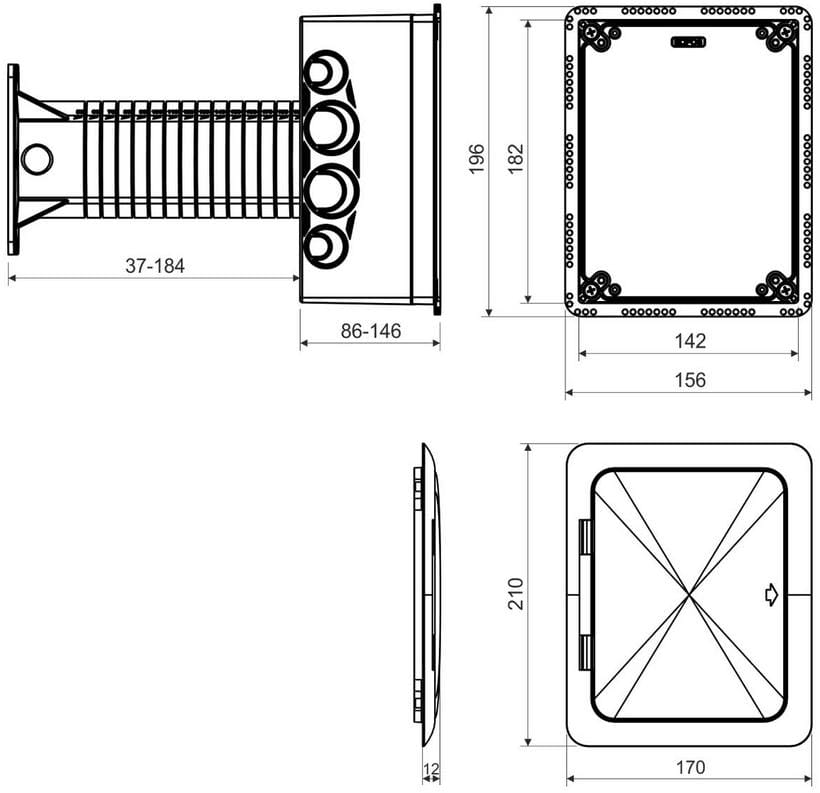

| Dimensions:: | 196 x 156 x 86 ... 146 mm (can)210 x 170 x 12 mm (cover)120 x 120 x 200 mm (media) |
| Manufacturer / brand:: | KOPOS |
| Material:: | Halogen-free plastic |
| Number of segments:: | 1, 2 |
| Scales:: | 0.735 kg |
| Sealing:: | IP30 / IP44 |

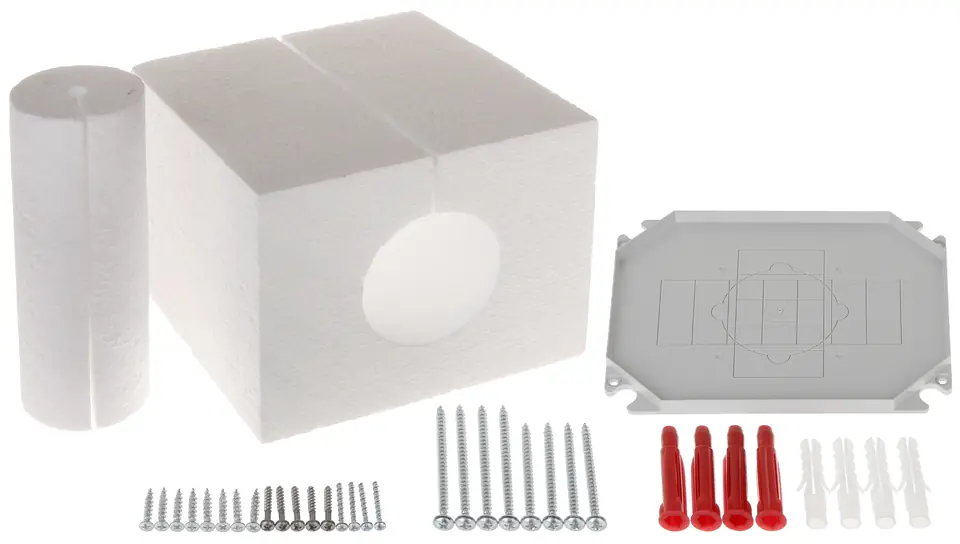

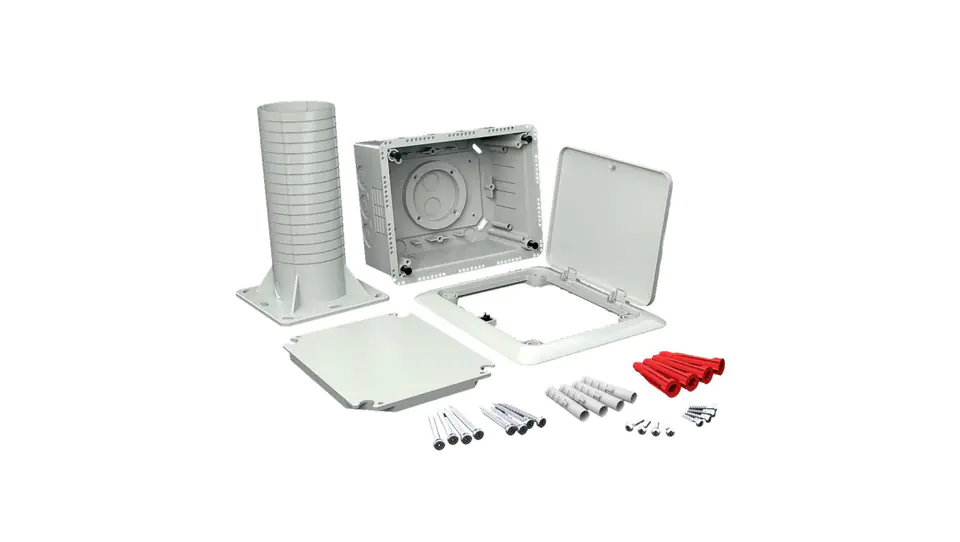

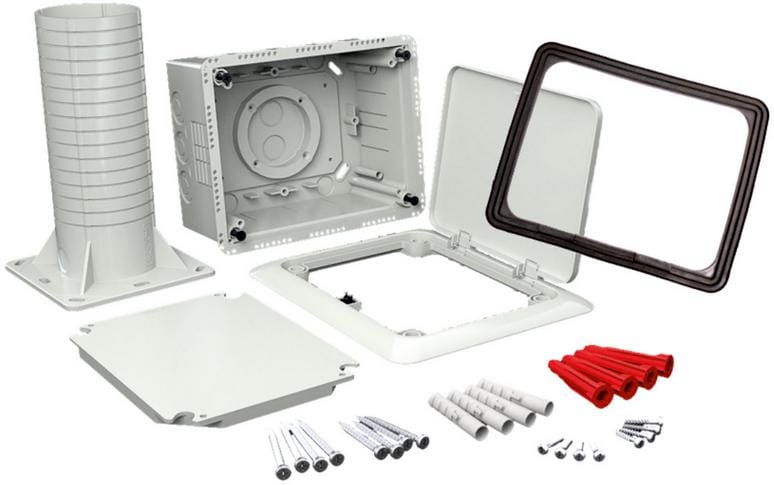

| Selected features:: | for thermal insulation systems temperature range: -25 °C ... 60°C Flammability Index: 850°C Adjustable Can Depth TS35 Rail Mounting Guides Dowels, Mounting Screws, Opening Cover, Rubber Gasket - Included |
| Spacing of mounting holes:: | 60 mm, 71 mm |
| Thickness of the insulating layer:: | 120 ... 330 mm |
| Voltage insulation:: | ~ 400 V |
| Warranty:: | 2 years |
