| Alarm indication: | Signal to control panel LED |
|---|---|
| Battery: | CR123A 3 V (included) |
| Battery life: | .max. 2 years |
| Colour: | Brown |
| Cooperation: | Satel MICRA |
| Current consumption: | ≤ 22 mA |
| Detection: | Opening of doors or windows, Shocks, Vibrations, Water |
| Dimensions: | 24 x 110 x 27 mm |
| Environmental class en 50130-5: | II |
| Frequency band: | 433.05 MHz ... 434.79 MHz |
| Grade: | 2 |
| Operating temperature: | -10 °C ... 55 °C |
| Permissible relative ambient humidity: | 93 ± 3 % |
| Producer / brand: | SATEL |
| Radio communication range (in open area): | ≤ 600 m - PERFECTA≤ 500 m - VERSA-MCU / MTX-300 / MICRA≤ 300 m - MRU-300 |
| Scales: | 0.04 kg |
| Selected features: | detection of the presence of water in rooms at risk of flooding detection of shocks and vibrations that accompany attempts to force the door or window detection of opening doors, windows, etc. (magnetic detector) input for connecting a wired NC detector input for connecting a wired roller shutter detector Battery status check Encrypted radio communication in the 433 MHz frequency band Tamper detection - enclosure opening, detachment from the mount |
| Warranty: | 2 years |

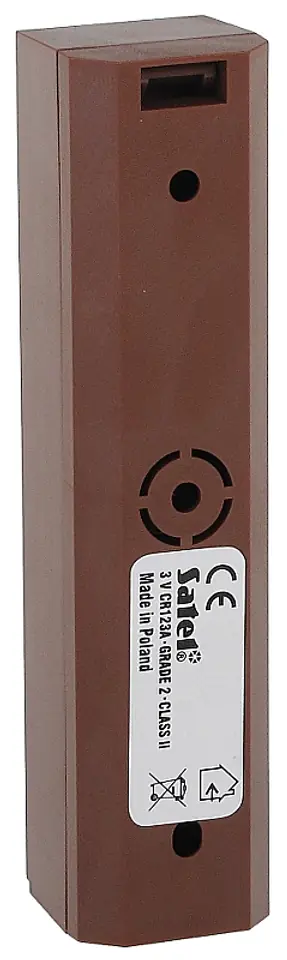

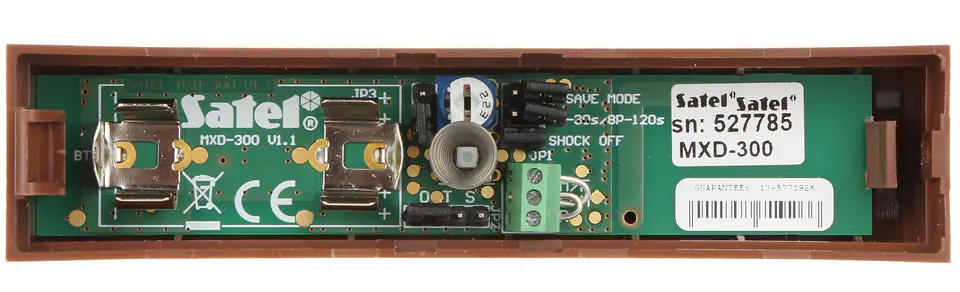

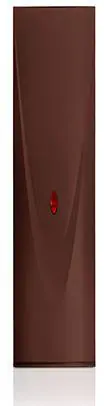

The MXD-300-BR detector is a multifunctional device that can work as a detector: magnetic, magnetic with roller shutter input, shock, shock and magnetic, flood detector
The sensor works with the MICRA alarm module with software version 2.02 or later
Remark! The detector is sold without the FPX-1 flood probe, which is available separately in our offer
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
