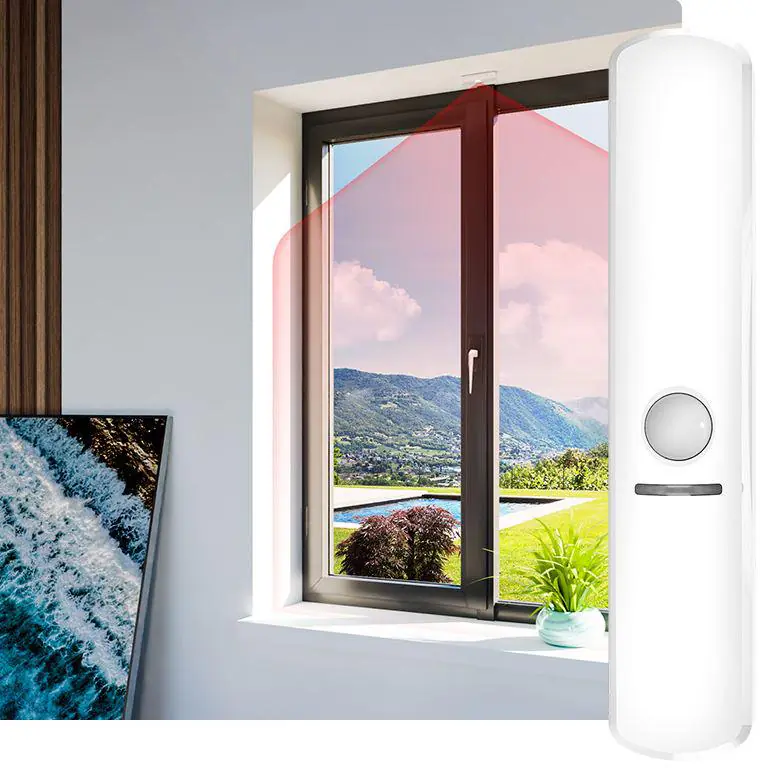

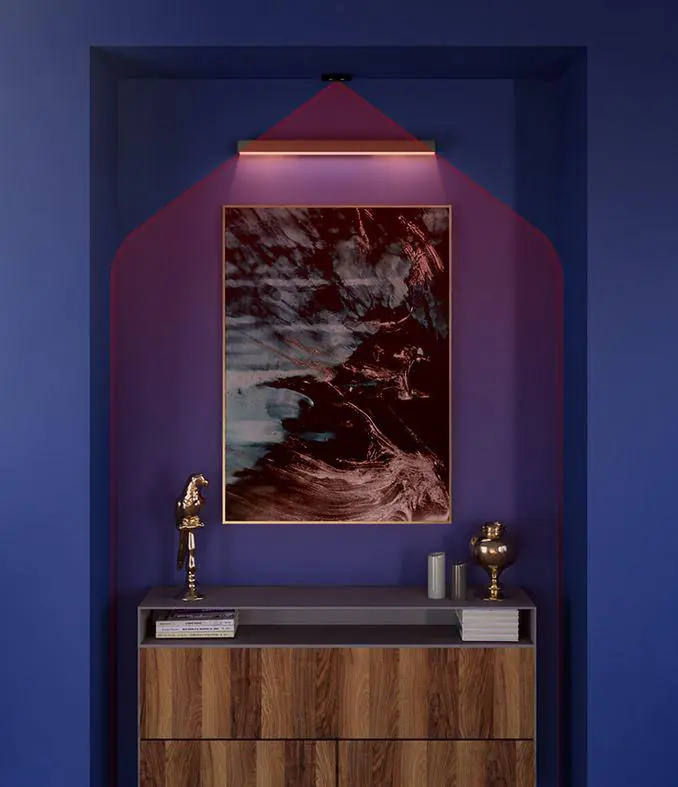

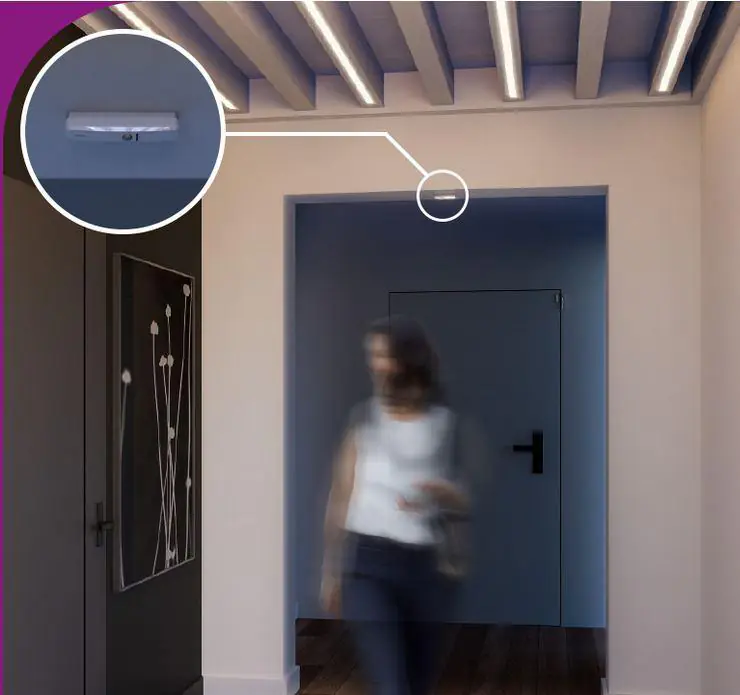

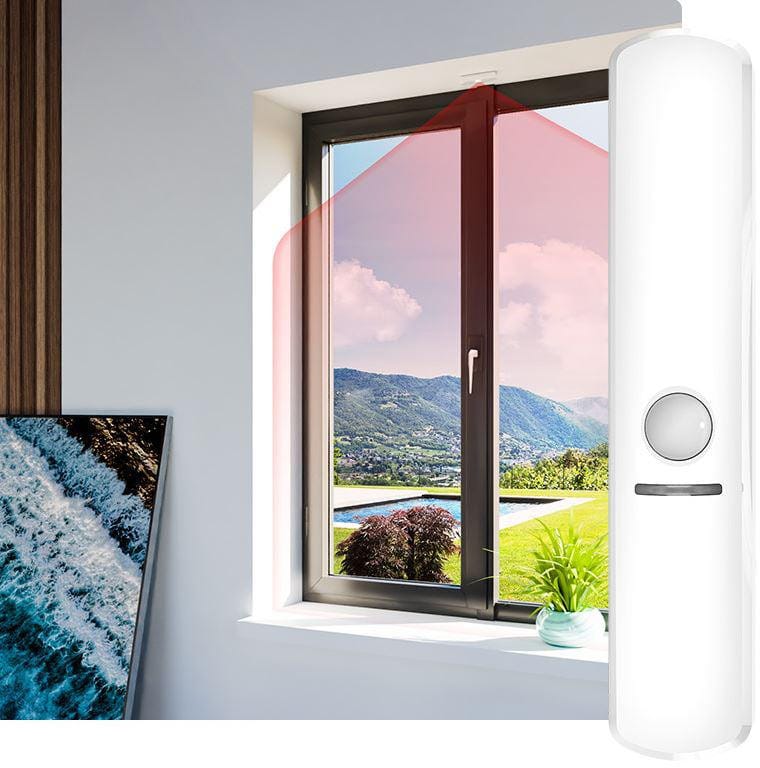

Curtain detector provides a narrow detection angle
ACD-220 works with other devices compatible with the ABAX2 wireless system

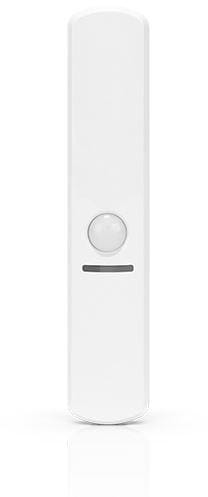

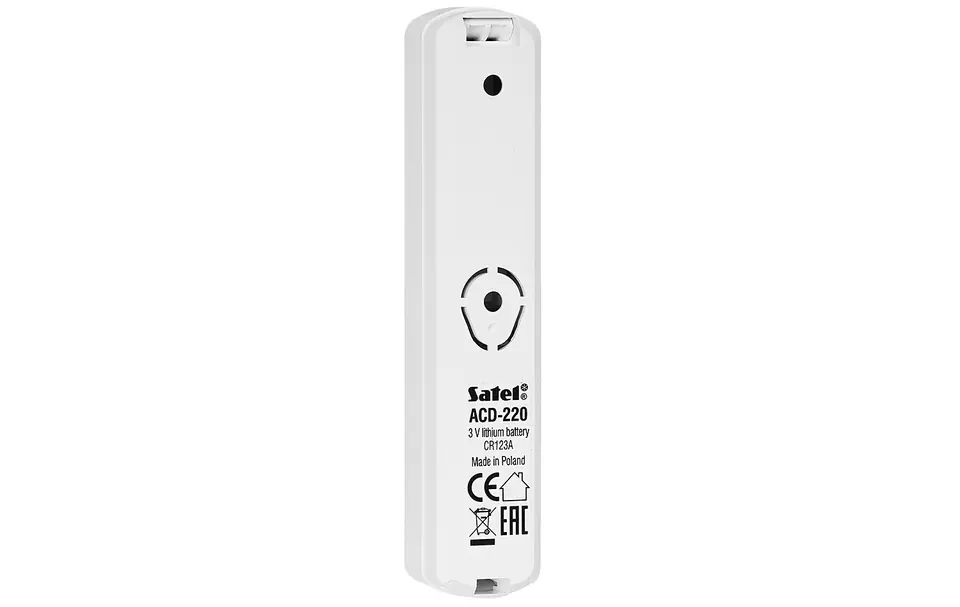

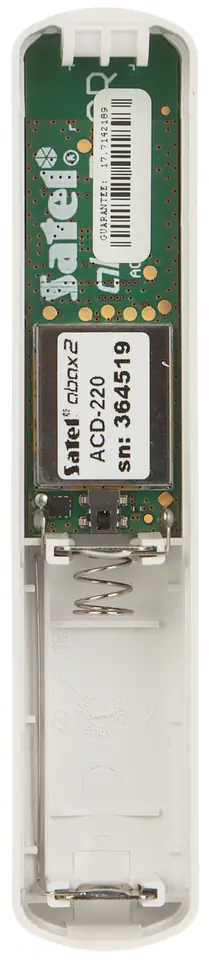

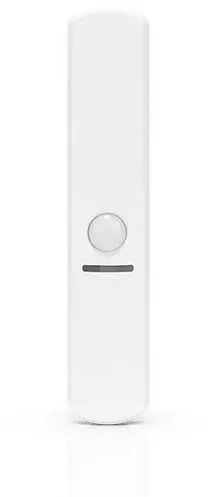

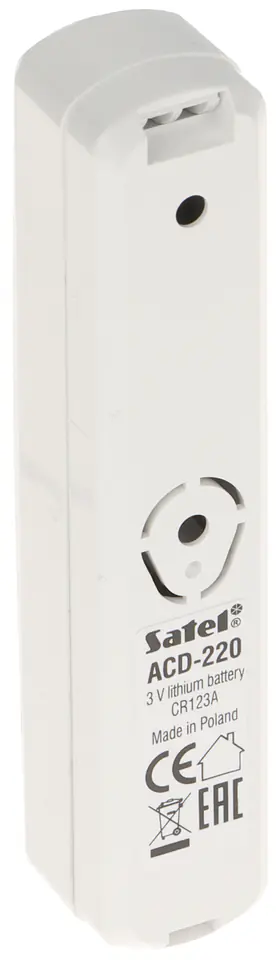

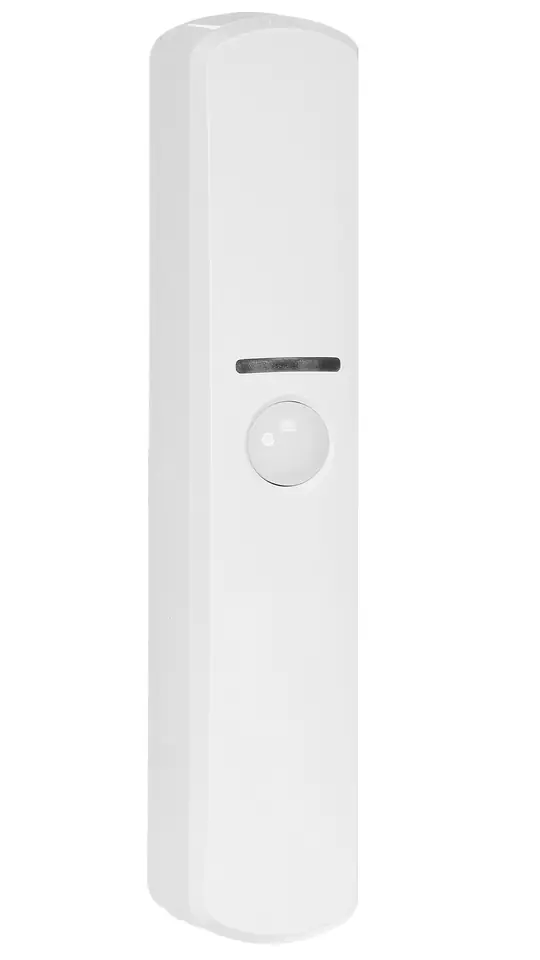

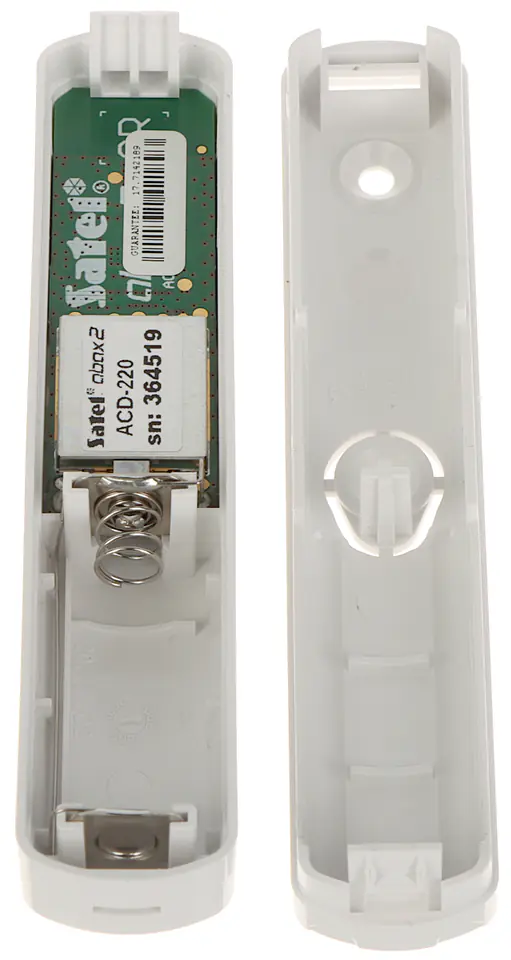

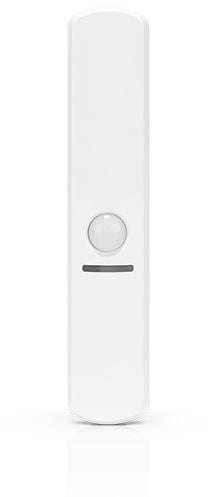

WIRELESS SATIN PIR DETECTOR ACD-220 ABAX2 SATEL
€55.80
Shipping from warehouse: H7
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- ACD-220 / 5905033337954
Share this product:
Specification
| Battery life:: | ~ 2 years |
|---|---|

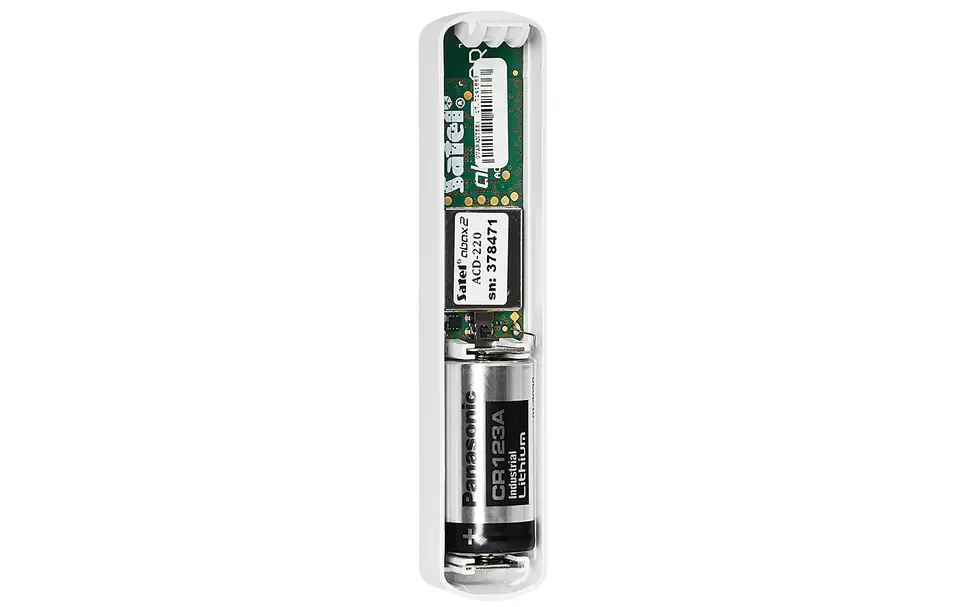

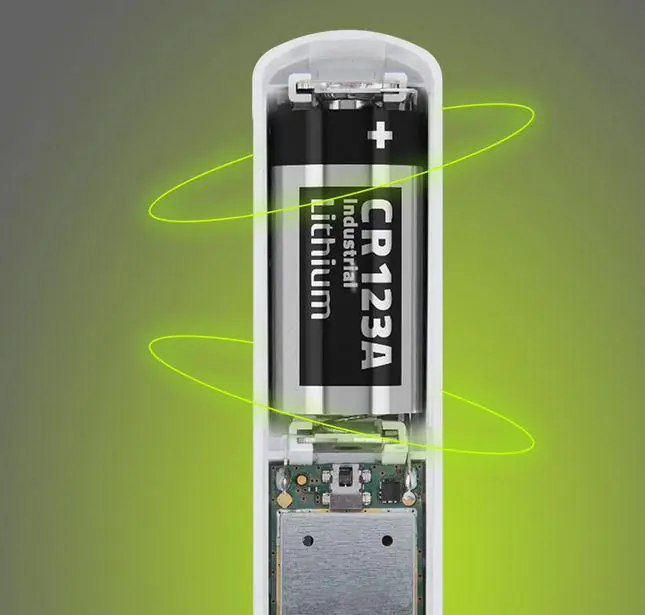

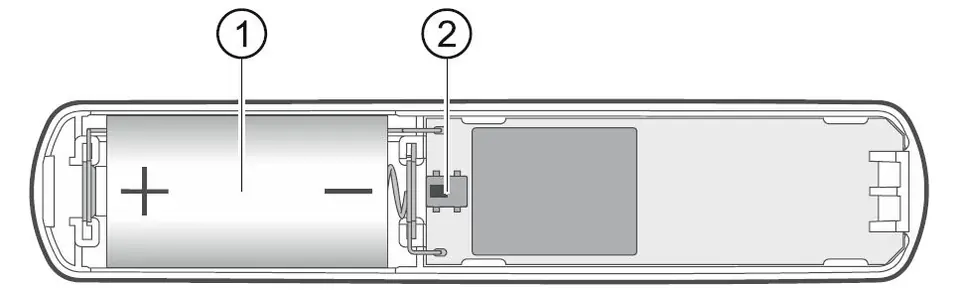

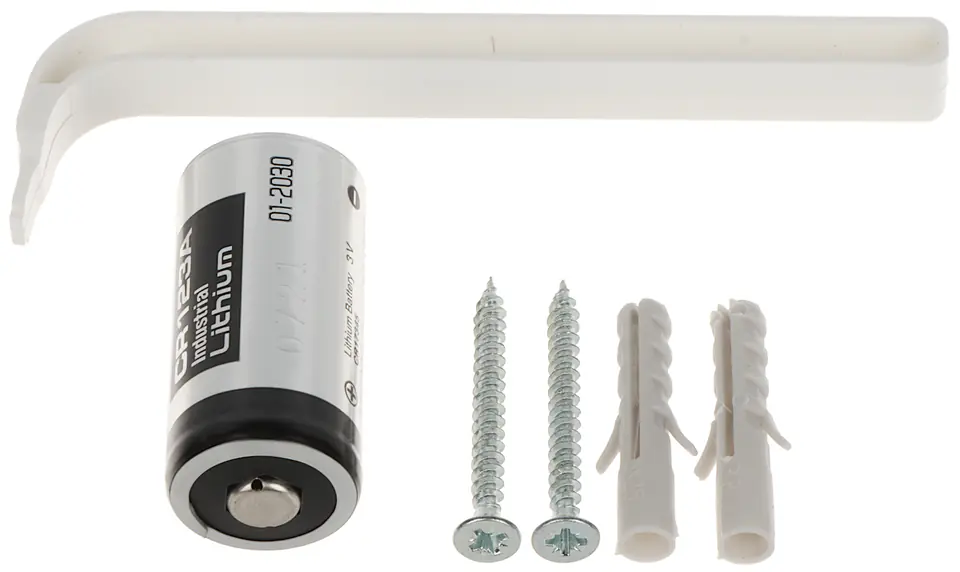

| Battery:: | 1 x CR123A 3V Lithium Battery (Included) |

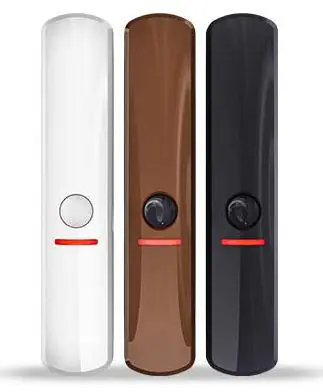

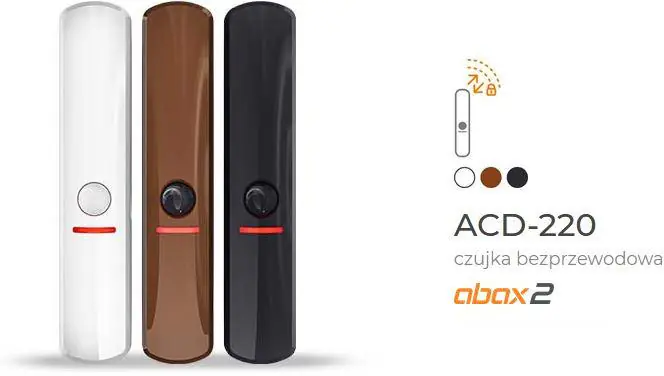

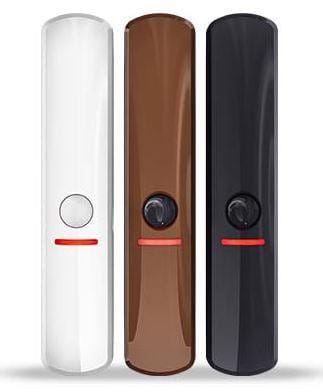

| Colour:: | white |
| Compliance with standards:: | EN50130-4, EN50130-5 |
| Cooperation:: | SaTEL ABAX2 wireless alarm systems |
| Current consumption:: | 15 mA (max) 70 μA (standby) |
| Detectable movement speed:: | 0.3 ... 1 m/s |

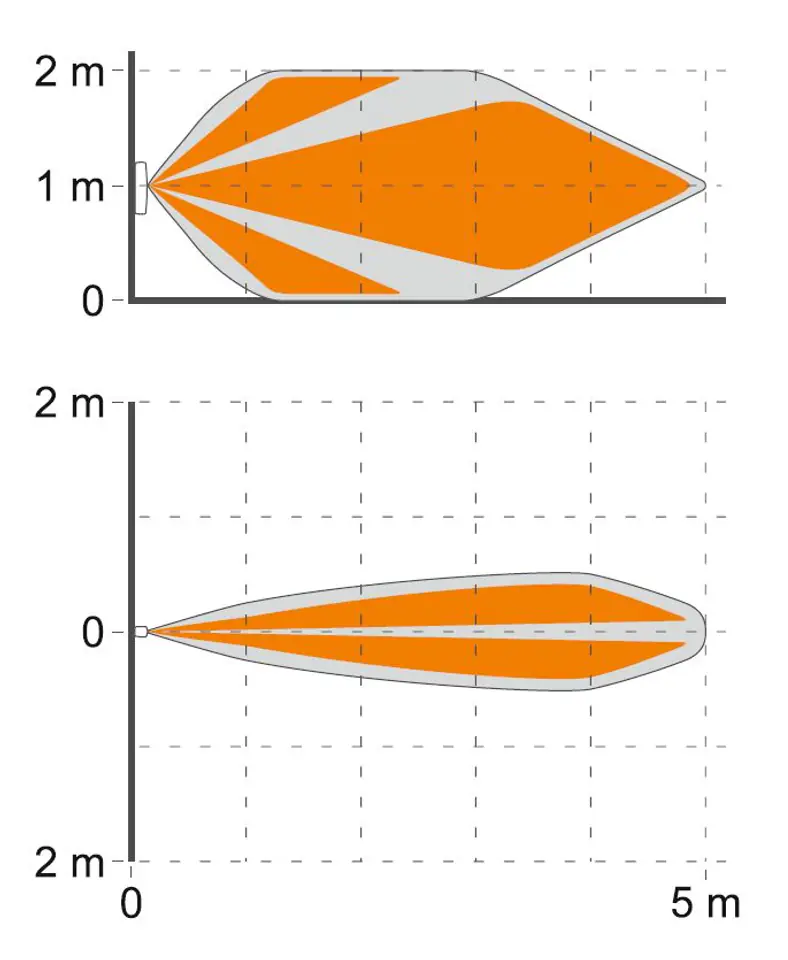

| Detection angle / detection range:: | 15 ° / 5 x 1 m |
| Dimensions:: | 105 x 25 x 20 mm |
| Environmental class:: | II compliant with EN50130-5 |
| Frequency range:: | 868.0 ... 868.6 MHz |
| Manufacturer / brand:: | SATEL |
| Operating temperature:: | -10 °C ... 55 °C |
| Radio communication range (in open area):: | Max. 2000 m ACU-220 ,max. 1200 m ACU-280 |
| Scales:: | 0.022 kg |
| Selected features:: | Curtain lens digital detection algorithm with temperature compensation, providing high resistance to false alarms and repeatability of parameters Two-way encrypted radio communication - AES Protection against jamming by switching frequencies provides reliable transmission Supervision of the motion detection system battery status control The "ECO" option allows up to four times the battery life (only in ABAX2) Detection of tampering - opening the case, detachment from Ground LED Signaling Remote Module Software Update Remote Configuration Built-in Temperature Sensor, Temperature Measurement: -10°C ... 55 °C |
| Sensor type:: | Passive infrared (PIR) |
| Use:: | Internal |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
