Wirelessly transmit HDMI video and audio signals in Full HD over distances of up to 50 m

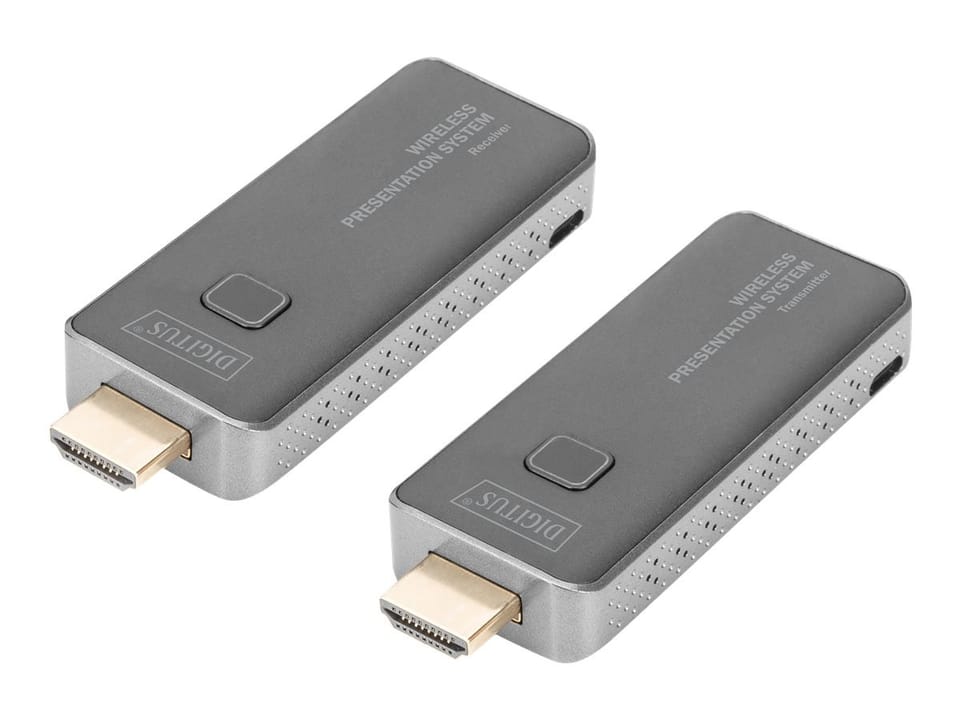

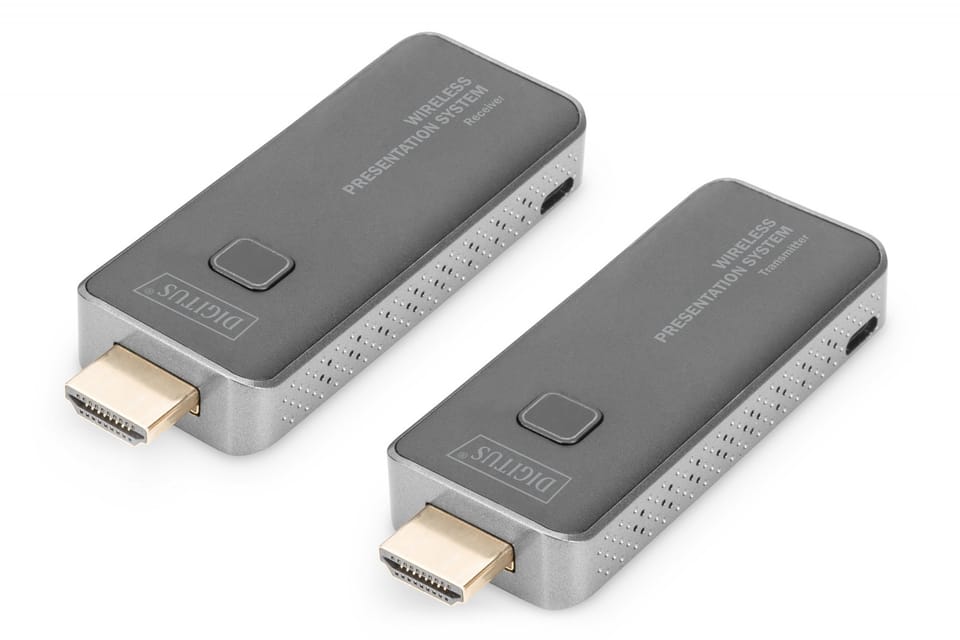

With the wireless presentation system, you can transmit HDMI video and audio signals in Full HD resolution over a distance of up to 50 m while maintaining direct line of sight. Commissioning and operation are very simple. Plug & Play - simply plug in and go. The set is expandable up to a maximum of 16 receivers (DS-55320). Quickly and easily switch to the transmitter of your choice at the touch of a button and share your content. You can also share content directly from your mobile device (smartphone/tablet) via the mobile device's operating system without the need for an additional app. The transmitter can be powered via the HDMI port of the computer (> 500 mA required). For safe and stable operation, we recommend always powering the transmitter and receiver via a micro USB cable. Thanks to the compact design of the transmitter and receiver, setup is easy, fast and customisable - ideal for meeting rooms.

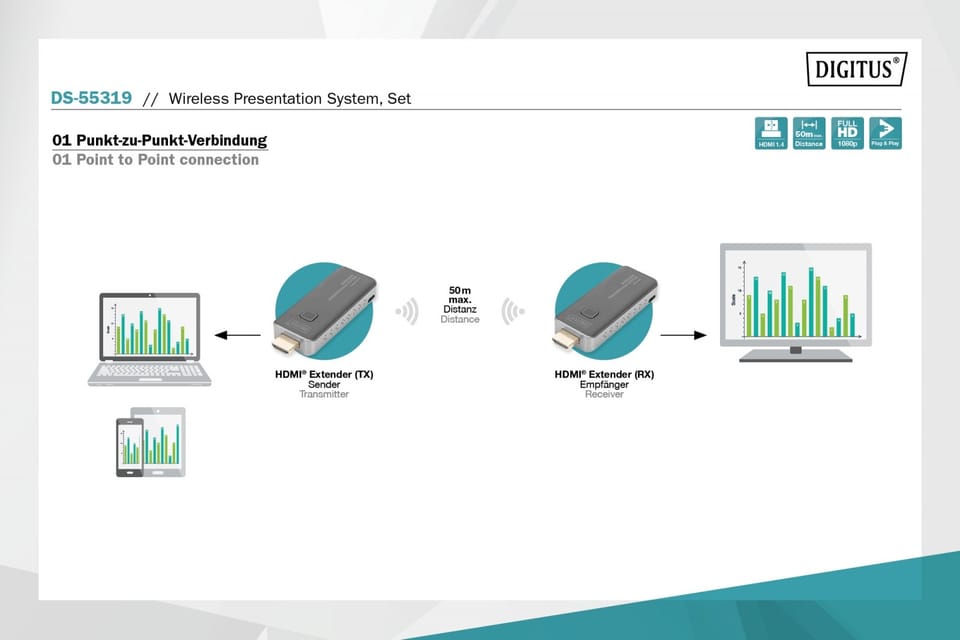

- Wireless transmission of HDMI signals over distances of up to 50 m (with no obstructions in a straight line)
- Support for resolutions up to 1920x1080p
- Sharing and conducting presentations: The wireless presentation system allows you to connect your notebook or mobile device wirelessly to a screen or projector (compatible with Windows, macOS, iOS, iPadOS, Android)
- No software or applications need to be installed: You can share the image from your computer via the HDMI transmitter module (transmitter) / connect your tablet and smartphone via WLAN and share the image by synchronising the screen of the mobile device

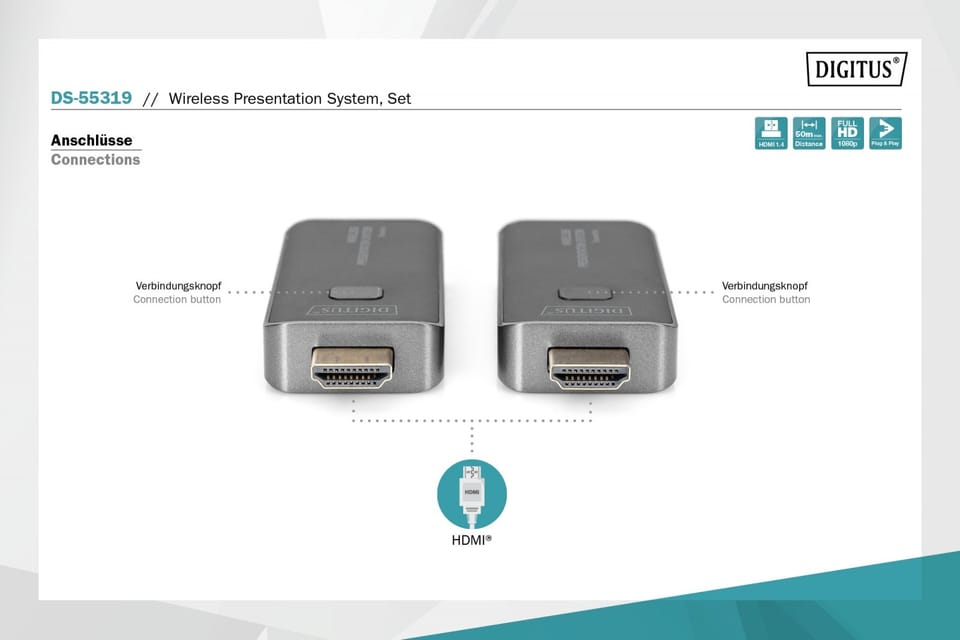

- Plug, Press and Play: After connecting the HDMI adapter to the HDMI port, simply press the button on the transmitter module to start signal transmission (active transmission will be interrupted)

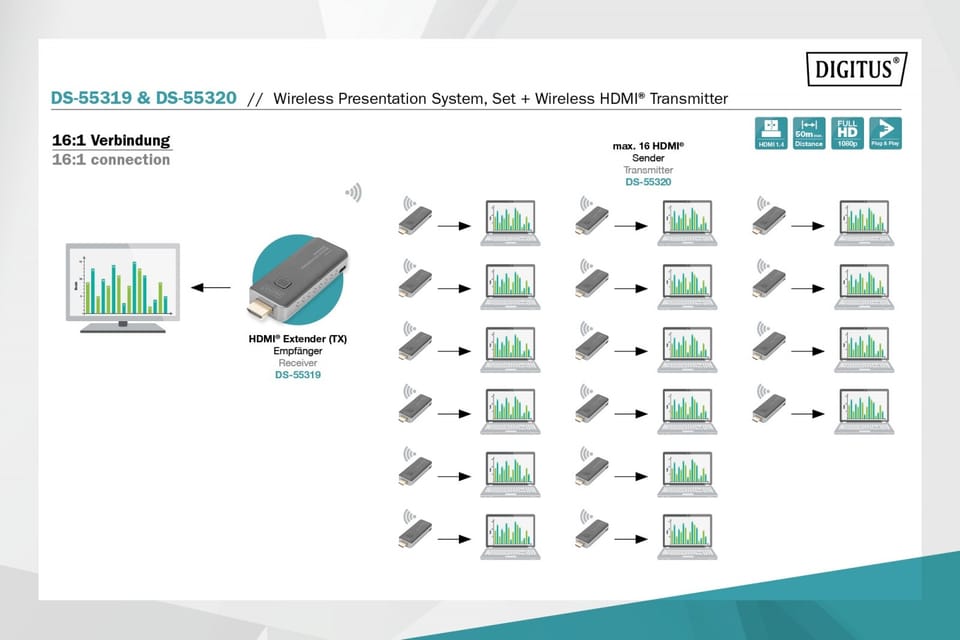

- Multi-user mode support: Up to 16 participants / source devices can be connected to the receiver simultaneously and alternately start screen sharing (additional HDMI transmitter modules are available separately)
- User interface: If no video signal is transmitted, an information page displays instructions on how to properly establish a connection (please refer to the user manual of the mobile device in use)
- Video resolution: The presentation solution supports HDMI 1.4 / HDCP 1.3 and resolutions up to Full HD 1920 x 1080p at 60 Hz (stereo sound: 16 bit / 48 KHz)
- Power supply: The transmitter can be powered via the HDMI port of the computer (> 500 mA required). For safe and stable operation, we always recommend powering the transmitter and receiver via a micro USB cable.
- Range: In the absence of interfering obstacles, the transmission range of the signal is up to 50 m, whereas in the case of interfering restrictions the transmission range cannot be clearly determined and depends on local conditions
- Application examples: Business applications (meeting and conference room, meeting room, office, trade show booth, boardroom) / education applications (schools, colleges, universities, classroom)
