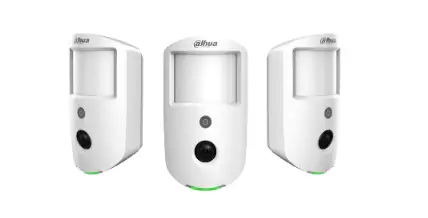

WIRELESS PIR DETECTOR WITH CAMERA ARD1731-W2 868) DAHU

€84.77
Shipping from warehouse: ⁨H7⁩
Estimated shipping: Mon, Nov 18 - Tue, Nov 19
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Dahua
Product code:
ARD1731-W2(868) / 6923172546647

Specification

Alarm indication:Signal to control panel, LED

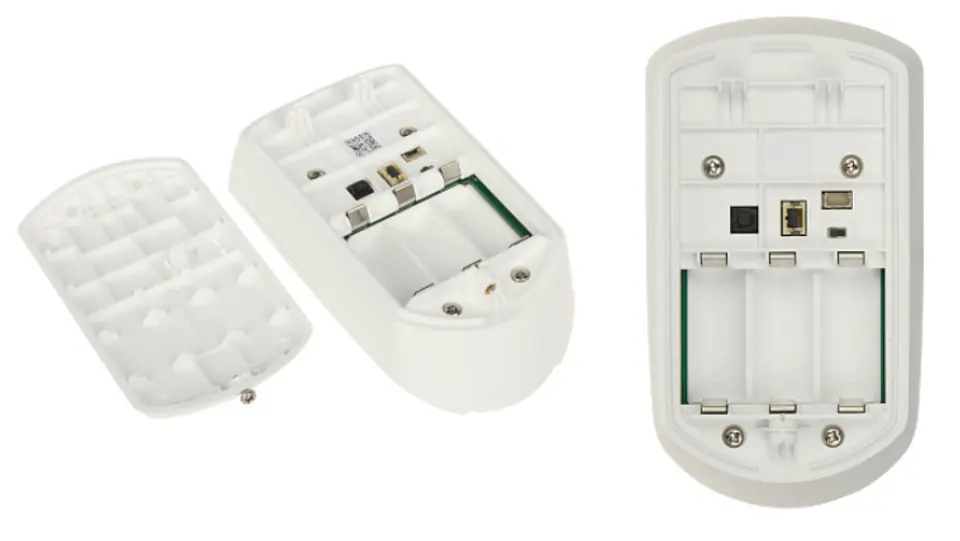

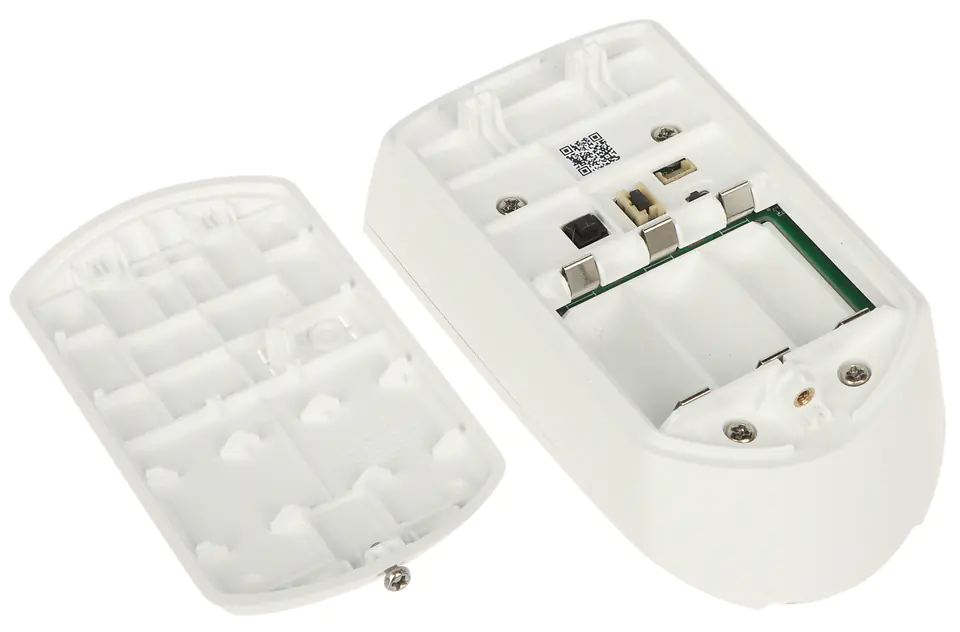

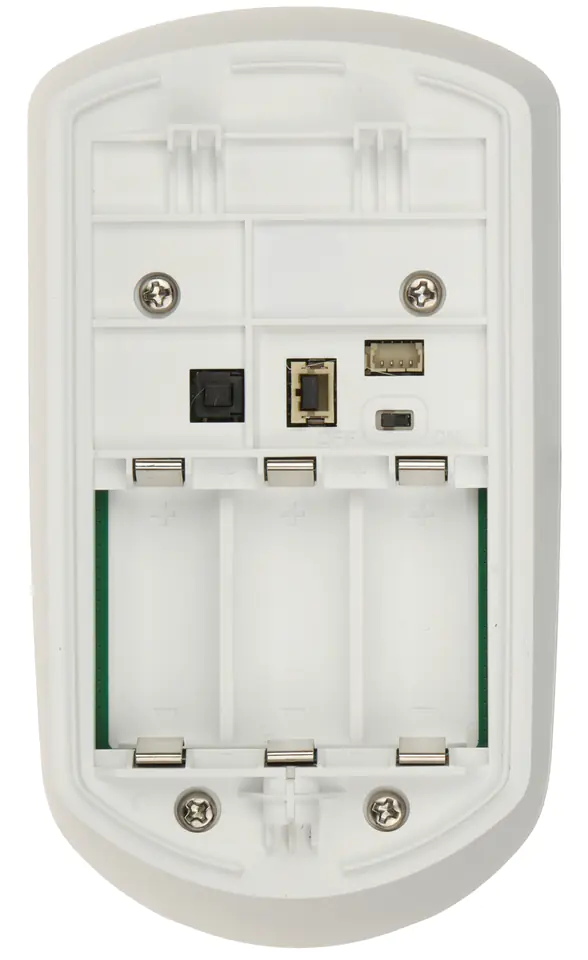

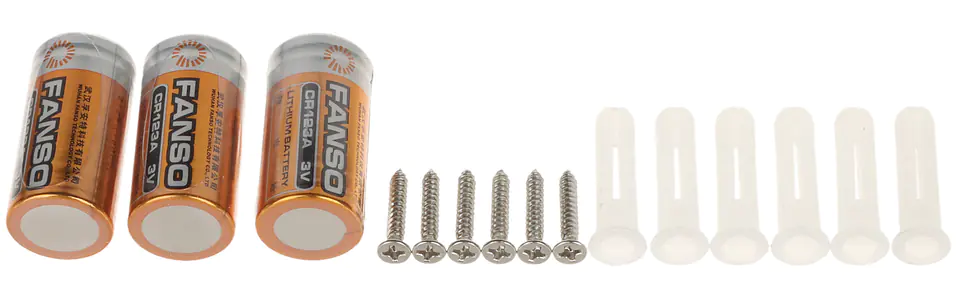

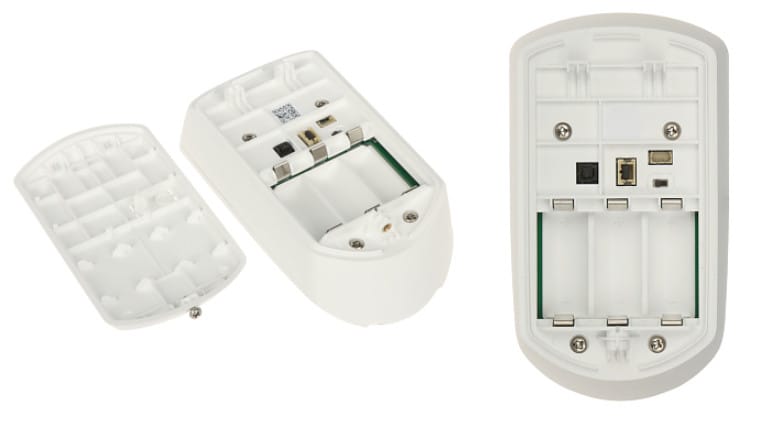

Battery:3 x CR123A 3V (included)
Battery life:~ 4 years
Case:Plastic (PC + ABS)
Colour:white
Cooperation:DAHUA Wireless Alarm Systems
Current consumption:.max. 230 mA65 μA (standby)

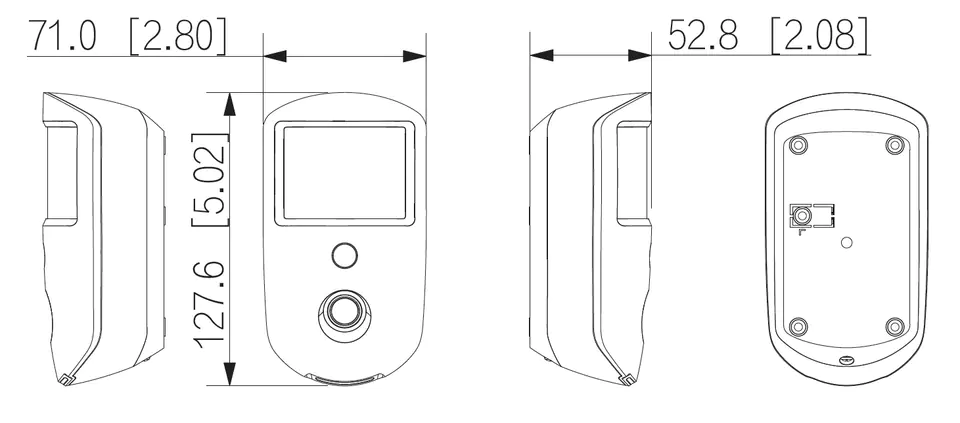

Dimensions:71 x 128 x 53 mm
Frequency band:868.0  ... 868.6 MHz (alarm), 2.4 GHz ( HD video transmission )
Operating temperature:-10 °C ... 55 °C
Permissible relative ambient humidity:10 % ... 90 %
Producer / brand:DAHUA
Radio communication range (in open area):.max. 1600 m @ 868 MHz ,max. 300 m @ 2.4 GHz
Scales:0.21 kg

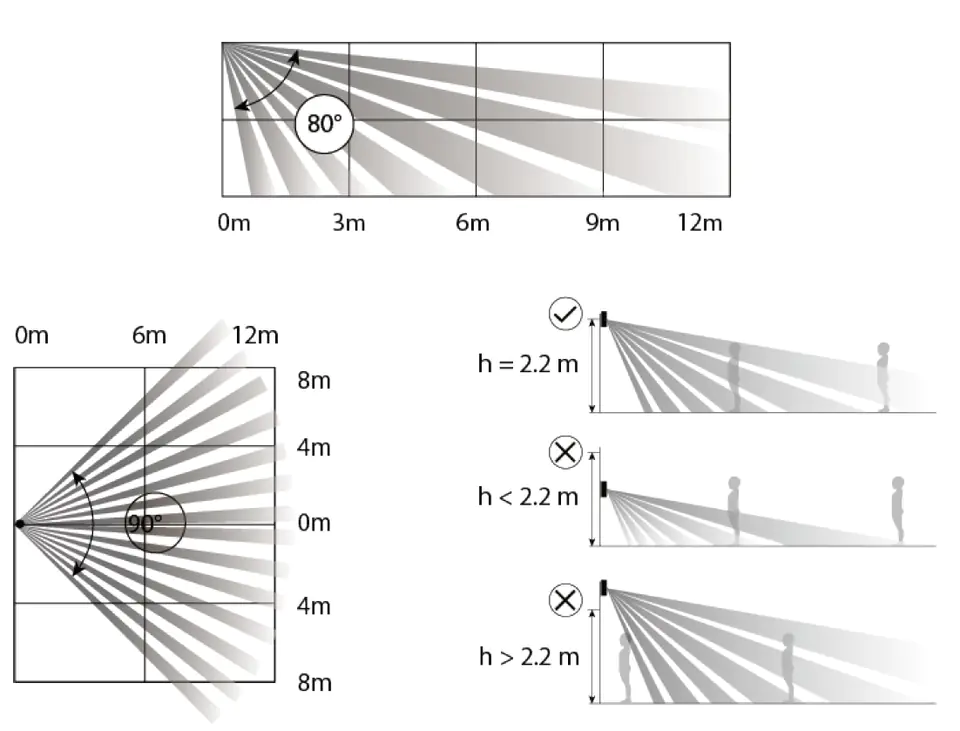

Selected features:Two-way communication AES-128 data encryption Protection against jamming by frequency switching ensures reliable transmission Digital detector :- Ability to set PIR sensitivity - 3 levels- Detection angle: 86 °- Sensor range: 12 m- Resistance to animals: 18 kg- Motion detection: 0.3 ... 3 m/s- Two-way temperature compensation Built-in CMOS camera :- Camera viewing angle: 88 °- Supported resolutions: 1600 x 1200 px, 1280 x 960 px, 640 x 480 px, 320 x 240 px- Photo format: JPEG- Day/night mode- IR illuminator: 12 m Software update via cloud Cloud cache for 1 week video and image recordings Battery indicator Low battery alarm Signal indicator : 868 MHz, 2.4 GHz Wall Mount : 2.2 m
Warranty:3 years

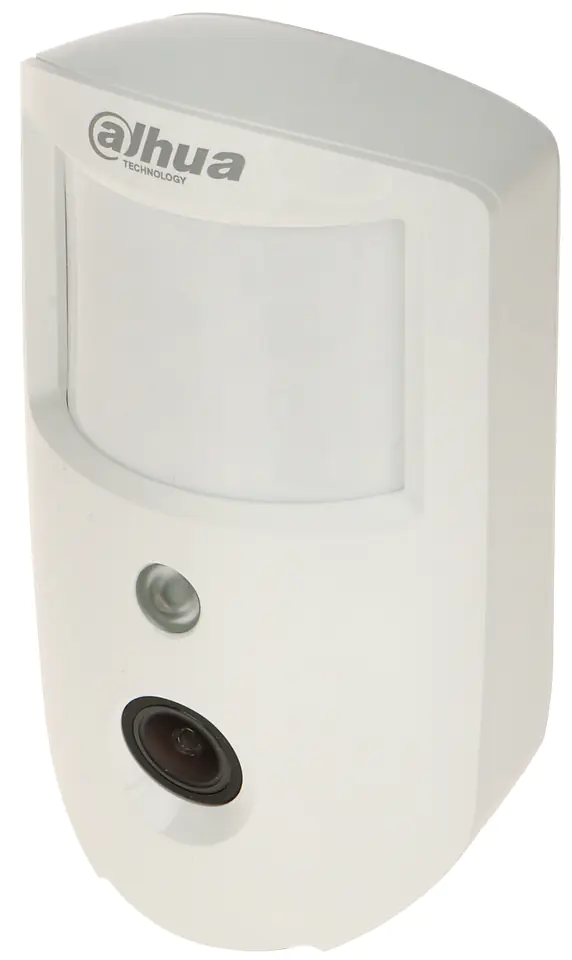

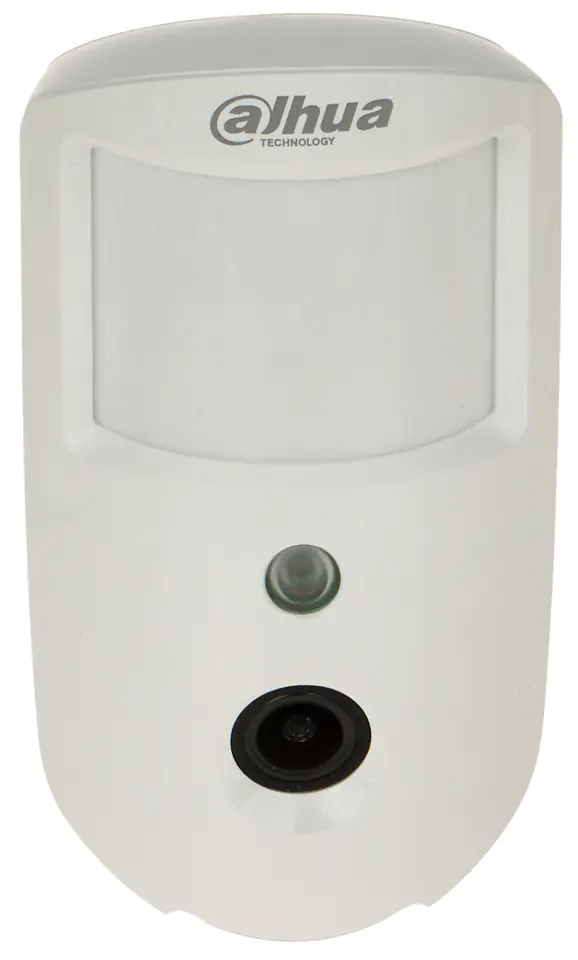

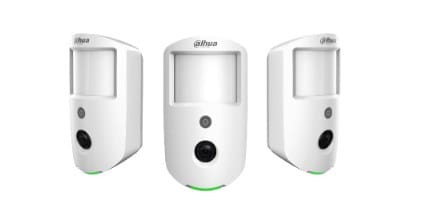

Wireless PIR detector with camera and IR illuminatorThe camera allows video verification of triggered alarm eventsBy viewing images in real time, you can quickly and accurately respond to real alarm events

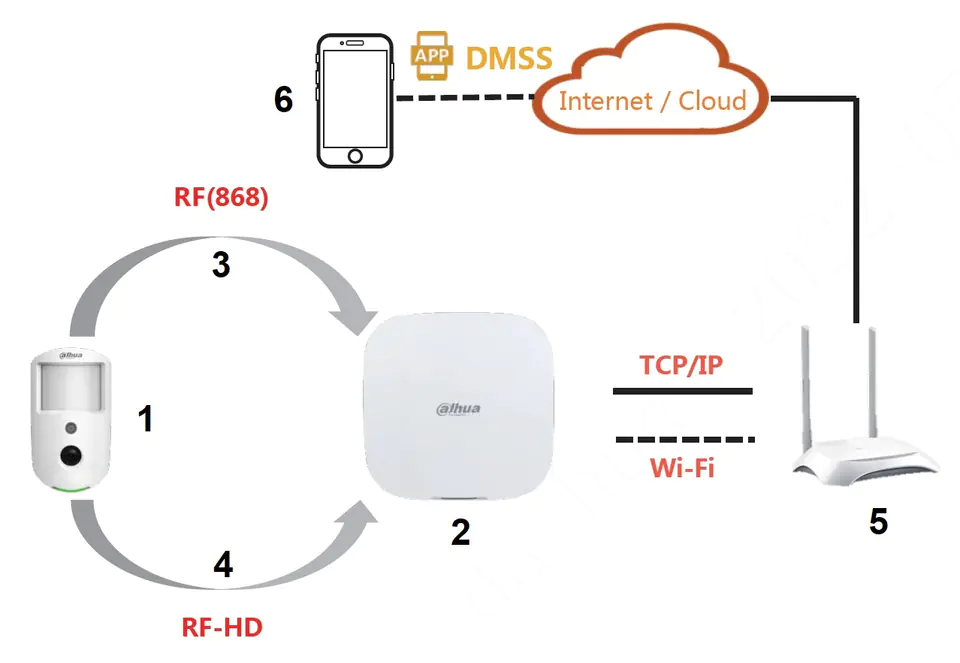

The detector transmits high-resolution images from the camera to the control panel, which sends them to a mobile application or alarm center (CMS/ARC)The device uses RF-HD 2.4GHz video transmission technology, providing fast transmission of up to 6 HD photos with a resolution of 1600x1200 px within 10 seconds

The device is designed to work with Dahua wireless access control systems operating in the 868 MHz band
