Wireless motion detector APD-200 PET
The APD-200 Pet detector is designed to work as part of the ABAX 2/ABAX two-way wireless system. It is certified according to the requirements of EN 50131 Grade 2.
It is equipped with a quadruple pyroelement, an advanced detection algorithm and dynamic temperature compensation, which ensures effective motion detection. APD-200 Pet supervises the motion detection system in case it works incorrectly, the detector will report an alarm. The device implements the PET function, thanks to which the movement of pets (up to 20 kg) does not trigger an alarm.
Configuration and software update of the detector are carried out remotely. Radio communication in the ABAX 2 system is secured by encryption in the AES standard.
The LED indicator indicates violations in test mode, thus facilitating the detector testing process.
The detector is powered by a CR123A 3 V battery, the status of which is monitored on an ongoing basis. The device is characterized by low energy consumption, and the ECO function (only in ABAX 2) additionally allows you to extend the working time of the device up to four times.
- The device has tamper protection against opening and detachment from the ground.
- Certified to EN 50131 Grade 2
- Quad pyroelement (passive infrared detector)
- Modern wide-angle lens
- Detection area: 14 m x 16 m, angle 83°
- Advanced digital signal processing
- Dynamic compensation of temperature changes in the protected room
- Remote configuration and software update
- Built-in temperature sensor (temperature measurement in the range from -10°C to +55°C)
- LED indicator indicating violations in test mode
- Function of resistance to the movement of pets (up to 20 kg)
- Low power consumption and battery status control
- ECO option to extend battery life (ABAX 2 only)

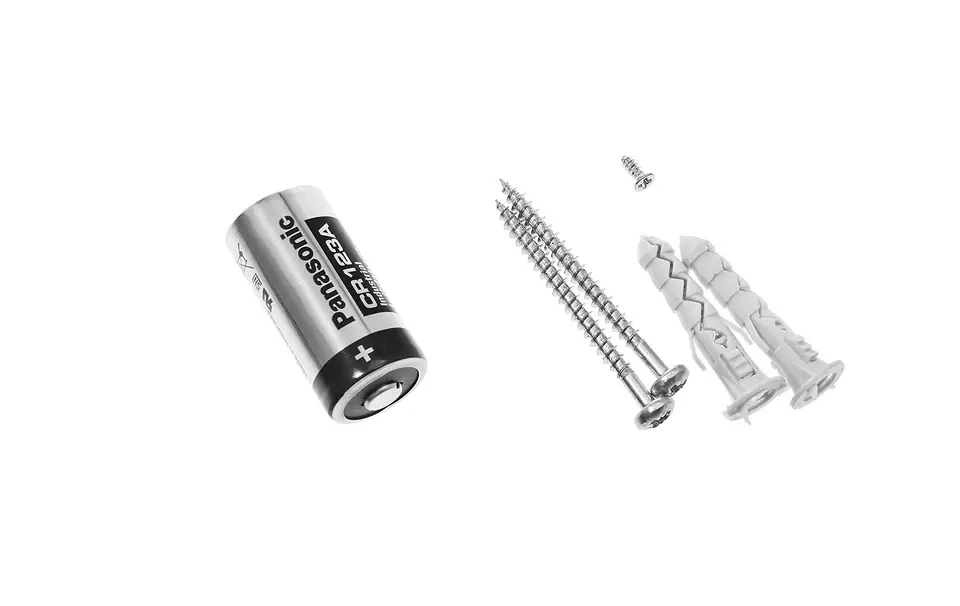

- Power Supply: CR123A 3V Battery
- Tamper protection against opening the enclosure and against detachment from the ground
Cooperation with:
- ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 retransmitter
- ABAX system controllers (ACU-120, ACU-270, ACU-250 and ACU-100 (in version min. 4.04)), INTEGRA 128-WRL control panel and ARU-100 retransmitter - the required version of the device software should be checked in its description on the website
Range of radio communication in open space:
- In ABAX 2: up to 2000 m (with ACU-220) / up to 1600 m (with ACU-280)
- AbAX: up to 500 m
