| Alarm indication: | Signal to control panel |
|---|---|

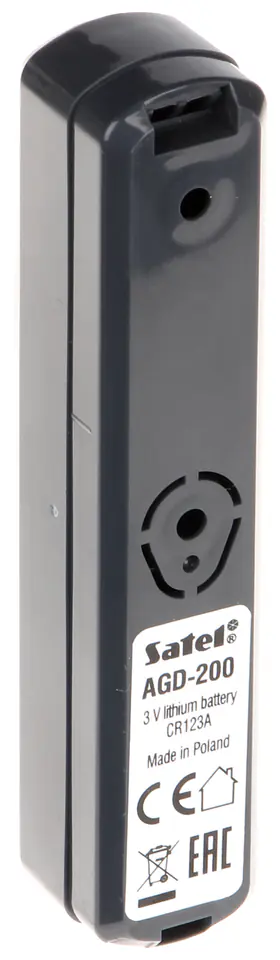

| Battery: | CR123A 3 V - 3.0 V (included) |
| Battery life: | ~ 2 years |
| Colour: | Dark graphite |
| Cooperation: | Satel ABAX/ABAX2 |
| Detection: | detection of breakage of ordinary, tempered and laminated glass |
| Dimensions: | 20 x 102 x 23 mm |
| Frequency band: | 868 MHz ... 868.6 MHz |
| Operating temperature: | -10 °C ... 55 °C |
| Producer / brand: | SATEL |
| Radio communication range (in open area): | ~ 500 m @ ABAX ,~ 2000 m @ ABAX2 |
| Scales: | 0.02 kg |
| Selected features: | Advanced microprocessor dual-path signal analysis Remote configuration Tamper protection |
| Warranty: | 2 years |
The sensor sounds an alarm if it registers a low-frequency signal (impact sound) and a high-frequency signal (the sound of breaking glass)A low-frequency sound wave caused by an impact causes the sensor to analyze the high-frequency channel
AGD-200-DG works with other devices compatible with the ABAX/ABAX2 wireless system
