WIRELESS DUAL MICROWAVE DETECTOR + PIR AOD-210-GY ABAX/ABAX2 SATEL

€169.70
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Satel
Product code:
AOD-210-GY / 5902887052606

Specification

Animal resistance::≤ 20 kg
Battery life (in power saving mode)::≤ 2 years
Colour::Grey
Cooperation::ABAX/ABAX2
Detectable movement speed::0.3  ... 3 m/s
Dimensions::65 x 138 x 58 mm
Frequency band::868 MHz ... 868.6 MHz
Grade::2
Manufacturer / brand::SATEL
Operating temperature::-40 °C ... 55 °C
Permissible relative humidity::93 ± 3 %

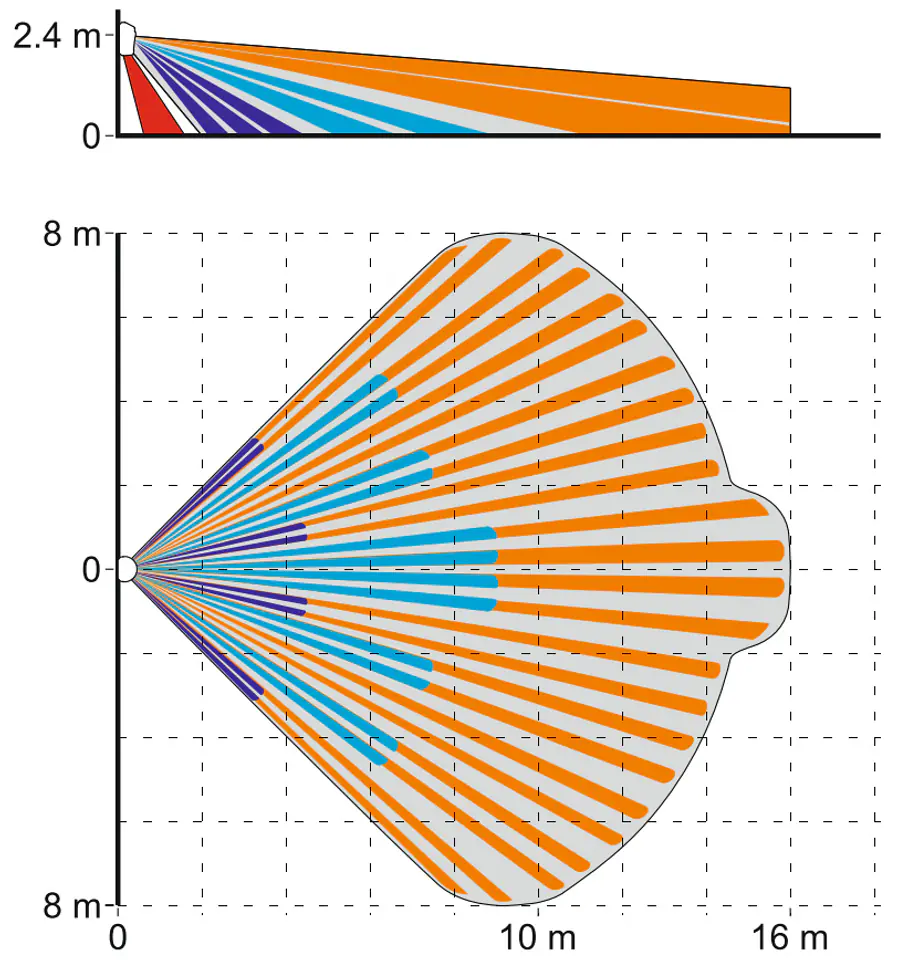

Pir detector range::16 m / 90 °

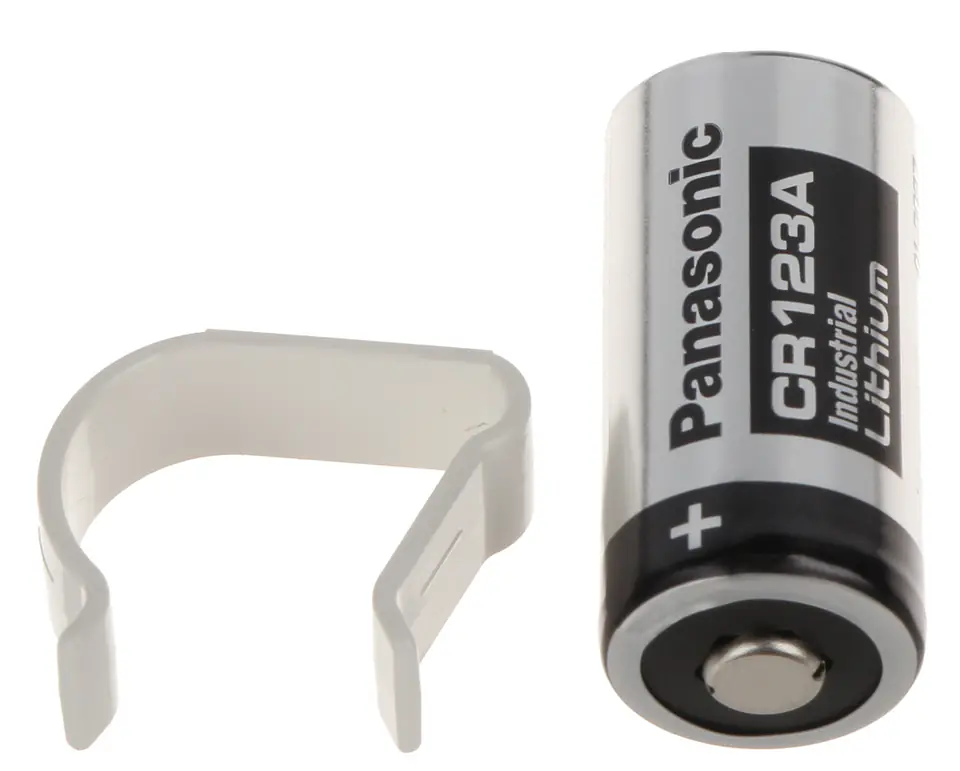

Power::CR123A 3 V (included)
Radio communication range (in open area)::≤ 2000 m - ABAX2 @ ACU-220, ≤ 1600 m - ABAX2 @ ACU-280, ≤ 500 m - ABAX
Recommended mounting height::2.4 m
Scales::0.18 kg
Sealing::IP54
Selected features::Passive Infrared (PIR) and Microwave (MW) Built-in Twilight Sensor for Use of Detector in Automation Systems Remote Configuration Advanced Energy Management Advanced Temperature Compensation With the combination of PIR and MW detection, high resistance to false alarms has been achieved Ability to work in adverse weather conditions (rain, snow, fog, strong wind) Adjustable PIR / MW detection sensitivity Approach zone control Sabotage detection - opening of the housing, detachment from the ground
Warranty::2 years

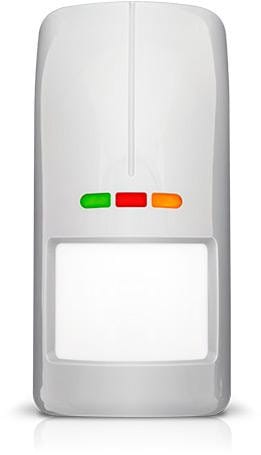

Wireless motion sensor, whose role is to detect a moving intruder in the space protected by the systemThanks to the combination of PIR and MW detection, high resistance to false alarms has been achievedIt is ideally suitable for building monitoring of small objects such as: kiosks, summer houses, boutiques, detached garages and workshops, as well as wherever wired installation is difficult or impossible to perform

AOD-210-GY works with other devices compatible with the ABAX/ABAX2 wireless system

The lithium battery used to power the device guarantees many years of operation without the need to replace it, thanks to which the system is as trouble-free to operate as traditional wired solutions

For indoor and outdoor use

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
