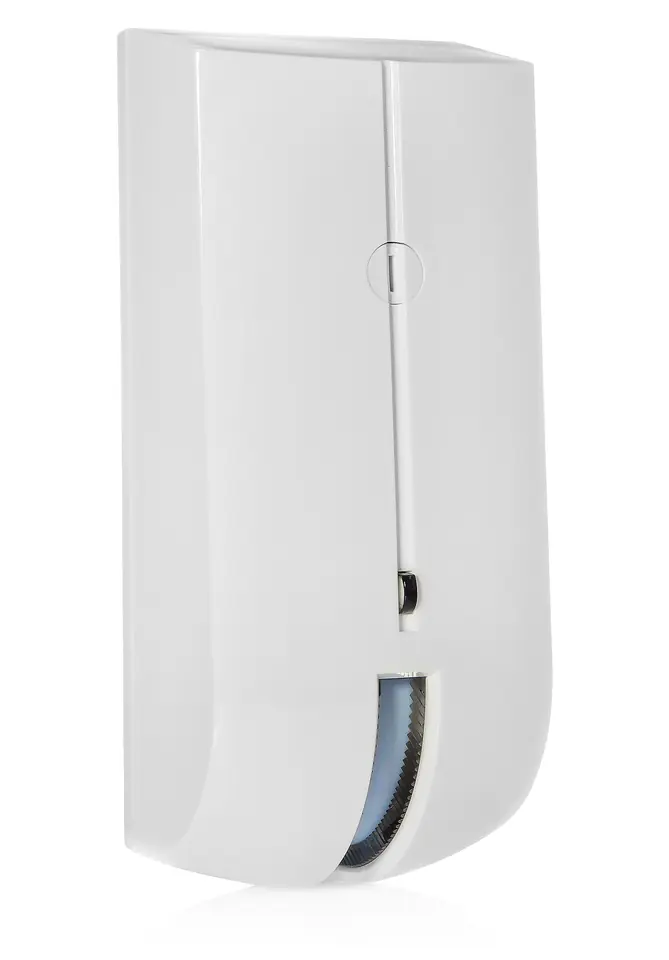

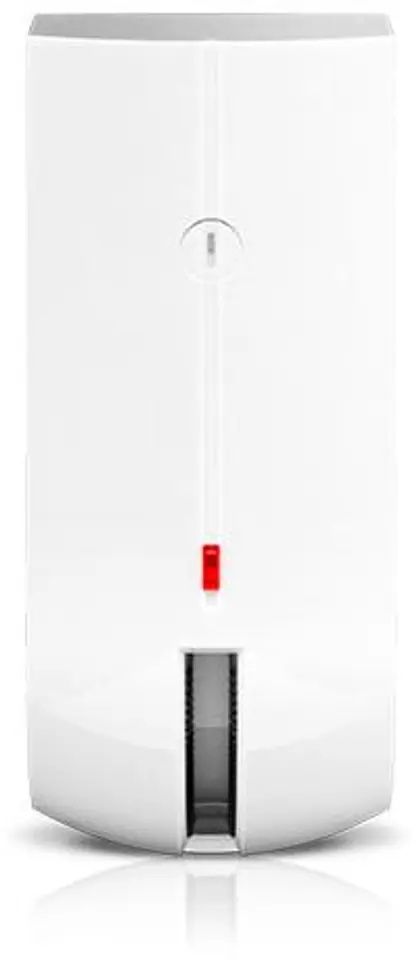

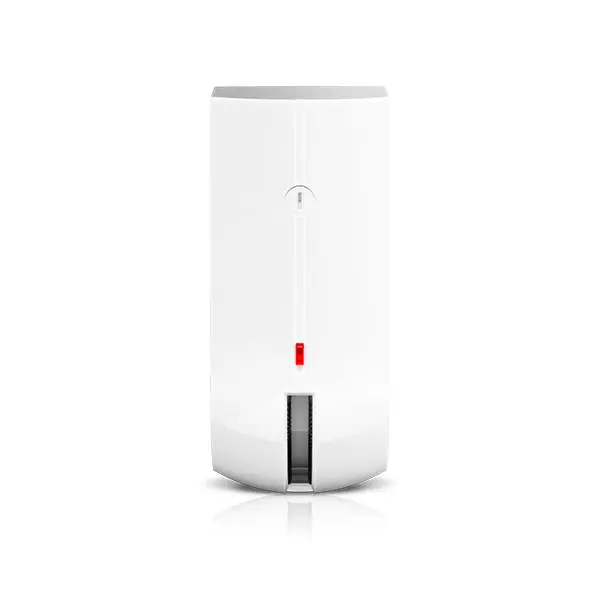

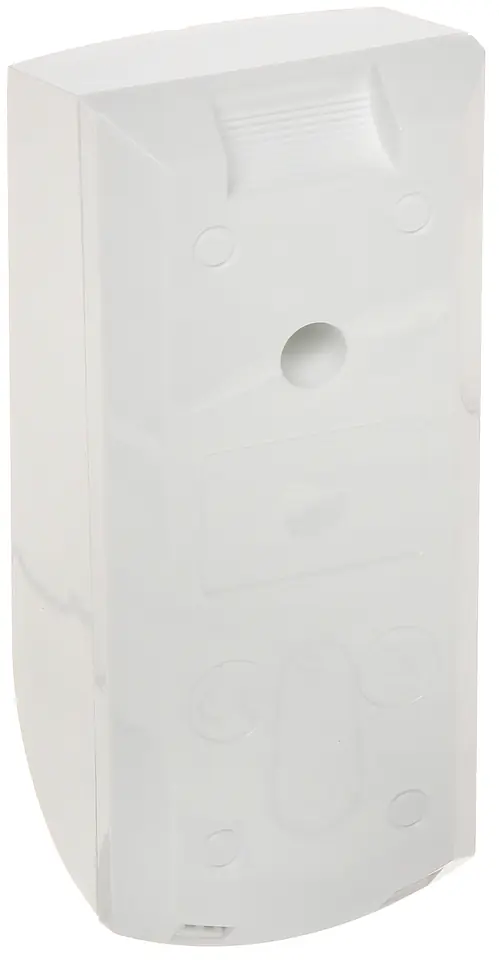

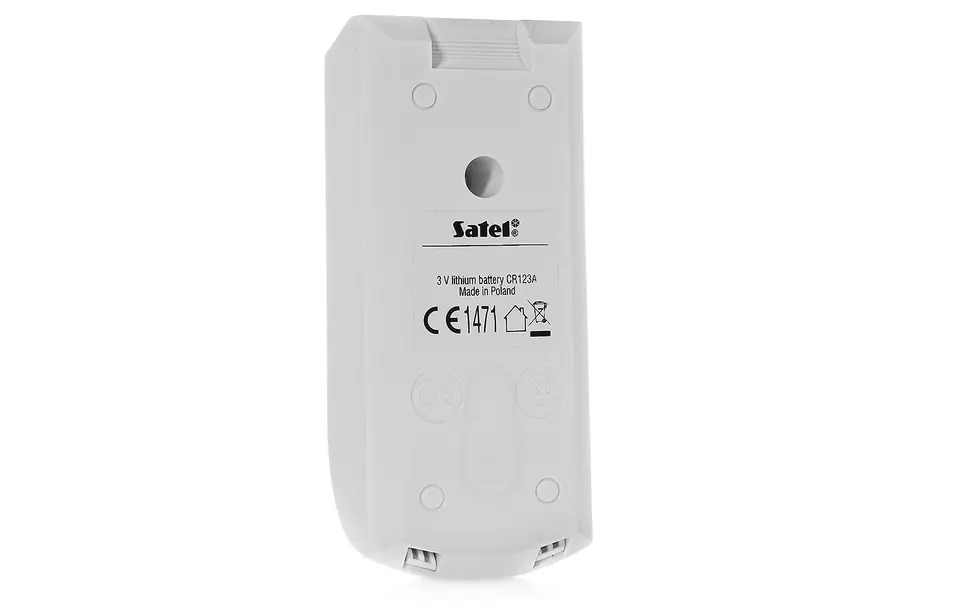

WIRELESS DUAL CURTAIN DETECTOR MICROWAVE + PIR AOCD-260 ABAX/ABAX2 SATEL

Name: WIRELESS DUAL CURTAIN DETECTOR MICROWAVE + PIR AOCD-260 ABAX/ABAX2 SATEL
Brand: Satel
SKU: 515320
Price: 138.76 EUR
Availability: InStock

€138.76

Shipping from warehouse: ⁨H7⁩

Estimated shipping: Mon, Nov 25 - Wed, Nov 27

14 days returnUnconditional return policy

Availability:: large quantity
Brand:
Product code:: AOCD-260 / 5905033336681

Specification

Battery life (in power saving mode)::	Max. 2 years
Colour::	white
Cooperation::	ABAX/ABAX2
Detectable movement speed::	0.3 ... 3 m/s
Dimensions::	105 x 44 x 40 mm
Frequency band::	868 MHz ... 868.6 MHz
Manufacturer / brand::	SATEL
Operating temperature::	-40 °C ... 55 °C
Permissible relative humidity::	93 ± 3 %

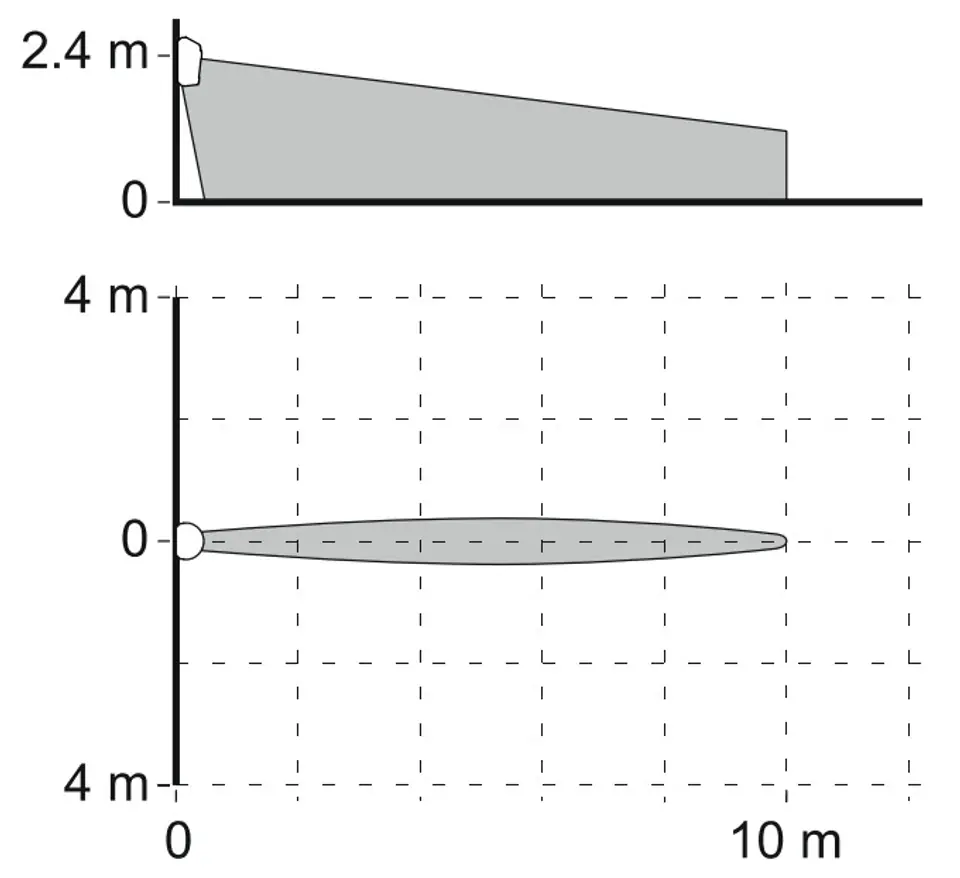

Pir detector range::	~ 10 m / 6 °

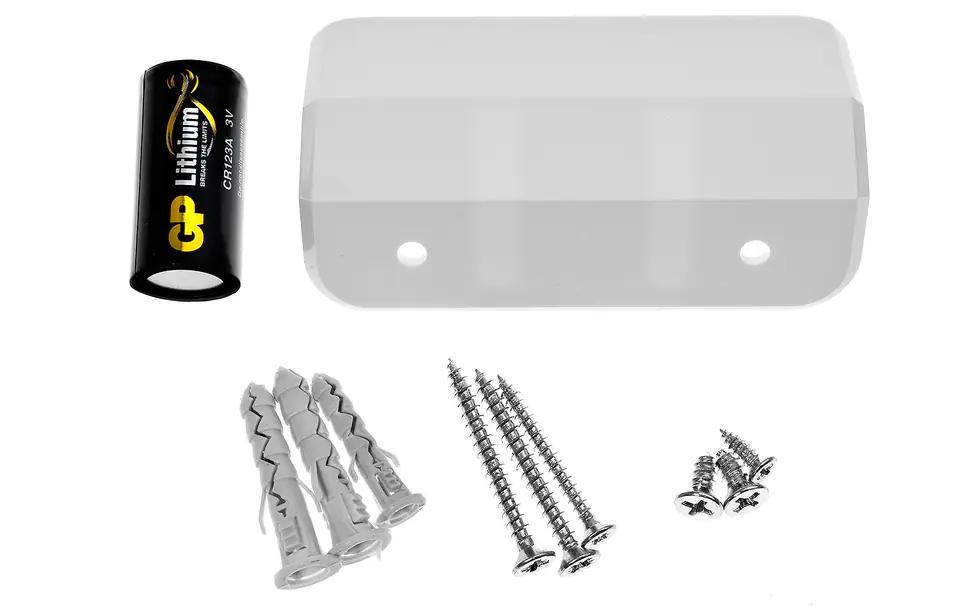

Power::	CR123A 3 V
Radio communication range (in open area)::	≤ 2000 m - ABAX2 @ ACU-220, ≤ 1600 m - ABAX2 @ ACU-280, ≤ 500 m - ABAX
Recommended mounting height::	2.4 m
Scales::	0.08 kg
Selected features::	Passive Infrared (PIR) and Microwave (MW) Remote Configuration Advanced Power Management Thanks to the combination of PIR and MW detection, high resistance to false alarms has been achieved Ability to work in adverse weather conditions (rain, snow, fog, strong wind) IP54 tightness class, The device can work outdoors, however, under a roof Adjustable detection sensitivity PIR / MW Tamper detection detection - housing opening, detachment from the ground
Use::	External
Warranty::	2 years

The AOCD-260 sensor is an infrared detector with a microwave detector designed for outdoor useWith the combination of PIR and MW detection, high resistance to false alarms has been achievedIdely suitable for the construction of monitoring of small objects such as: kiosks, summer houses, boutiques, detached garages and workshops, as well as wherever conducting a wired installation is difficult or impossible to performAddjusted for external installation on the wall (for IP54 is recommended for installation under a roof)

AOCD-260 works with other devices compatible with the ABAX/ABAX2 wireless system

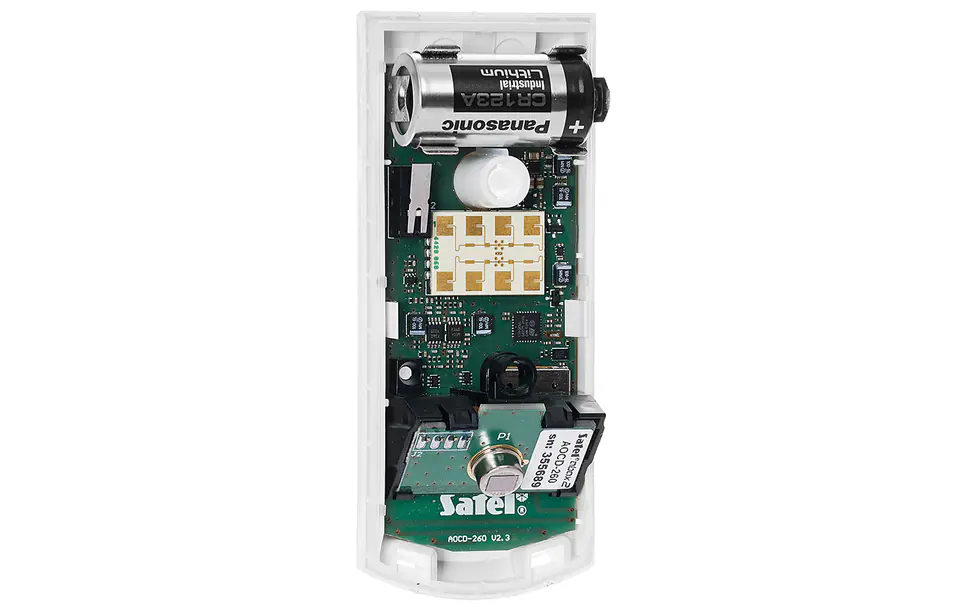

The lithium battery used to power the device guarantees many years of operation without the need to replace it, thanks to which the system is as trouble-free to operate as traditional wired solutions

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
