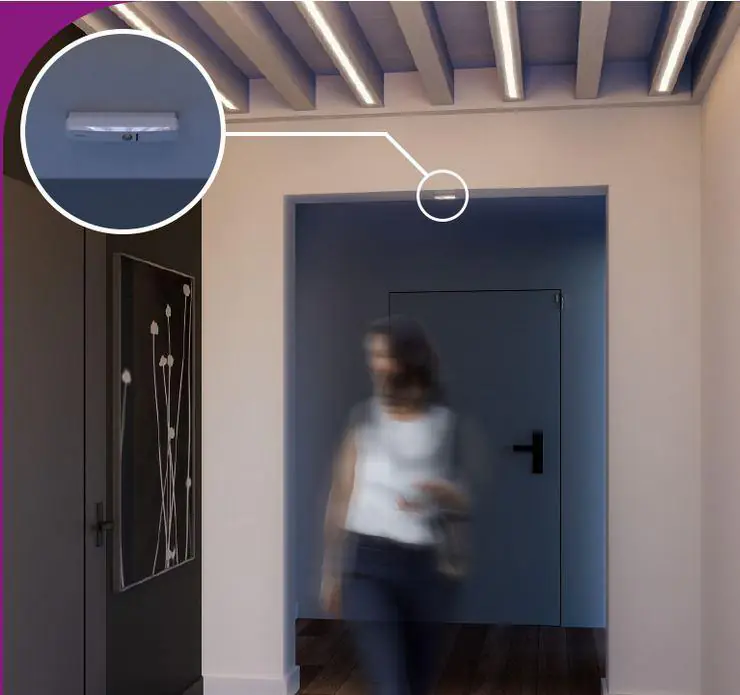

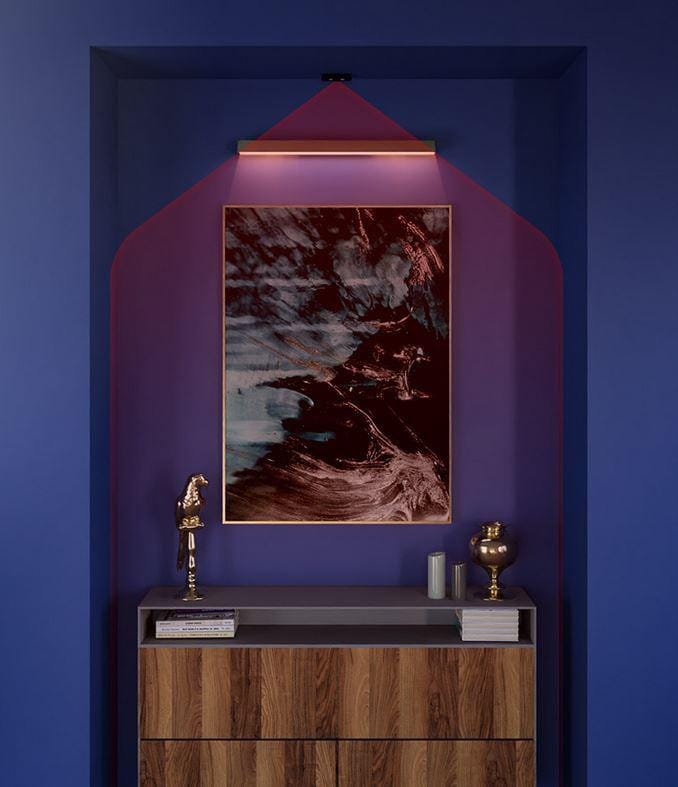

Curtain detector provides a narrow detection angle
ACD-220-BR works with other devices compatible with the ABAX2 wireless system

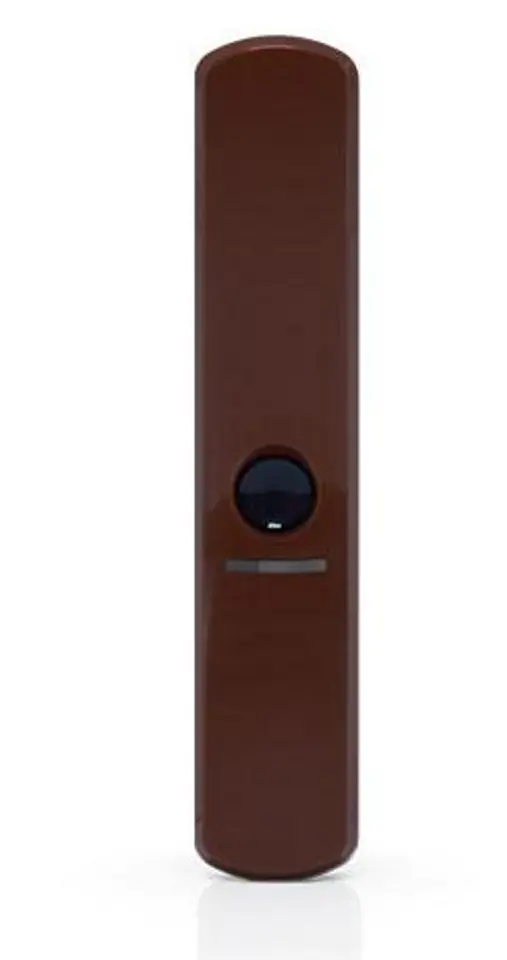

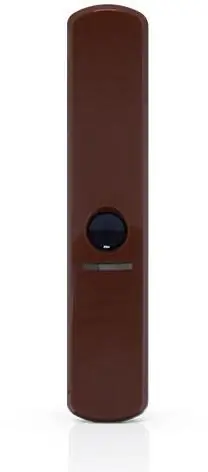

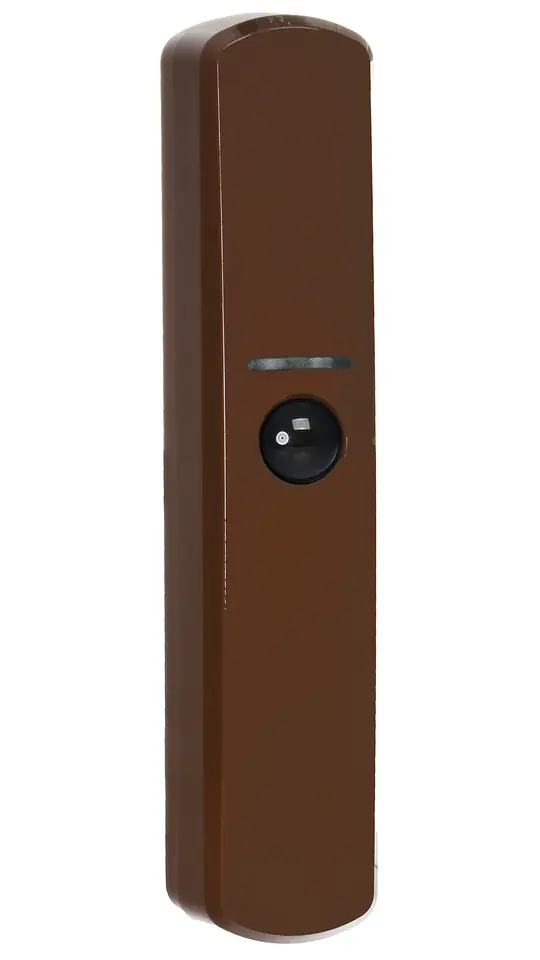

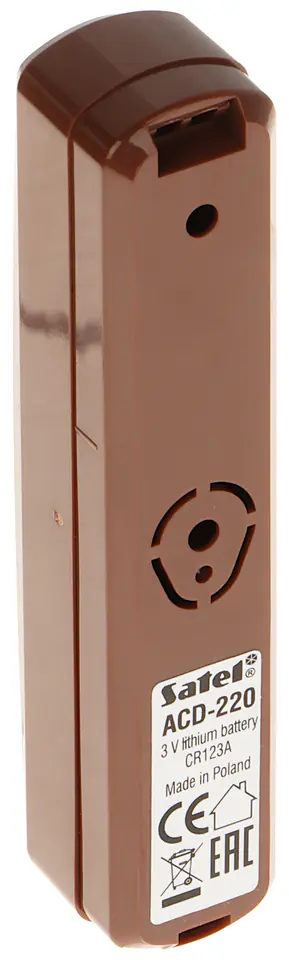

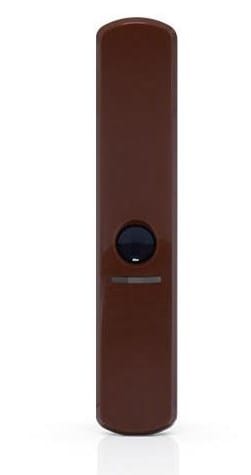

WIRELESS CURTAIN PIR DETECTOR ACD-220-BR ABAX2 SATEL
€55.80
Shipping from warehouse: H7
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- ACD-220-BR / 5905033337961
Share this product:
Specification

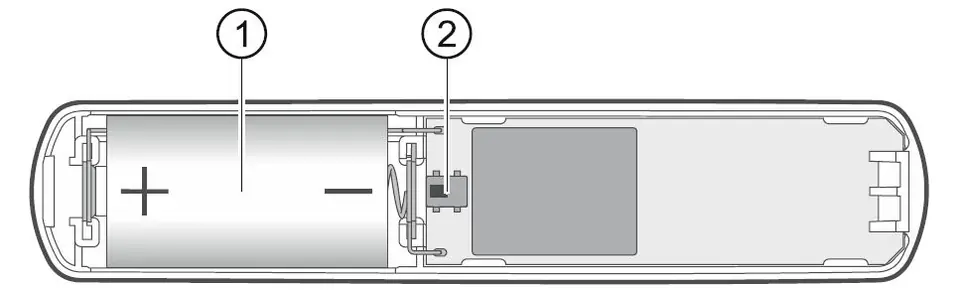

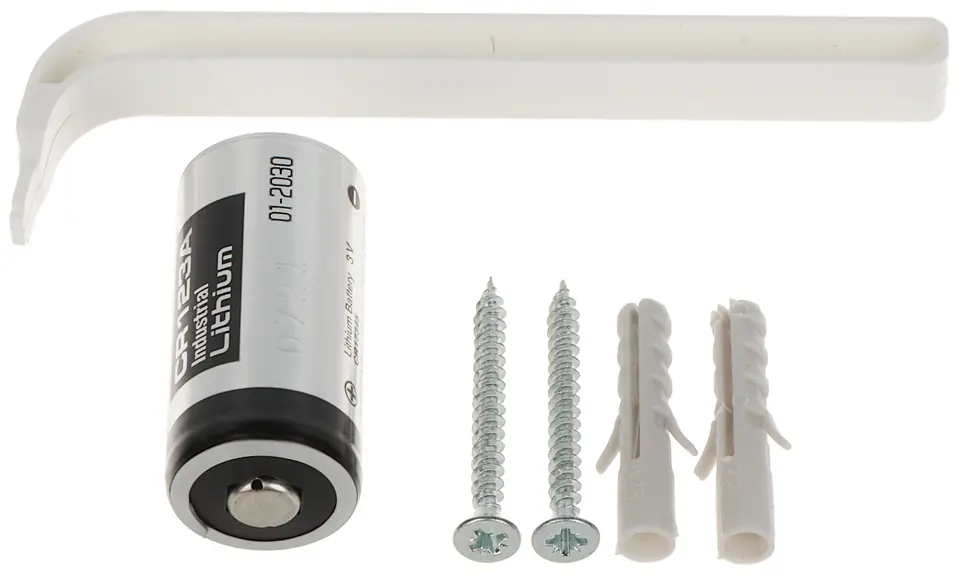

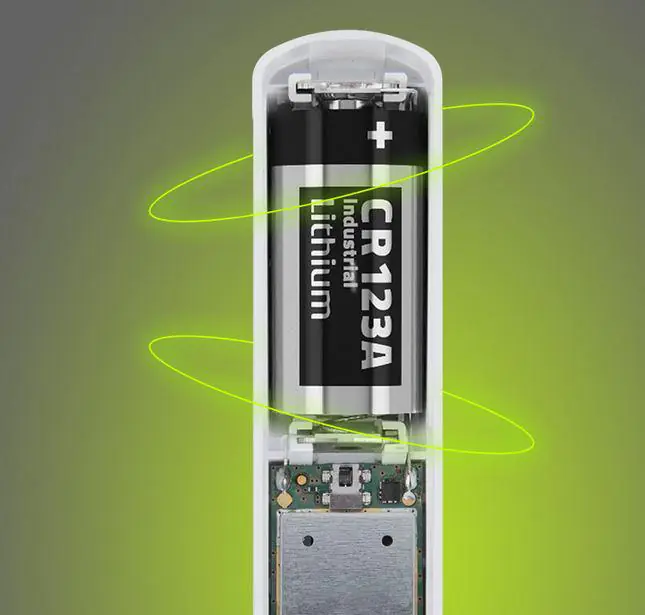

| Battery: | 1 x CR123A 3V Lithium Battery (Included) |
|---|---|
| Battery life: | ~ 2 years |

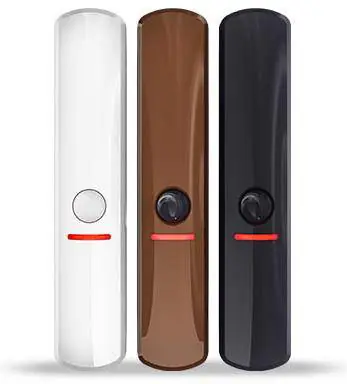

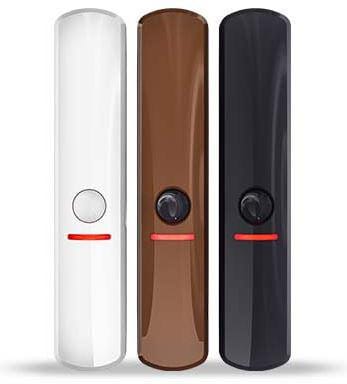

| Colour: | Brown |
| Compliance with standards: | EN50130-4, EN50130-5 |
| Cooperation: | SATEL ABAX2 wireless alarm systems |
| Current consumption: | 15 mA (max) 70 μA (standby) |
| Detectable movement speed: | 0.3 ... 1 m/s |

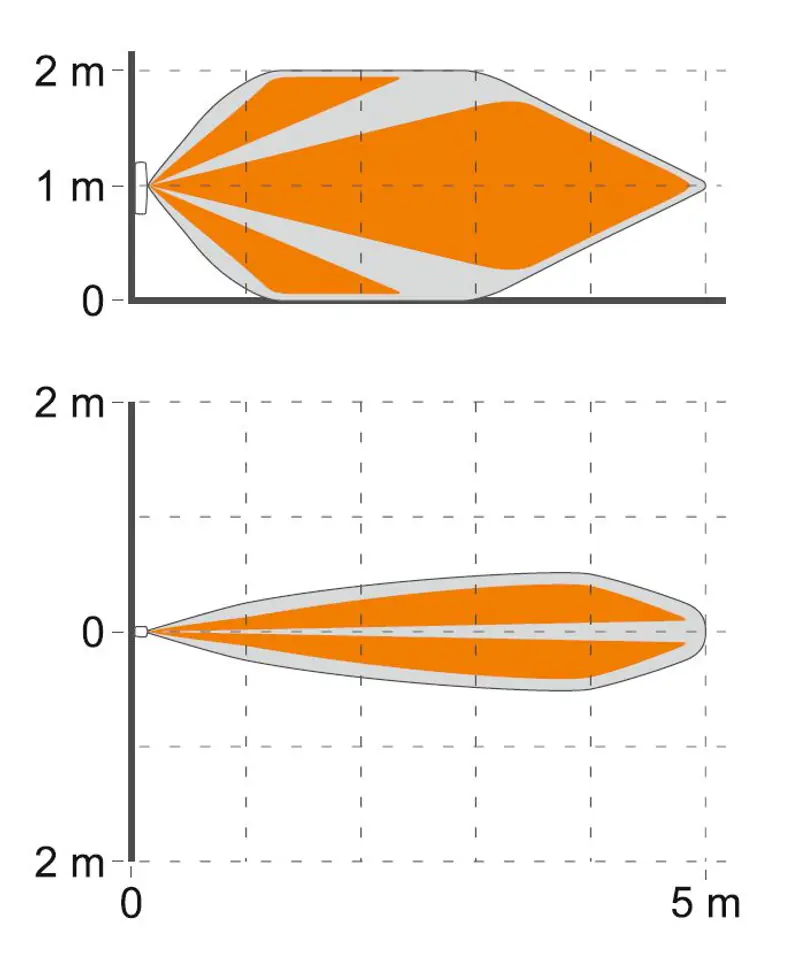

| Detection angle / detection range: | 15° / 5 x 1 m |
| Dimensions: | 105 x 25 x 20 mm |
| Environmental class: | II according to EN50130-5 |
| Frequency range: | 868.0 ... 868.6 MHz |
| Operating temperature: | -10 °C ... 55 °C |
| Producer / brand: | SATEL |
| Radio communication range (in open area): | .max. 2000 m ACU-220 ,max. 1200 m ACU-280 |
| Scales: | 0.022 kg |
| Selected features: | Curtain lens digital detection algorithm with temperature compensation, ensuring high immunity to false alarms and repeatability of parameters Two-way encrypted radio communication - AES Protection against jamming by frequency switching ensures reliable transmission Motion detection system supervision Battery status check The "ECO" option allows up to four times longer battery life (only in ABAX2) Tamper detection - enclosure opening, detachment from Substrate LED Signaling Remote Module Software Update Remote Configuration Built-in Temperature Sensor, Temperature Measurement: -10°C... 55 °C |
| Sensor type: | Passive infrared (PIR) |
| Use: | Internal |
| Warranty: | 2 years |
