| Alarm indication: | LED, Signal to control panel |
|---|---|
| Colour: | Brown |
| Cooperation: | Alarm control panel |
| Detection: | Opening of a door or window, Vibration, Water |

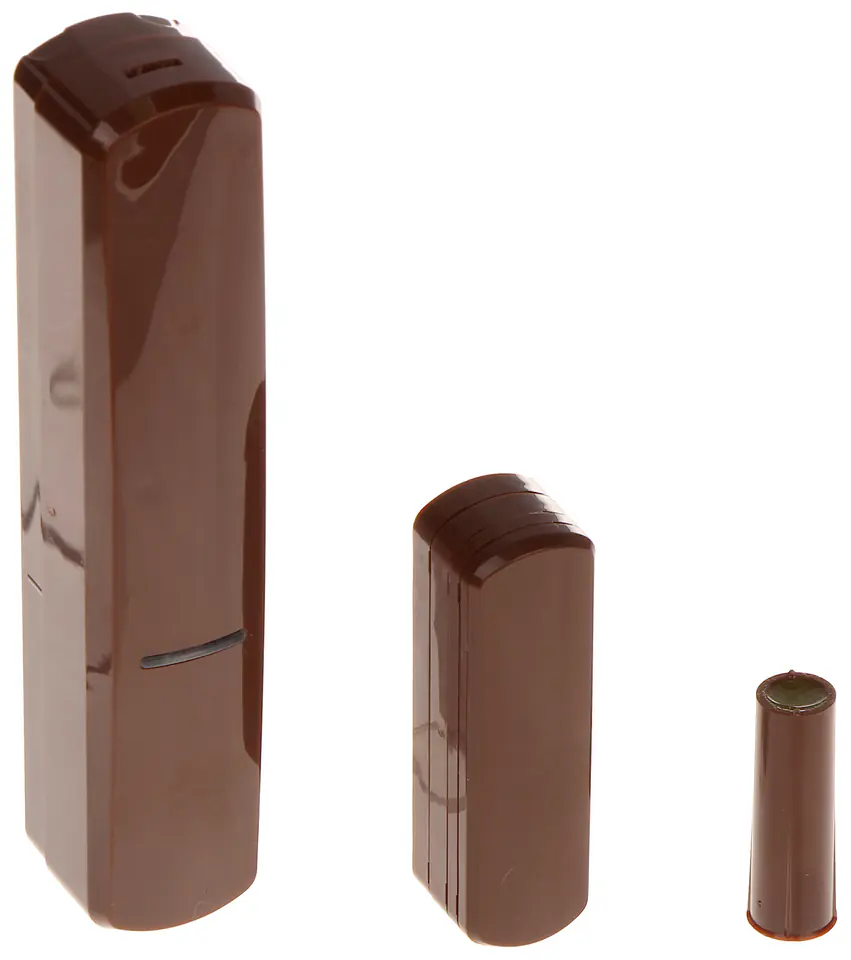

| Dimensions: | 20 x 102 x 23 mm (sensor) Ø 10 x 28 mm (magnet) |
| Environmental class en 50130-5: | II |
| Grade: | 2 |
| Operating temperature: | -10 °C ... 55 °C |
| Permissible load of relay contacts (resistive): | 40 mA / 24 V DC |
| Power: | 12 V DC / 14 mA (max) |
| Producer / brand: | SATEL |
| Scales: | 0.023 kg |

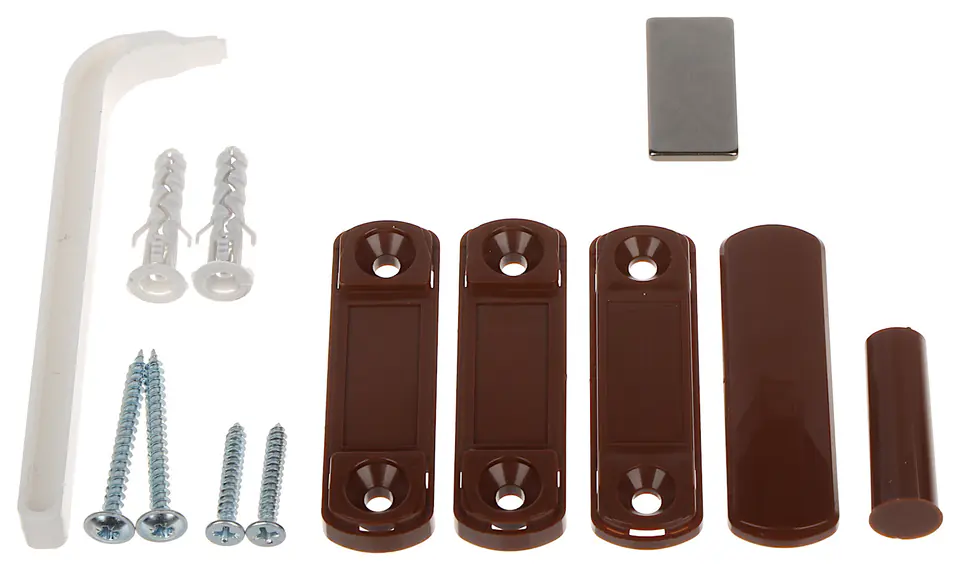

| Selected features: | Operating modes: Magnetic detector- Opening a door or window- Entrance for connecting a wired detector type NC- 1 Alarm output Shock detector- Detection of shocks and vibrations accompanying attempts to force a door or window - Range: 3 m - input for connecting a wired detector type NC- 1 Alarm output Shock and magnetic detector - Detection of shocks and vibrations accompanying attempts to force the door or window - Opening the door or window - Entrance enabling connection of a wired detector type NC-2 Alarm outputs Water flood sensor - FPX-1 probe required available separately - detection of the presence of water in rooms at risk of flooding - 1 Alarm output Tamper detection - enclosure opening, detachment from the mount LED Signaling Supply voltage monitoring Includes 2 magnets (surface mount and flush mount) Compliance with EN 50130-4 standards, EN 50130-5, EN 50131-1, EN 50131-2-6 |
| Warranty: | 2 years |

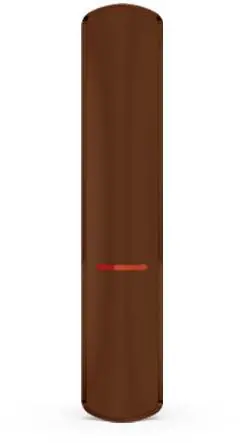

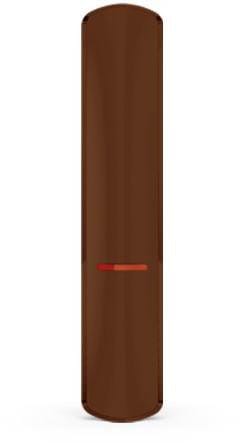

The XD-2-BR wired detector can operate in one of 4 modes, which makes it an extremely versatile deviceThe device can be configured depending on your needs: magnetic detector, shock detector, shock detector with reed switch or water flood detector (external FPX-1 probe required - available separately)
XD-2-BR works with any control panel
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
