Manufacturer number: MSW 10060073

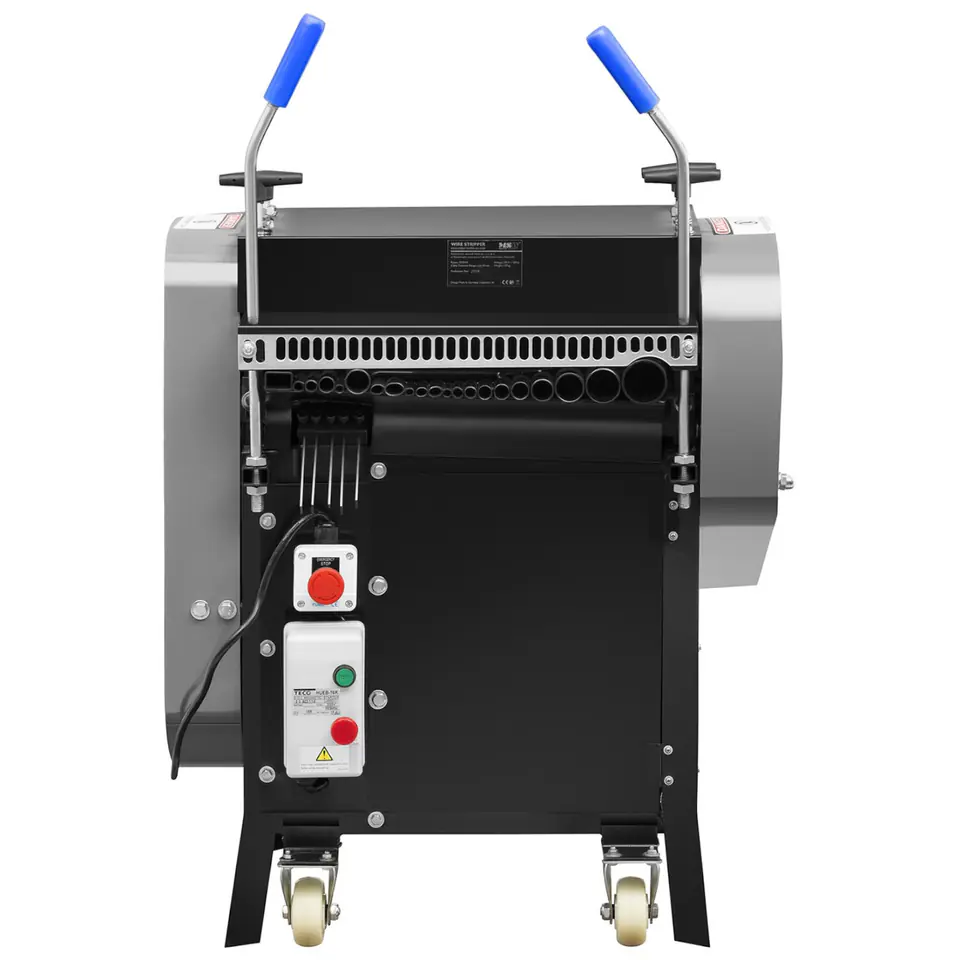

The cable isolator of the German brand MSW is a device designed for intensive use in scrap metal purchases, services (RTV / AGD) or in non-ferrous metal processing points. The MSW-WIRESTRIPPER-003-2200 corroborate significantly facilitates the removal of insulation from copper or aluminum cables.
The equipment is equipped with twenty-one inlet holes of different shapes (flat, round, BX, etc.) and size. The shafts and compatible hardened blades precisely cut the insulation and thus enable convenient and quick extraction of metal conductors (regardless of whether the cable is single or multi-core).
The efficiency of the corriger is due to the 2200W motor, which provides a cutting speed of up to 23 m / min. The machine can be conveniently attached to the work surface and thus increase its stability. This gives the possibility of efficient and ecological recovery of cables. In addition, the device is equipped with comfortable wheels that facilitate transport.
Product features:
- -Efficiency - 2200 W motor provides a cutting speed of 23 m / min,
- -Strength- hardened blades and steel housing,
- -Convenience - automatic cable consumption function and 21 cable openings,
- -Versatility- 21 holes 15 for cables with diameter. 8.5 / 11.5 / 14.5 / 8 / 24 / 8 / 9 / 11.5 / 12.5 / 14.5 / 16 / 20 / 28 / 33.5 / 45 mm and 6 for flat cables 26.5 x 16 / 13.5 x 9 / 17.5 x 11 / 9 x 6 / 9.5 x 8 / 13.5 x 9.5 mm
- -Safety of use - thanks to the use of an emergency stop
- -Mobility- the corrower can be easily transported thanks to the wheels
- -ECOLOGICAL CABLE RECYCLING.
- - Model - MSW-WIRESTRIPPER-003-2200
- - Catalogue number - 10060073
- - Voltage - 230V
- - Power - 2200W
- - Cutting speed -23 m/min
- - Cable diameter - up to 45 mm
- - Number of holes for cables - 21
- - Power cord - 1.66m
- - Number of blades - 28
- - Wheel dimensions - Ø70 x 32
- - Hole length -18 cm
- - Minimum cable length - 53 mm
- - Not recommended wire types - Silicon dioxide insulated with copper reinforcement
- - Noise level - 81 dB
- - Protection class - IP20
- - Dimensions (LxWxH) - 71.00 x 61.00 x 102.00 cm
- - Weight - 121,50 kg
- - Shipping dimensions (LxWxH) - 75.00 x 67.00 x 91.00 cm
- - Shipping weight - 141,00 kg
- - Cable stripper
- - Manual EN
- - Product well protected during transport
