Manufacturer no: 10062026

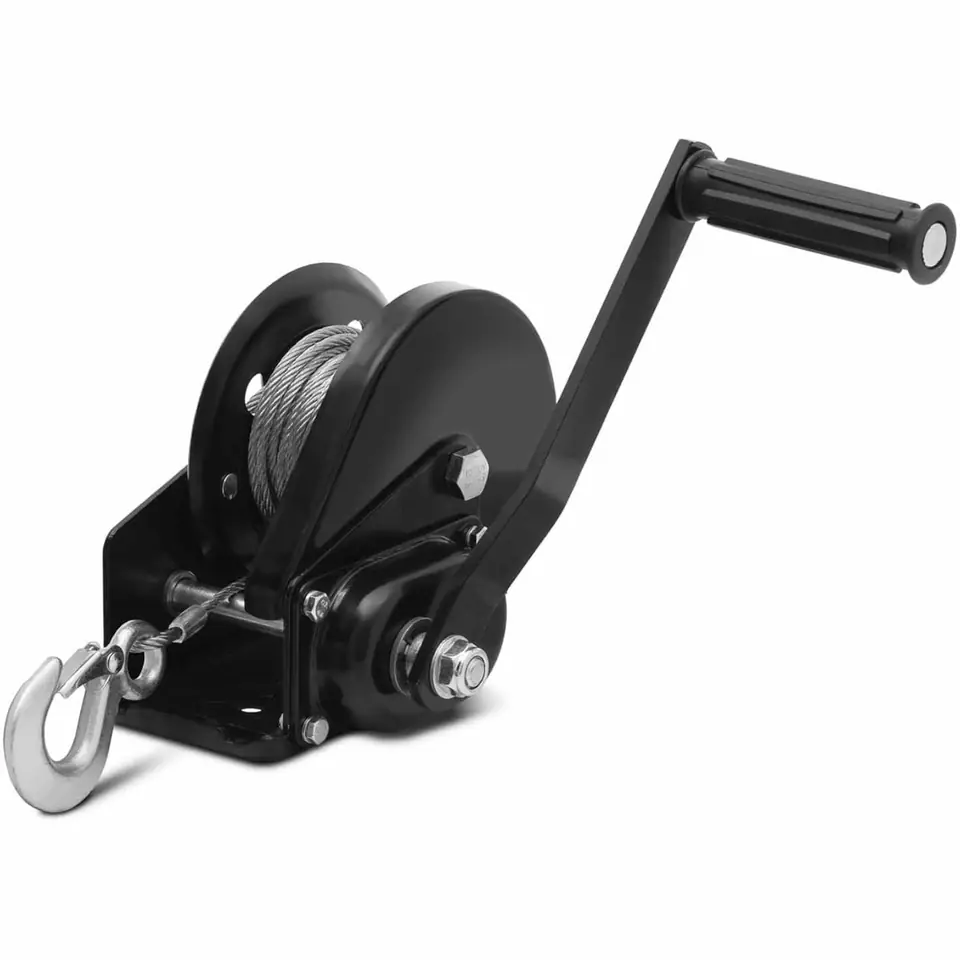

The MSW manual winch is suitable for towing boats, caravans and other loads at home, in the garden, at the marina or in the workshop. The robust construction and 4.2:1 gear ratio allow you to develop a pulling force of 550 kg. The device is operated manually, without the use of electricity. The transmission is quiet, the gears mesh precisely. The gearbox is made of alloy steel and protected with a galvanic coating. The automatic braking system keeps the cable securely in the desired position. Mechanical components are closed and secured during operation, the crank can be removed for storage. The steel rope is galvanized and has a length of 8 m and a thickness of 4 mm. It has been protected against twisting, is tear resistant and stable. The hook has a diameter of 18 mm.
Product features:
- - Pulling force 550 kg with a gear ratio of 4.2:1,

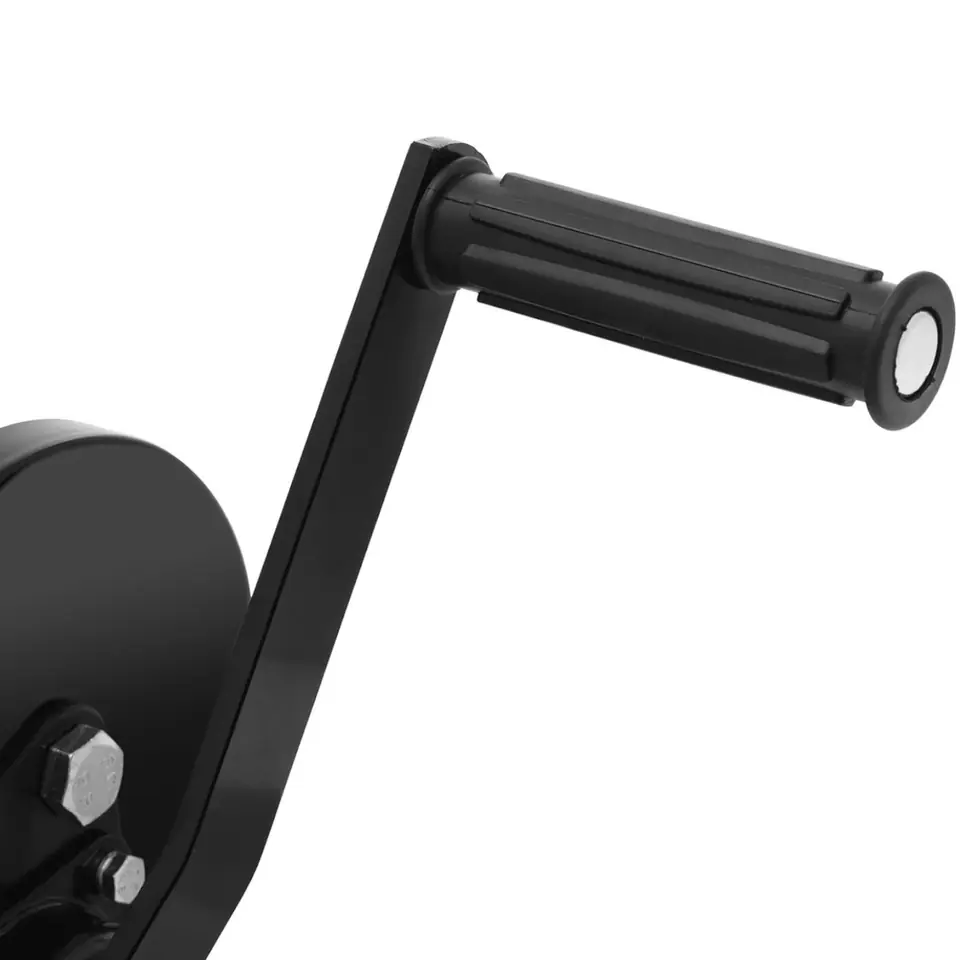

- - Hand crank with ratchet mechanism,

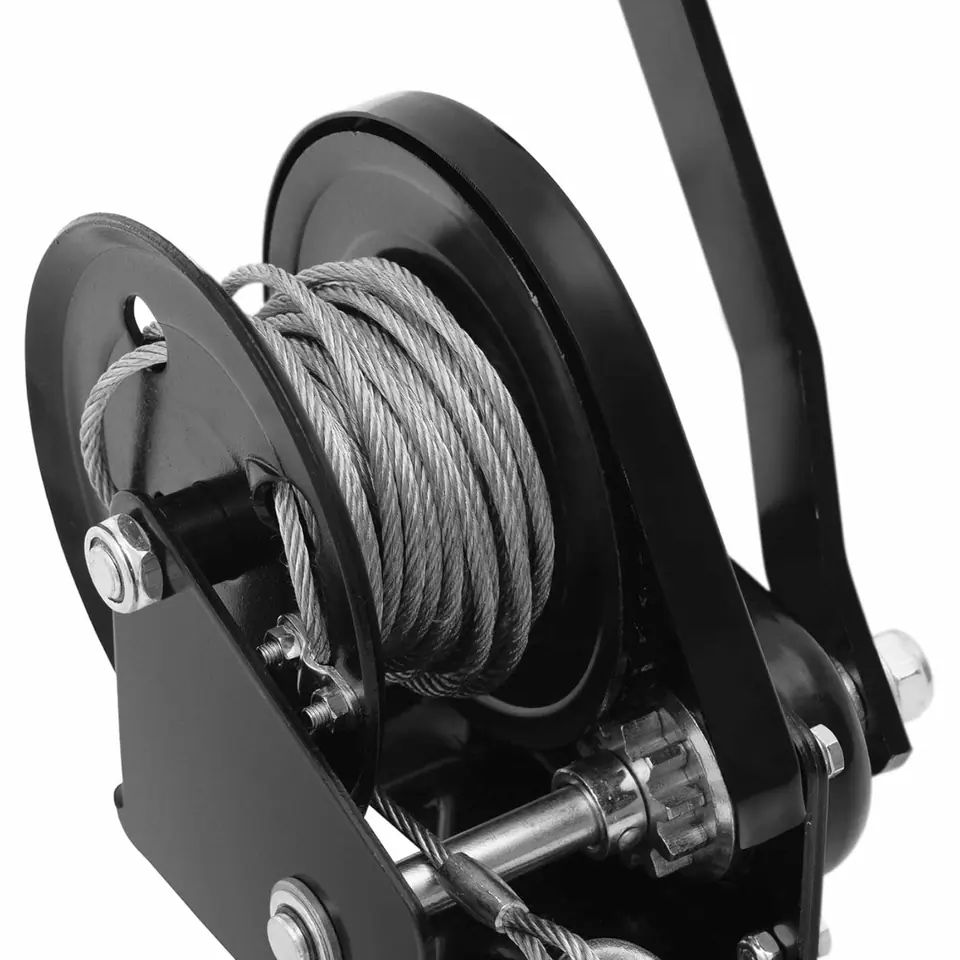

- - Galvanized steel rope 8 m long and 4 mm thick,

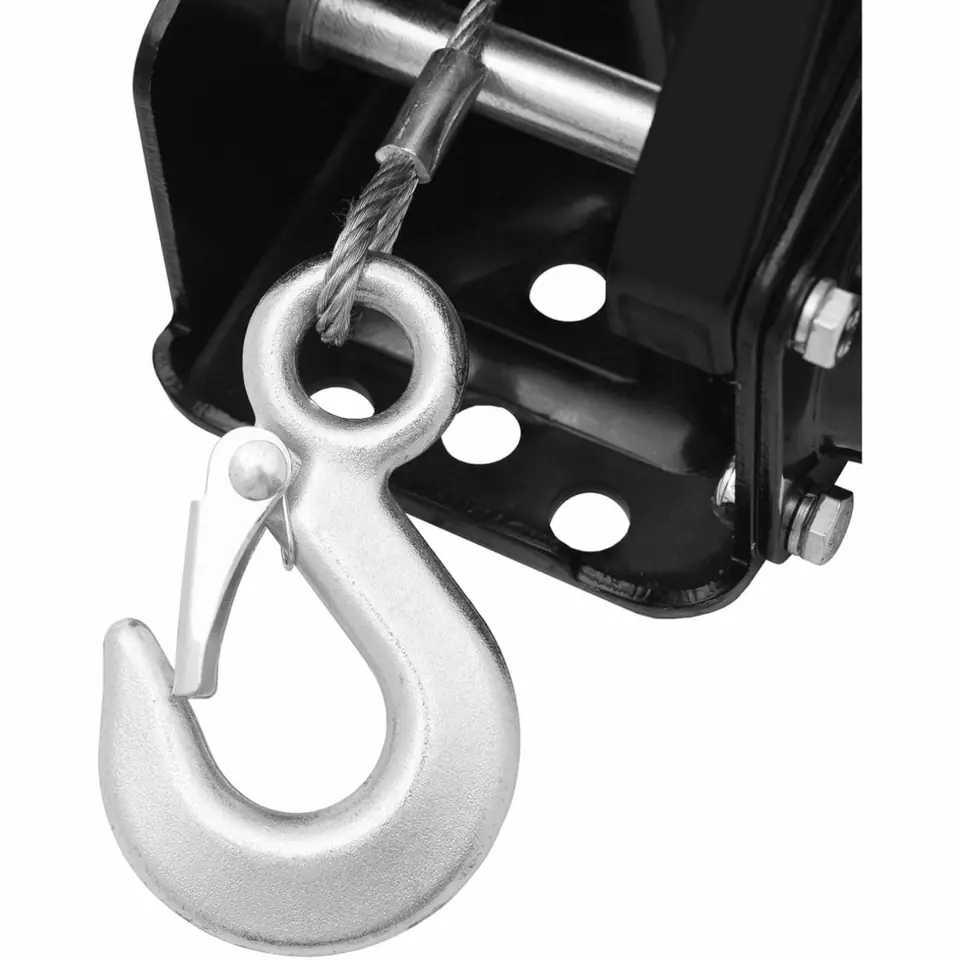

- - Automatic braking system and 18 mm hook
- - Easy fastening via mounting plate.
- - Model - MSW-MHW-08
- - Catalogue number - 10062026
- - Article status - New
- - Hook - 18 mm
- - Load [kg] - 550
- - Gear ratio - 4.2:1
- - Rope length [m] - 8
- - Material - Steel
- - Rope thickness [mm] - 4
- - Speed levels - 1
- - Dimensions (LxWxH) [cm] - 34,5 x 27 x 15,5
- - Weight [kg] - 4,1
- - Shipping dimensions (LxWxH) [cm] - 21,5 x 16 x 15
- - Shipping weight [kg] - 4,2
- - Hand winch
- -Manual
