Manufacturer no: 10030793

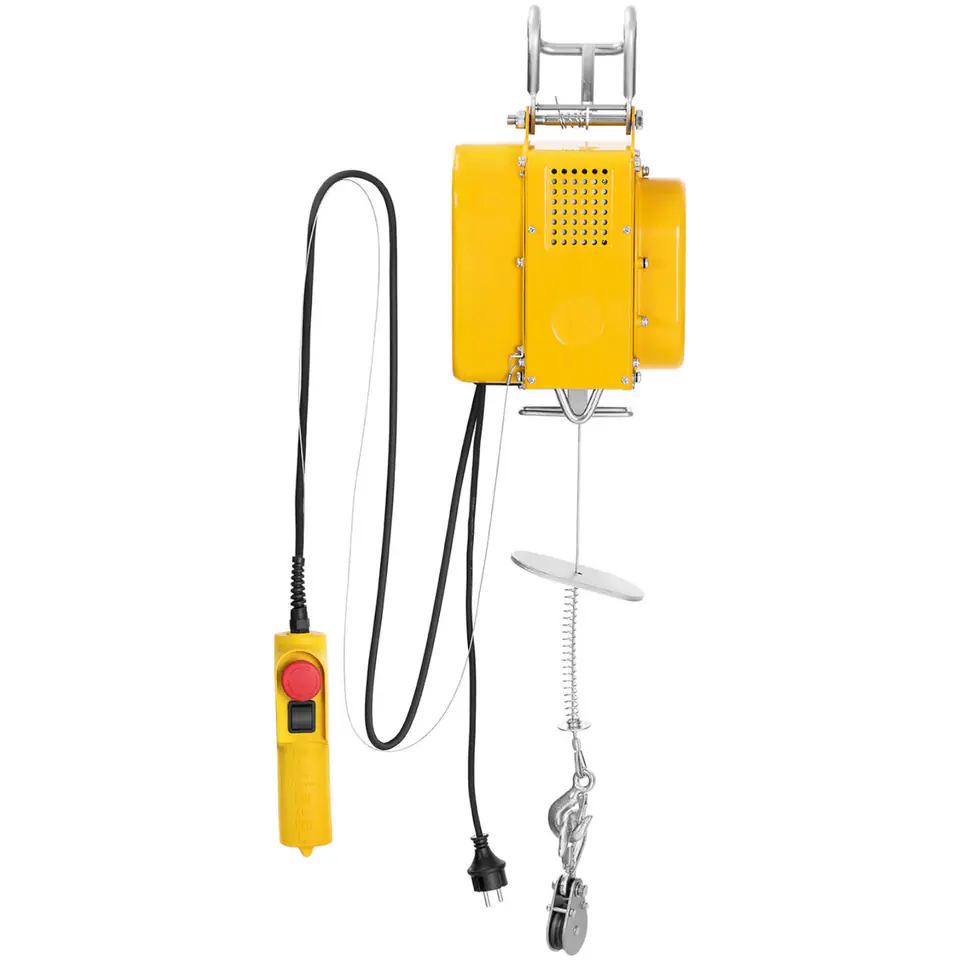

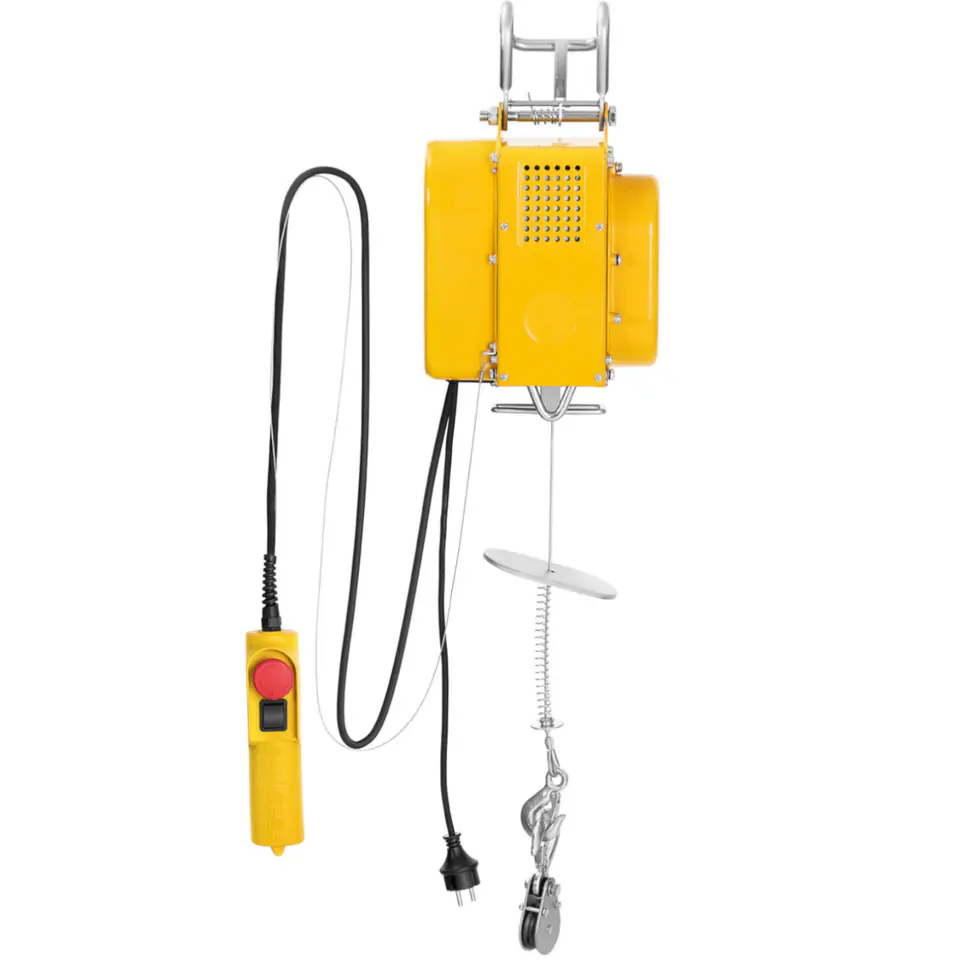

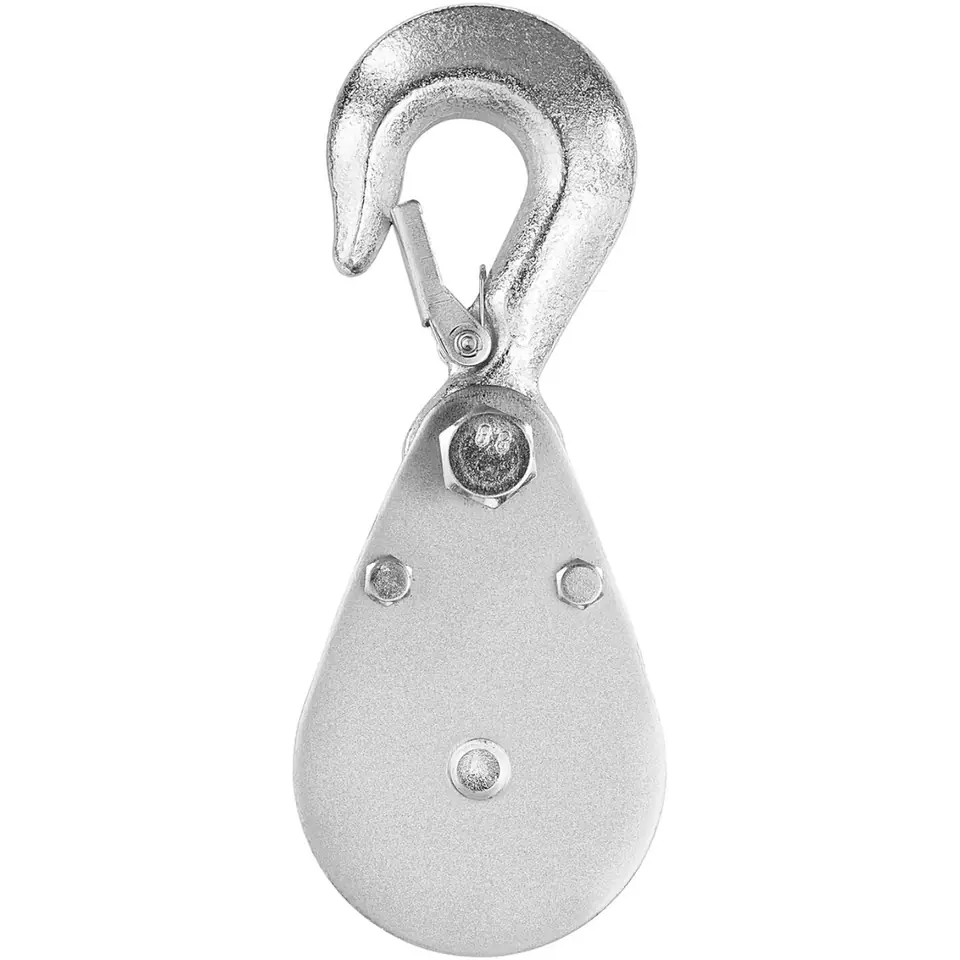

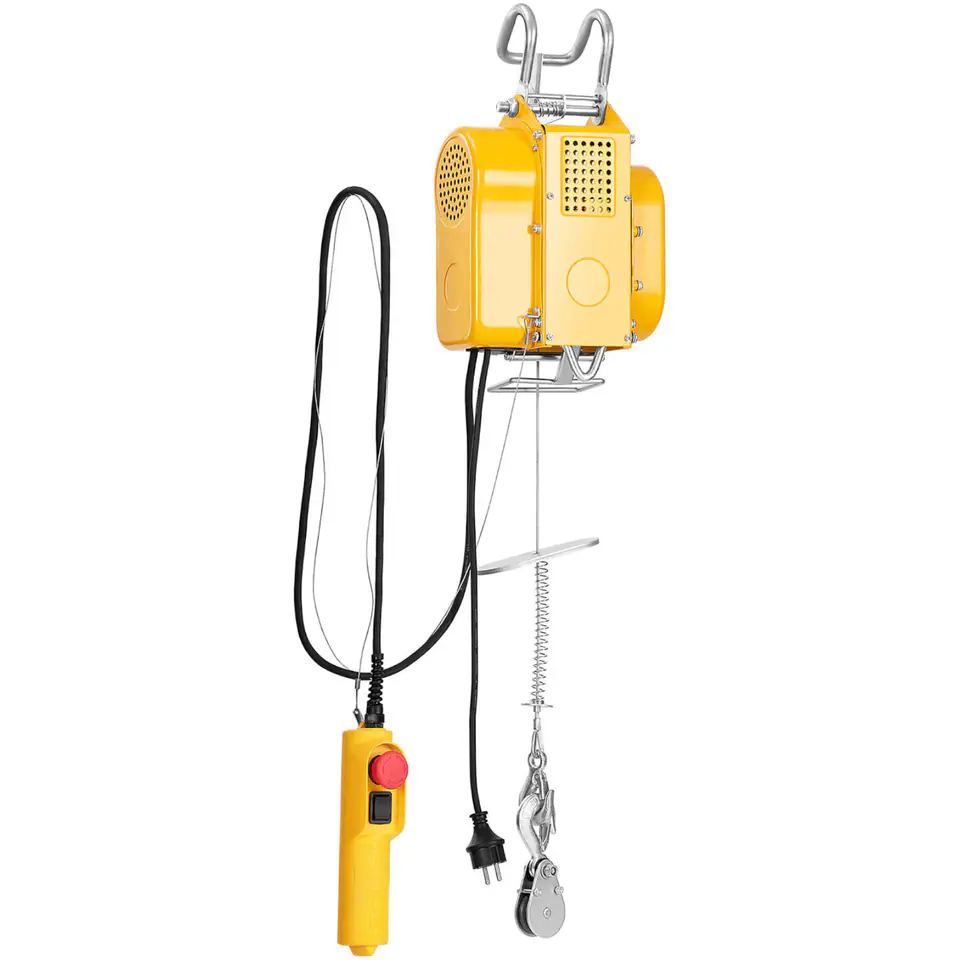

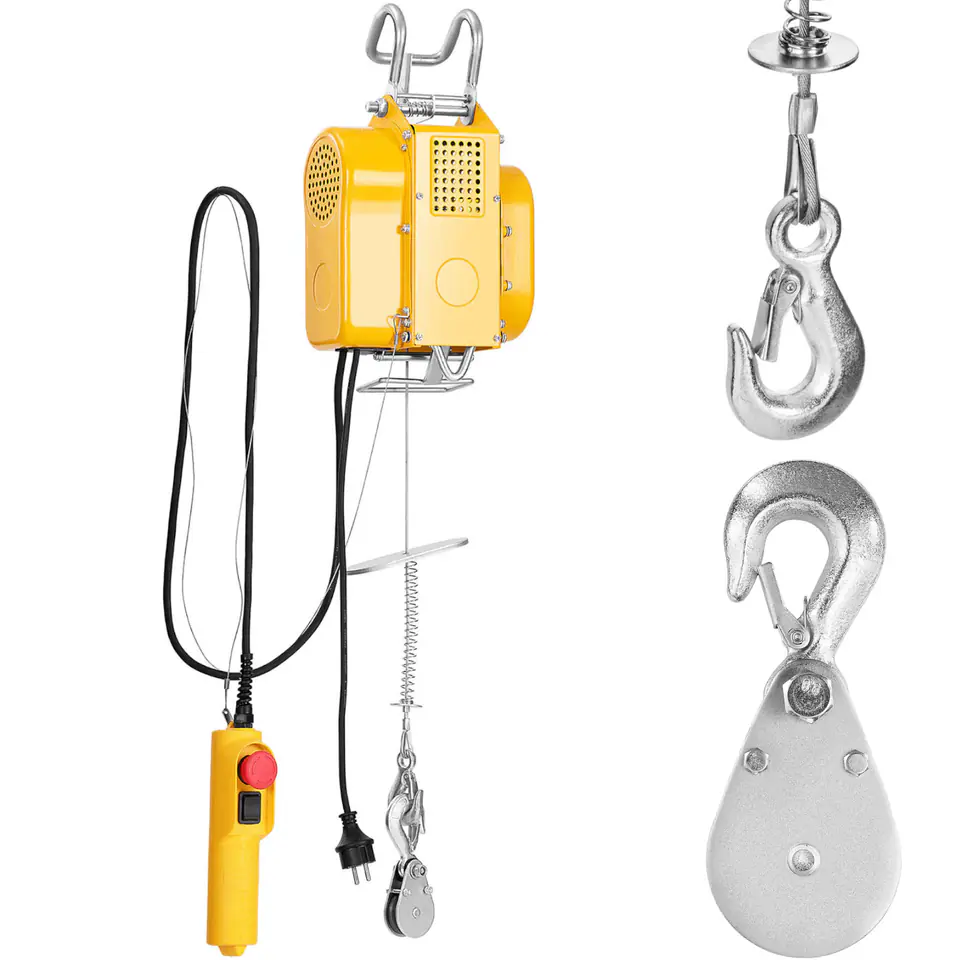

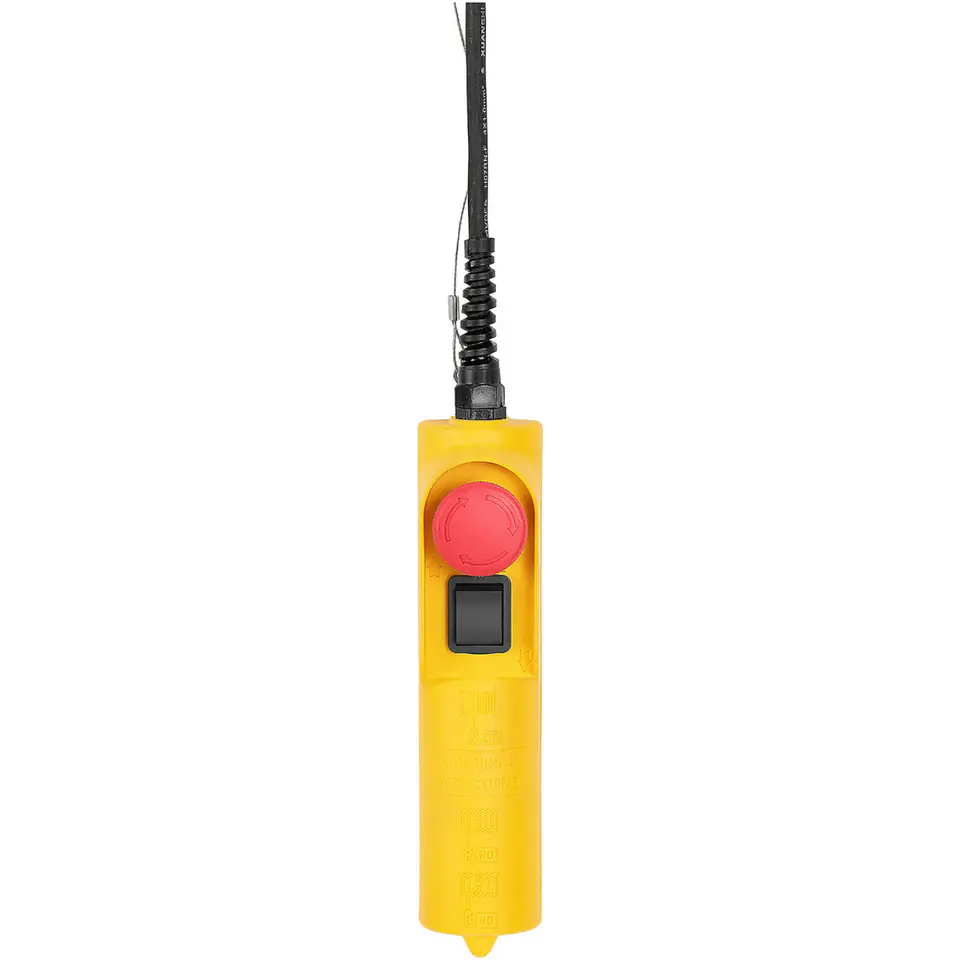

The Steinberg Systems rope winch is suitable for lifting heavy loads in a warehouse, garage or workshop. The 1050 W motor can lift loads up to 300 kg to a height of up to 18 m. The lifting speed is 8 m/min. The durable steel rope is torsional protected and wear-resistant. The inserted blocks reduce the lifting height by half, up to 6 m and the lifting speed is halved, to 4 m / min. At the same time, the load on the winch increases to 600 kg and makes it possible to lift heavy loads. The tensile force is twice as high when the disc is applied. The wired remote control controls the winch, the emergency switch causes the rope to stop. Each of the hooks has a safety lock. The device turns off automatically in the highest and lowest positions. The hoist housing is made of steel, which is resistant to scratches, chips and corrosion. The equipment has IP54 protection class, i.e. protection against the ingress of dirt and water and thermal protection against overload.
Product features:
- - Pulling force up to 600 kg,
- - Solid steel rope with a diameter of 4.5 mm,
- - Lifting height 18 m, with block 6 m,
- - Emergency stop and hooks with safety locks,
- - Steel and copper construction.
- - Model - SBS-EH-600/18
- - Catalogue number - 10030793
- - Article status - New
- - Voltage [V] - 230
- - Chain diameter [mm] - 4,5
- - Material - Steel, copper
- - Permissible load [kg] - 600
- - Maximum load [kg] - 600
- - Engine power [W] - 1050
- - Rope diameter [mm] - 4,5
- - Rope material - Steel
- - IP rating - IP54
- - Lifting speed - without block [m/min] - 8
- - Load capacity - without block [kg] - 300
- - Lifting speed - with block [m/min] - 4
- - Load capacity - with block [kg] - 600
- -Max. lifting capacity - without block [m] - 18
- -Max. lifting capacity - with block [m] - 6
- - Weighted hook - Yes
- - Emergency stop switch - Yes
- - Dimensions (LxWxH) [cm] - 45 x 27 x 15
- - Weight [kg] - 20,3
- - Shipping dimensions (LxWxH) [cm] - 48 x 36,5 x 31
- - Shipping weight [kg] - 21,2
- - Rope winch
- -Manual
