Manufacturer no: 10030652

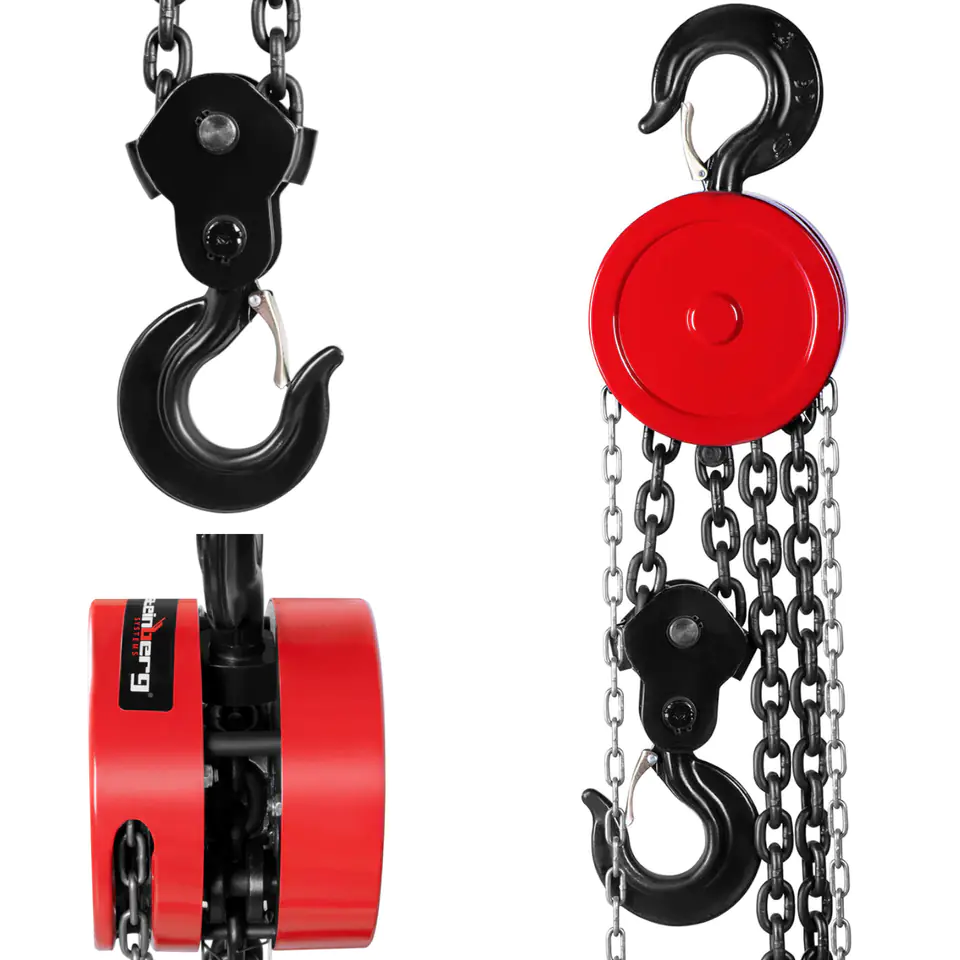

The chain winch from Steinberg Systems is suitable for convenient lifting of objects weighing up to 5000 kg in workshops, factories, construction sites, etc. The device is operated manually, without access to electricity. The built-in hook allows you to hang the winch, e.g. under the ceiling. The chain is 3 m long. The housing is made of low-carbon steel, the chain is made of hardened steel, the hook at the end is made of carbon steel. Galvanized electronic bolts and nuts were also used. The equipment is distinguished by resistance to heavy loads and durability.
Product features:
- - Lifting capacity up to 5000 kg,
- - Lifting height 3 m,
- - Manual operation without power source,
- - Galvanized bolts, nuts, hardened chain,
- - The brake holds the weight.
- - Model - SBS-FZ 5000/3M
- - Catalogue number - 10030652
- - Article status - New
- - Hook material - Carbon steel
- - Brake - Friction disc
- - Drum length [m] - 0.189
- - Gear ratio - 1/8
- - Engine - Manual
- - Clutch - Transmission
- - Drum diameter [mm] - 280
- - Material - Housing: low carbon steel, chain: hardened blackened steel
- - Permissible load [kg] - 5000
- - Transmission - 3
- - Maximum load [kg] - 5000
- -Max. Pull capacity [kg] - 5000
- - Rope diameter [mm] - 10
- - Chain length [m] - 3
- - Dimensions (LxWxH) [cm] - 313 x 19 x 24
- - Weight [kg] - 32,3
- - Shipping dimensions (LxWxH) [cm] - 39 x 25 x 22
- - Shipping weight [kg] - 33
- - Chain winch
- -Manual
