Manufacturer number: MSW 10060660
An efficient winch of the German brand MSW created for pulling vehicles or other objects out of difficult terrain. It is suitable for mountainous or off-road driving. It fits perfectly into large, heavy vehicles, trailers, boats or snow plows. It can also be used on households or in forestry during the removal of tree trunks or logs, for example. The 1 hp (750 W) engine, together with a large drum and a powerful steel rope, achieves a pulling force of 2000 lbs (907 kg). This allows you to quickly and easily extract the vehicle from a ditch or other terrain obstacle. A three-stage planetary gearbox (forward, reverse and manual clutch for quick unwinding of the rope) allows you to adjust the transmission of power using a special transmission. The reduction factor is 153:1. In turn, the intermittent duty cycle allows the engine to operate on the principle of intervals, so that it does not reach the temperature at most. In order to increase the durability of the device, the set includes a steel rope (15 m long / 4 mm in diameter), which, thanks to the four-track guide, is resistant to most mechanical damage, even during frequent changes in the angle of retraction. An automatic braking system is responsible for safety, which will keep the object pulled out even if there is no electricity. In addition, the winch design is resistant to overloads and rain, snow or dirt.
Product features:
- - Efficiency - the motor with a power of 750 W generates a pulling force of up to 907 kg,
- - Speed - pull 3.2 m / min,
- - Precision - Three-speed gearbox with a reduction ratio of 153:1,
- - Durability - strong steel rope,
- - Safety - protection against overheating, overload and automatic braking system,
- - Convenience - two remote controls (wireless and wired) and moisture- and dirt-resistant design.
- - Model - PROPULLATOR 2000-B
- - Catalog No. - 10060660
- - Article status - New
- - Housing material - Aluminum
- - Rope material - Galvanized steel
- - Engine power - 1.0 hp / 750 W
- - Voltage - 12 V
- - Motor type - Permanent magnet motor
- - Duty cycle - Intermittent
- - Gearbox - 3-speed planetary transmission
- - Gear ratio - 153:1
- - Pull force - 907kg / 2000lbs
- - Pulling speed - 3.2 m/min
- - Rope length - 15 m
- - Rope diameter - 4 mm
- - Rope protection system - 4-stage guide
- - Drum diameter - 32 mm
- - Braking system - Automatic
- - Clutch type - Slip ring
- - Remote control type - 1 x wired / 1 x wireless
- - Range of wireless remote control - 30 m
- - Zblocze - 1 x 2 t
- - Mounting plate included - Yes
- - Dimensions (LxWxH) - 18 x 29 x 12 cm
- - Weight - 7.34 kg
- - Shipping dimensions (LxWxH) - 34 x 29 x 18 cm
- - Shipping weight - 9.1 kg

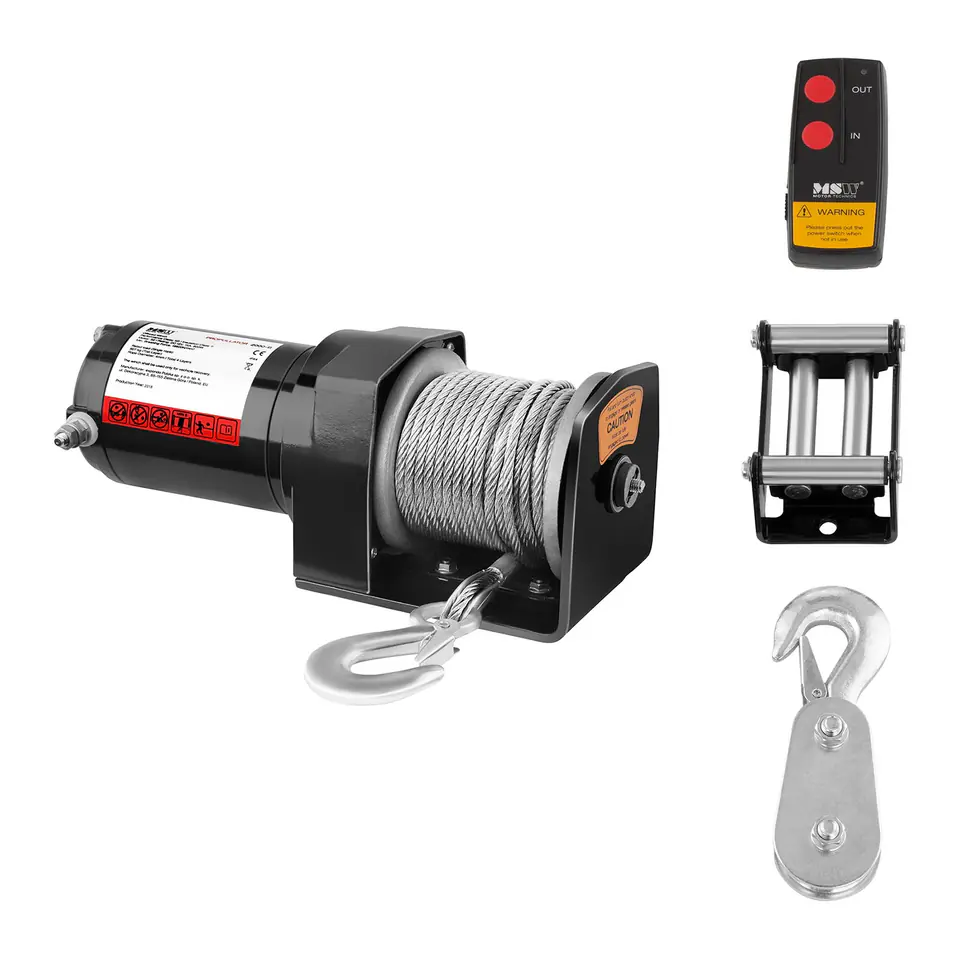

- - Winch
- - Control box with wires
- - Mounting buckle for the box – 2 pcs.
- - Wired remote control
- - Wireless remote control
- - Mounting plate
- - 4-track rope roller guide
- - Zblocze (4 t)
- - Hook
- - Mounting accessories
- - Manual EN
