Twist drill, solid carbide, SuperLine
Made of construction: right-handed, with special grinding. Spiral grooves supplying coolant. Lateral rake angle normal, core thickness greater than normal, no convergence. Drill with very good self-centering properties, producing short chips even when cutting long-chip materials.
Application: twist drill for alignment with tight diameter tolerances and good surface quality. Designed for drilling deep holes max. 12 x D with high cutting speeds. Used in particular for deep holes in steel, cast iron and non-ferrous metals.
Wiert.krete SLWN VHM,FIRE,cool. internal.,chw. HA12xD8.80mm GÜHRING
€212.31
Shipping from warehouse: B6
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GÜHRING
- Product code:
- 9055250088000 / 4031093797771
Share this product:
Specification
| Aluminium < 8% krzemu: | 150 |
|---|---|
| Cast iron gg/gts: | 120 |
| Ggg cast iron: | 90 |

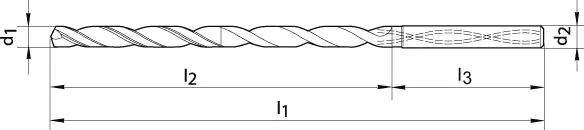

| Grip ø d2 = h6: | 10 mm |
| Inox austenite.: | 55 |
| Inox duplex: | 45 |
| Inox ferrite./martenz.: | 60 |
| Ø m7/h7: | 8.80 mm |
| Shank length l3: | 40 mm |
| Spiral length l2: | 120 mm |
| Steel < 1000 n/mm2: | 88 |
| Steel < 1000 n/mm2 f: | 0.250 mm/rev. |
| Steel < 1400 n/mm2: | 70 |
| Steel < 700 n/mm2: | 110 |
| Total length l1: | 162 mm |
