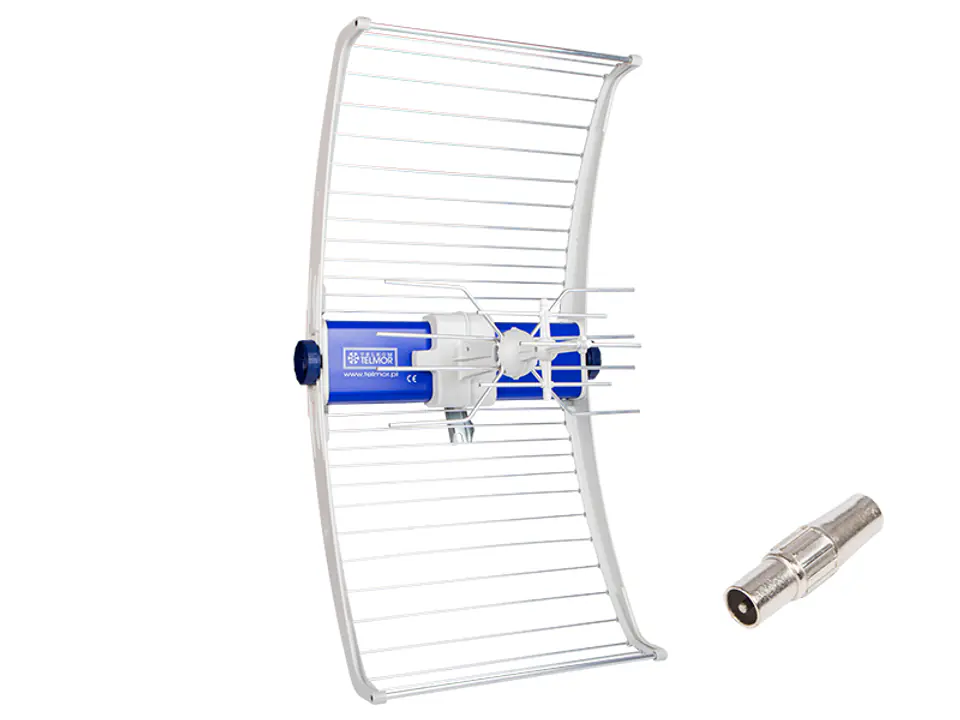

The ASR-860 broadband antenna is designed to receive radio and television signals in collective and individual antenna installations.
It is especially useful in areas where several television programs are broadcast from one direction or similar directions.

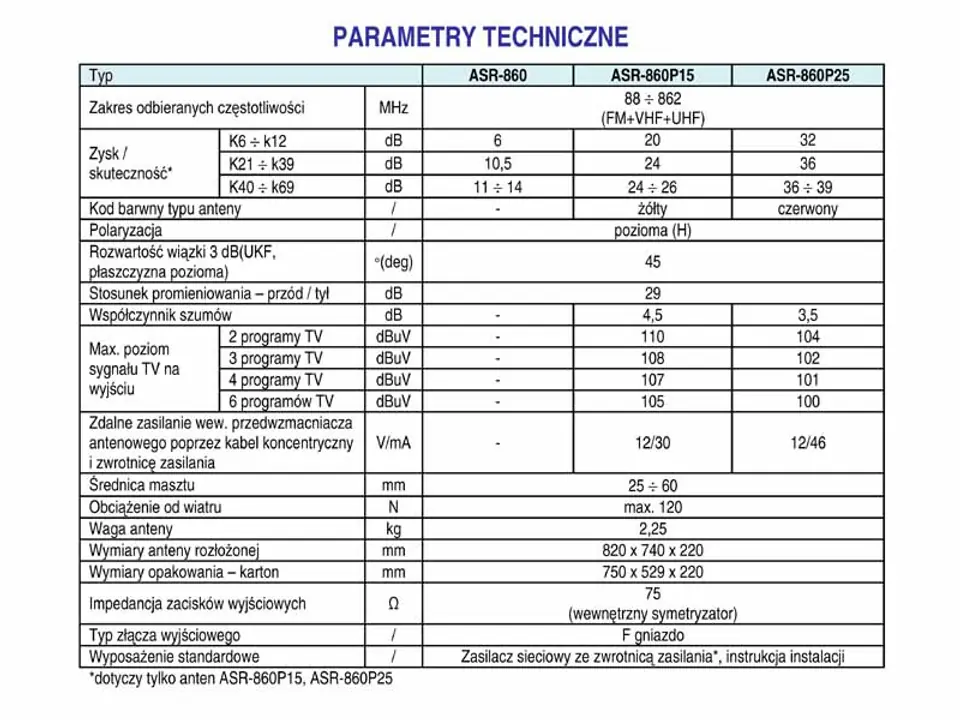

Detailed technical data are available in the gallery.
- Adapted for digital terrestrial TV - DVB-T
- Wide range of received RTV frequencies
- Excellent reception of distant broadcasting stations - high profit and directionality
- High resistance to adverse weather conditions
- Modern, lightweight and stable construction
- Very easy installation and connection of the antenna
TECHNICAL DATA:
- Working channels: 6-69 TV
- Operating range: 174 - 862 MHz (III, IV and V TV range)
- Profit max.:
Range III (K6 ÷ K12): 6 dB
Range IV (K21 - K39): 10.5 dB
V-range (K40 - K69): 11 - 14 dB
- P/T attenuation: 29 dB
- Impedance: 300 Ohm
- Weight with packaging: 2.35 kg
- Antenna dimensions (HxWxD): 820 x 740 x 390 mm
- Execution: AL/ ABS
- Unit packaging: carton 750 x 529 x 220 mm
- Mast diameter: Ø 25 - 60 mm
- Wind load: max. 120 N
- Polarization: horizontal

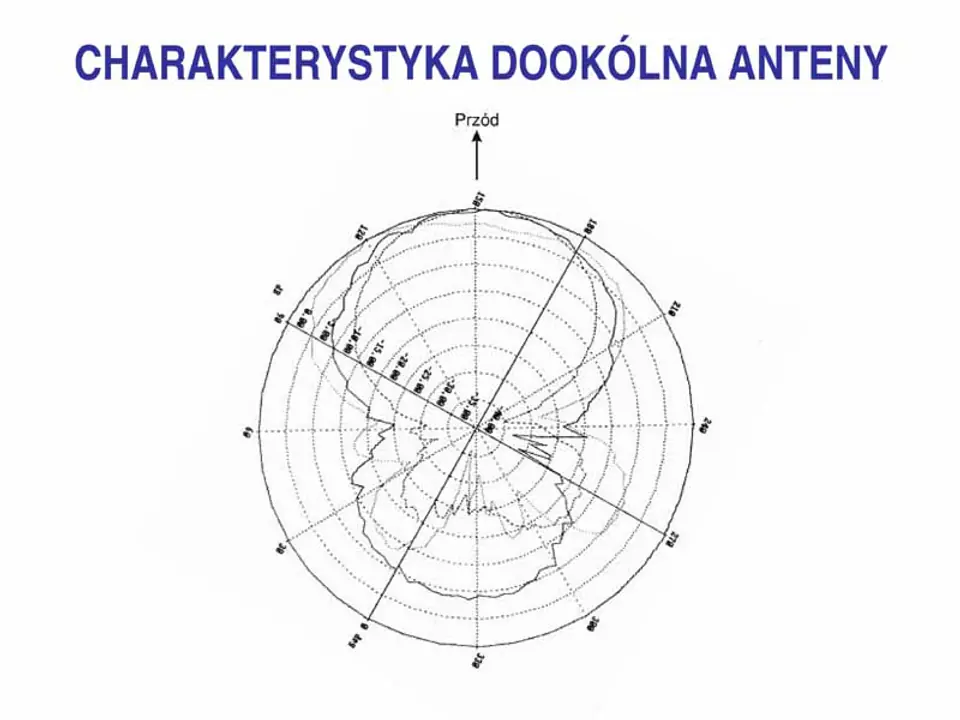

- Beam size 3 dB (VHF, plane pos.): 45°
