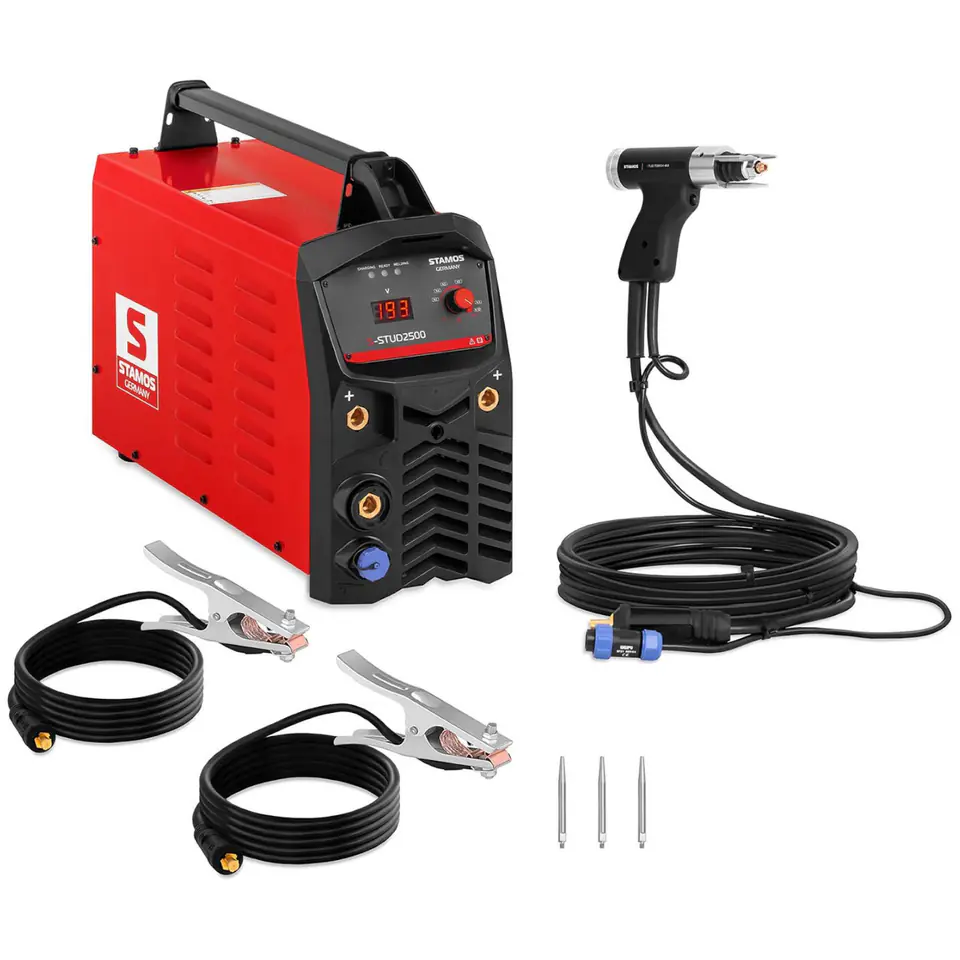

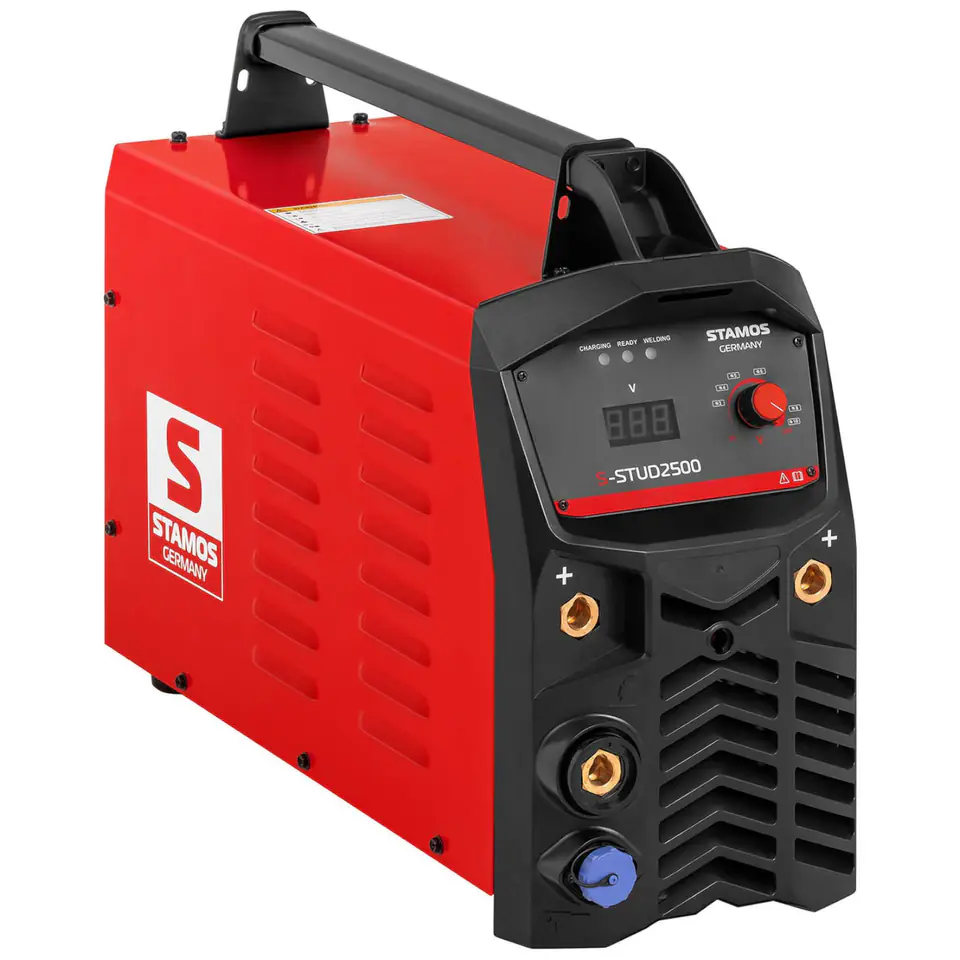

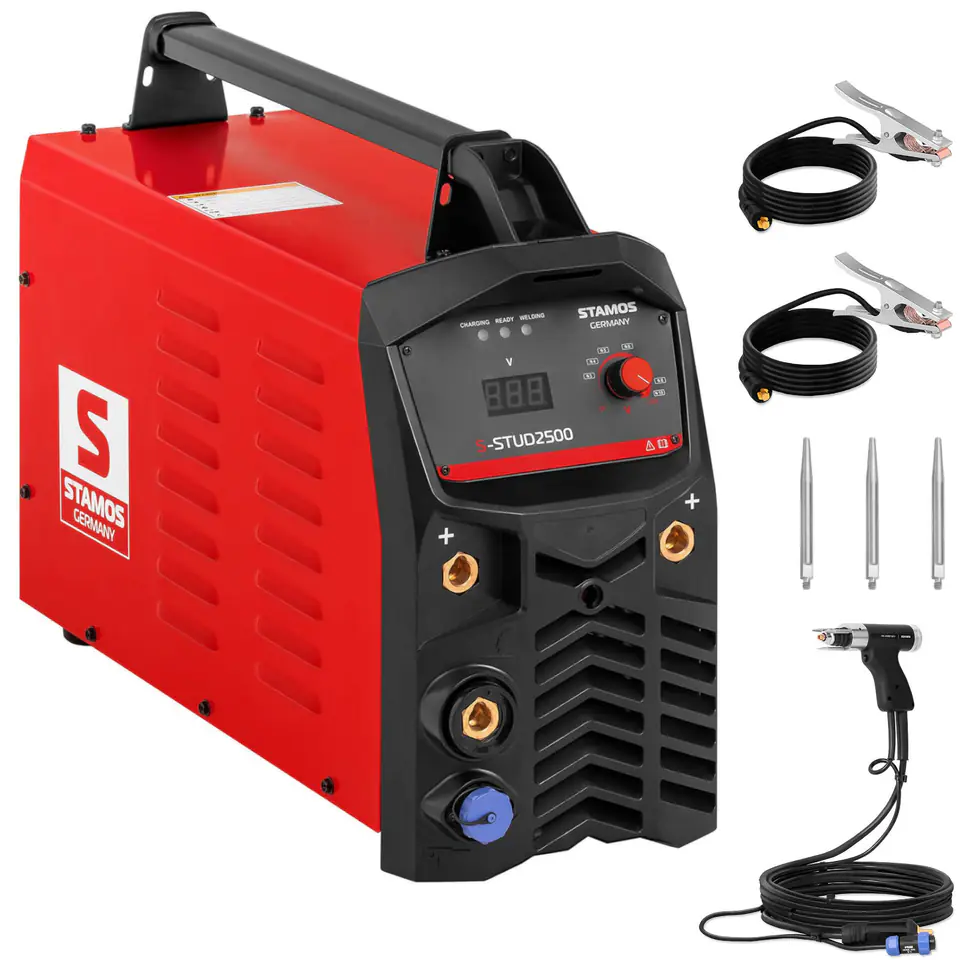

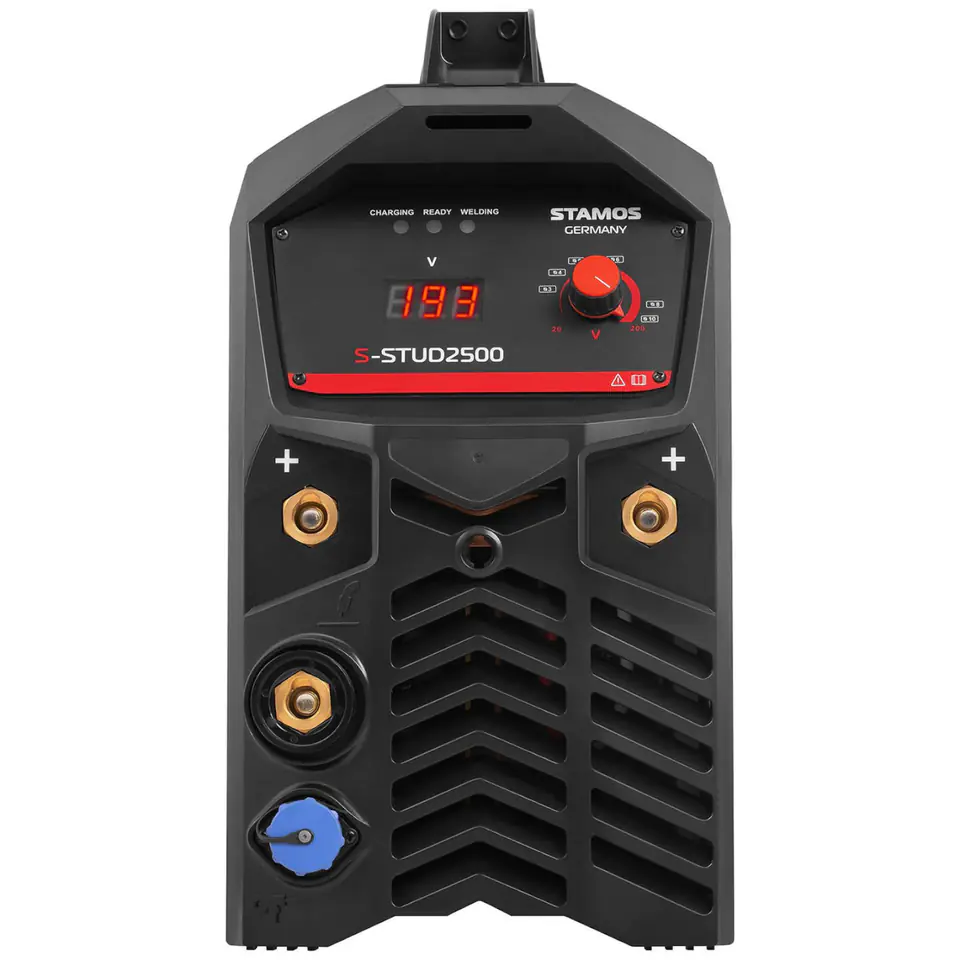

S-STUD2500 Capacitor reheater from Stamos Germany108000 uF and energy 2500 J The Stamos Germany welding machine fits M3, M4, M5, M6, M8 and M10 pins (max. length 40 mm). Features:Technical parameters:
- - Model - S-STUD2500
- - Catalogue number - 2159
- - Article status - New
- - Housing material - Steel, plastic

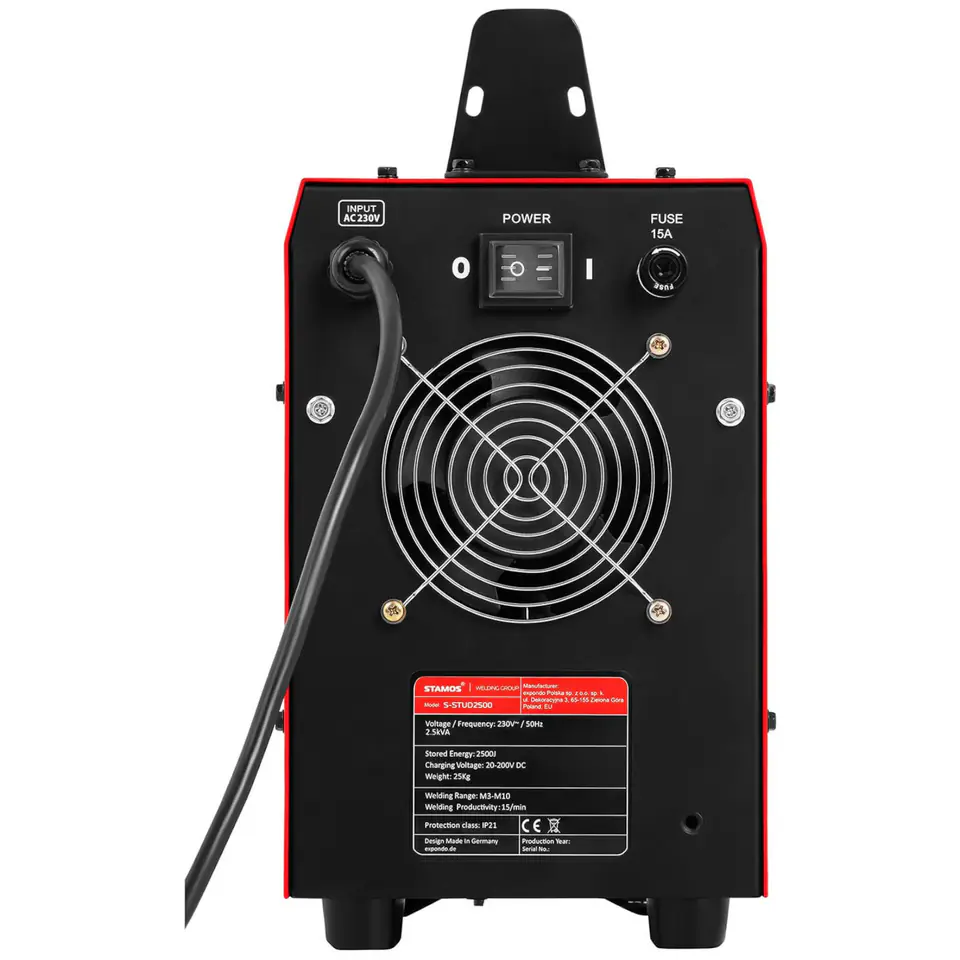

- - Voltage - 230 V / 50 Hz
- - Welding voltage - 20 – 195 V
- - Rated power - 500 kVA
- - Capacitor capacitance - 108000 uF
- - Stored energy - 2500 J
- - Welding range - Ø 3 – 10 mm / M3 – M10

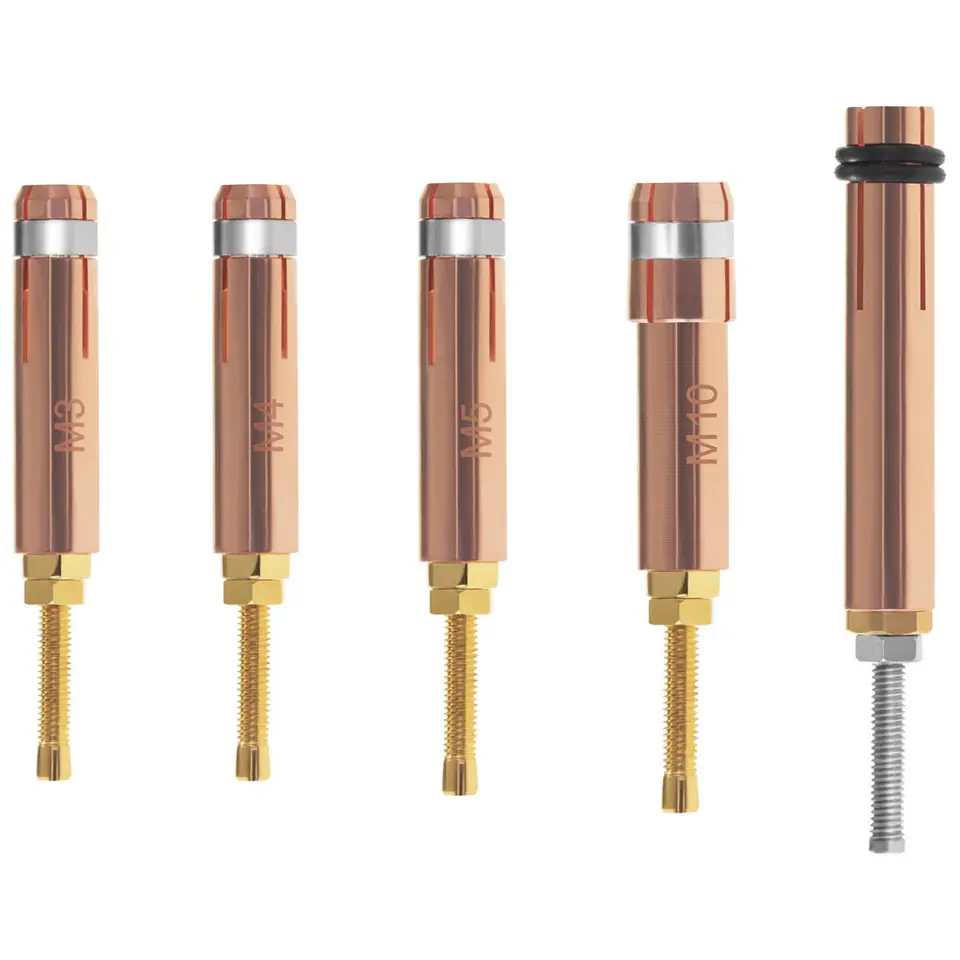

- - Handles included - M3, M4, M5, M6, M8, M10
- - Max. pin length - 40 mm
- - Welding capacity - 10 – 20 welds/min.

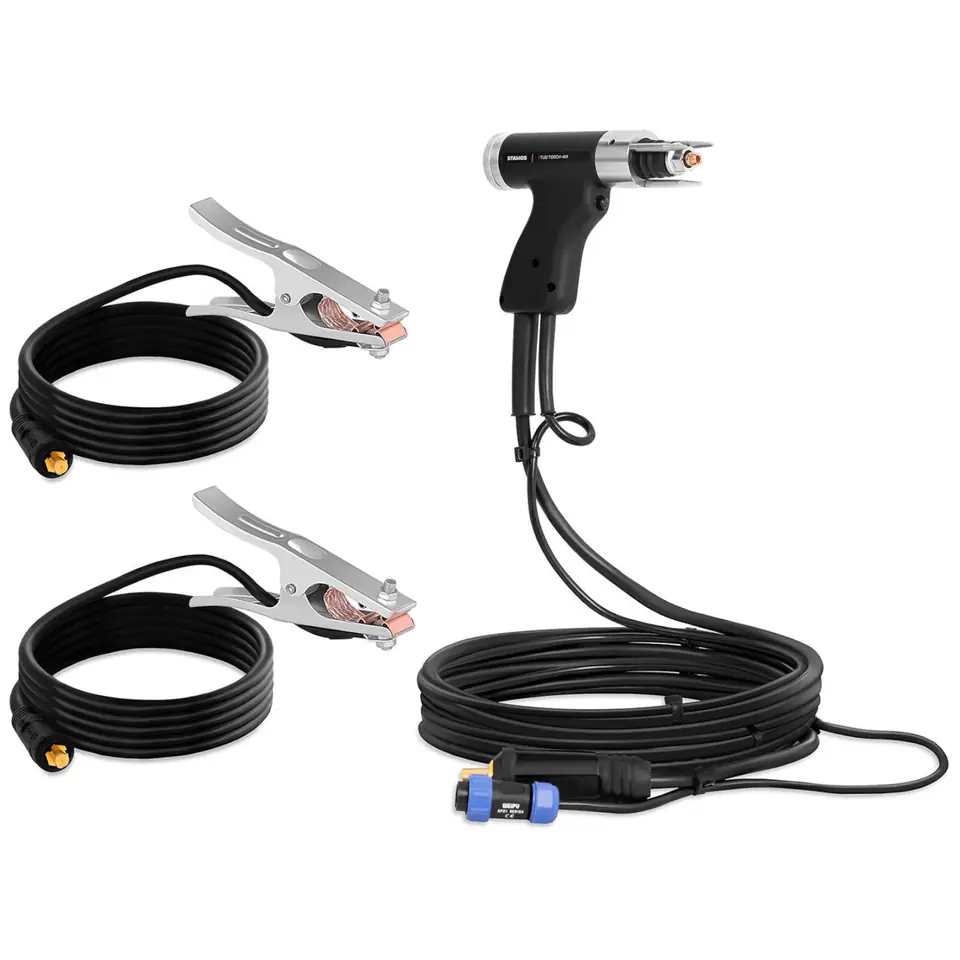

- - Length of the welding gun cable - 4 m
- - Mass wire length - 2 x 4 m
- - Power cord length - 2.2 m
- - Dimensions (LxWxH) - 54.5 x 20 x 38.5 cm
- - Weight - 21 kg
- - Shipping dimensions (LxWxH) - 66.5 x 32 x 43 cm
- - Shipping weight - 27.55 kg
