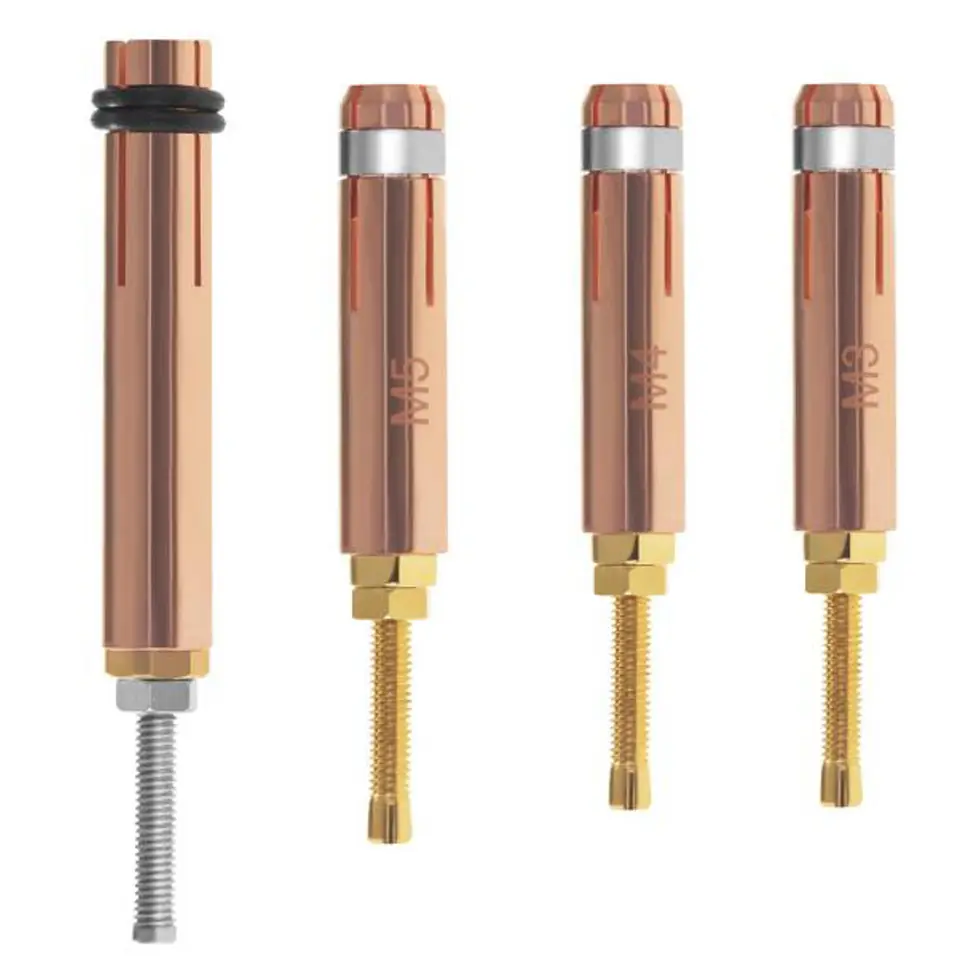

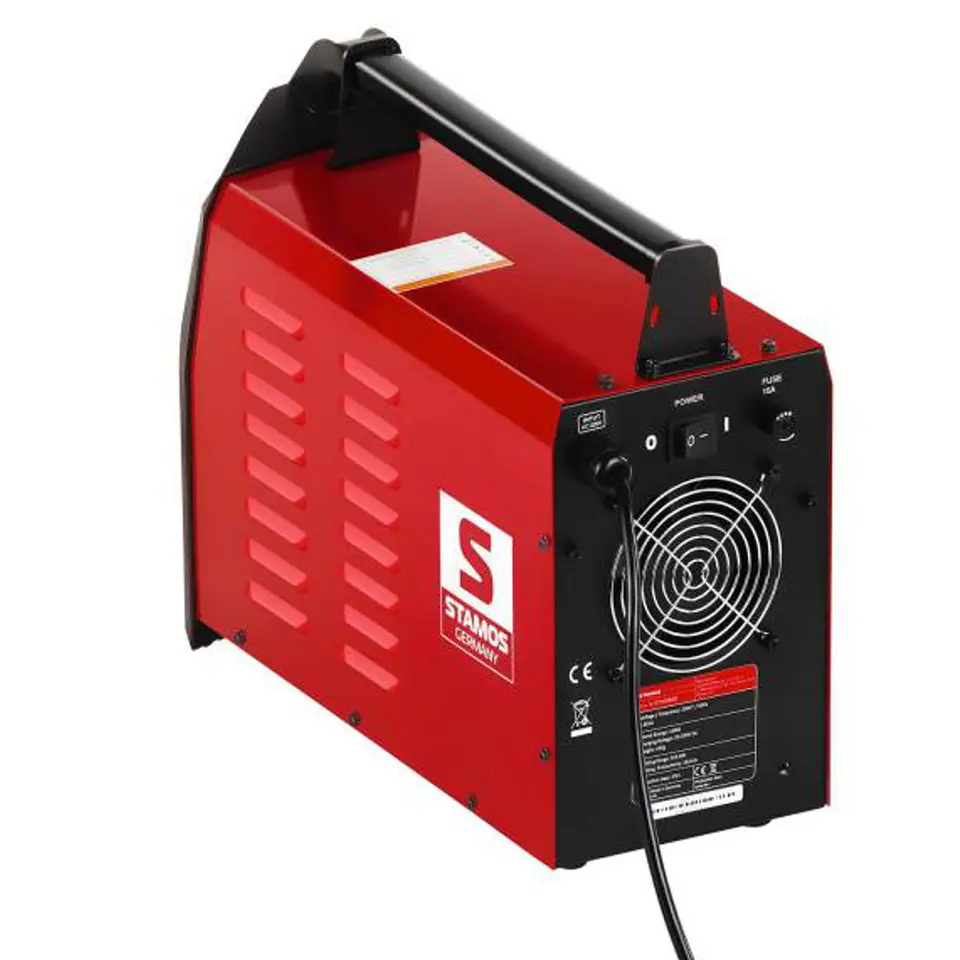

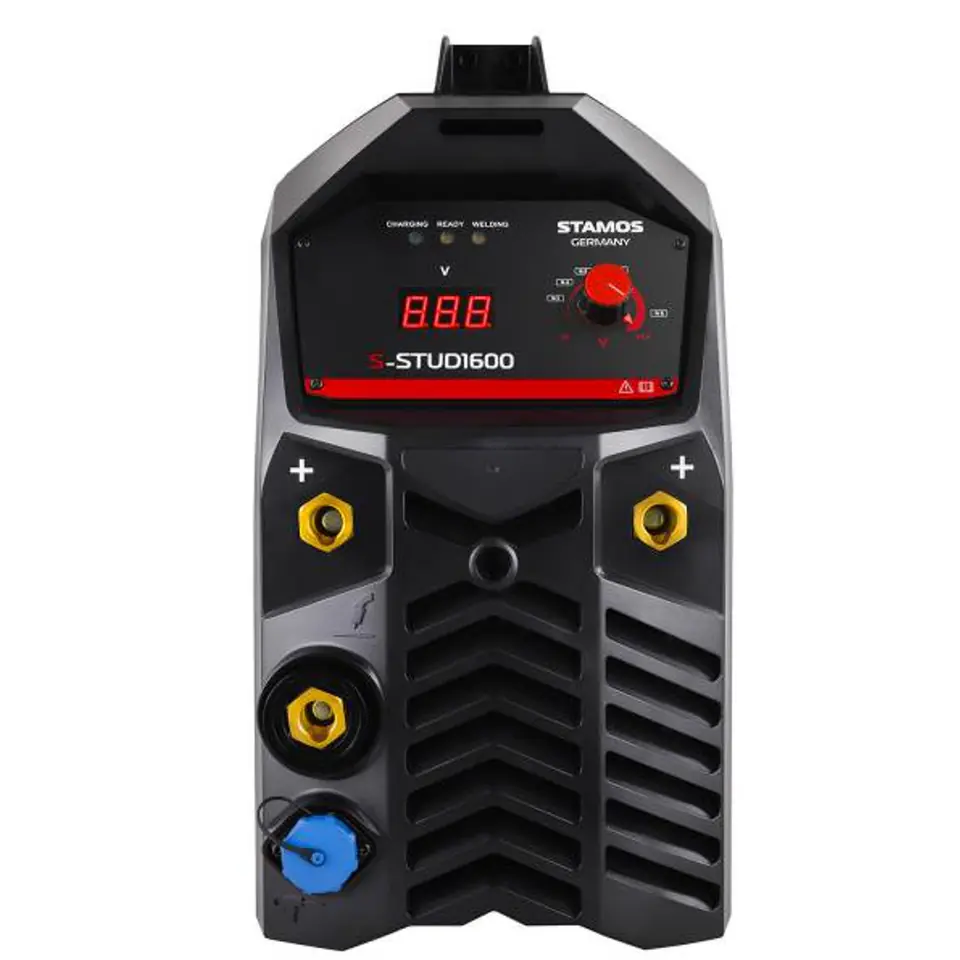

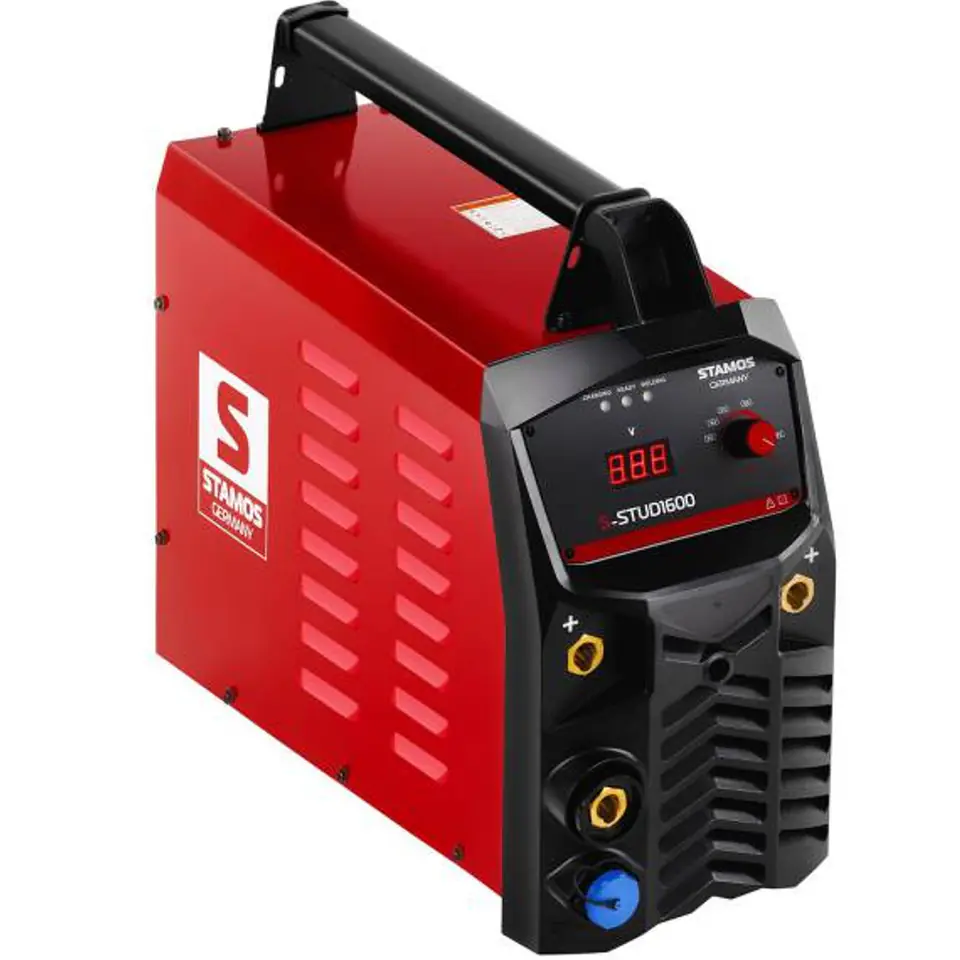

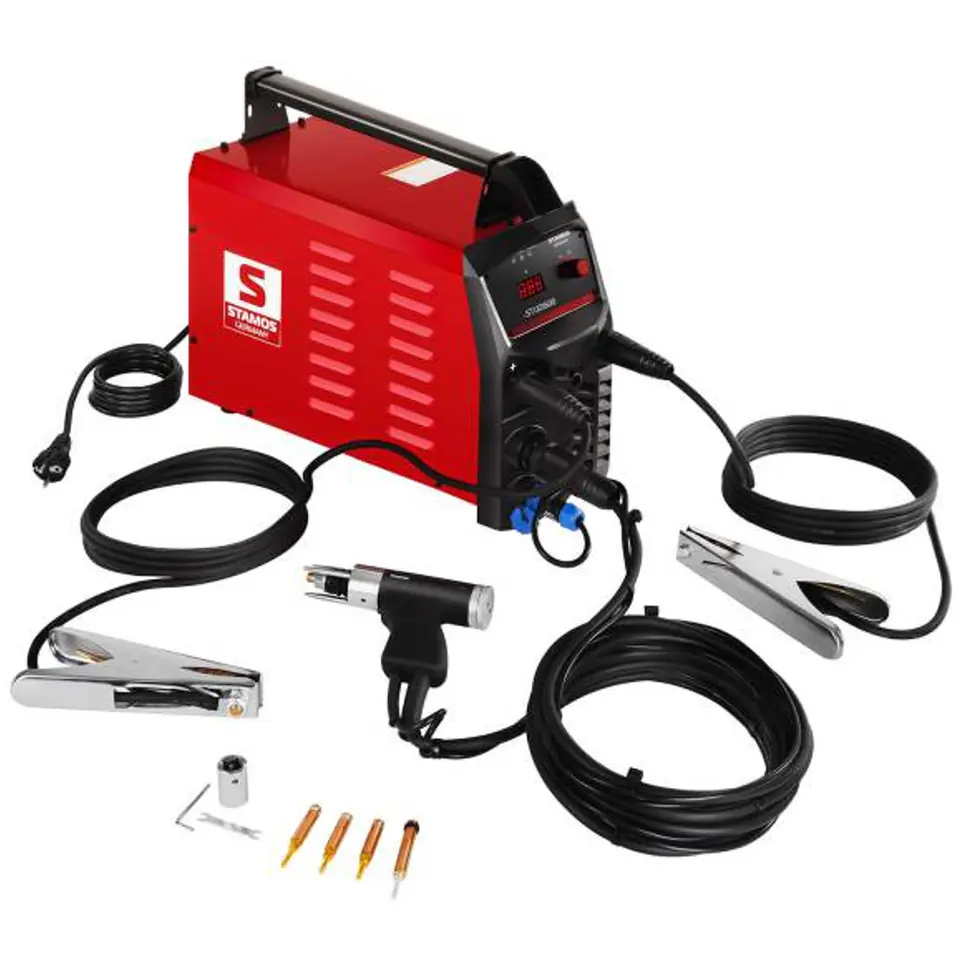

S-STUD1600 Capacitor starter from Stamos GermanyThe Stamos Germany welding machine fits M3, M4, M5, M6 and M8 pins (max. length 40 mm)Features:Technical parameters:
- - Model - S-STUD1600
- - Catalogue number - 2158
- - Article status - New
- - Housing material - Steel, plastic
- - Voltage - 230 V / 50 Hz
- - Welding voltage - 20 – 195 V
- - Rated power - 500 kVA
- - Capacitance of capacitors - 72000 uF
- - Stored energy - 1600 J
- - Welding range - Ø 3 – 8 mm / M3 – M8
- - Max. pin length - 40 mm
- - Welding capacity - 10 – 20 welds/min.

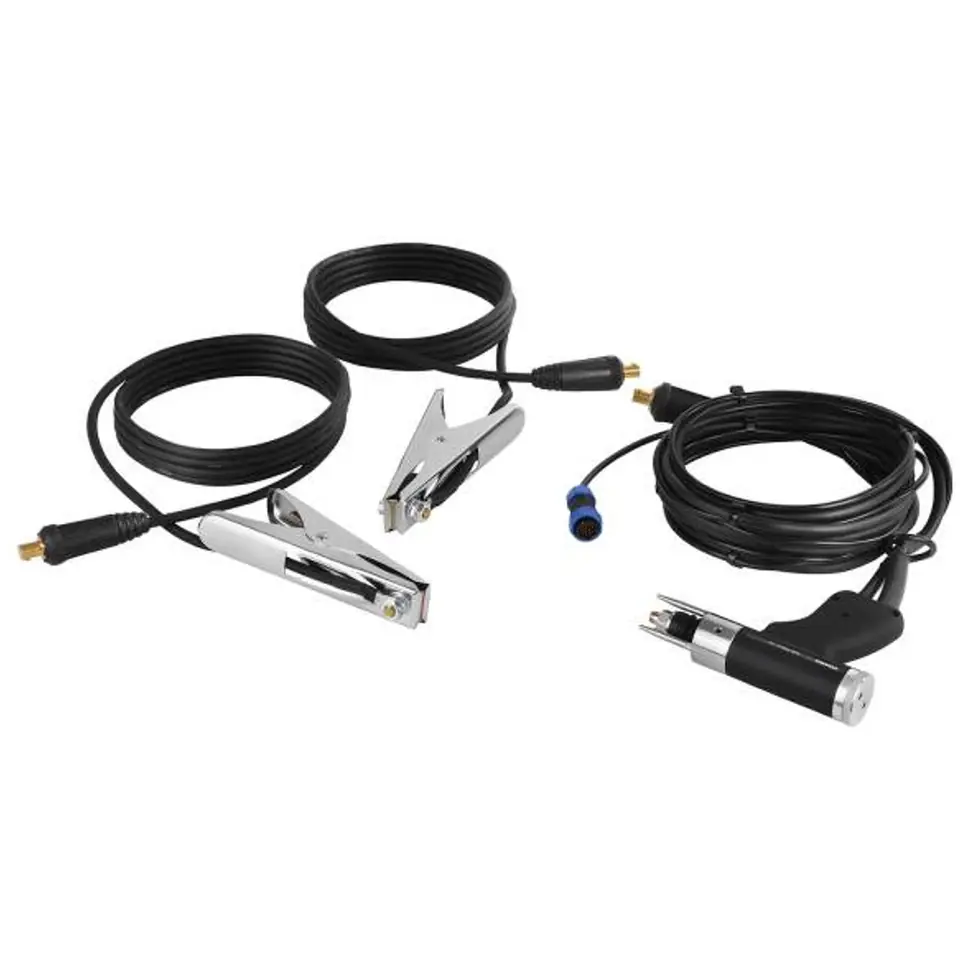

- - Length of the welding gun cable - 4 m
- - Mass wire length - 2 x 4 m
- - Power cord length - 2.2 m
- - Dimensions (LxWxH) - 56 x 21 x 38 cm
- - Weight - 19 kg
- - Shipping dimensions (LxWxH) - 65 x 32 x 43 cm
- - Shipping weight - 26 kg
