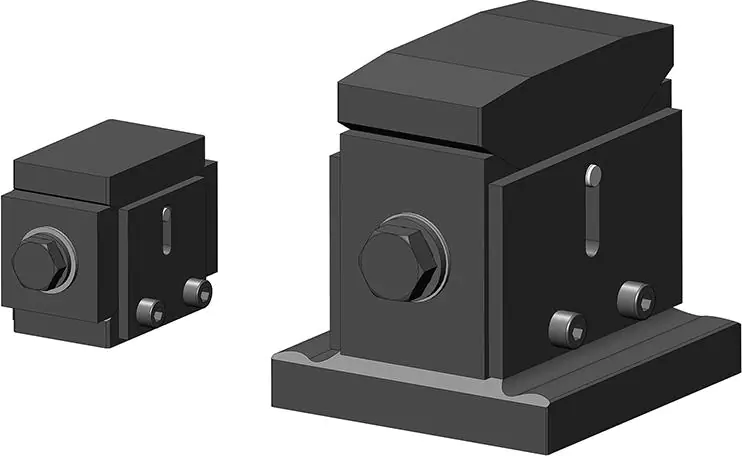

Wedge stand, with outer hexagon
H mm/rev. = change of height to rotation.
Made of: heat-enhanced ductile iron and oxidized tempered steel. With centering hole with a diameter of 12 mm. The wedge stand can be easily adjusted manually at 1/3 lift load (F max.). The finely machined kickstand surfaces allow calm, accurate adjustment with an accuracy of less than 0.1 mm, with a choice of knurled screw or hexagon screwdriver. The double action of the wedge support ensures precise vertical movements without lateral displacements.
Application: for clamping heavy cast or forged parts on large machine tools. In addition, it is possible to put a wedge support on "heavy screw supports". For this, a cylindrical mandrel DIN 6325 (12 x 30 mm) is required.
Scope of delivery: wedge support with spherical pad.
