10250397 Water softenerAutomatic valve ASD2 regeneration process1.4 - 2.7 m3/h0.15 - 0.5 Mpa1.5 - 5.0 barvolence 25 lLCDsoli50 ppm4000 l water volumetric modetime mode3.3 W to 1 W Product specifications:
- - Automatic softening valve ASD2,
- - Two modes of regeneration - volumetric or temporary,
- - Resin tank 25 l,
- - Water flow 1.4-2.7 m3/h,
- - LCD panel.
- - Model - UNI_WATERSOFTENER_2500A
- - Catalog no. - 10250397
- - Article status - New
- - Power supply - Switching adapter 12 V 1500 mA
- - Voltage - 100-240V ~ 50/60 Hz
- - Power - During regeneration: 3.3 W

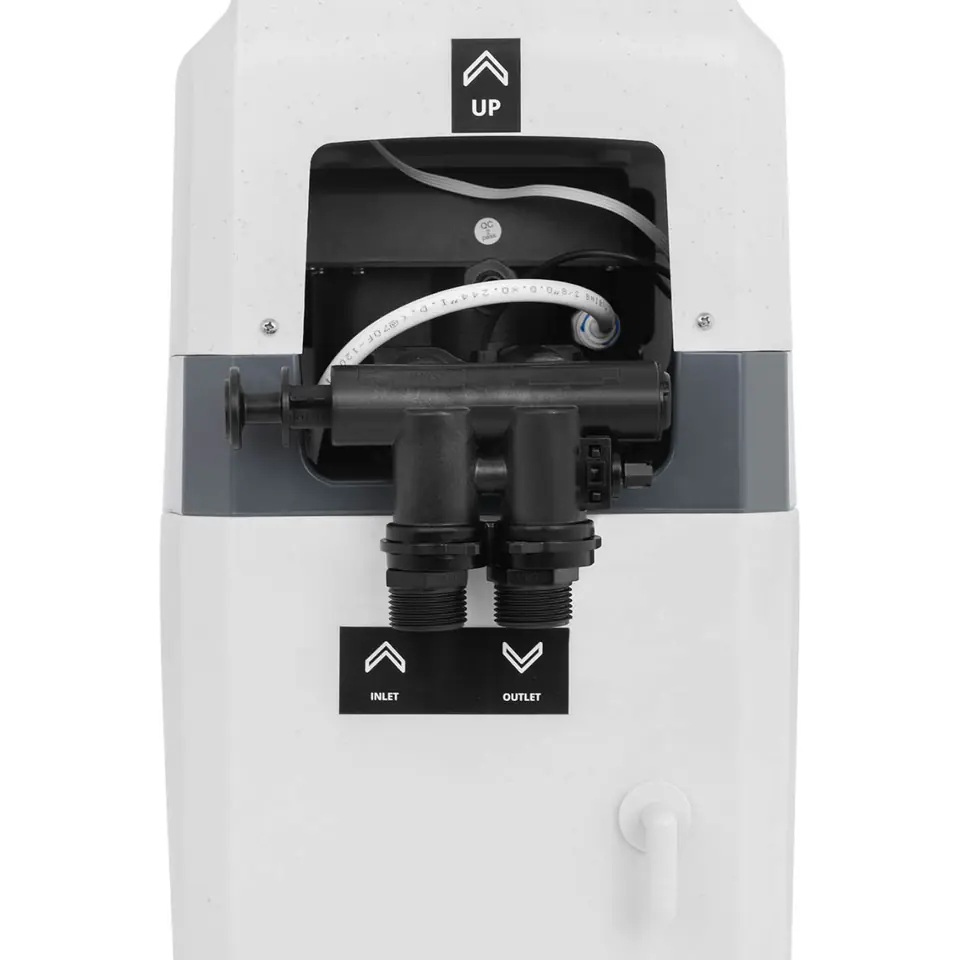

- - Valve type - ASD2
- - Housing material - Plastic
- - Adapted for - 4 – 12 people
- - Resin volume - 25 l

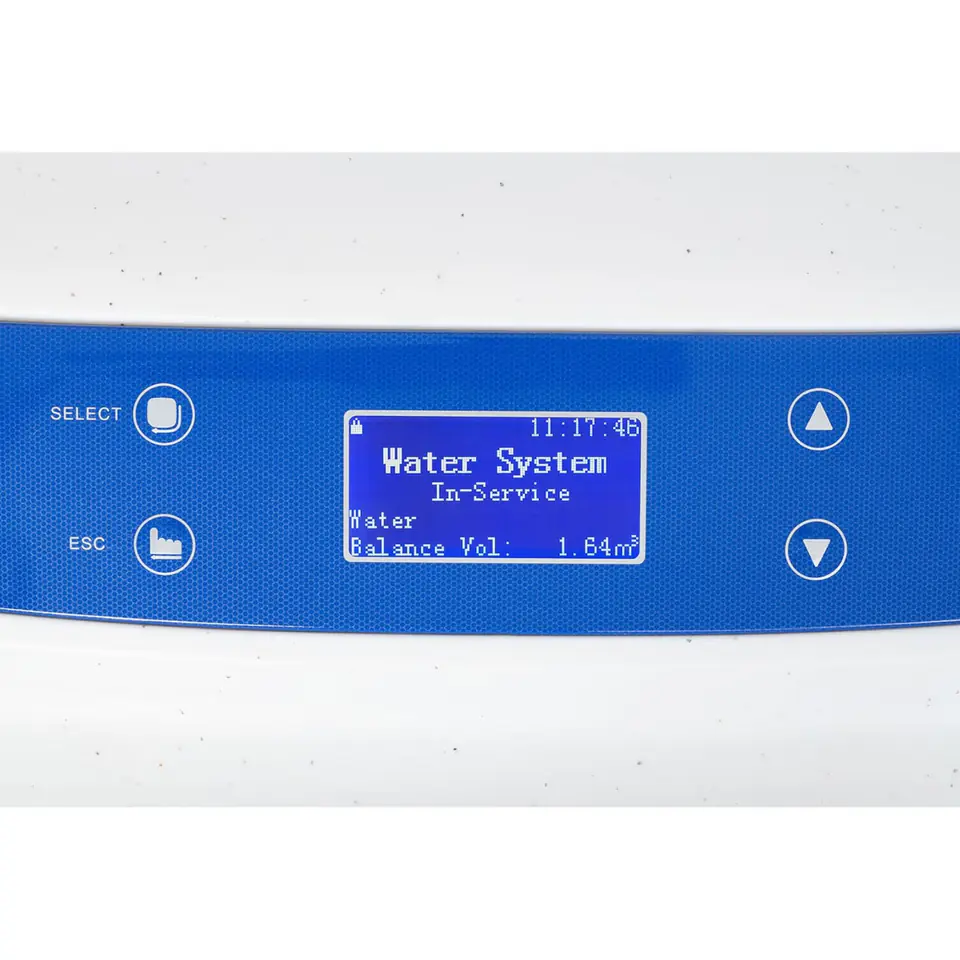

- - Display - LCD
- - Inlet size - 3/4
- - Outlet size - 3/4
- - Drain size - Ø12 mm
- - Drain connection (sewer) - Yes
- - Central pipe size - 35
- - Water flow - 1.4 – 2.7 m³/h
- - Working pressure - 0,15 – 0,5 MPa
- - Resin regeneration - Automatic, using a special salt
- - Regeneration time - 92 min
- - Salt consumption during regeneration - 3.3 kg
- - Recommended maximum flow - 2.5 m³/h
- - Capacity at 10dH - 9000 l
- - Capacity at 20dH - 4600 l
- - Max. salt supply - 30 kg
- - Pressure drop - 5%
- - Operating temperature range - 5 – 48C
- - Power cord - 1.5 m
- - User Manual - Yes
- - Dimensions (LxWxH) - 30.5 x 50 x 111 cm
- - Weight - 35 kg
- - Shipping dimensions (LxWxH) - 52 x 36 x 120 cm
- - Shipping weight - 42,85 kg
- - Water softener,

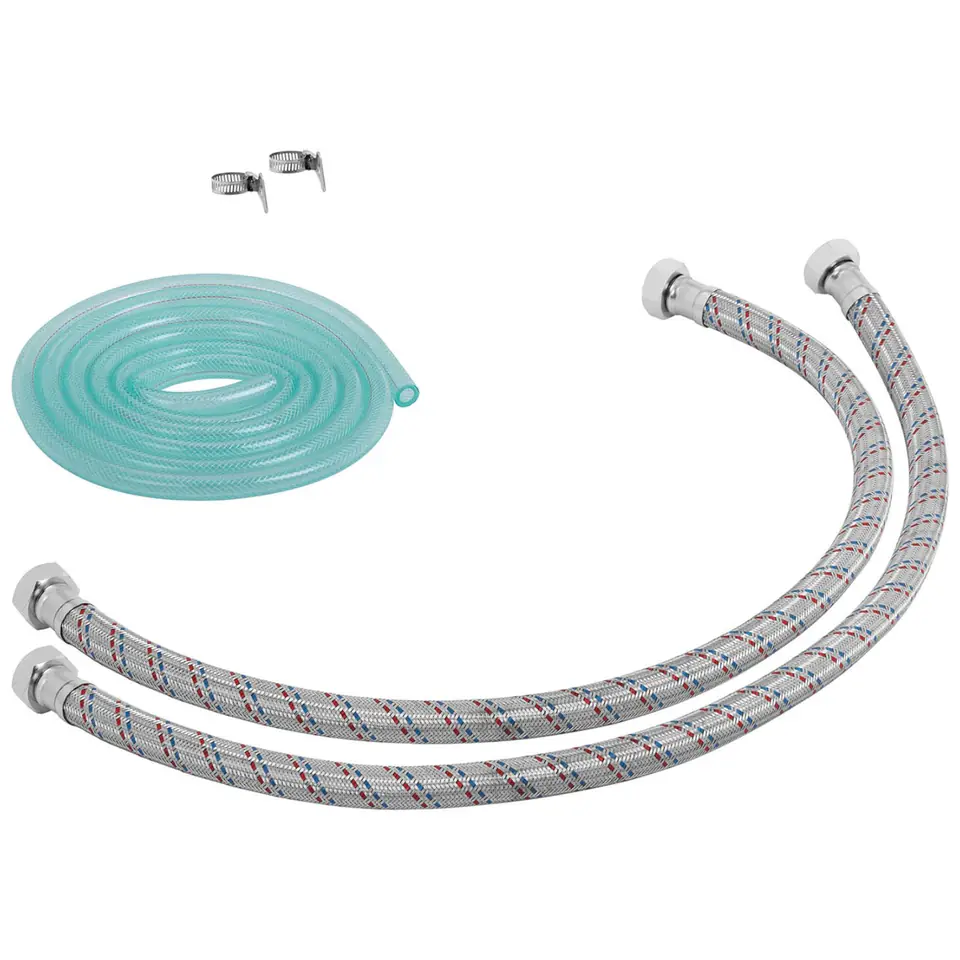

- - Accessories,
- - Instruction manual.
