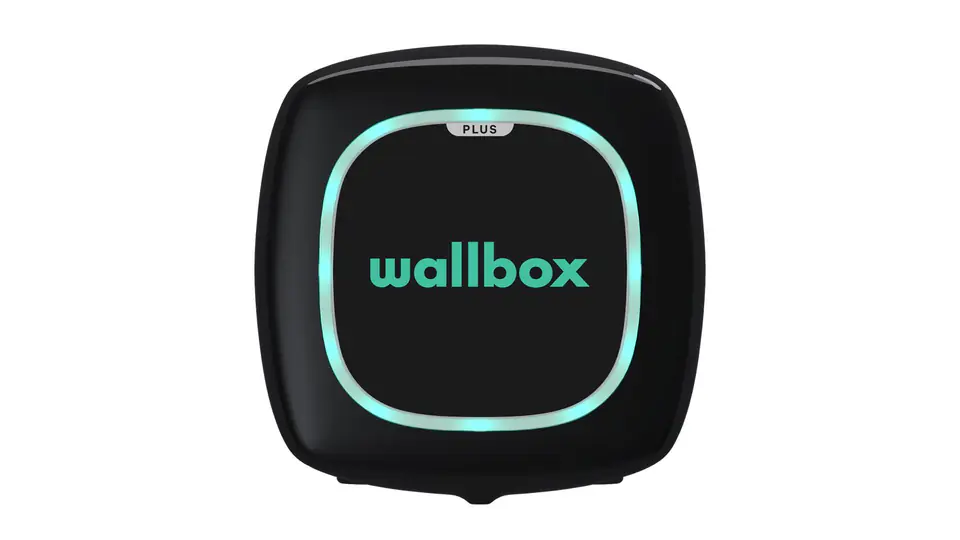

Wallbox Pulsar Plus Electric Vehicle charger Type 2, 22kW 5 m, Black
€1,017.01
Shipping from warehouse: K2
Estimated shipping: Mon, Nov 18 - Thu, Nov 21
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Wallbox
- Product code:
- PLP1-0-2-4-9-002 / 8436575273273
Share this product:
Specification
| Built-in display: | No |
|---|---|
| Cable colour: | Black |
| Charging cable length: | 7 m |
| Cross-section connection: | 5 x 10 mm² |
| Depth: | 82 mm |
| Height: | 166 mm |
| Housing colour: | Black |
| Iec protection class: | III |
| International protection (ip) code: | IP54 |
| Led indicators: | Yes |
| Maximum charging power: | 7400 W |
| Maximum operating current (three-phase): | 32 A |
| Maximum operating power (three-phase): | 7.4 kW |
| Mechanical impact protection code: | IK08 |
| Mounting type: | Wall |
| Nominal frequency: | 60 Hz |
| Number of phases: | 3 |
| Operating temperature (t-t): | -25 - 40 °C |
| Power source type: | AC |
| Quantity per pack: | 1 pc(s) |
| Single-phase output voltage supported: | 240 V, 220 |
| Socket type: | Type 2 |
| Sockets quantity: | 1 |
| Storage temperature (t-t): | -40 - 70 °C |
| Sustainability certificates: | CE |
| Sustainability compliance: | Yes |
| Three-phase output voltage supported: | 400 V |
| Vehicle connection plug: | Type 2 |
| Voltage tolerance: | 10% |
| Weight: | 1 kg |
| Wi-fi: | Yes |
| Width: | 163 mm |
