Maclean is a global market leader in specialty cables and accessories for home theater, hi-fi and PC connections. The company's position on the market has been built for over 10 years. Each product is created by a group of designers who, thanks to their knowledge and skills, can create something unusual as in the case of this device.
Wall-mounted sensor with dusk sensor and 180° motion sensor from Maclean.
Ip44 degree of protection ensures resistance against droplets falling at any angle, from all sides, e.g. rain or snow!
The sensor has high sensitivity and a very good level of workmanship. The main features are automatism, energy efficiency and built-in practical functions. The sensor identifies day and night (dusk sensor). The sensor turns on and off depending on the appearance of the object in the detection field.
The MCE25 wall sensor is ideal for use in: garden, around the house or terrace, at the gate, aisles, corridors, basements, warehouses, garages and other places that require switching on lighting or other devices when motion is detected.
A PROVEN PRODUCT OF THE HIGHEST QUALITY FROM MACLEAN!!!
Specification
- Operating voltage: ~220-240V/50Hz
- Maximum power: 1200W (resistive load) / 300W (inductive load)
- Detection angle: 180°
- Adjustable lighting sensitivity: 3-2000LUX (adjustable)
- Detection range: 5-12m (adjustable) (<24°C)
- Operating temperature: -20~+40°C
- Operating humidity range: <93%RH
- Sensor: PIR detector (infrared)
- Protection class: IP44 (waterproof)
- Mounting height: 1.8m-2.5m
- Motion detection speed: 0.6-1.5m/s
- Power consumption: about 0.5W
- Lighting time adjustment: from 10 sec to 7 min
Includes
- Wall-mounted motion and dusk sensor 180° - Maclean MCE25
- Manufacturer's packaging
- User manual in Polish
- Proof of purchase
The main purpose of the Maclean MCE25 sensor is automatic lighting control, but it is also possible to connect other electrical devices (e.g. electric heating, air conditioning, etc.) to it, provided that the energy receiver does not load the switch with more than 1200W (resistive load) or 300W (inductive load).

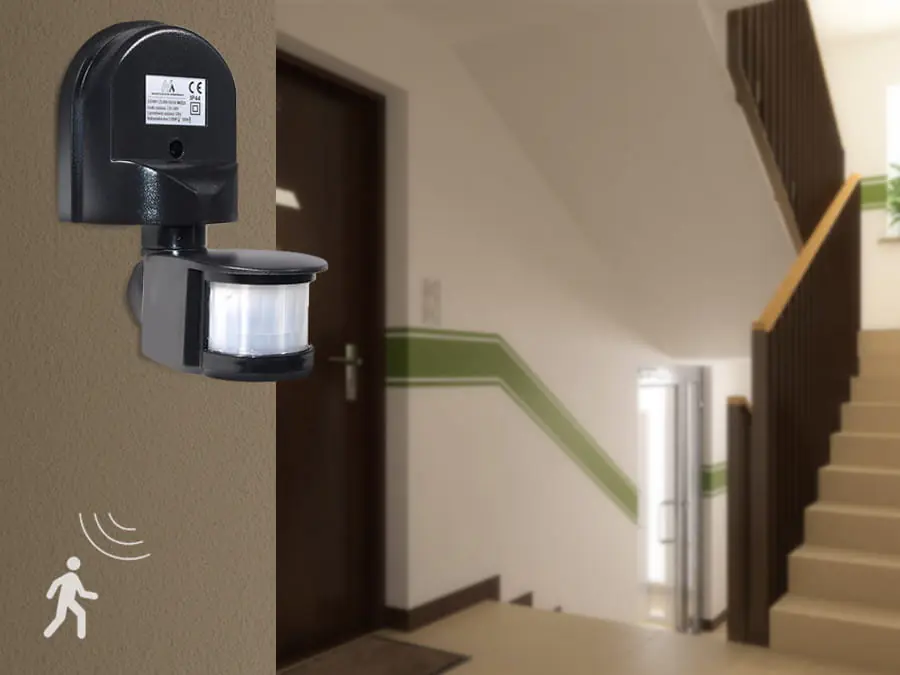

Versatile use to control the lighting of a variety of objects:
- facades of residential buildings, courtyards, entrances, gates, garden greenery
- car parks
- external walls of buildings and other architectural objects
- advertising boards and billboards, shop windows
- many other objects, also in the interiors

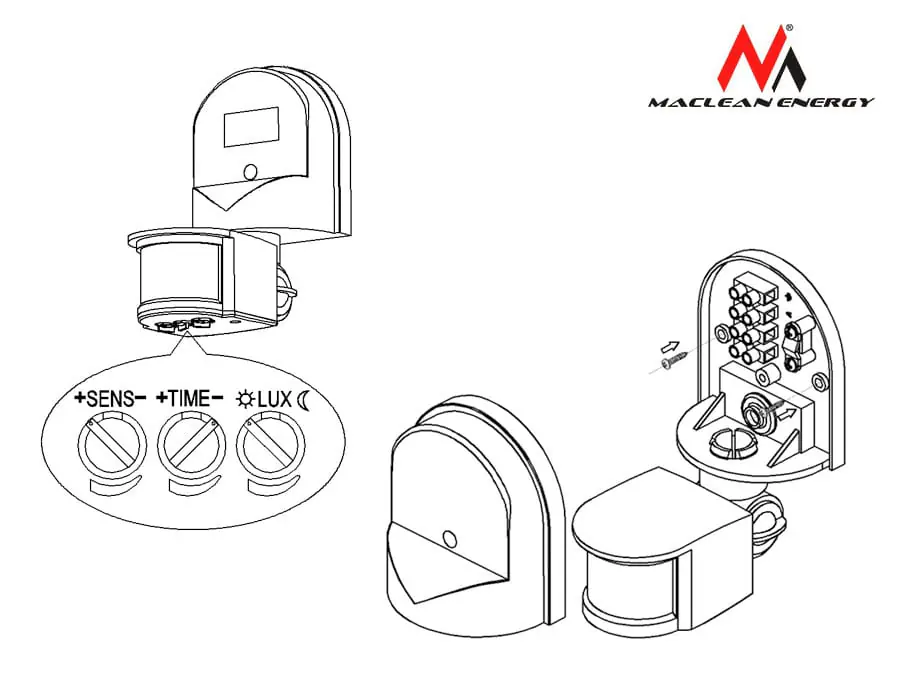

The device can work both at night and during the day. The TIME knob is used to adjust the lighting time (from about 10 seconds to 7 minutes). With the LUX knob we set the sensitivity of the ambient light (range from 3 to 2000 LUX). When the ambient light is insufficient and we want the device to work both during the day and at night, we set the knob in the day position (sun icon). When the ambient light is less than 3 LUX, the knob should be set to the night position (moon icon).
The SENS knob is used to adjust the maximum range (from 5-12m) depending on the place where the sensor is located. The range distance of 12m is recommended to be set in very large rooms.
High quality guaranteed by a reputable manufacturer.
Features
- Motion detection angle 180°
- Adjustable infrared PIR sensor
- Maximum power: 1200W (resistive load)
- Built-in light intensity sensor
- Ability to adjust the lighting time and the level of light intensity at which the device starts to work (dusk sensor)
- Adjustable motion sensor range
- Sensor range: max. 12m
