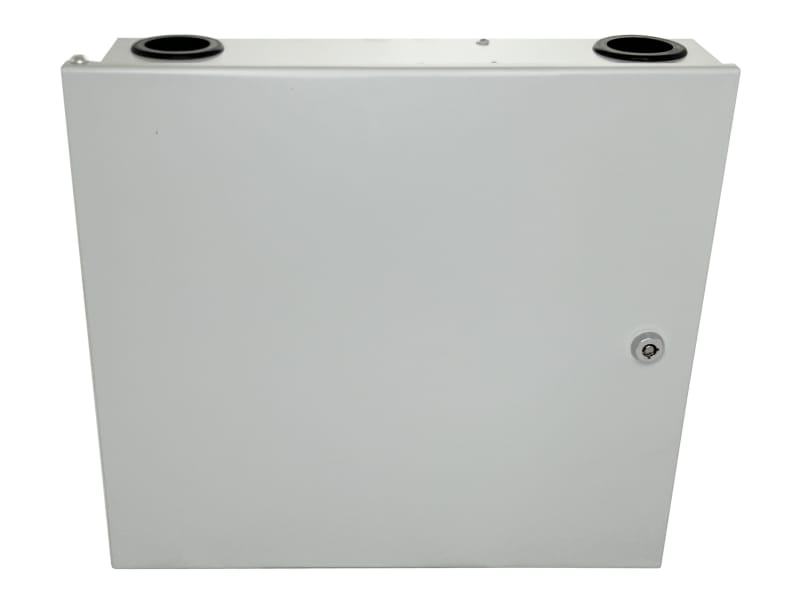

The fiber optic distribution box enables the organization of optical fibers. It is equipped with 4 inlet/outlet ports with a diameter of 30 mm each. This type of distribution box is used to protect fiber optic cable strands and splitting applications. It is a distribution box designed for internal installations. It is designed so that its installation is uncomplicated and efficient, and at the same time offers a proven fiber optic management system.

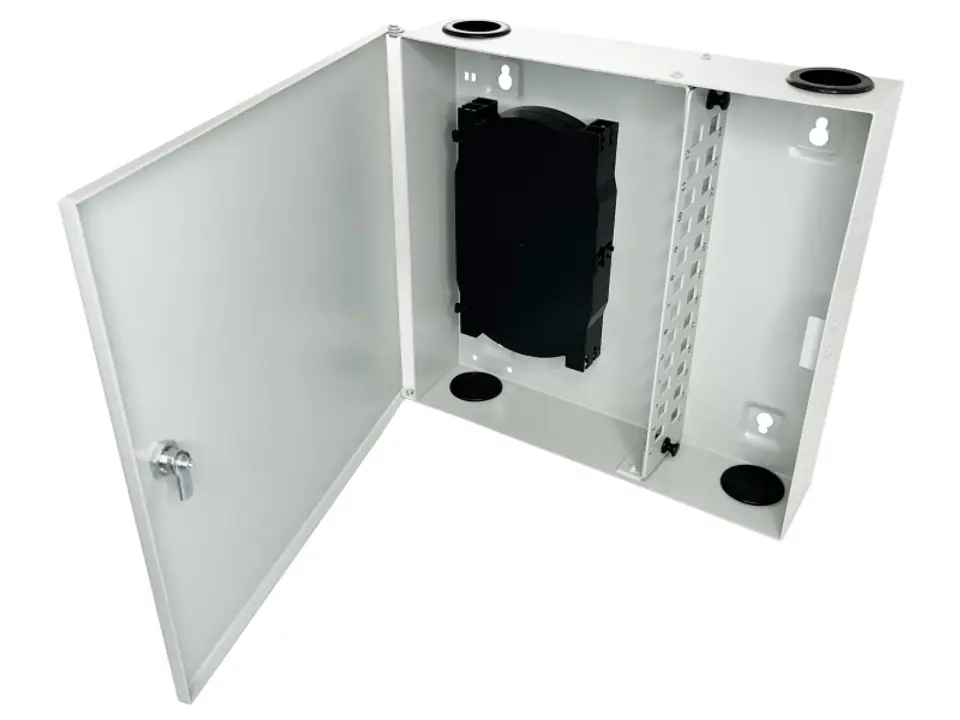

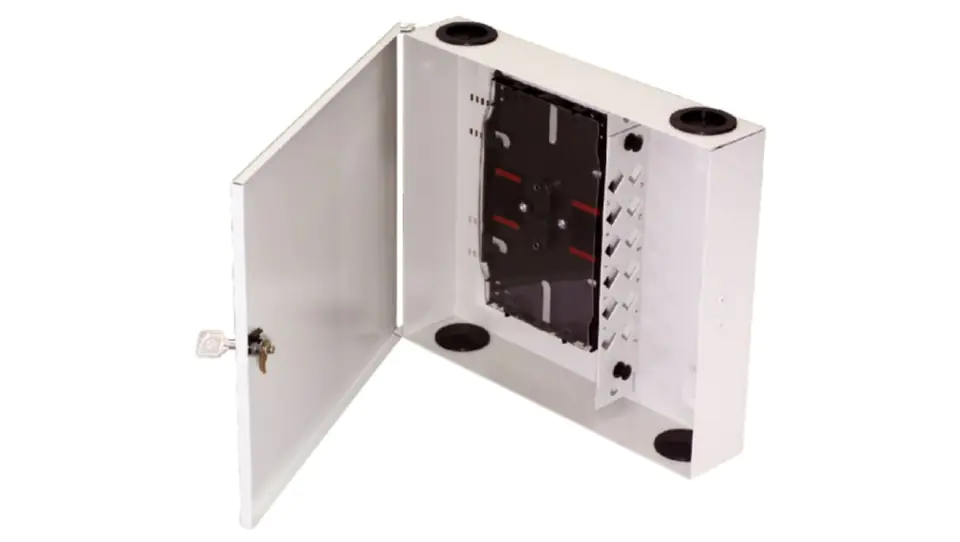

The adapter bracket allows you to install 24 SC simplex or LC duplex adapters. The organization of optical fibers in the distribution box is possible thanks to two fiber optic trays. (One fiber optic tray with a nominal capacity of 12 splices). The distribution box is solidly made of cold-rolled steel and powder coated in white. All metal elements of the distribution box are made of corrosion-resistant materials.
Included:
- Wall-mounted fiber optic switch cabinet
- two trays for fiber optic splices
- cable ties
- screws for fixing adapters
- plastic cable holders
- two keys
Use
- Telecommunication networks
- Sieci LAN, WAN
- CCTV systems
- FTTx
| DANE TECHNICZNE | DANE TECHNICZNE2 |
|---|---|
| Liczba portów wlotu/wylotu | 4 |
| Max. średnica wlotu/wylotu | Ø30mm |
| Max. liczba adapterów | 24 x SC simplex / 24 LC duplex |
| Liczba tacek w przełącznicy | 2 (12J każda) |
| Wymiary | wys. 265mm × szer. 254mm × głęb. 65mm |
| Materiał | stal walcowana na zimno (kolor biały) malowana proszkowo |
| Zamek | tak - jednopunktowy |
