Wall cabinet 19 12U 600x600 cz WF01-6612-00B

€113.14
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Lanberg
Product code:
WF01-6612-00B / 5901969430172

Specification

Ac input voltage:230 V
Available number of slots:12U
Colour:Black
Depth:600 mm
Depth (mm):600
Destiny:19 inch
Equipment:Mounting kit
Front door:Metal
Front door construction:Metal
Front door key lock:Yes
Height:645.7 mm
Height (mm):645.7
Kind:Hanging
Manual:Yes
Material:Steel
Maximum weight capacity:60 kg
Mounting depth (max):53 cm

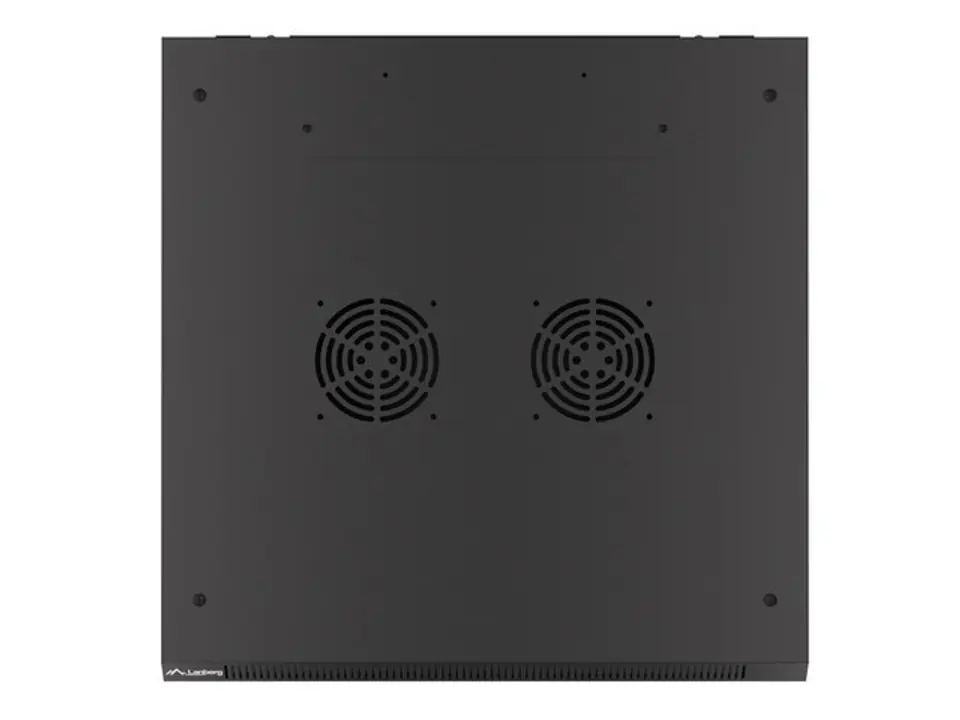

Number of fans supported:2
Nuts included:Yes
Other parameters:Fan slots: 2
Product colour:Black
Protection:IP20
Rack capacity:12U
Side panel key lock:Yes
Size (imperial):48.3 cm (19")
Thickness of elements:Mounting rail thickness: 1.5 mm, Side panel thickness: 1 mm, Other elements thickness: 1.2 mm, Front door thickness: 1 mm, Top & bottom panel thickness: 1 mm
Type:Wall mounted rack
Warranty:3 years
Weight:27.1 kg
Weight (kg):27.08
Width:600 mm
Width (mm):600

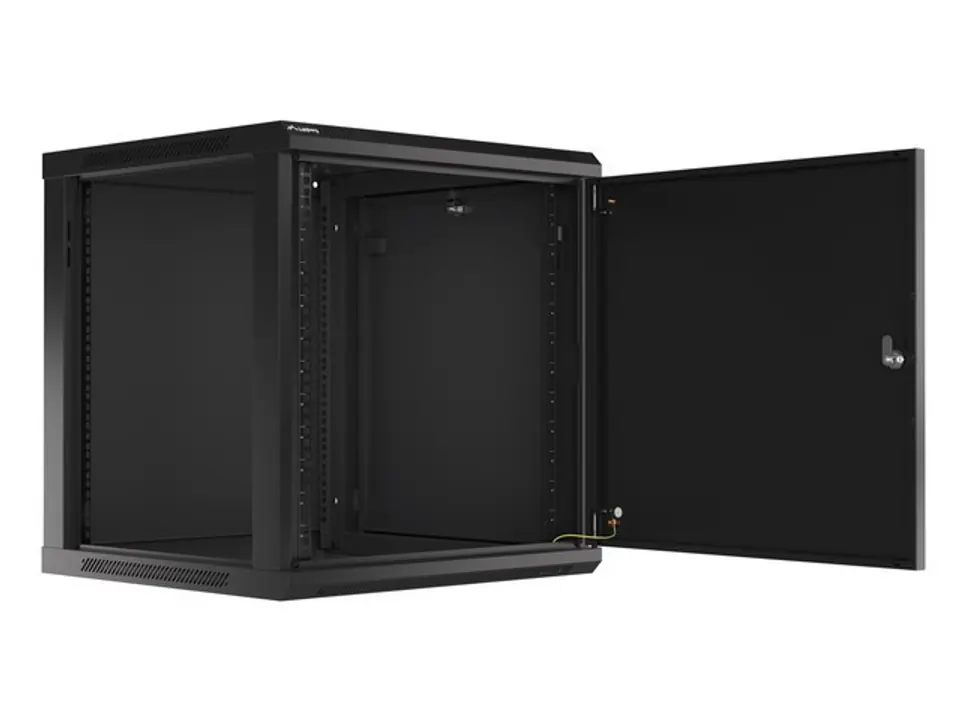

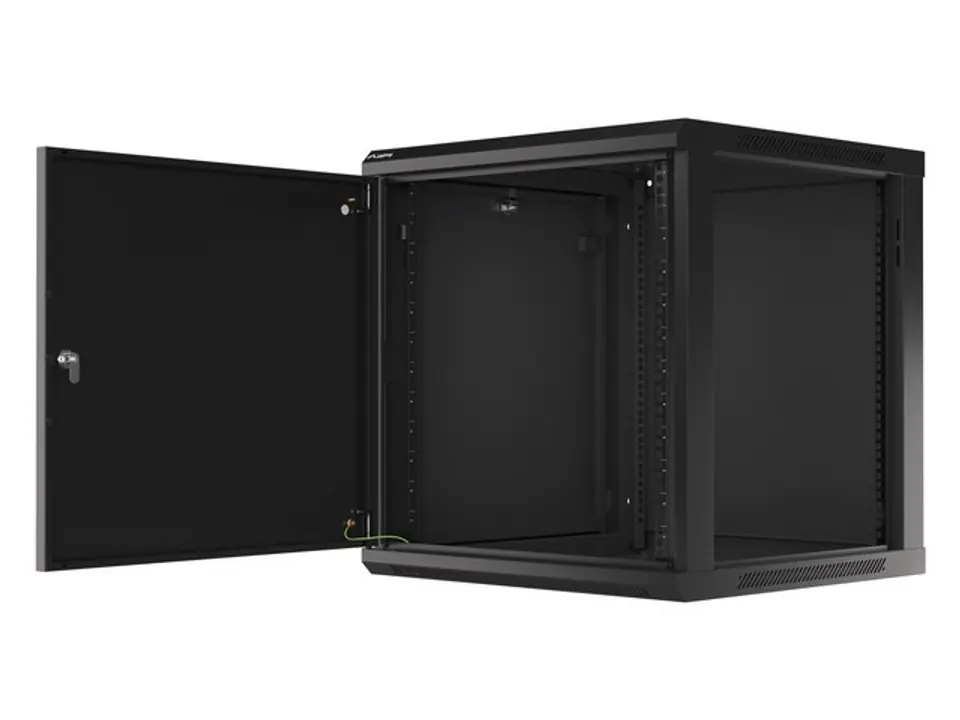

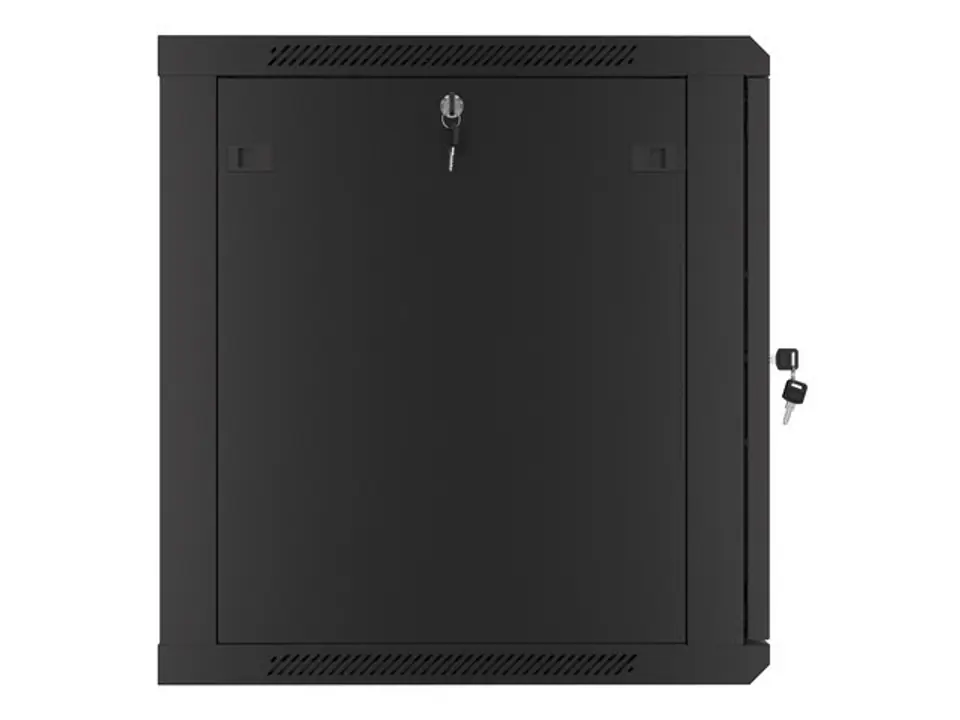

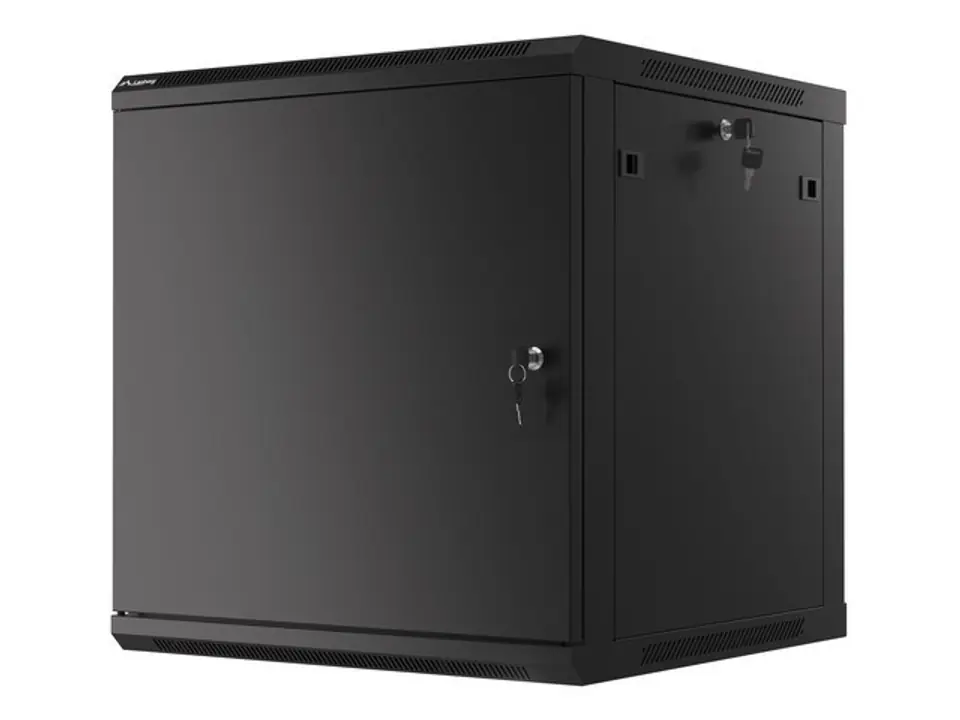

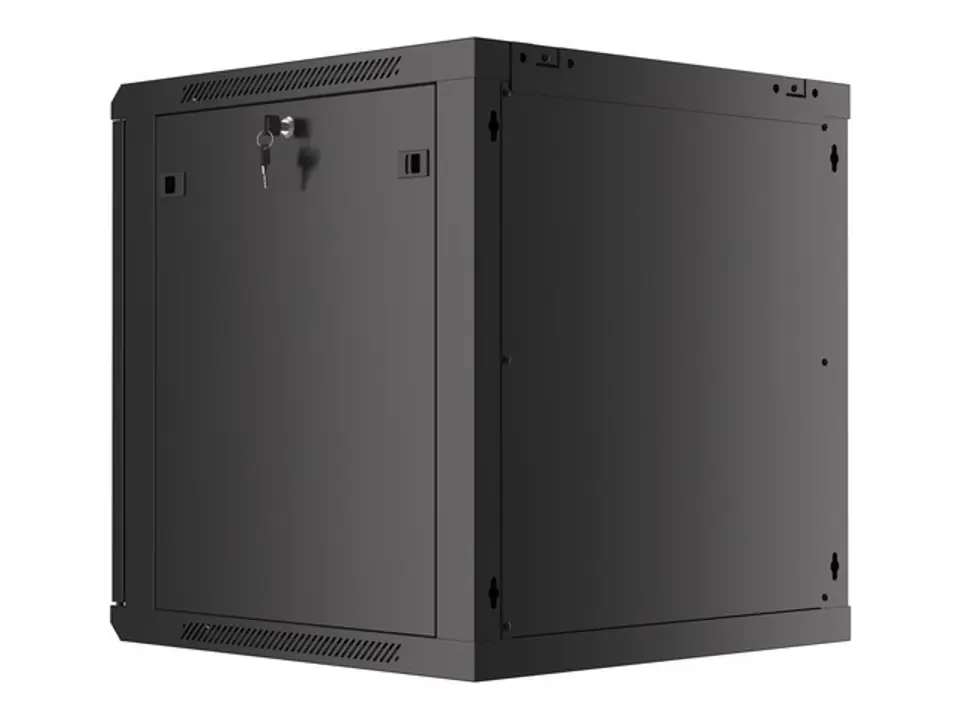

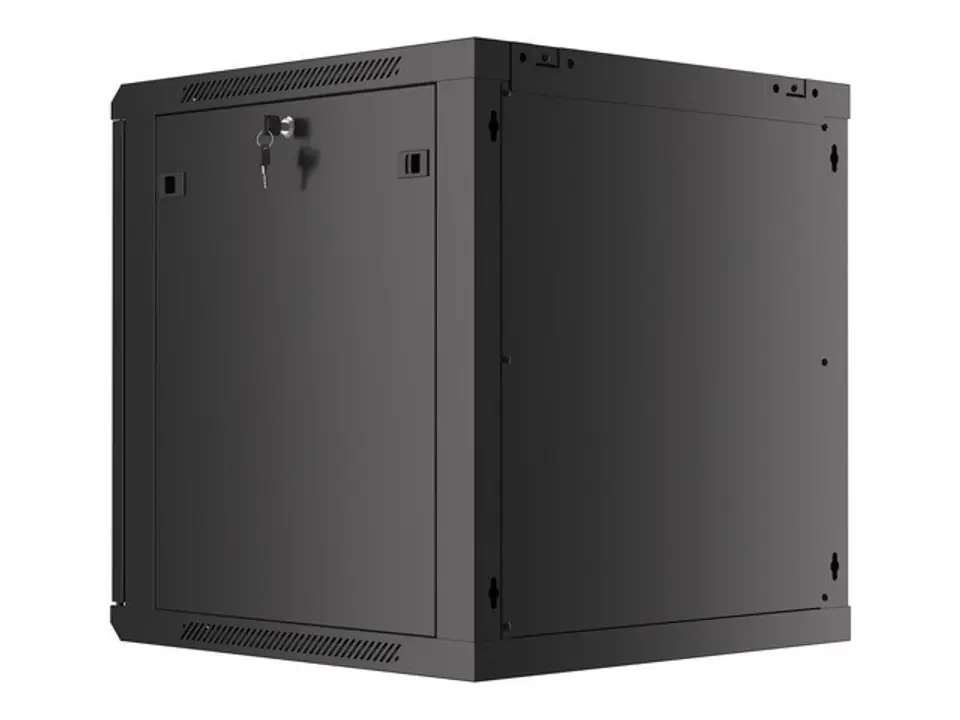

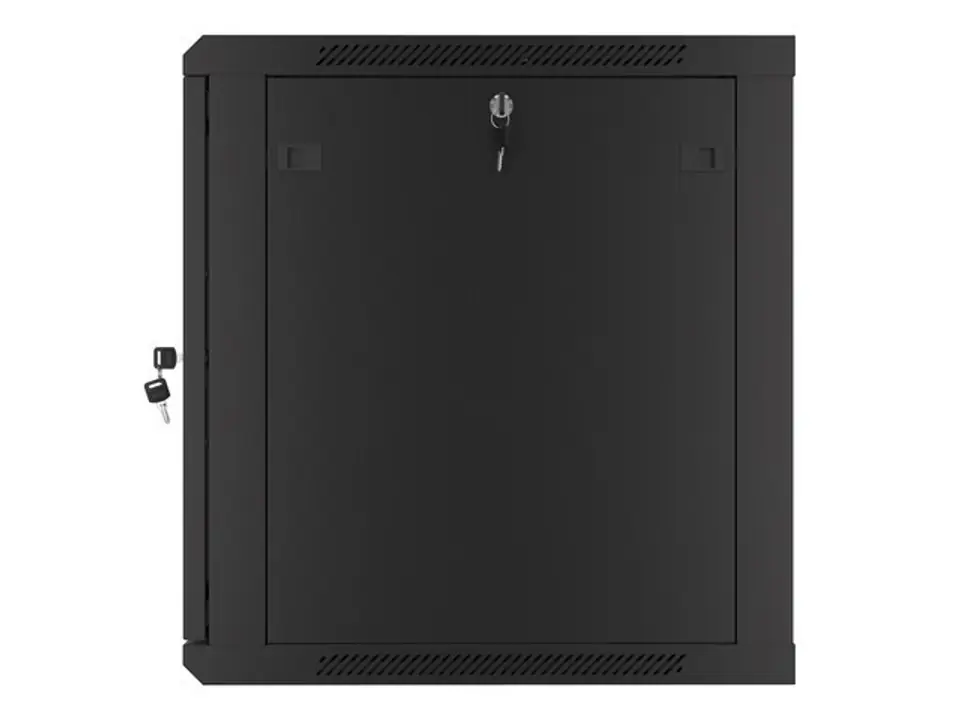

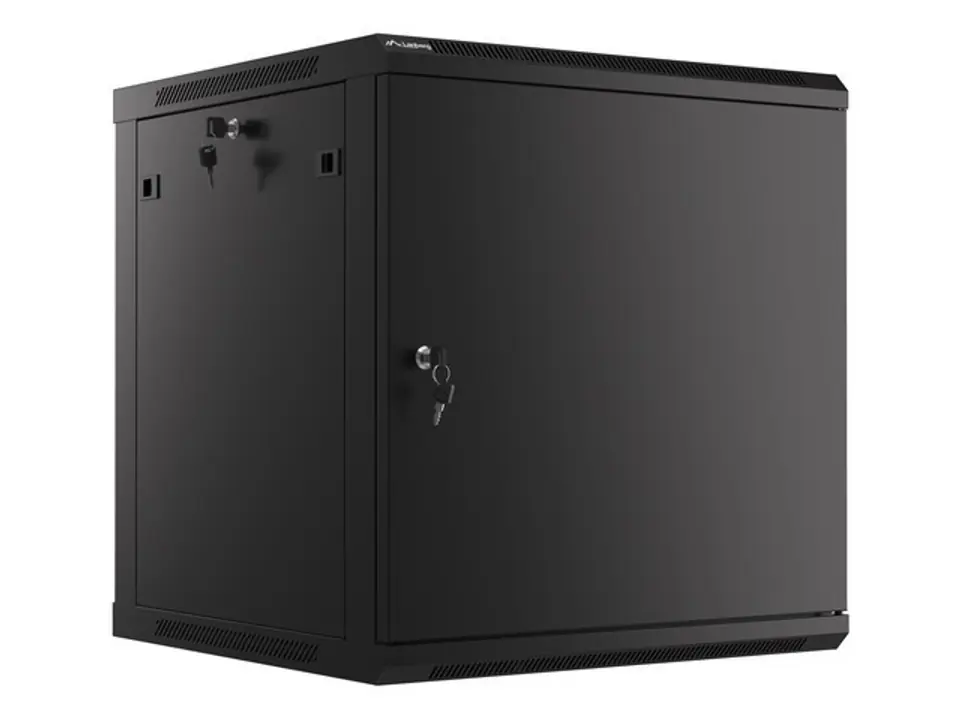

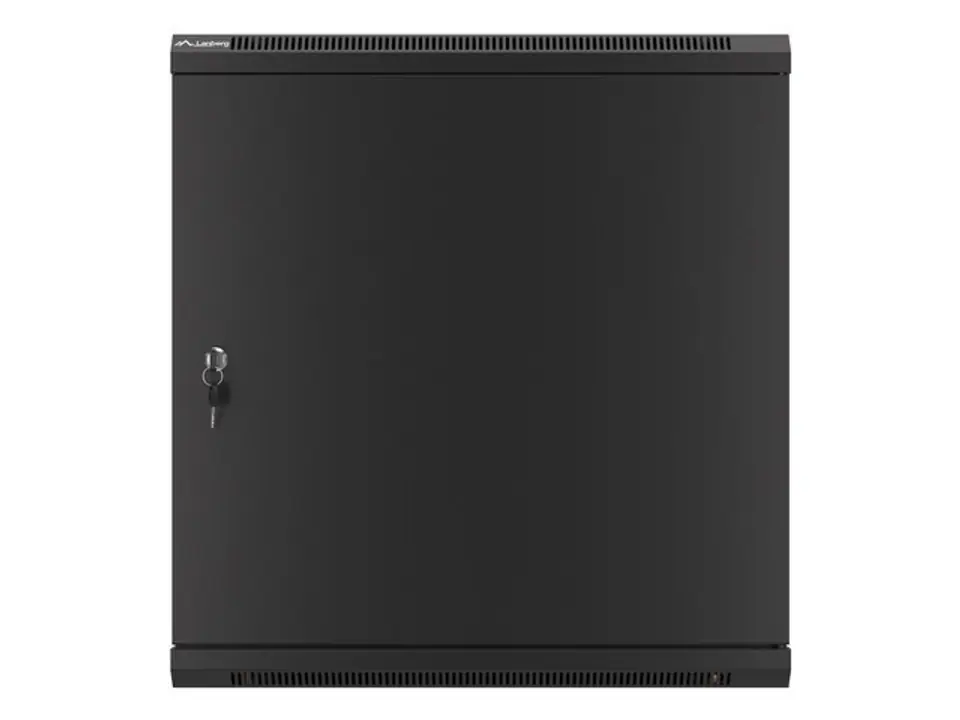

Lanberg's single-section hanging cabinet WF01-6612-00B is a solution designed for network construction, installation of cabling and equipment in size 19 with a maximum combined load capacity of up to 60 kg. It can be used in networks and server rooms in both small and medium-sized companies. It will also work in low-voltage installations such as cable TV networks, alarm systems, fire protection systems, access control systems as well as CCTV and IP monitoring systems. Thanks to the appropriate design, the cabinet allows easy, self-assembly. It is characterized by IP20 protection, opening front door with the possibility of swiveling up to 180°, equipped with a lock, removable side panels (with locks included). The cabinet has the ability to introduce wiring through the upper and lower panels. The whole is made of high quality rolled steel, and thanks to the construction for self-assembly (flat pack) it is in a flat packaging, which facilitates transport. In addition, the shipment includes additional accessories for mounting the support rails, M6 screws and end caps for the entrance panels.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
