The video intercom is surface-mounted

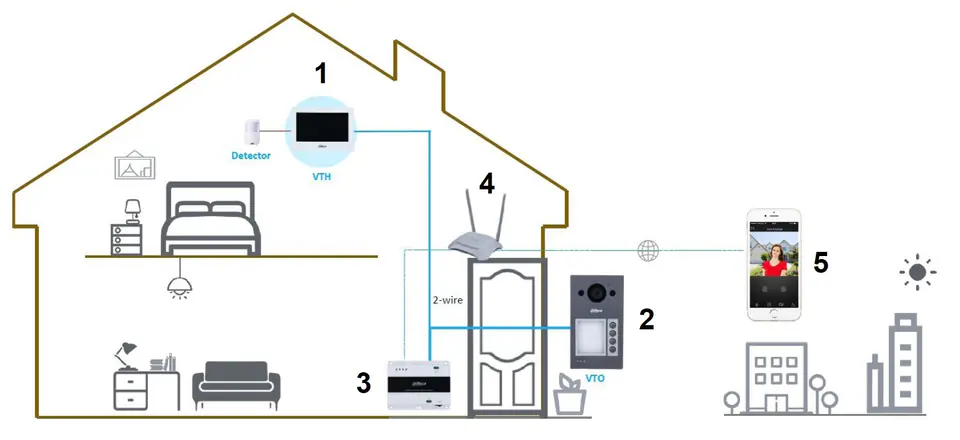

It is a hybrid module - it can work in a 2-Wire installation or as a standard IP video intercom

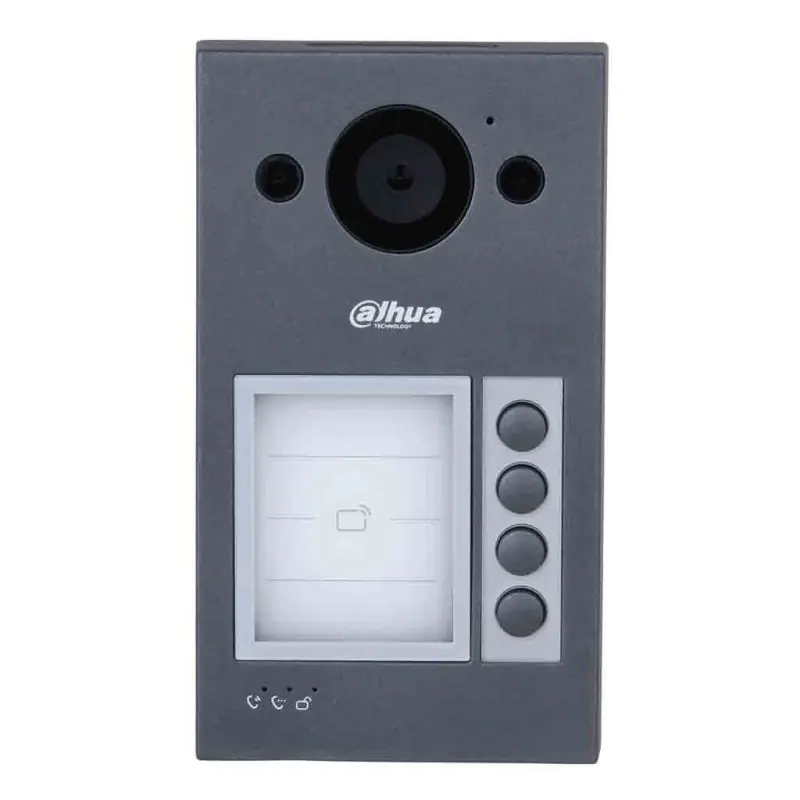

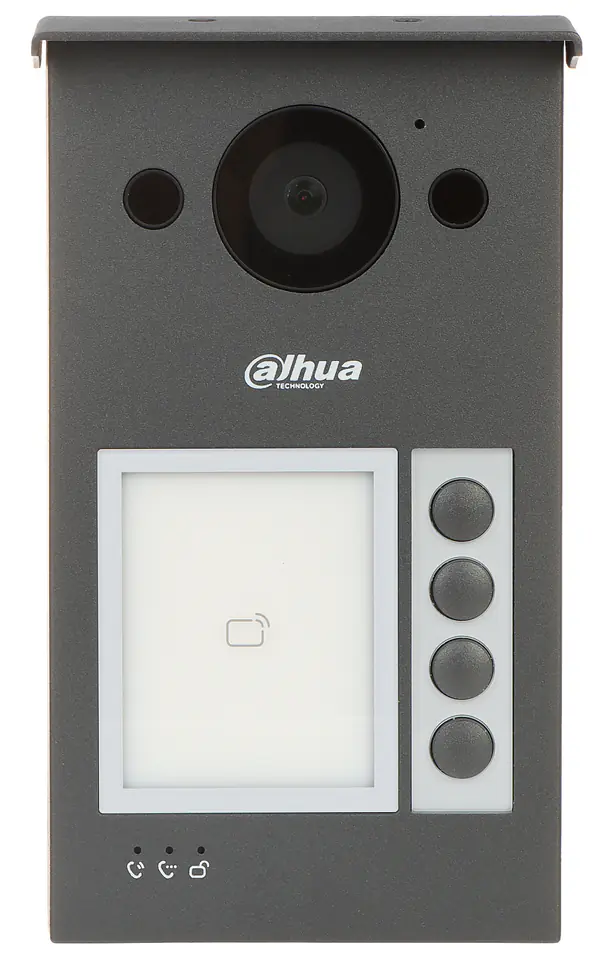

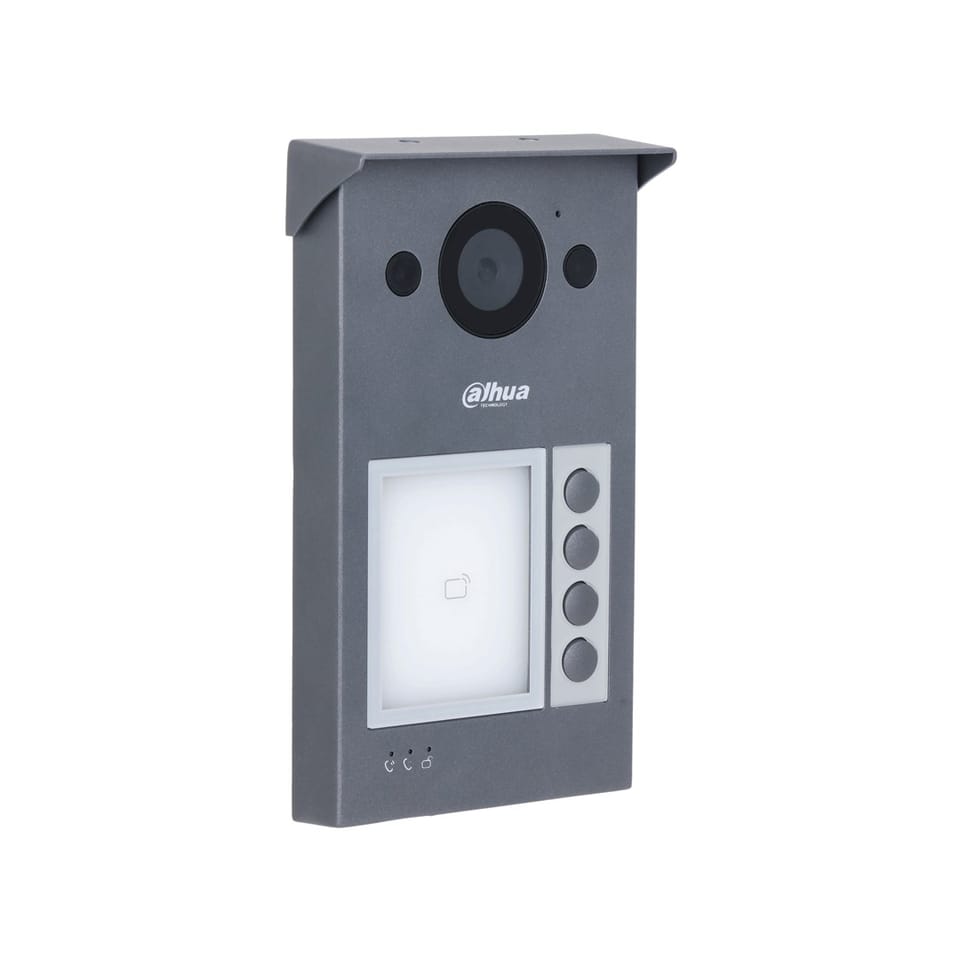

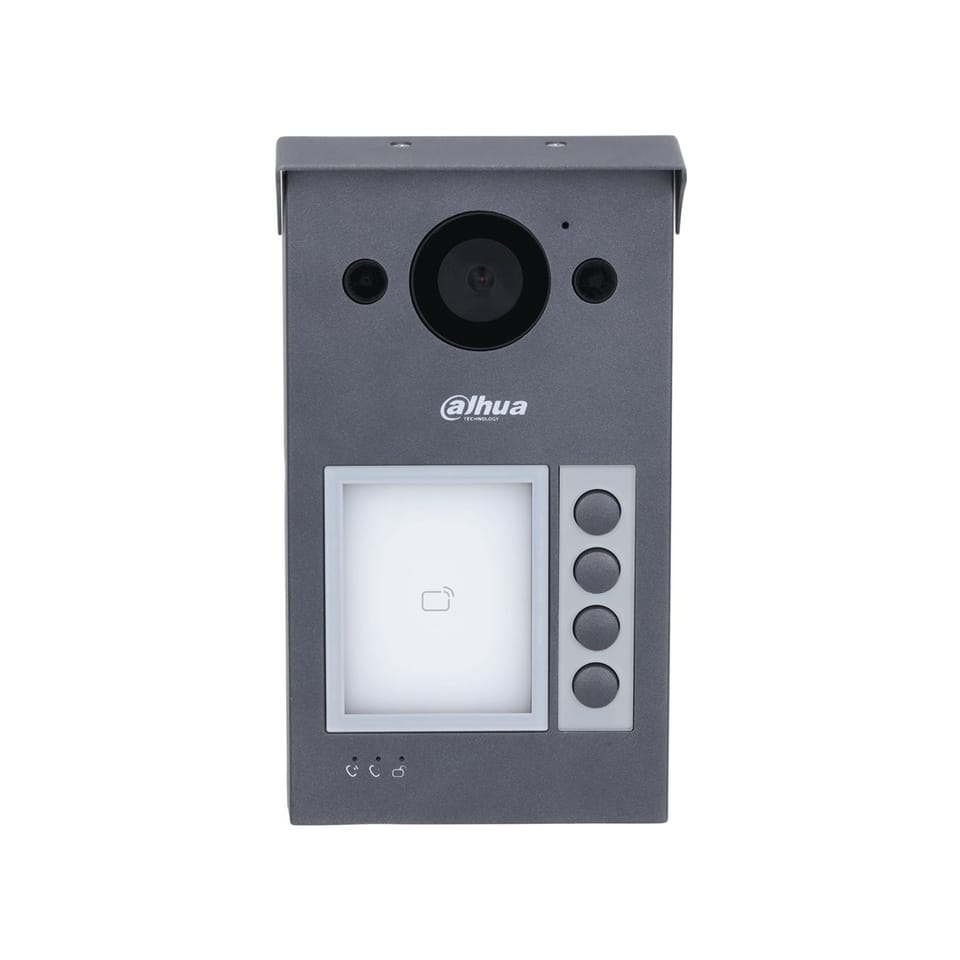

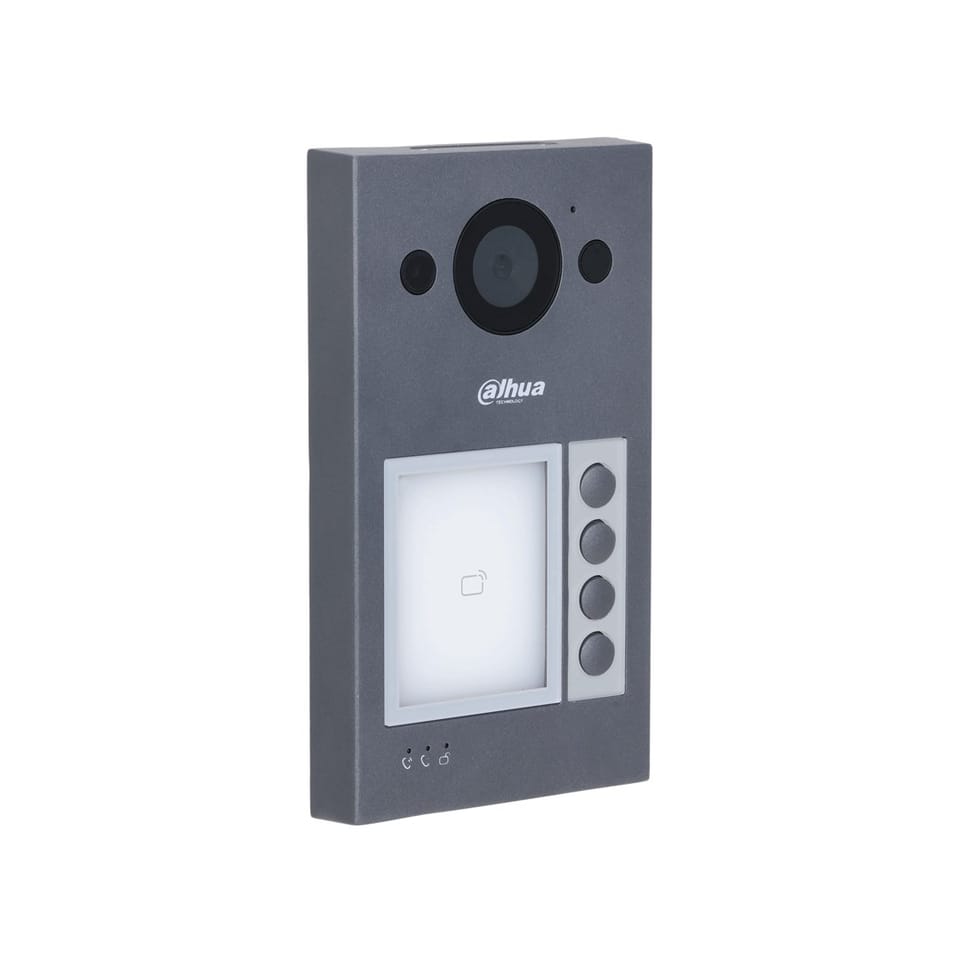

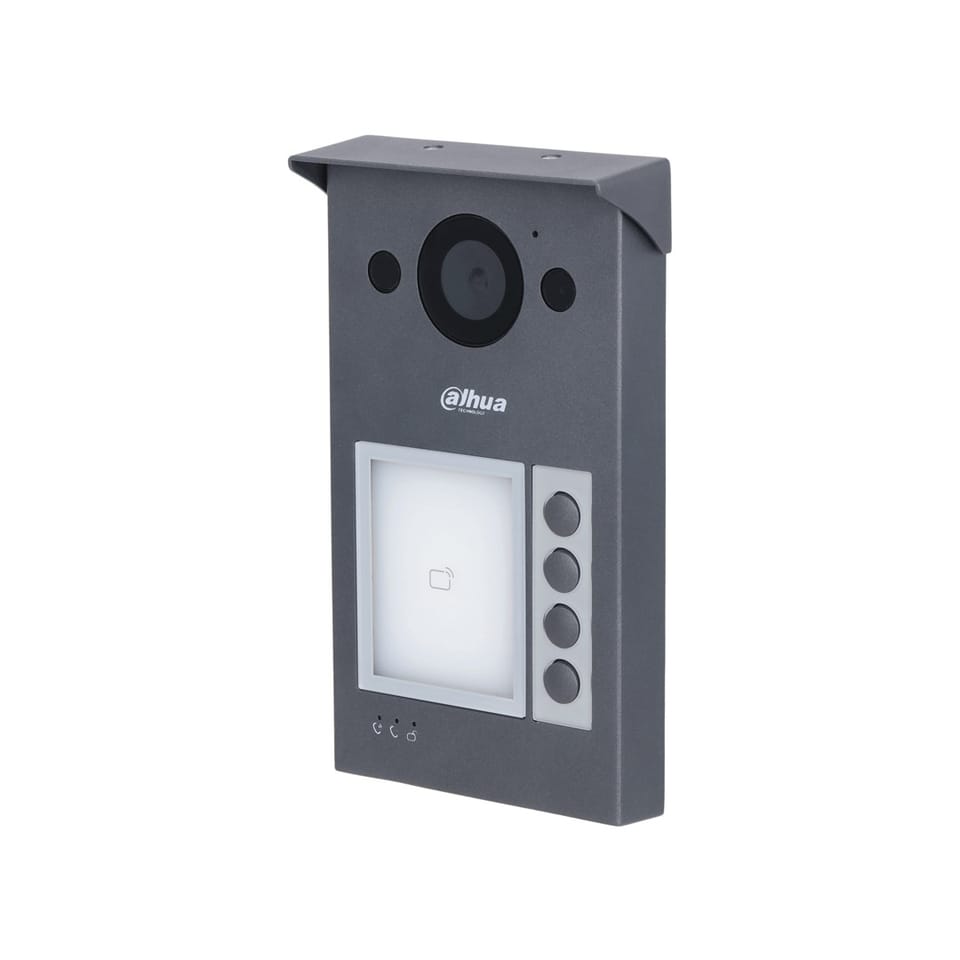

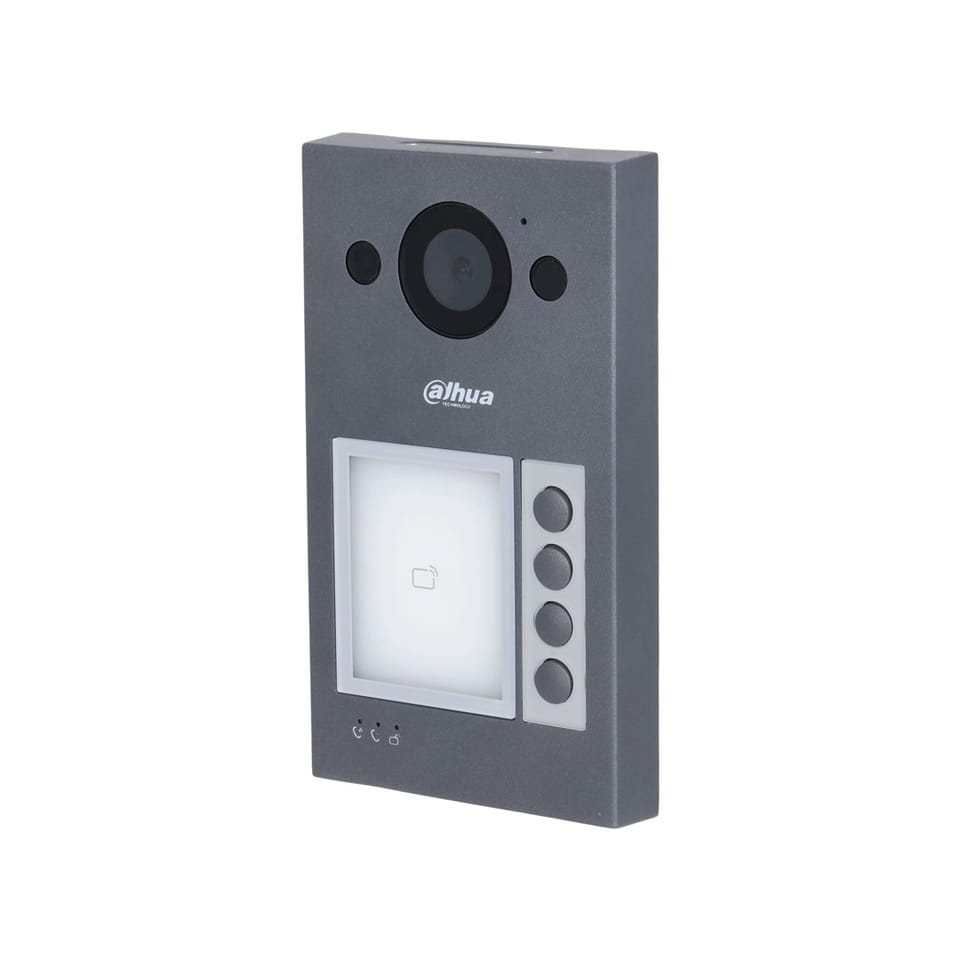

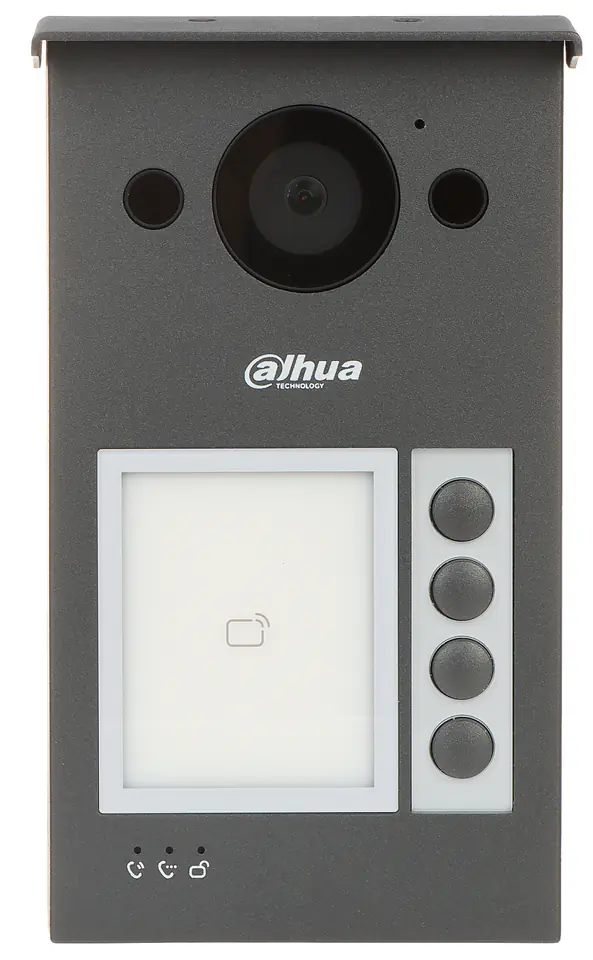

VTO3312Q-P DAHUA VIDEO DOOR PHONE
€208.95
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- VTO3312Q-P / 6923172532565
Share this product:
Specification
| Ac adapter output current: | 1 A |
|---|---|
| Ac adapter output voltage: | 48 V |
| Automatic gain control: | Yes |
| Built-in microphone: | Yes |
| Built-in proximity reader : | Access Control Cards - Mifare, 3000 RFID Card Memory |
| Built-in speaker(s): | Yes |
| Cabling technology: | 10/100Base-T(X) |
| Case: | Aluminium |
| Colour: | No |
| Compatibility: | DAHUA |
| Compatible memory cards: | SD, MicroSD (TransFlash) |
| Compliance certificates: | Federal Communications Commission (FCC), CE |
| Connectivity technology: | Wired |
| Control type: | Buttons |
| Depth: | 30 mm |

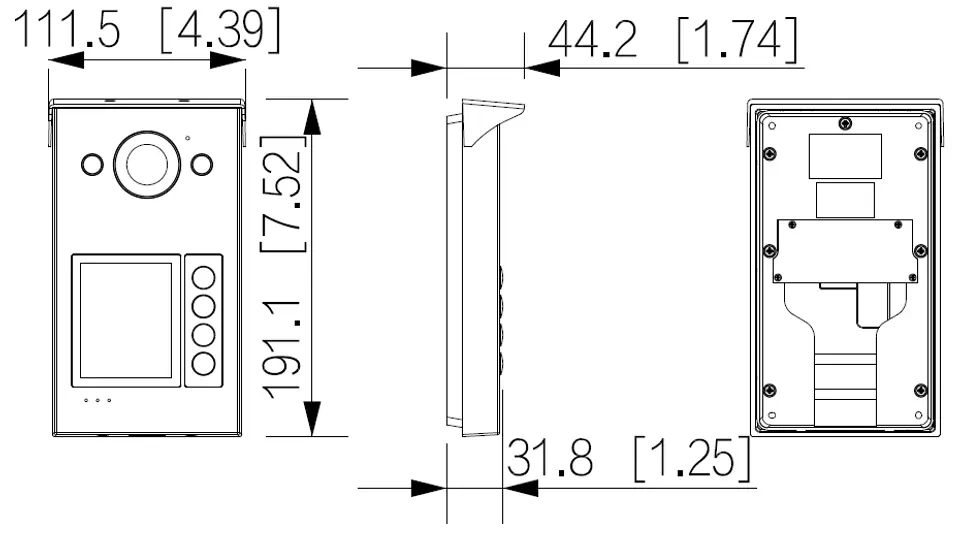

| Dimensions: | 188 x 107 x 30 mm (without cover) 191 x 112 x 44 mm (with cover) |
| Door station control: | Yes |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 10, 100 |
| Height: | 188.1 mm |
| Housing material: | Aluminium |
| Ik code: | IK08 |
| Image compression method: | H.265 / H.264 |
| International protection (ip) code: | IP65 |
| Led type: | IR |
| Maximum frame rate: | 30 fps |
| Maximum memory card size: | 256 GB |
| Maximum number of cameras supported: | 1 |
| Mechanical resistance class: | IK08 |
| Megapixel (approx.): | 2 MP |
| Memory card slot: | Yes |
| Minimum order quantity: | 1 pc(s) |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Motion detection function: | Yes |
| Night vision: | Yes |
| Noise-canceling: | Yes |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature: | -40 °C ... 60 °C |
| Operating temperature (t-t): | -40 - 60 °C |
| Optical sensor size: | 25.4 / 2.8 mm (1 / 2.8") |
| Outdoor unit included: | Yes |
| Outdoor unit power type: | DC |
| Package weight: | 780 g |
| Placement supported: | Vertical |
| Power: | 48 V / 1 A, PoE (802.3af), 2-Wire IP interface |
| Power consumption: | ≤ 4 W (standby)≤ 8 W (operating) |
| Power consumption (standby): | 4 W |
| Power consumption (typical): | 8 W |
| Power over ethernet (poe): | Yes |
| Producer / brand: | DAHUA |
| Product colour: | Grey |
| Proper use: | Outdoor |
| Quantity per pack: | 1 pc(s) |
| Rfid reader: | Yes |
| Scales: | 0.6 kg |
| Sealing: | IP65 |

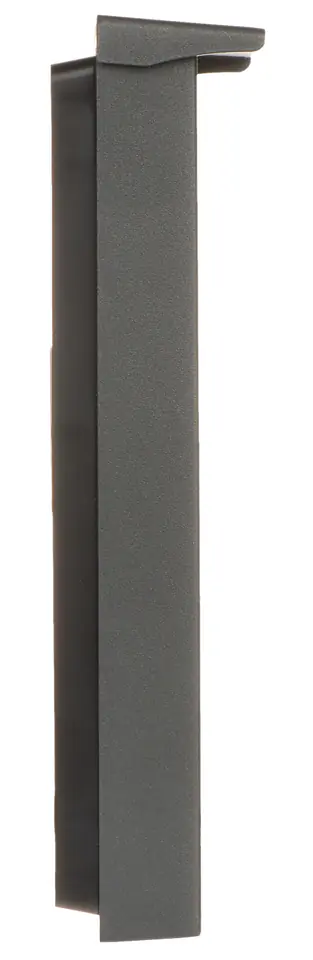

| Selected features: | Can work without VTH monitor, only with mobile APP, Monitor function with the possibility of opening the door, can be performed by a smartphone, tablet or VTH internal panel, Support for Micro SD cards up to 256GB (local recording possible), Support for up to 4 subscriber numbers, Opening using a card, application or internal panel, Voice call and door opening directly from the mobile application, Remote configuration, Monitoring the status of individual doors, WDR - 120 dB - Wide dynamic range, 2D-DNR, 3D-DNR - Digital noise reduction, Day/night mode (color/b&w/auto), ICR - Mechanical IR filter, Two-way communication, Built-in microphone, Built-in speakers, Audio noise suppression and echo cancellation, Tamper detection - detachment from the ground, Vandal-proof front panel, LEDs, Alarm inputs / outputs : 1 / 1, Output for additional bolt release button, Power output, Rain cover included |
| Sensor type: | CMOS |
| Speakerphone: | Yes |
| Supported languages: | Polish, English |
| Supported network protocols: | RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/HTTPS, ONVIF |
| Supported video modes: | 1080p, 720p |
| Sustainability compliance: | Yes |
| Touchscreen: | No |
| Transducer: | 1/2.8", 2 Mpx CMOS |
| Video formats supported: | H.264, H.265 |
| Viewing angle: | 125 ° |
| Viewing angle, horizontal: | 125° |
| Viewing angle, vertical: | 65° |
| Voice codecs: | G.711u, PCM, G.711a |
| Voip protocols: | RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/HTTPS, ONVIF |
| Wall mountable: | Yes |
| Warranty: | 3 years |
| Weight: | 570 g |
| Width: | 107.2 mm |
