| Built-in proximity reader : | Access Control Cards - Mifare |
|---|---|
| Case: | Aluminum alloy, Waterproof |
| Colour: | No |
| Compatibility: | DAHUA |
| Connectivity technology: | Wired |
| Depth: | 30 mm |
| Digital zoom: | 139x |

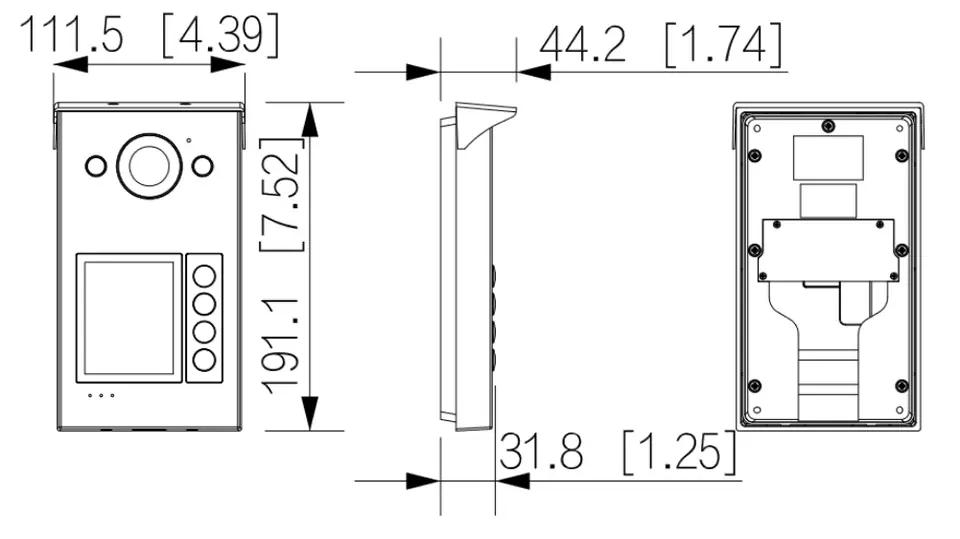

| Dimensions: | 188 x 107 x 30 mm (without cover) 191 x 112 x 44 mm (with cover) |
| Door station operating temperature (t-t): | -40 - 60 °C |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 10, 100 |
| Height: | 188.1 mm |
| Housing material: | Metal, Aluminium |
| Ik code: | IK08 |
| Image compression method: | H.265 / H.264 |
| International protection (ip) code: | IP65 |
| Led type: | IR |
| Maximum frame rate: | 30 fps |
| Mechanical strength: | IK08 |
| Megapixel (approx.): | 2 MP |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Network interface: | Ethernet 10 / 100 Mbps Wi-Fi |
| Night vision: | Yes |
| Number of buttons: | 4 buttons |
| Number of subscribers served: | 4 |
| Operating temperature: | -40 °C ... 60 °C |
| Operating temperature (t-t): | 10 - 90 °C |
| Optical sensor size: | 25.4 / 2.8 mm (1 / 2.8") |
| Outdoor unit included: | Yes |
| Outdoor unit power type: | DC |
| Package weight: | 810 g |
| Power: | PoE (802.3af), 12 V DC / 1 A |
| Power consumption: | ≤ 6 W (operating)≤ 3 W (standby) |
| Power consumption (standby): | 3 W |
| Producer / brand: | DAHUA |
| Product colour: | Grey |
| Quantity per pack: | 1 pc(s) |
| Resolution: | Main stream : 1280 x 720, 800 x 480, 720 x 576, 352 x 288 Sub stream : 1920 x 1080, 800 x 480, 720 x 576, 352 x 288, 320 x 240 |
| Scales: | 0.6 kg |
| Sealing: | IP65 |

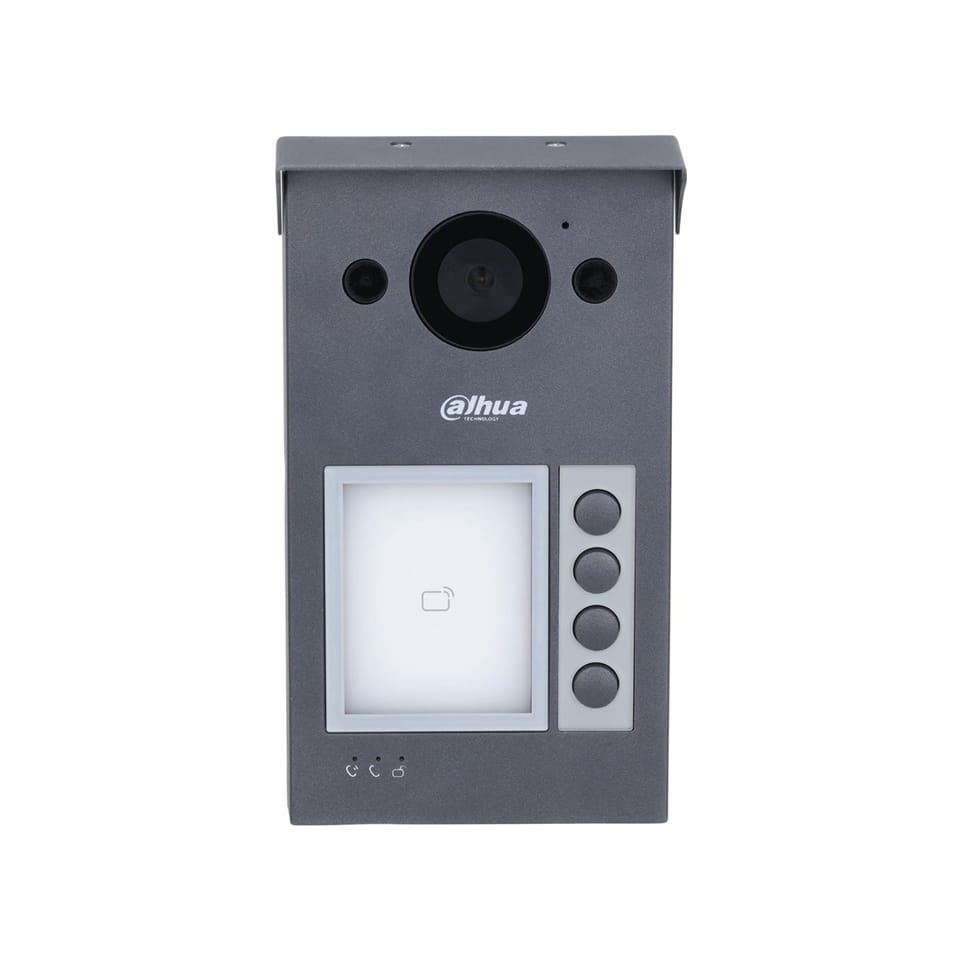

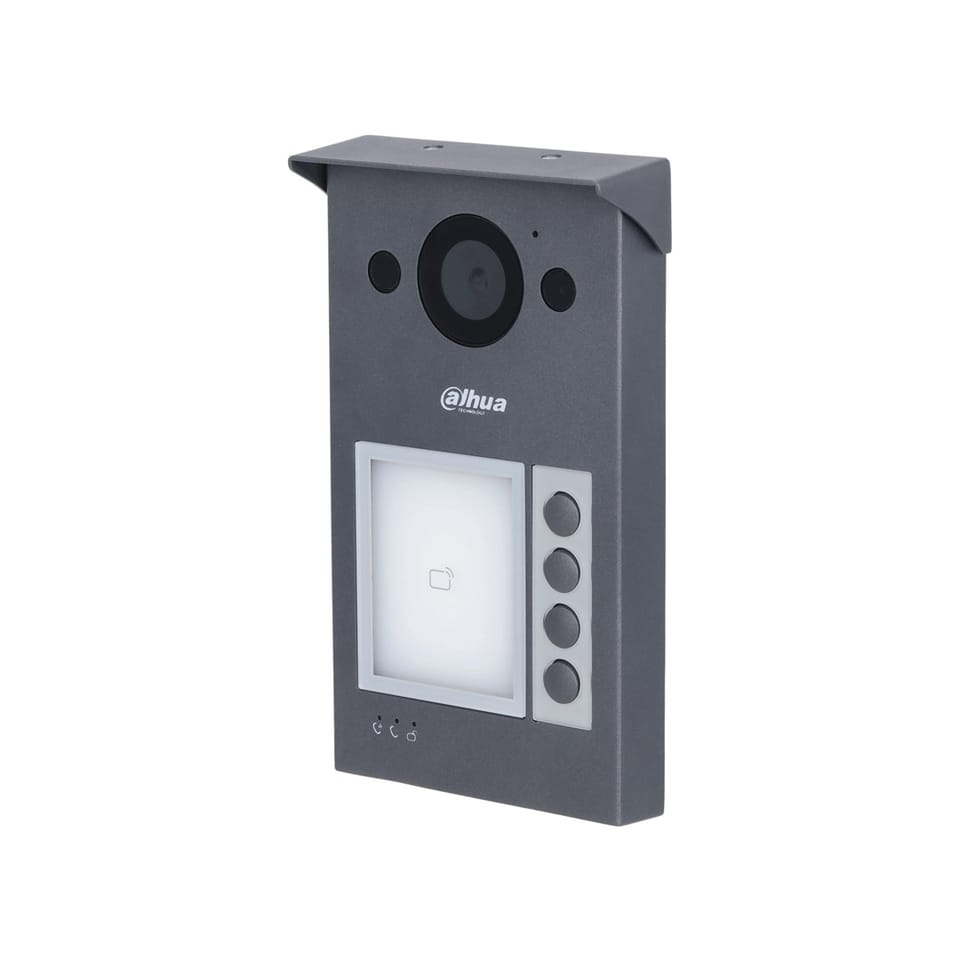

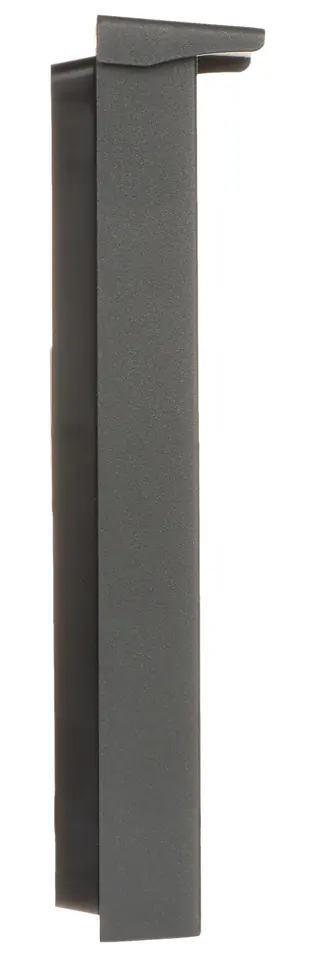

| Selected features: | Support Micro SD cards up to 256GB (local recording possible), Opening using card, application or internal panel, Voice call and door opening directly from the mobile application, Remote configuration, Monitoring the status of individual doors, WDR - 120 dB - Wide dynamic range, 2D-DNR, 3D-DNR - Digital noise reduction, Day/night mode (color/b&w/auto), ICR - Mechanical IR filter, Two-way communication, Built-in microphone, Built-in speakers, Audio noise suppression and echo cancellation, Tamper detection - ground removal, Vandal-resistant front panel, LEDs, Alarm inputs / outputs : 1 / 1, Output for additional bolt release button, Power output, Rain cover included |
| Sensor type: | CMOS |
| Standard wi-fi: | IEEE 802.11b / IEEE 802.11g / IEEE 802.11n |
| Supported languages: | Polish, English |
| Supported network protocols: | RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/ HTTPS; ONVIF |
| Supported video modes: | 1080p, 720p |
| Transducer: | 1/2.8", 2 Mpx CMOS |
| Video formats supported: | H.265, H.264 |
| Viewing angle: | 125 ° |
| Viewing angle, horizontal: | 125° |
| Viewing angle, vertical: | 65° |
| Warranty: | 3 years |
| Weight: | 550 g |
| Width: | 107.2 mm |
| Wireless transmission range: | Range limited only by Wi-Fi availability |

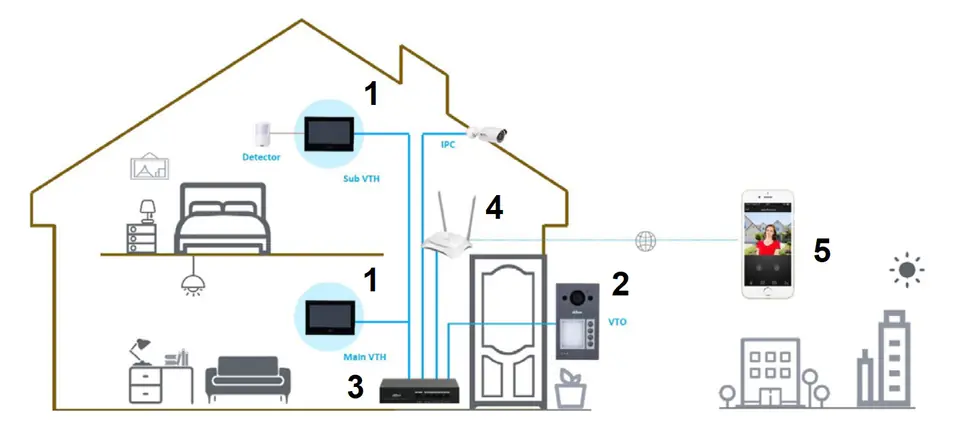

The device works with video intercoms and other DAHUA panelsideointercom Wi-Fi / IP allows you to remotely control the electromagnetic lock using a smartphone or tabletCan work without a VTH monitor, only with a mobile applicationMonitor function with the possibility of opening the door, can be performed by a smartphone, tablet or VTH internal panel
Remark! To play back recordings from the VTO3311Q-WP's memory card, a VTH monitor is required
The video intercom is surface-mounted
