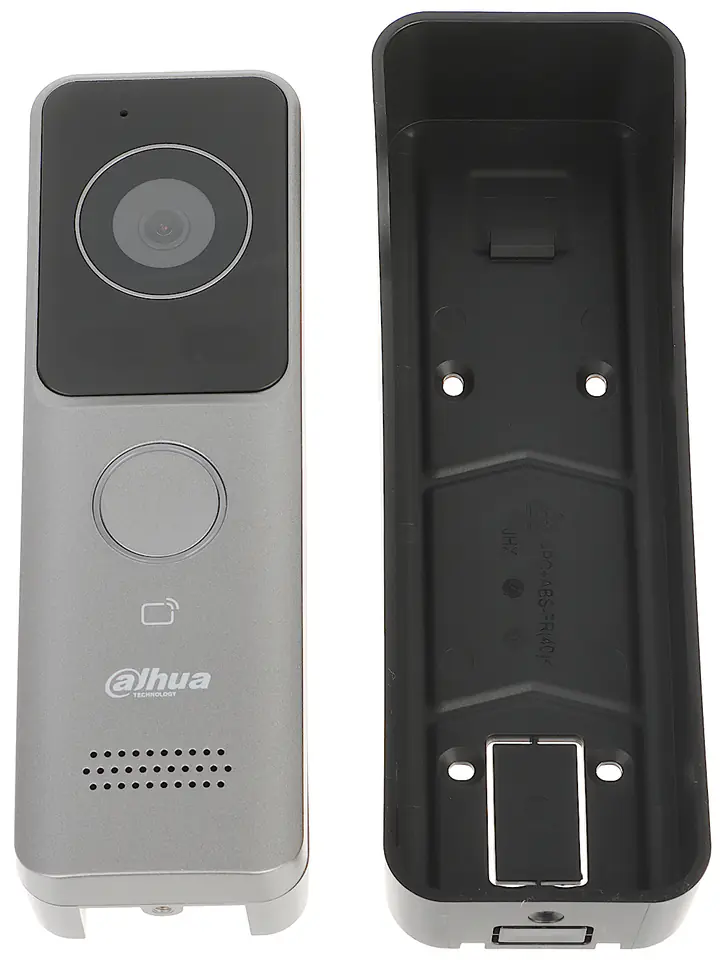

The device works with video intercoms and other DAHUAW panelsThe ideointercom is surface-mounted
The video door phone can only control a single passage

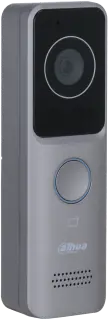

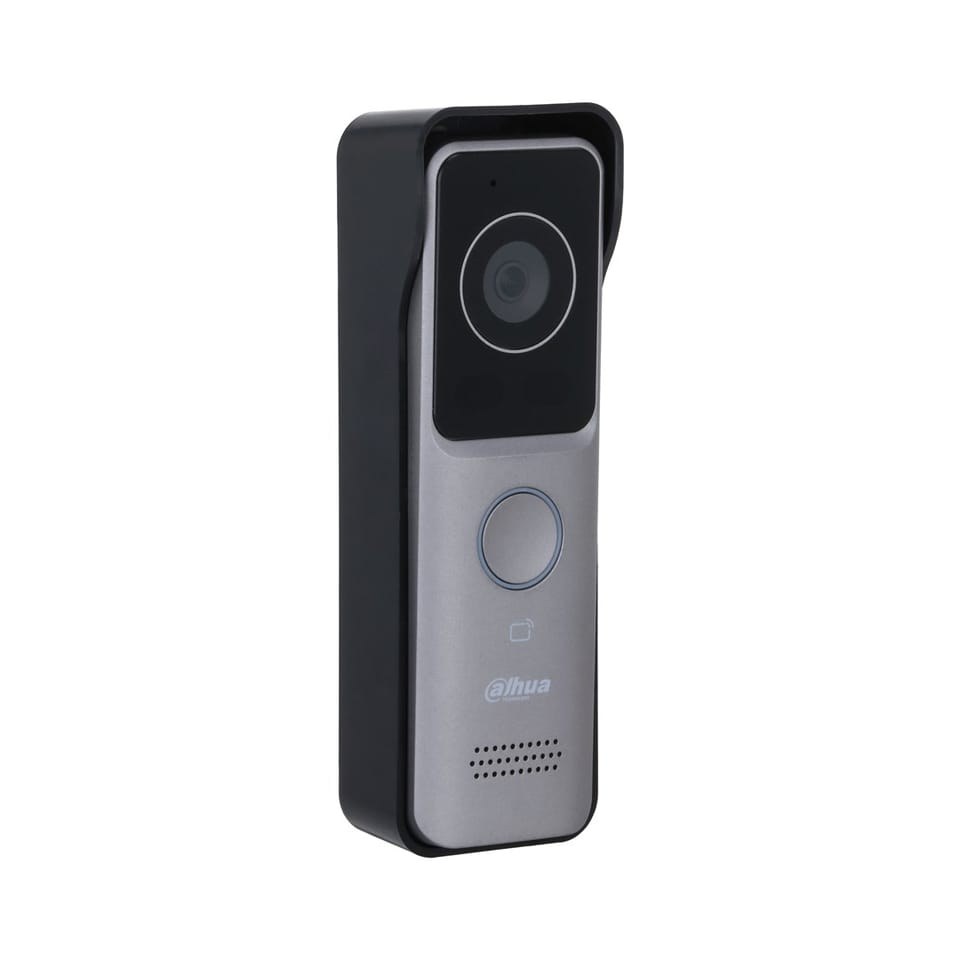

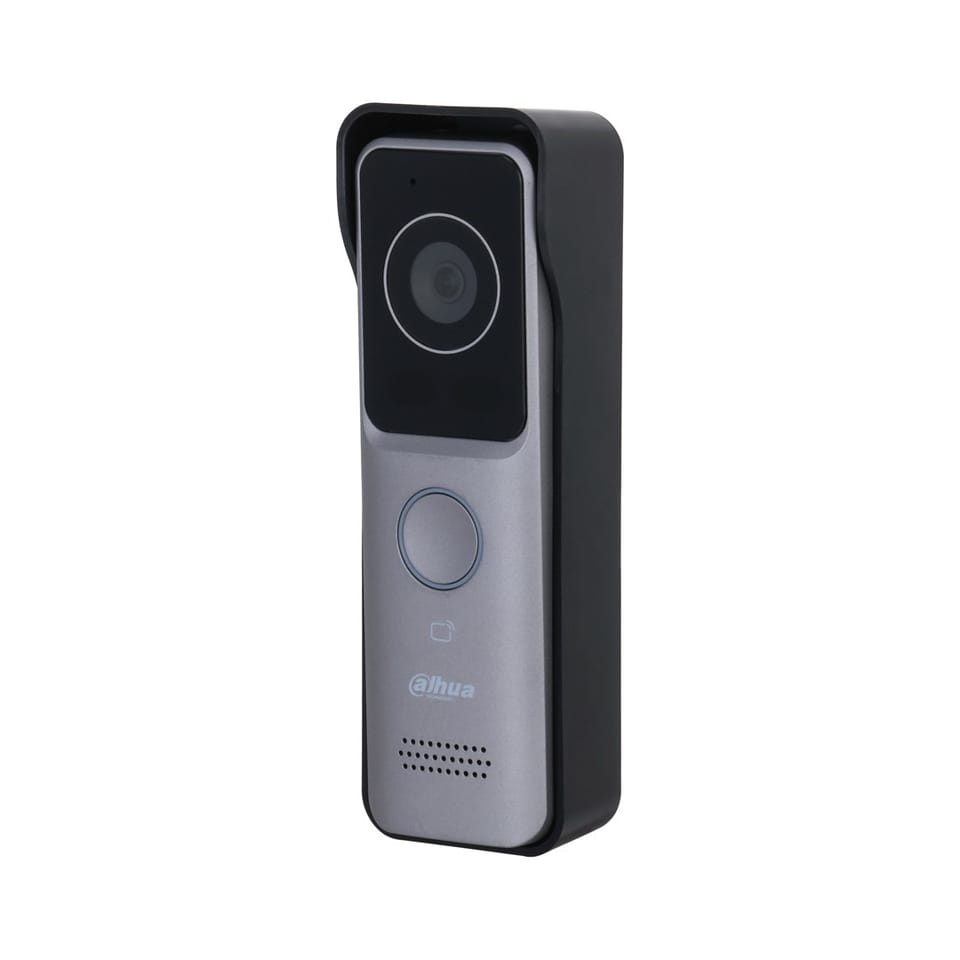

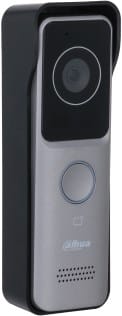

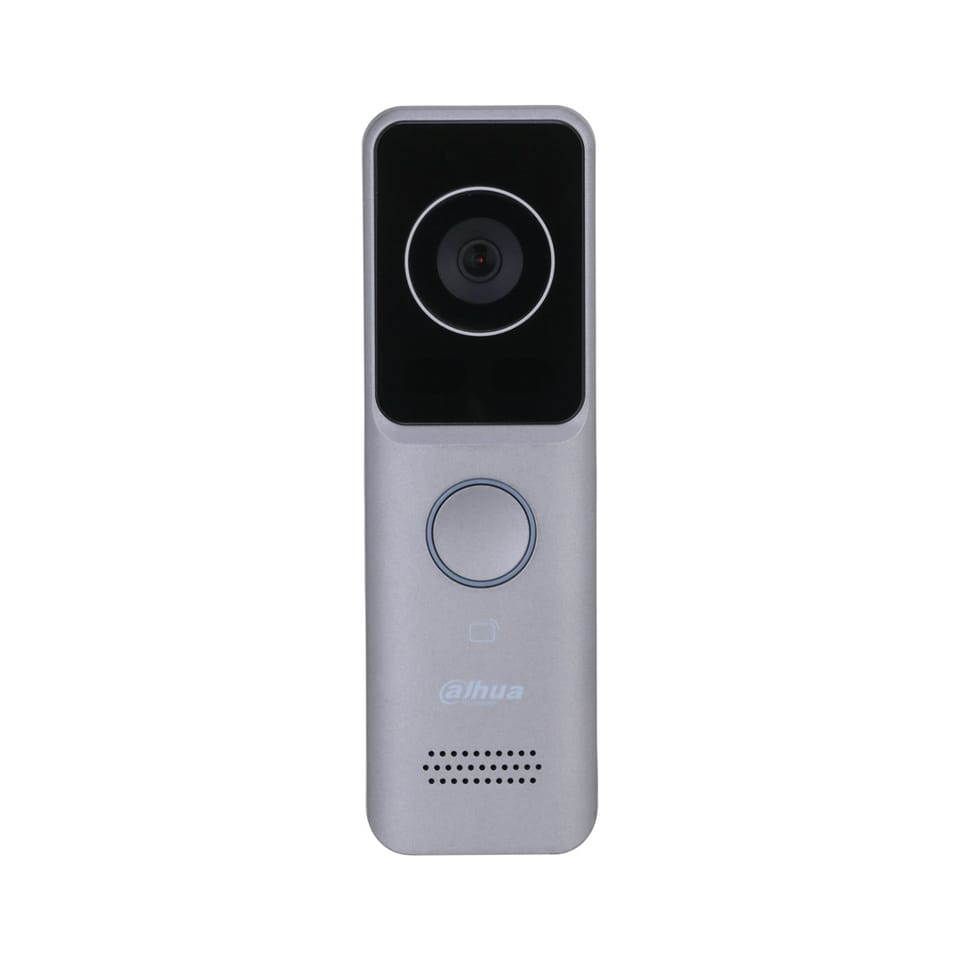

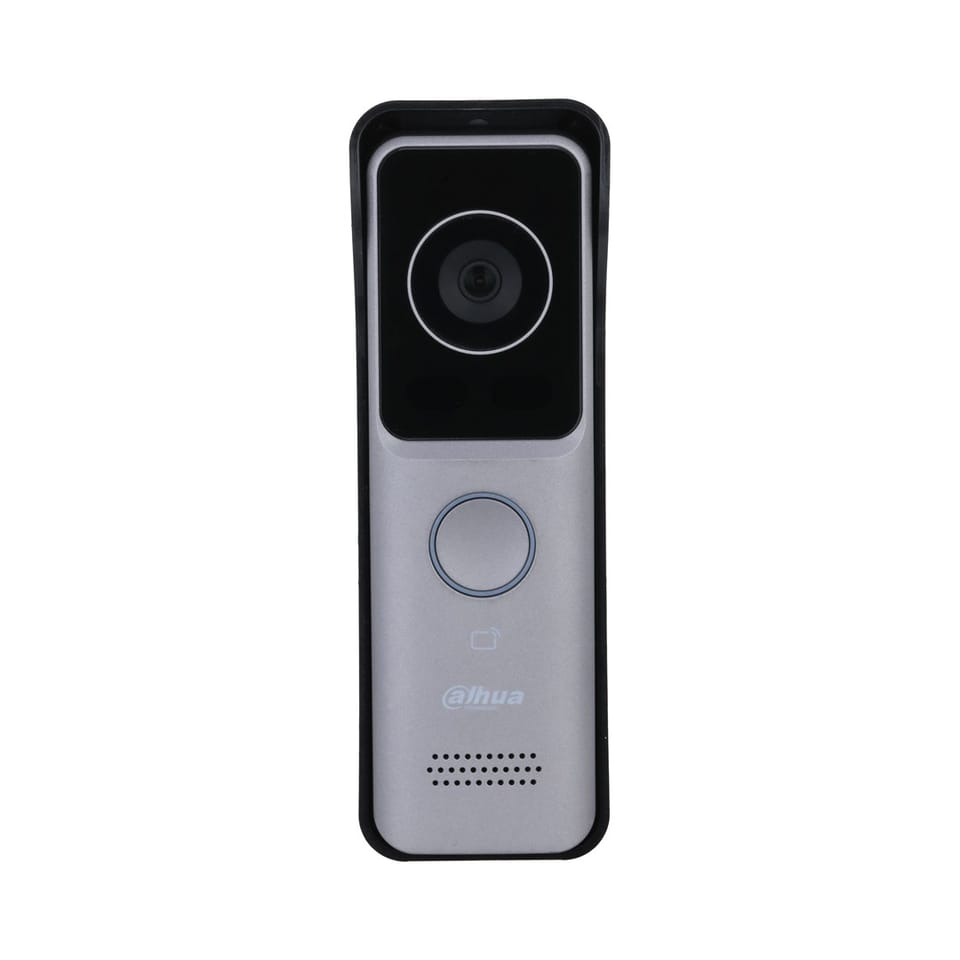

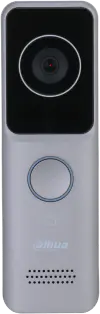

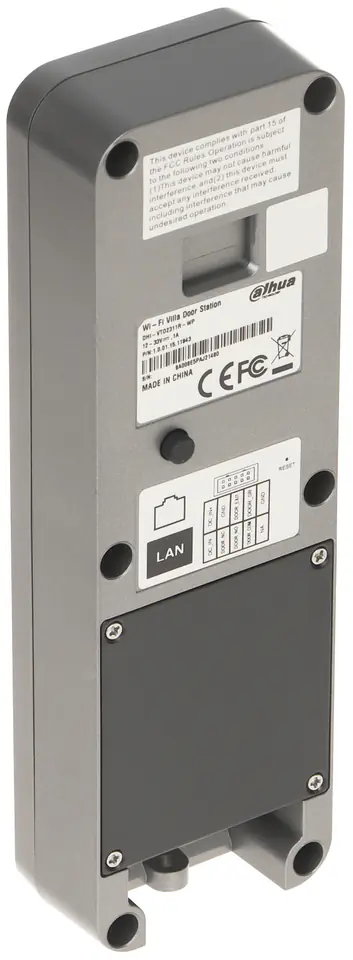

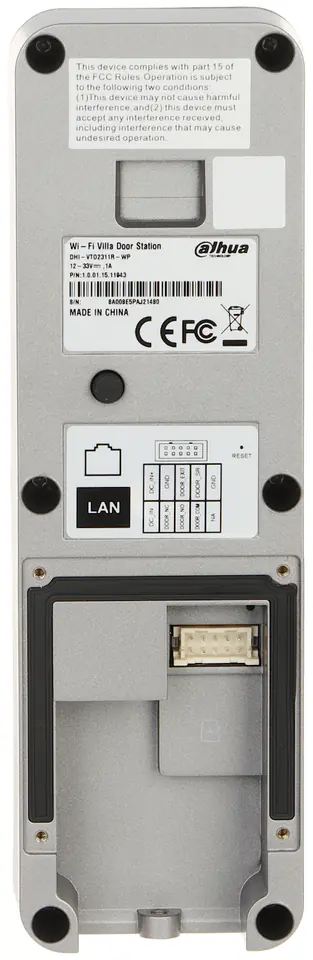

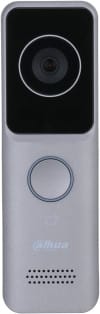

VTO2311R-WP WI-FI / IP DAHUA VIDEO DOOR PHONE
€137.99
Shipping from warehouse: H7
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Dahua
- Product code:
- VTO2311R-WP / 6923172532534
Share this product:
Specification
| Ac adapter output current: | 1 A |
|---|---|
| Ac adapter output voltage: | 33 V |
| Automatic gain control: | Yes |
| Built-in microphone: | Yes |
| Built-in proximity reader : | Access Control Cards - MIfare S50 |
| Built-in speaker(s): | Yes |
| Cabling technology: | 10/100Base-T(X) |
| Case: | Aluminum alloy, Waterproof |
| Colour: | No |
| Compatibility: | DAHUA |
| Compatible memory cards: | SD, MicroSD (TransFlash) |
| Compliance certificates: | Federal Communications Commission (FCC), CE |
| Connectivity technology: | Wireless |
| Control type: | Touch |
| Depth: | 30 mm |
| Dimensions: | 170 x 57 x 35 mm |
| Door station control: | Yes |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 10, 100 |
| Fingerprint reader: | Yes |
| Height: | 160 mm |
| Housing material: | Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS) |
| Image compression method: | H.264 / H.265 |
| International protection (ip) code: | IP65 |
| Led type: | IR |
| Maximum frame rate: | 30 fps |
| Maximum memory card size: | 256 GB |
| Maximum number of cameras supported: | 1 |
| Megapixel (approx.): | 2 MP |
| Memory card slot: | Yes |
| Minimum order quantity: | 1 pc(s) |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Motion detection function: | Yes |
| Network interface: | Ethernet 10 / 100 Mbps Wi-Fi |
| Night vision: | Yes |
| Noise-canceling: | Yes |
| Number of subscribers served: | 1 |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature: | -40 °C ... 60 °C |
| Operating temperature (t-t): | -40 - 60 °C |
| Optical sensor size: | 25.4 / 2.8 mm (1 / 2.8") |
| Outdoor unit included: | Yes |
| Outdoor unit power type: | DC |
| Package weight: | 400 g |
| Placement supported: | Vertical |
| Power: | PoE (802.3af), 12 V DC / 500 mA |
| Power consumption: | ≤ 6 W (operating) ≤ 3.5 W (standby) |
| Power consumption (standby): | 3.5 W |
| Power consumption (typical): | 6 W |
| Power over ethernet (poe): | Yes |
| Producer / brand: | DAHUA |
| Product colour: | Light grey |
| Proper use: | Outdoor |
| Quantity per pack: | 1 pc(s) |
| Resolution: | Main stream : 1280 x 720, 800 x 480, 720 x 576, 352 x 288 Sub stream : 1920 x 1080, 800 x 480, 720 x 576, 352 x 288 |
| Rfid reader: | Yes |
| Scales: | 0.24 kg |
| Sealing: | IP65 - after additional sealing of the connection of the housing with the mounting surface, e.g. silicone, |
| Selected features: | Can work without VTH monitor, only with mobile APP, Monitor function with the possibility of opening the door, can be performed by a smartphone, tablet or VTH internal panel, Micro SD card support up to 256GB (local recording possible), Two-way communication, Built-in microphone, Built-in speakers, Echo attenuation and reduction / digital noise reduction, Tamper detection - enclosure opening, Output to an additional bolt release button, WDR - 120 dB - Wide dynamic range of lighting, 2D-DNR, 3D-DNR - Digital Image Noise Reduction, Motion Detection |
| Sensor type: | CMOS |
| Speakerphone: | Yes |
| Standard wi-fi: | IEEE 802.11b / IEEE 802.11g / IEEE 802.11n |
| Supported languages: | Polish, Bulgarian, Czech, English, Finnish, Slovenian, Slovak, Hungarian |
| Supported network protocols: | RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/HTTPS, ONVIF |
| Supported video modes: | 1080p, 720p |
| Sustainability compliance: | Yes |
| Touchscreen: | Yes |
| Transducer: | 1/2.8", 2 Mpx CMOS |
| Video formats supported: | H.265, H.264 |
| Viewing angle: | 110 ° |
| Viewing angle, horizontal: | 110° |
| Viewing angle, vertical: | 62° |
| Voice codecs: | G.711u, G.711a, PCM |
| Voip protocols: | RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/HTTPS, ONVIF |
| Wall mountable: | Yes |
| Warranty: | 3 years |
| Weight: | 180 g |
| Wi-fi: | Yes |
| Wi-fi standards: | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Width: | 50 mm |
| Wireless transmission range: | Range limited only by Wi-Fi availability |
