| Case: | Metal - Zinc alloy, Waterproof - IK10 |
|---|---|
| Colour: | Graphite |
| Compatibility: | DAHUA |

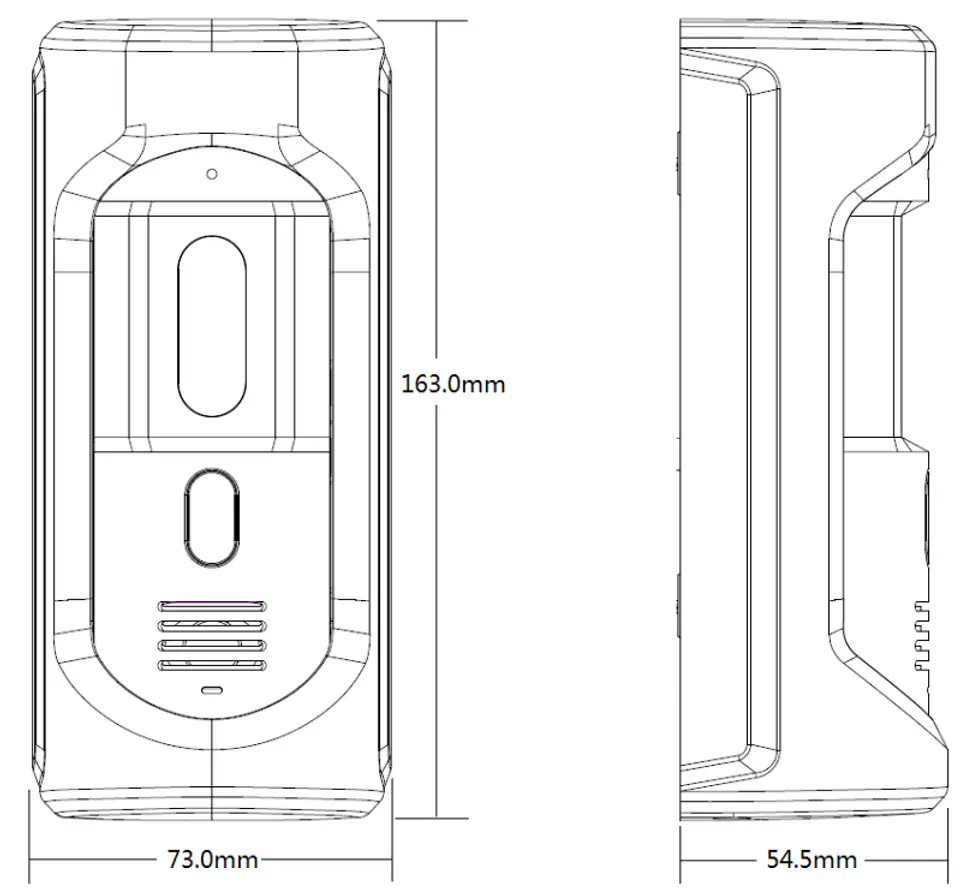

| Dimensions: | 73 x 163 x 55 mm |
| Image compression method: | H.265 / H.264 |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Objective: | 3.6 mm |
| Operating temperature: | -40 °C ... 60 °C |
| Power: | PoE (802.3af), 12 V DC / 1 A, - DAHUA |
| Power consumption: | ≤ 5 W (operating)≤ 2.5 W (standby) |
| Producer / brand: | DAHUA |
| Scales: | 0.67 kg |
| Sealing: | IP65 |
| Selected features: | Can work without VTH monitor, only with mobile app Door-opening monitor function, can be performed by smartphone, tablet or internal panel VTH1 / VTH2 / VTH5 Doorbell button, Lock control, Two-way communication, Built-in microphone, Built-in speaker, Noise and echo reduction Tamper detection - detachment from the ground RS-485 interface Alarm inputs - 1 pc Video PUSH notification WDR voice prompt - 120 dB - Wide dynamic range of 2D-DNR, 3D-DNR - Digital noise reduction Day / night mode (color/b&w/auto) ICR - Mechanical IR filter |
| Supported languages: | English |
| Transducer: | 1/2.8", 2.1 Mpx CMOS |
| Viewing angle: | 80 ° |
| Warranty: | 3 years |
The device works with video intercoms and other panels in the DAHUA IP / SIP standard
The intercom requires a SIP server, but it can be a SIP server for itselfo setting up a SIP server, the P2P option is available in the web panelIt is required to use a special firmware version in VTH monitors
REMARK! The device does not work with the Dahua analog system
