VOLTAGE TESTER WITH DISPLAY 112

Manufacturer part number: 112
ETIM classification code: EC000494
Display: Yes,
Voltage range (AC), max.: 690V
Voltage range (AC), min.: 12V
Voltage range (DC), max.: 690V
Voltage range (DC), min.: 12V
Optical Circuit Continuity Test: Yes
Width: 56mm
Battery Quantity: 2pcs
Battery size: AAA (1.5 V)
Thickness: 20mm
Length: 260mm



Voltage tester and circuit continuity tester with acoustic signaling. It allows you to distinguish between phase and zero wire in single-phase installations. Phase sequence test to control the direction of rotation of 3-phase motors. Control of the operation of residual current circuit breakers. Indicates the polarity + or - for DC measurements. It has a built-in flashlight. One-handed holding when inspecting wall sockets. Automatic on and off. Supplied with tip cap, batteries and user manual. INSULATION CAT IV 600 V according to IEC 61010. Waterproof according to IP 65. 110. 7-stage voltage indication on LEDs 12-24-50-120-230-400-690 V. 112. The actual voltage value shown on the display, plus THE LEDs.


**

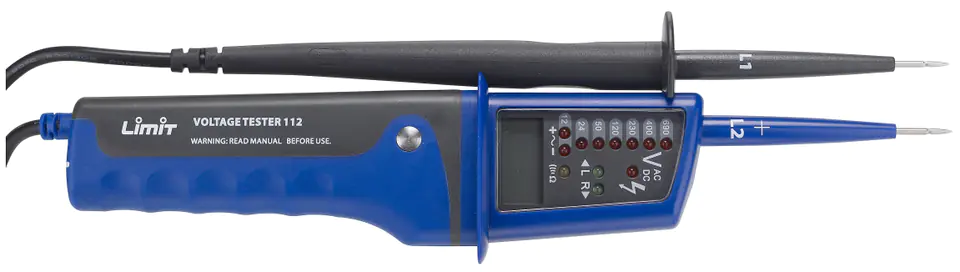

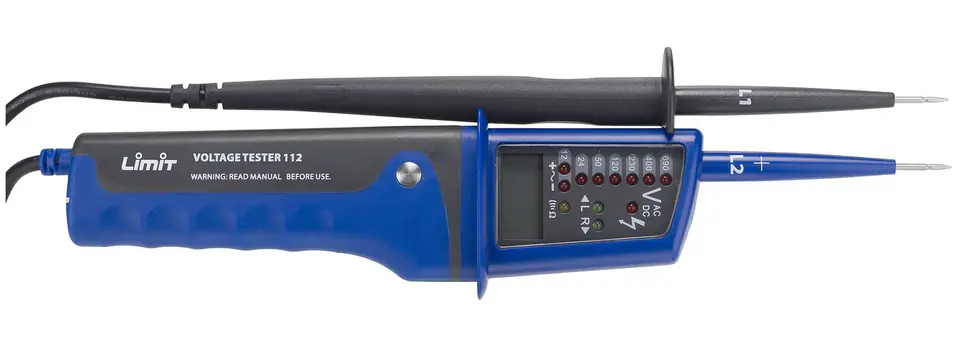

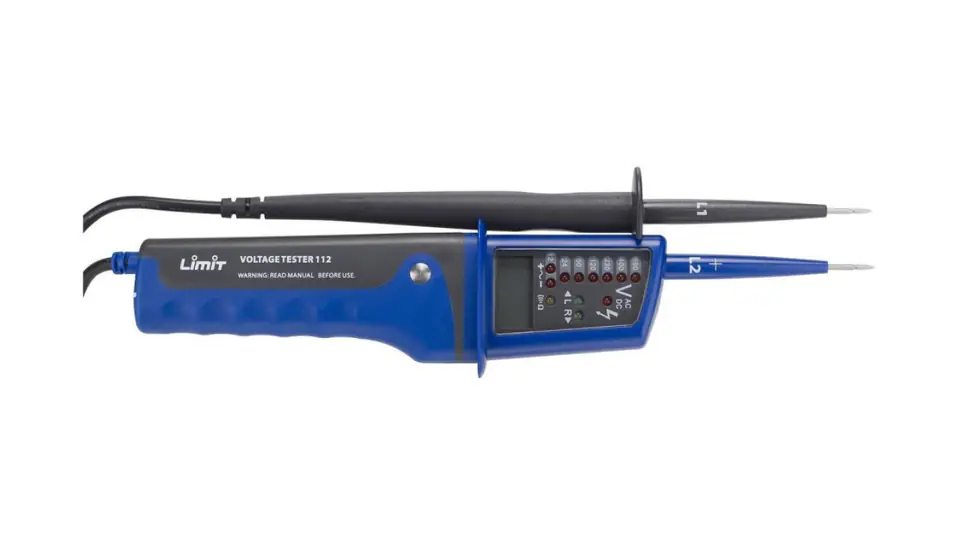

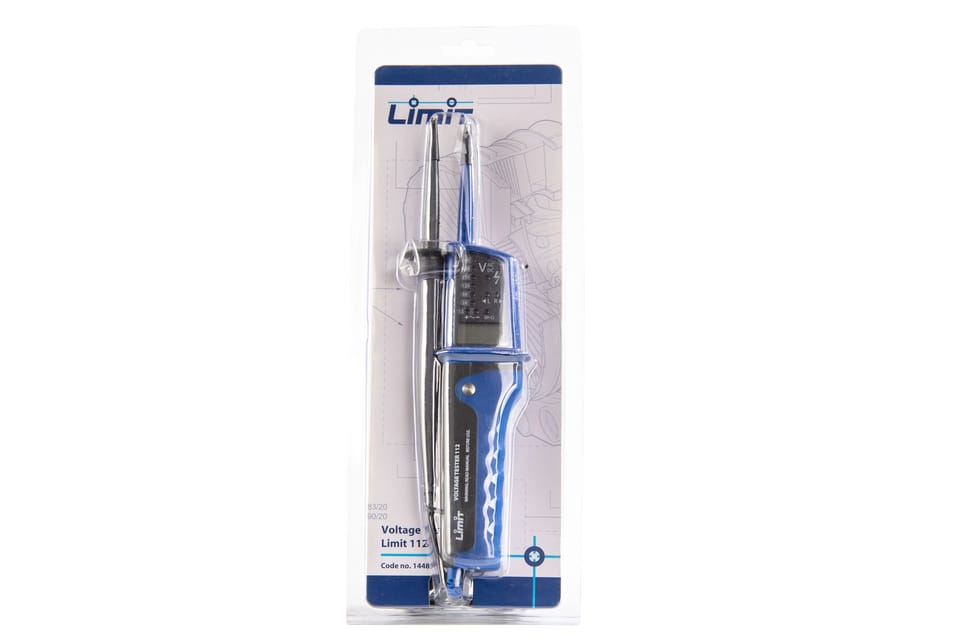

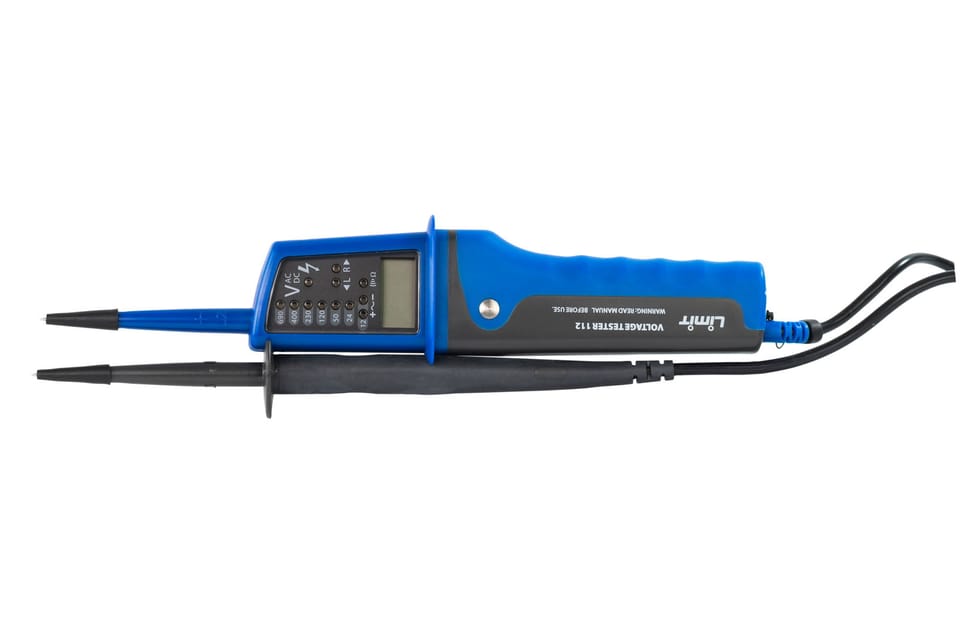

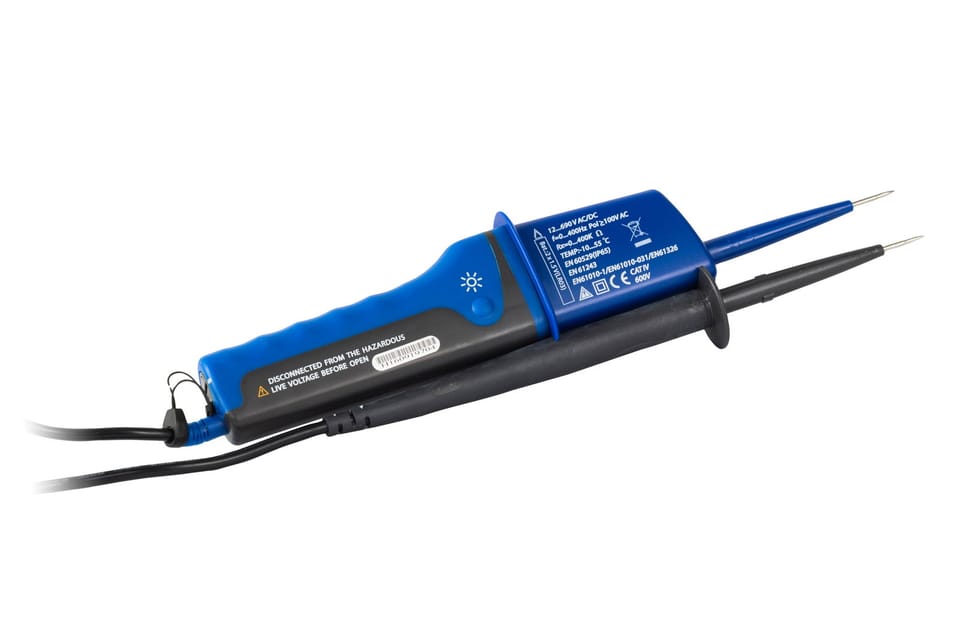

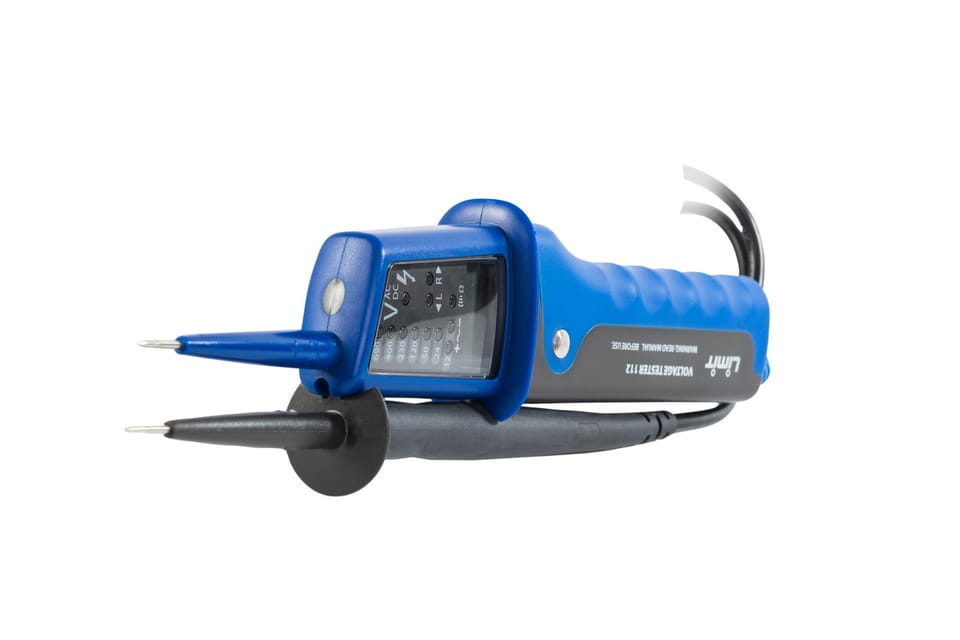

Illustrative photo.
