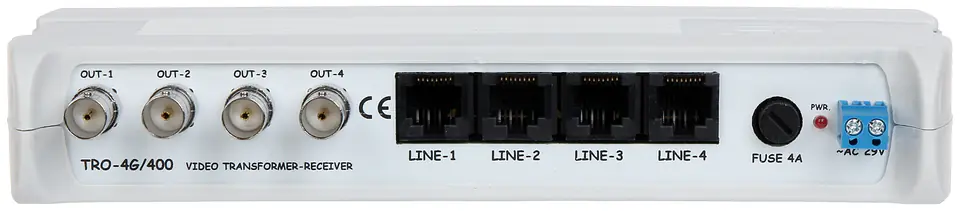

VIDEO TRANSFORMER TRO-4G/400

€32.95

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: TRO-4G/400 / 5902887039157

Specification

Attenuation::	4.43 MHz @ 0.73 dB 11 MHz @ 1.24 dB 21 MHz @ 2.16 dB 38 MHz @ 3.35 dB 42 MHz @ 3.54 dB 67.5 MHz @ 3.72 dB
Connector type::	4 x BNC Video JackDC Cable Connectors
Device type::	Active / Receiver
Dimensions::	213 x 36 x 93 mm
I/o voltage 75ω (cvbs)::	1 Vpp
Impedance of the balanced connector::	100 Ω
Input voltage::	Max. 29 V AC / 2 A
Manufacturer / brand::	DELTA
Number of channels::	4 DC Video4
Operating temperature::	-50 °C ... 55 °C
Output voltage::	Max. 40 VDC / 2 A
Permissible relative humidity::	< 95 %
Power supply range::	Power supply 24 V55 m @ 2 x 750 mA + 190 m @ 2 x 500 mA130 m @ 1 x 750 mA + 720 m @ 3 x 250 mA720 m @ 4 x 250 mA Power supply 29 V420 m @ 4 x 750 mA440 m @ 3 x 750 mA + 1200 m @ 1 x 250 mA480 m @ 2 x 750 mA + 1400 m @ 2 x 250 mA480 m @ 1 x 750 mA + 1500 m @ 3 x 250 mA1700 m @ 4 x 250 m has
Scales::	0.250 kg
Selected features::	Time-lag fuse 5 x 20 2 A / 250 V
Standard::	AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC

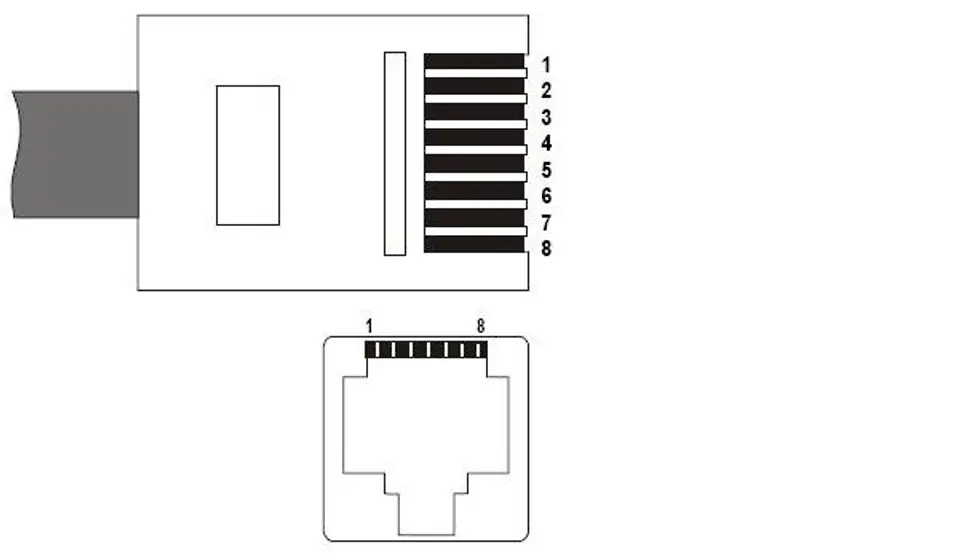

Symmetrical connector type::	4 x RJ-45 (8-pin, 4 pairs) Socket
Video coverage::	250 m @ 720p - UTP cat. 5e 150 m @ 1080p - UTP cat. 5e 400 m @ CVBS - PAL / NTSC - UTP cat. 5e
Warranty::	3 years

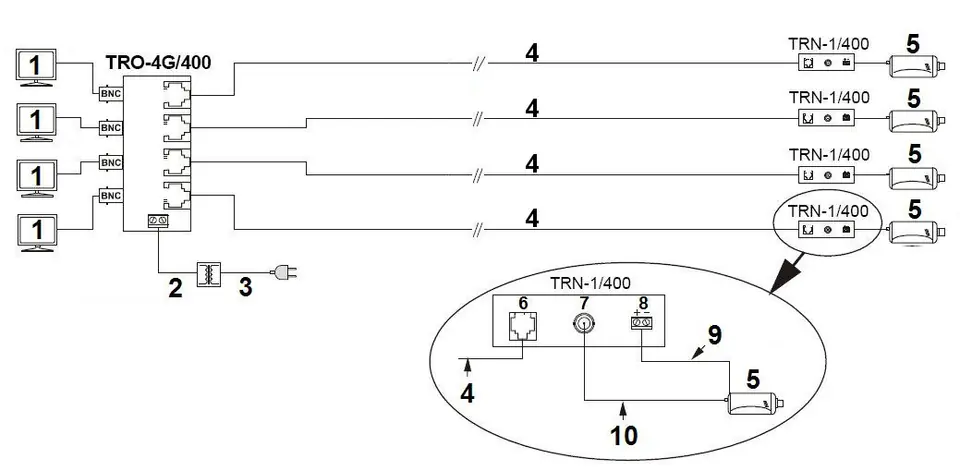

TRO-4G/400 is designed for DC power supply and reception of video signals from 4 TRN-1/400 devices (video transformers - transmitters), using twisted pair cable (UTP, FTP) for a distance of up to 400 metersThe signal from the camera led to the input of the TRN-1/400 transmitter, is sent to the TRO-4G/400 receiver via twisted pair cable. In the transmitter and receiver, the impedance of the 75Ω coaxial cable is adjusted to the impedance of the symmetrical cable, which ensures video transmission up to 400 meters.

The TRO-4G/400 receiver allows unstabilized DC voltage (up to a maximum of 40V DC) into the twisted pair cable, which in the TRN-1/400 transmitter is stabilized to 12V DC, allowing to power cameras with a thermostat

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
